Toyota Hilux
1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe
Discontinued model
Data version 2006-02

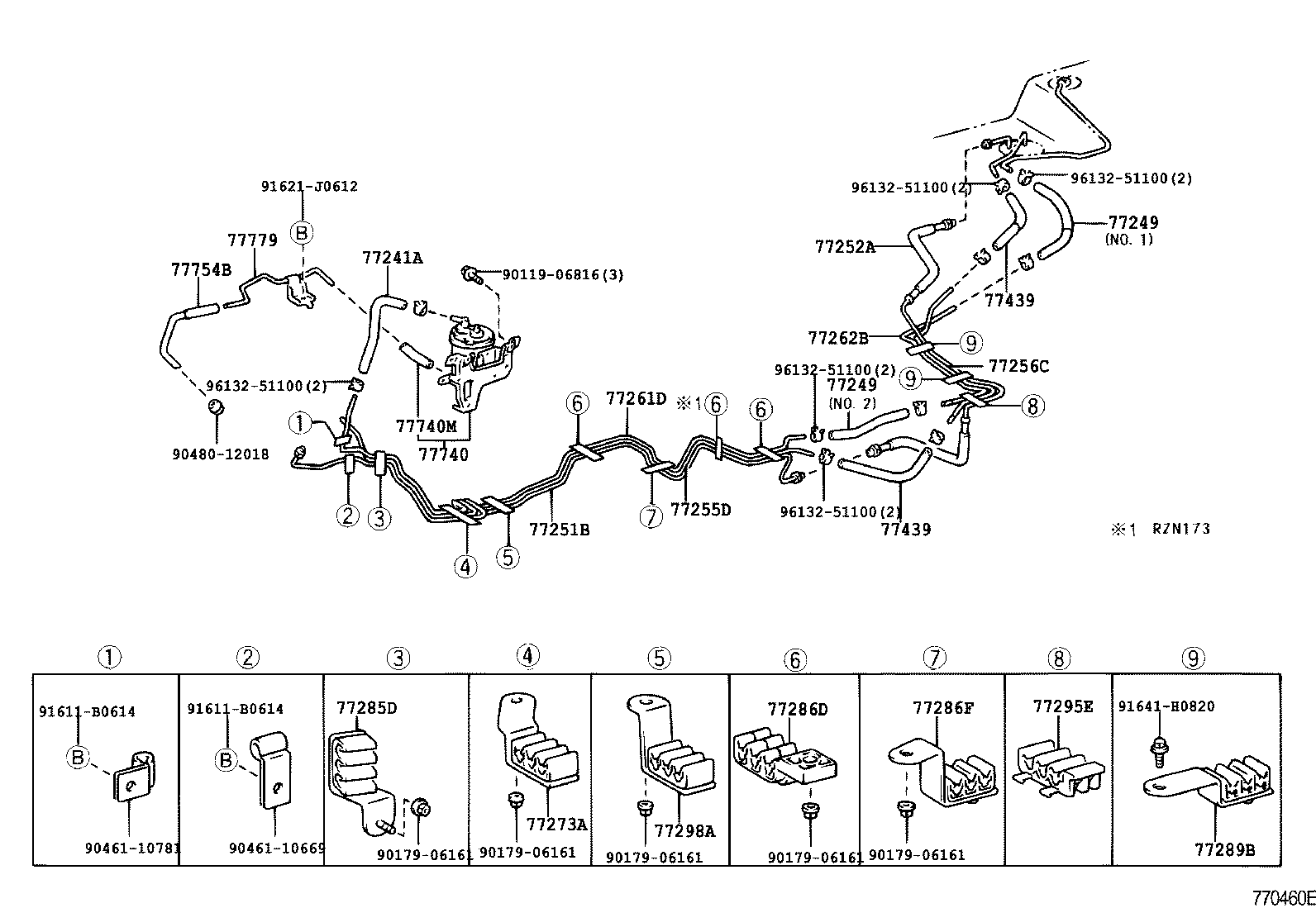

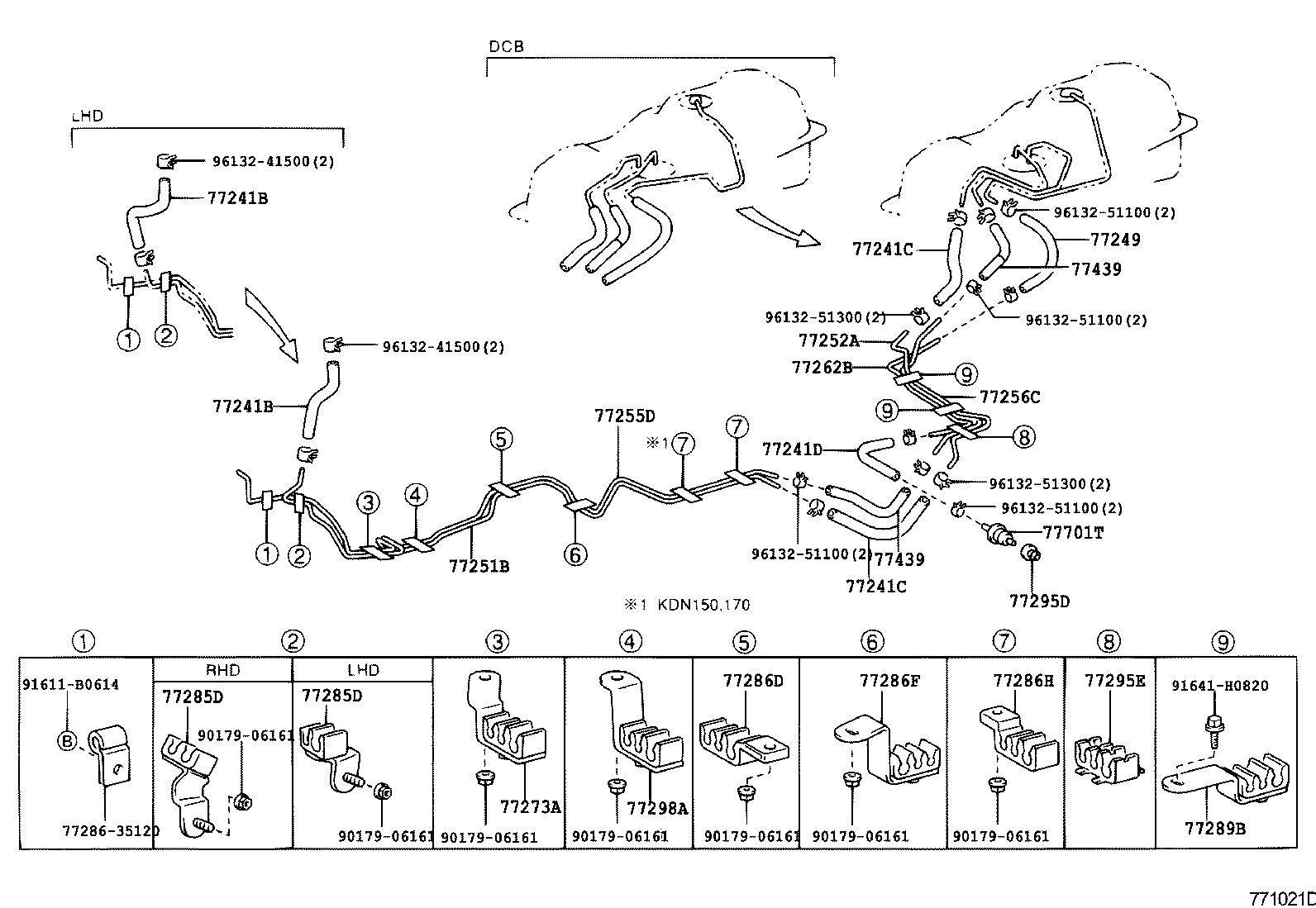

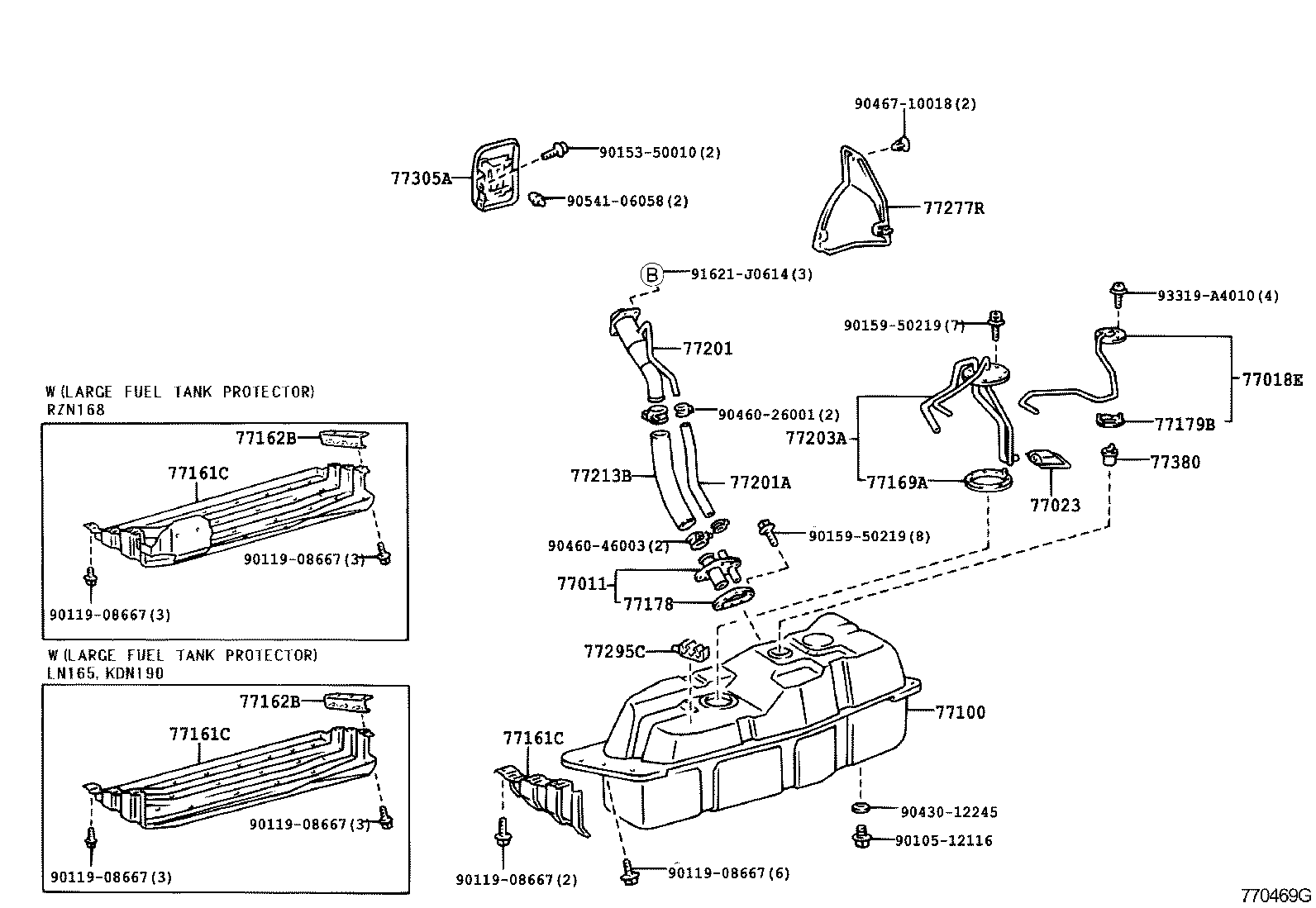

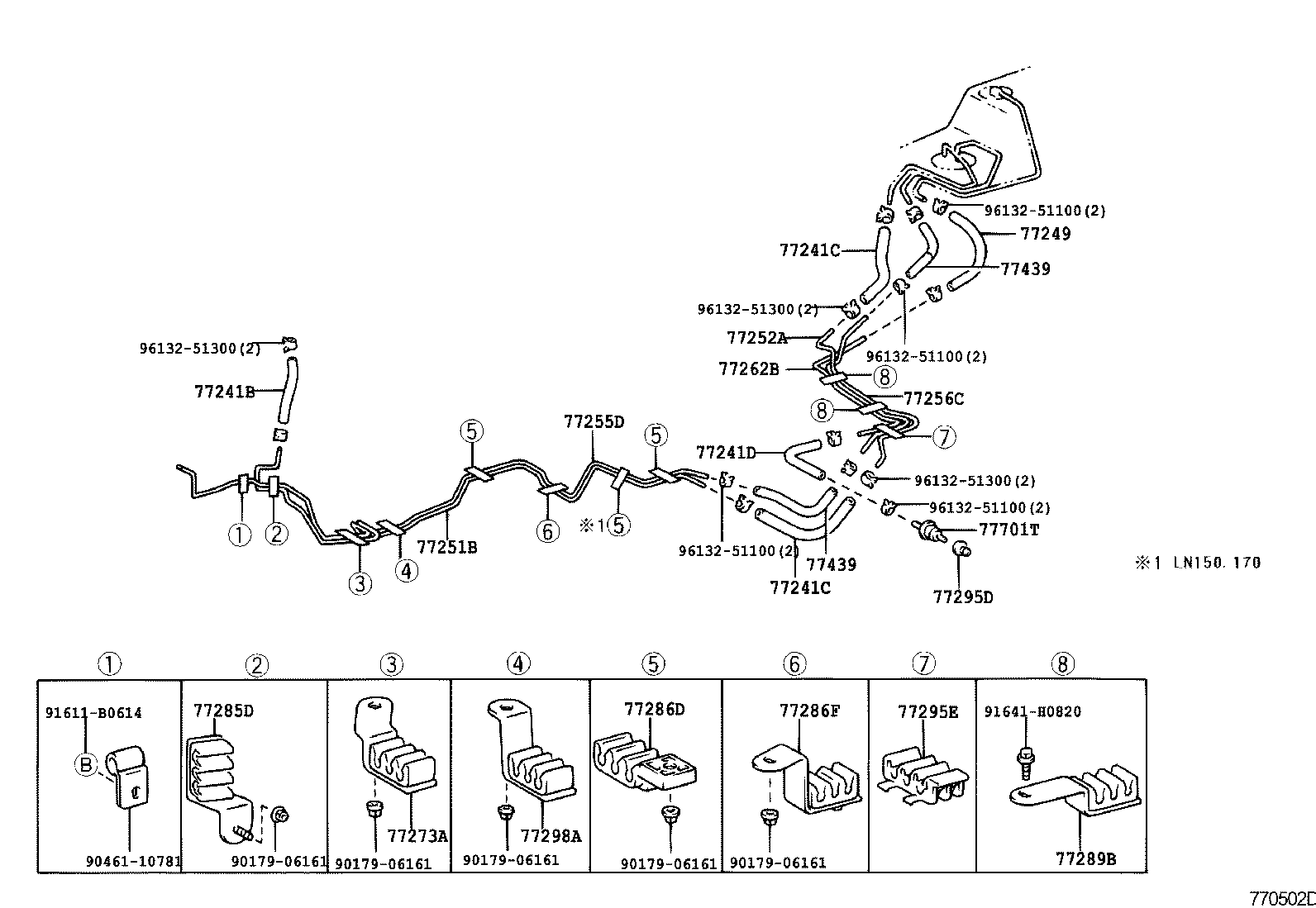

Fuel Tank & Tube
48 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77018E | Tube Sub-assy, Fuel Tank Evaporation Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77100 | Tank Assy, Fuel |
| 77131 | Bracket, Fuel Tank Filler Pipe Support |
| 77161C | Protector, Fuel Tank, Lower |
| 77162B | Bracket, Fuel Tank Rear Protector |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179B | Gasket, Fuel Tank Evaporation Vent Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77241C | Hose, Fuel, NO.3 (FOR MAIN TUBE, NO.1) |
| 77241D | Hose, Fuel, NO.4 (FOR MAIN TUBE, NO.1) |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77252A | Tube, Fuel Main, NO.2 |
| 77255D | Tube, Fuel Return |
| 77256C | Tube, Fuel Return, NO.2 |
| 77261D | Tube, Fuel Tank TO Canister |
| 77262B | Tube, Fuel Tank TO Canister, NO.2 |
| 77273A | Clamp, Fuel Tube W/Grommet, NO.6 |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77292A | Stay, Fuel Tank Fillar Upper Pipe |
| 77295C | Grommet, Fuel Tube |
| 77295D | Grommet, Fuel Tube |
| 77295E | Grommet, Fuel Tube |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77305A | Lid Sub-assy, Fuel Filler Opening |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77380 | Valve Assy, Fuel Cut Off |
| 77439 | Hose, Fuel Return |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740M | Hose, Charcoal Canister |
| 77754B | Hose, Charcoal Canister Outlet |
| 77779 | Tube, Charcoal Canister Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
