Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

18 part groups · 3 illustrations

Illustrations

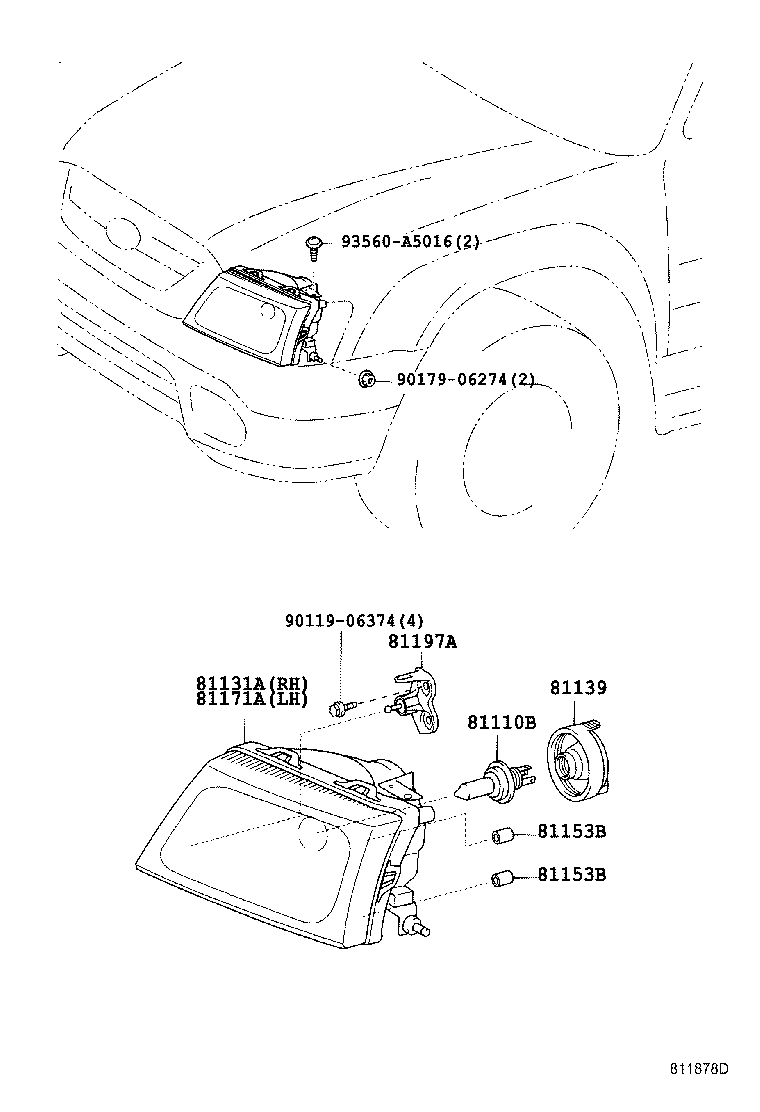

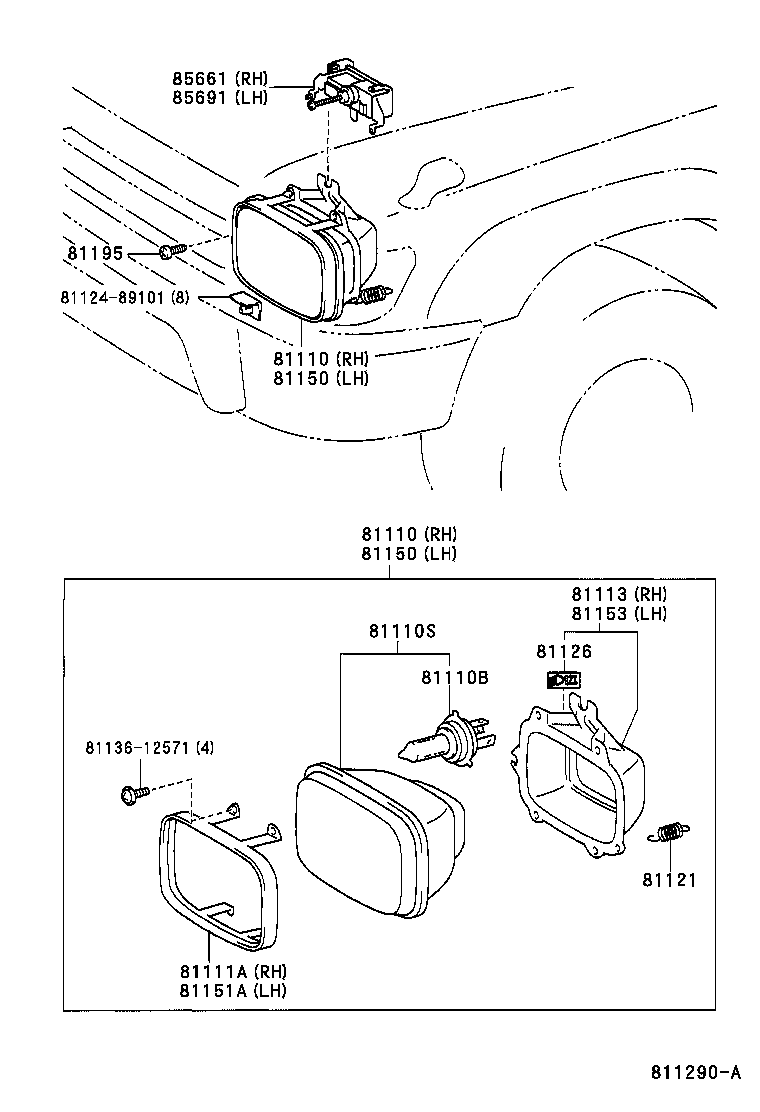

Figure 812095A 812095A 1997-08 → 2001-08 Figure 811290A 811290A 1997-08 → 2001-08 Figure 811878D 811878D 2001-08 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111A Ring, Sealed Beam Retaining, NO.1 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81126 Plate, Headlamp
81131A Unit, Headlamp, RH
81139 Cover, Headlamp Socket
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81153B Bearing, Headlamp
81171A Unit, Headlamp, LH
81195 Screw, Headlamp
81197A Gear, Headlamp Aiming
85661 Motor, Headlamp Leveling, RH
85691 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
