Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 16 illustrations

Illustrations

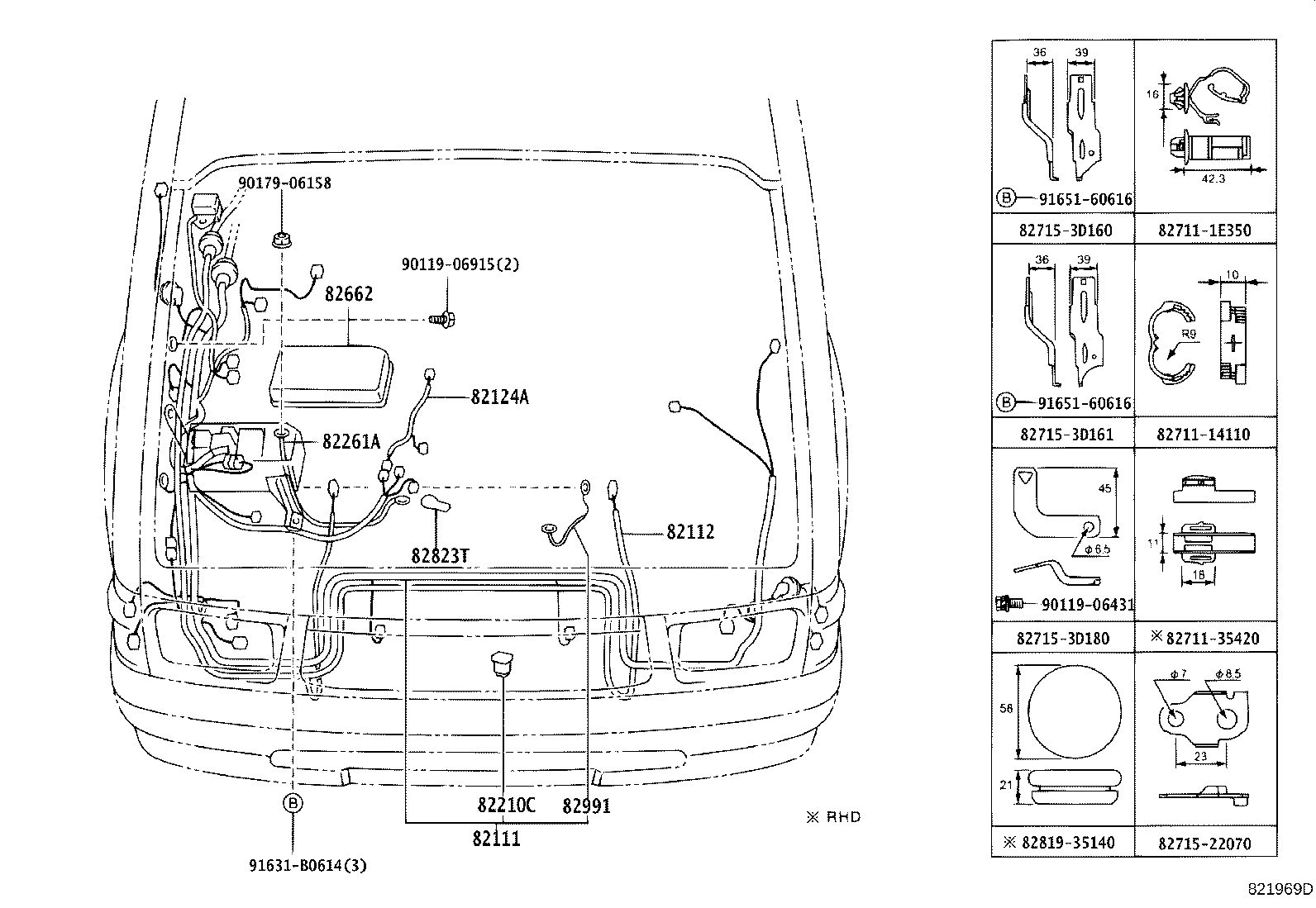

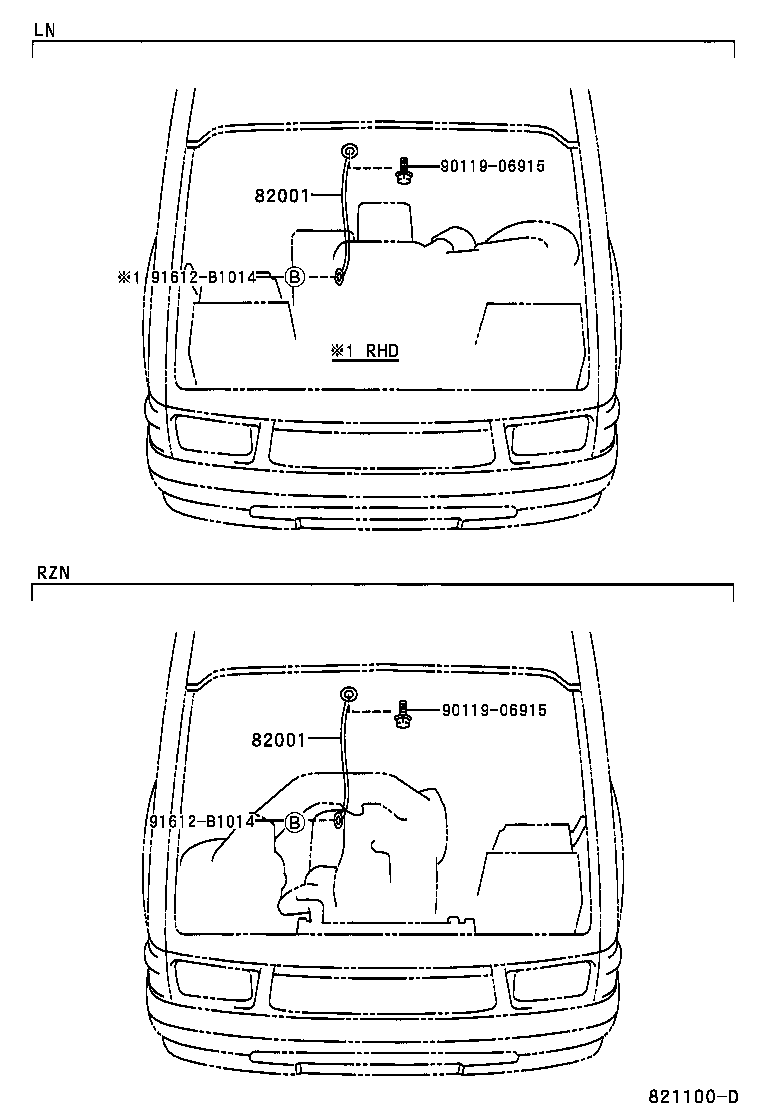

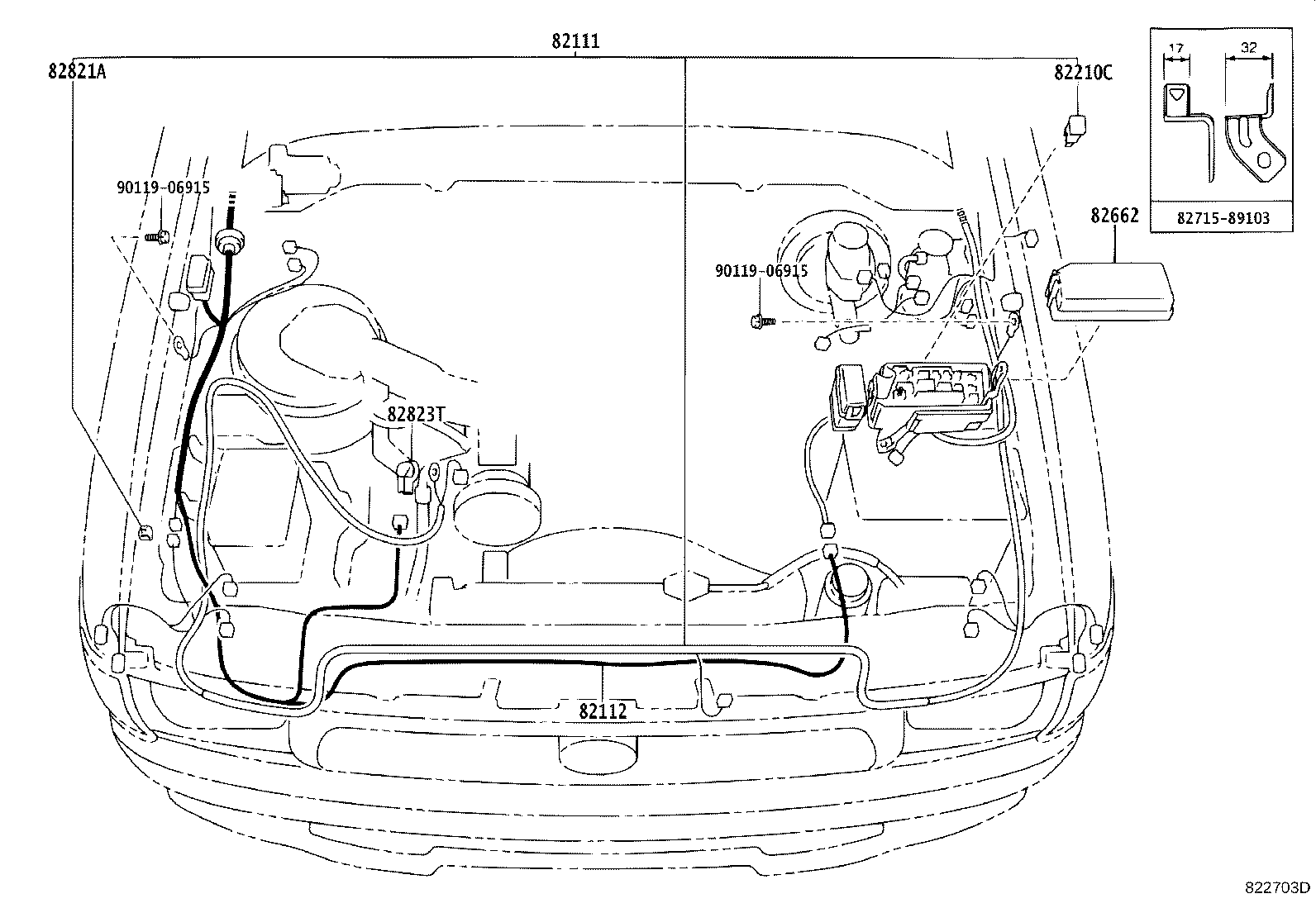

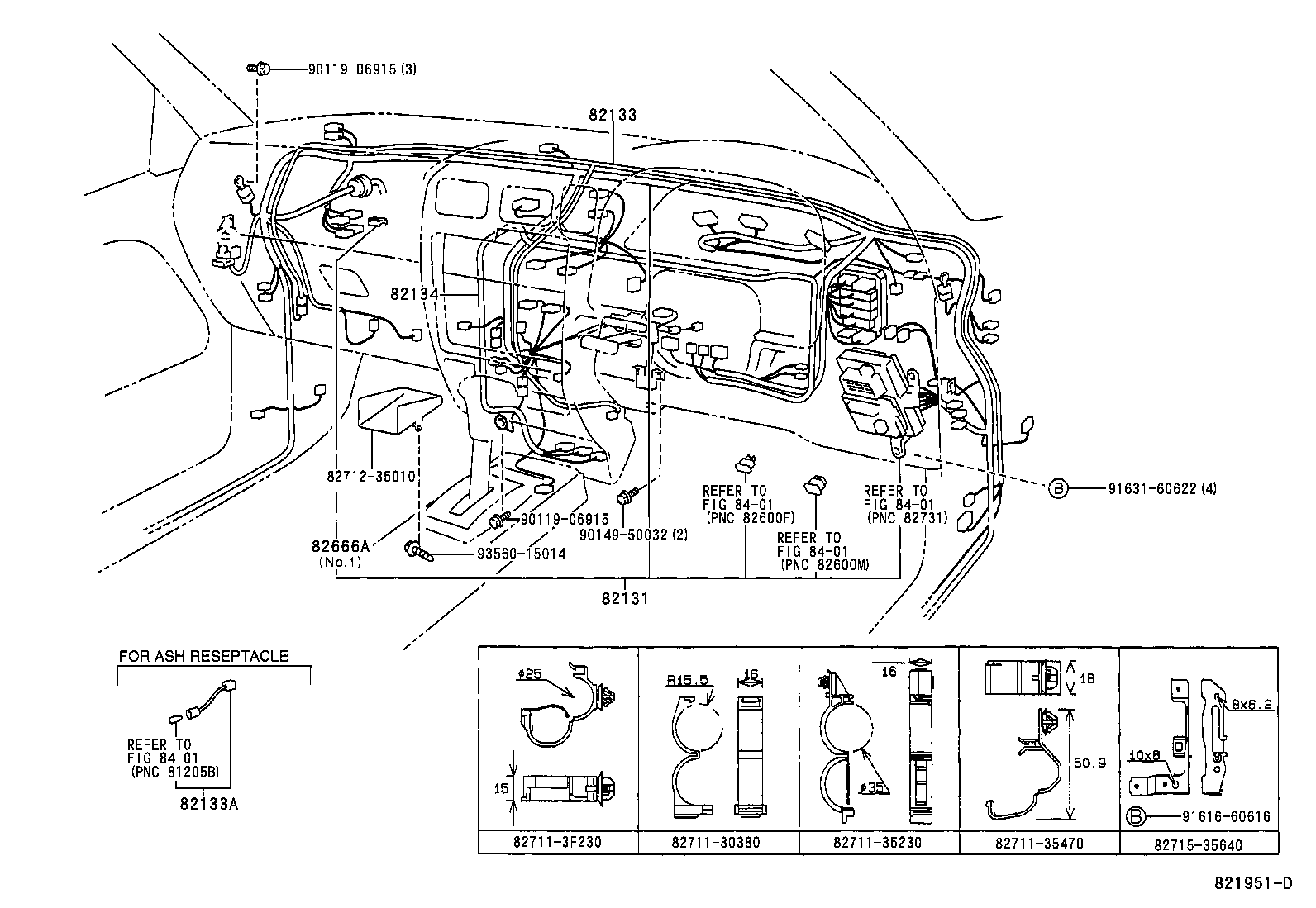

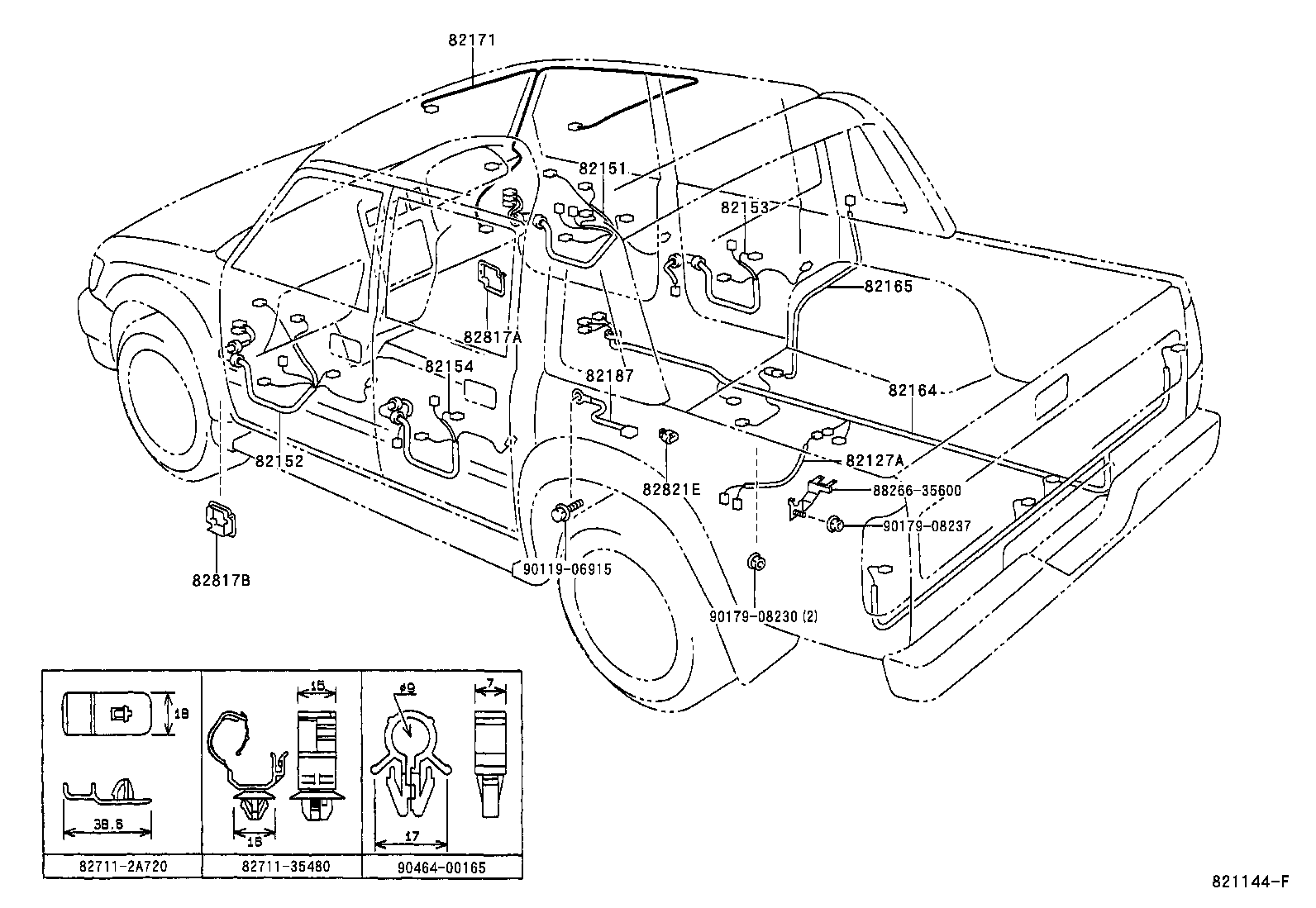

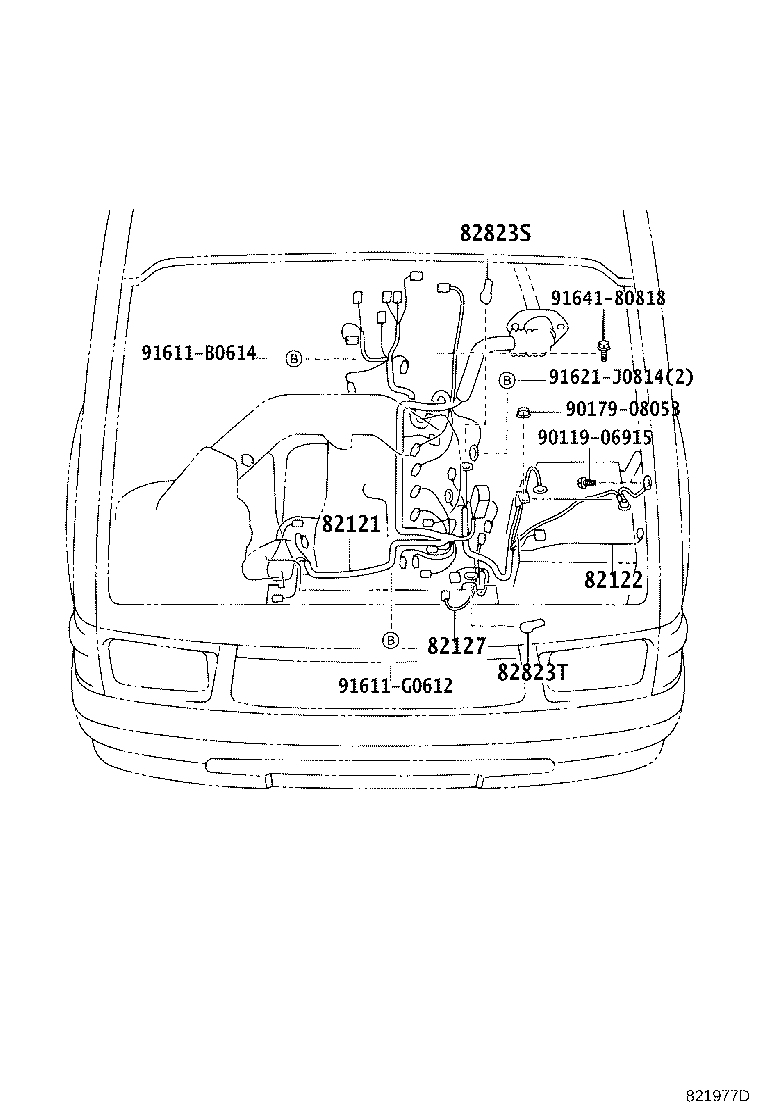

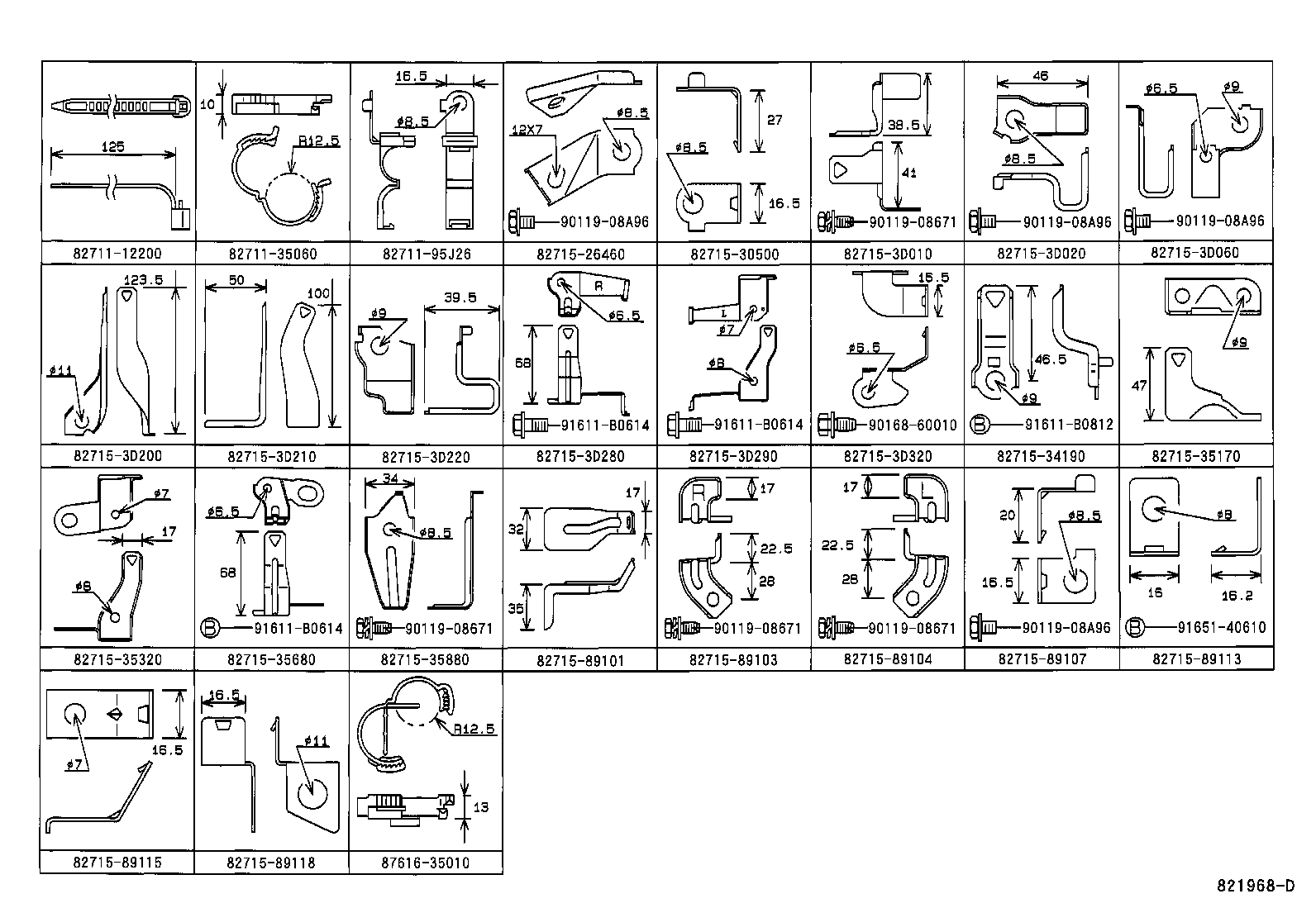

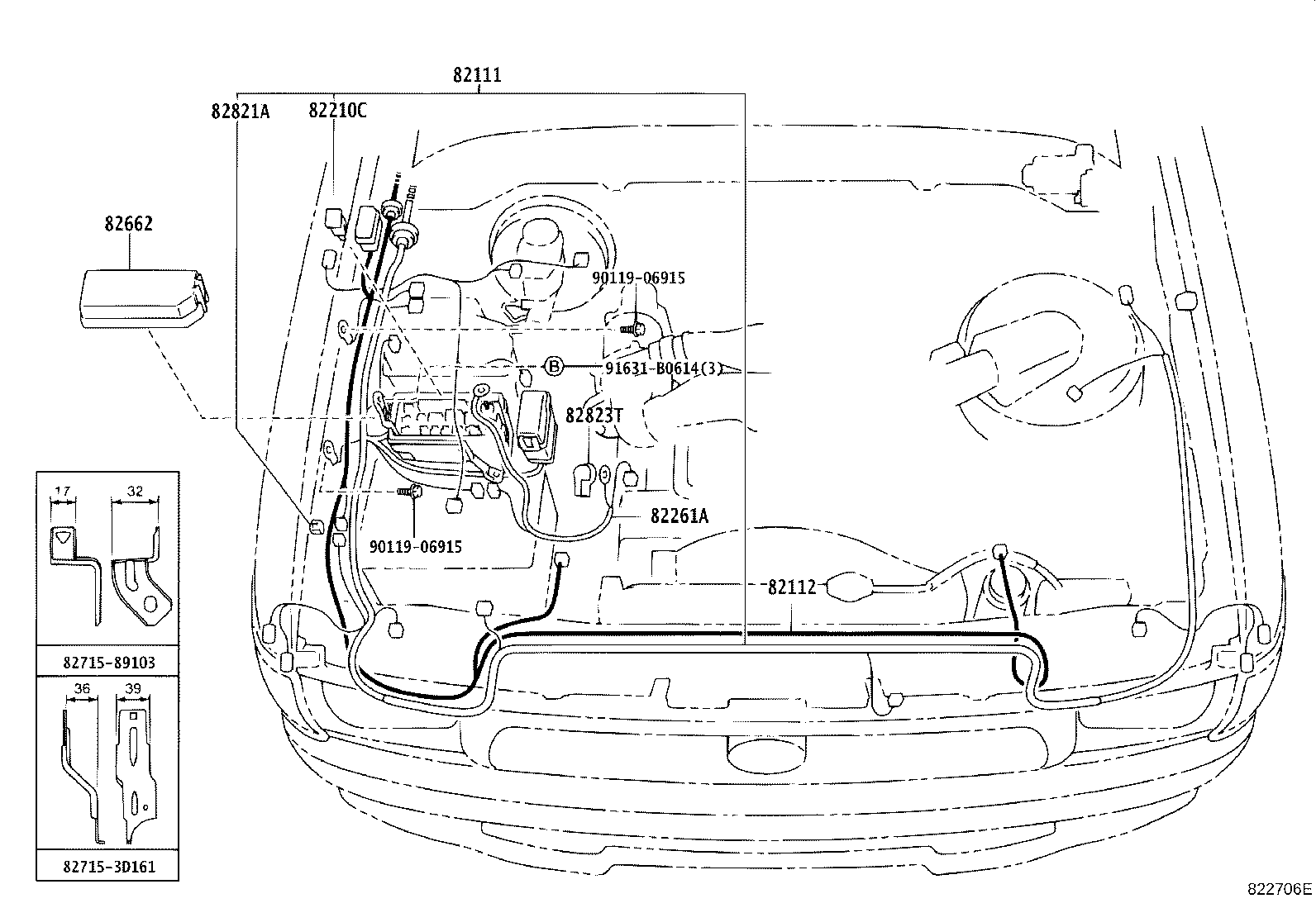

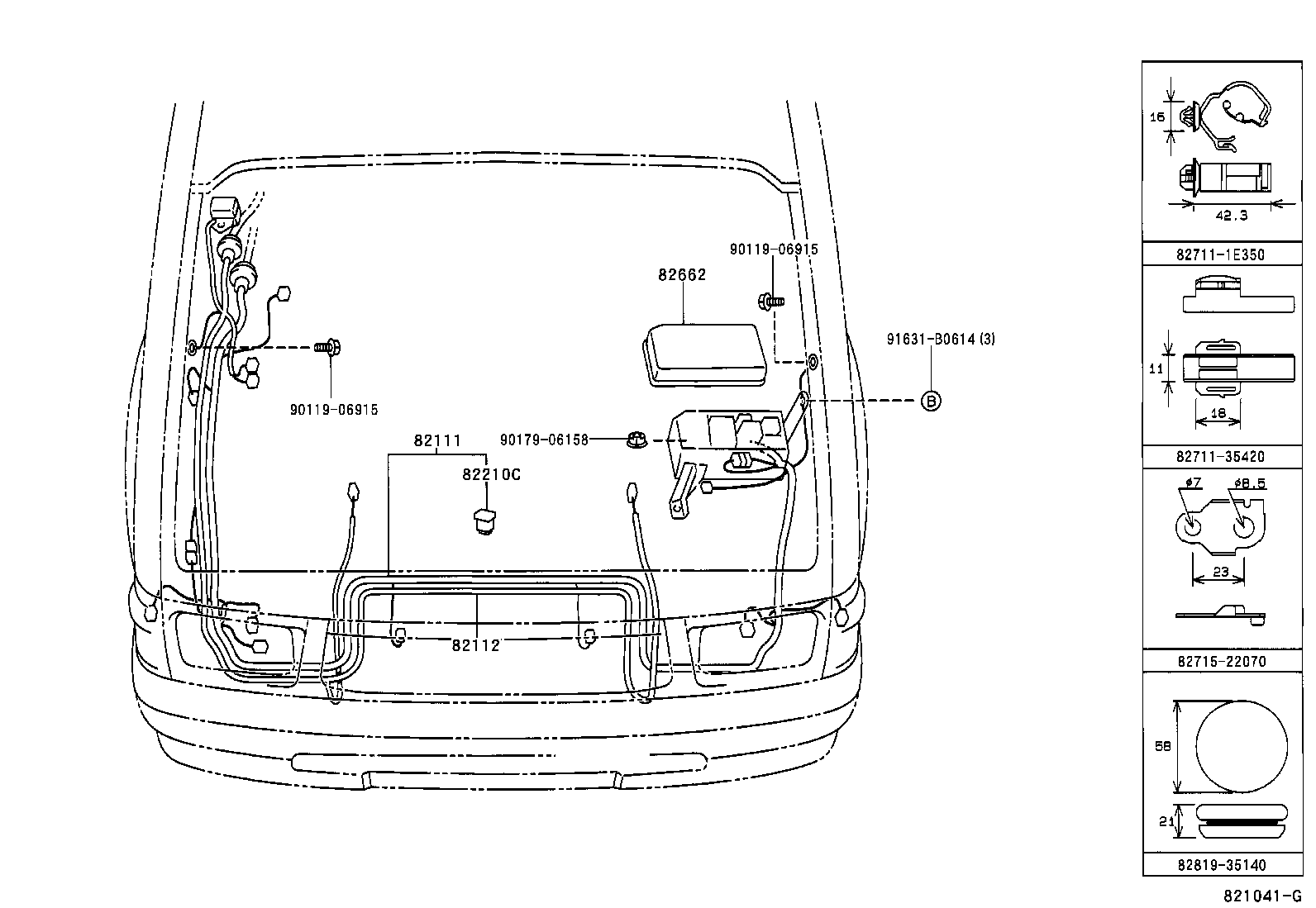

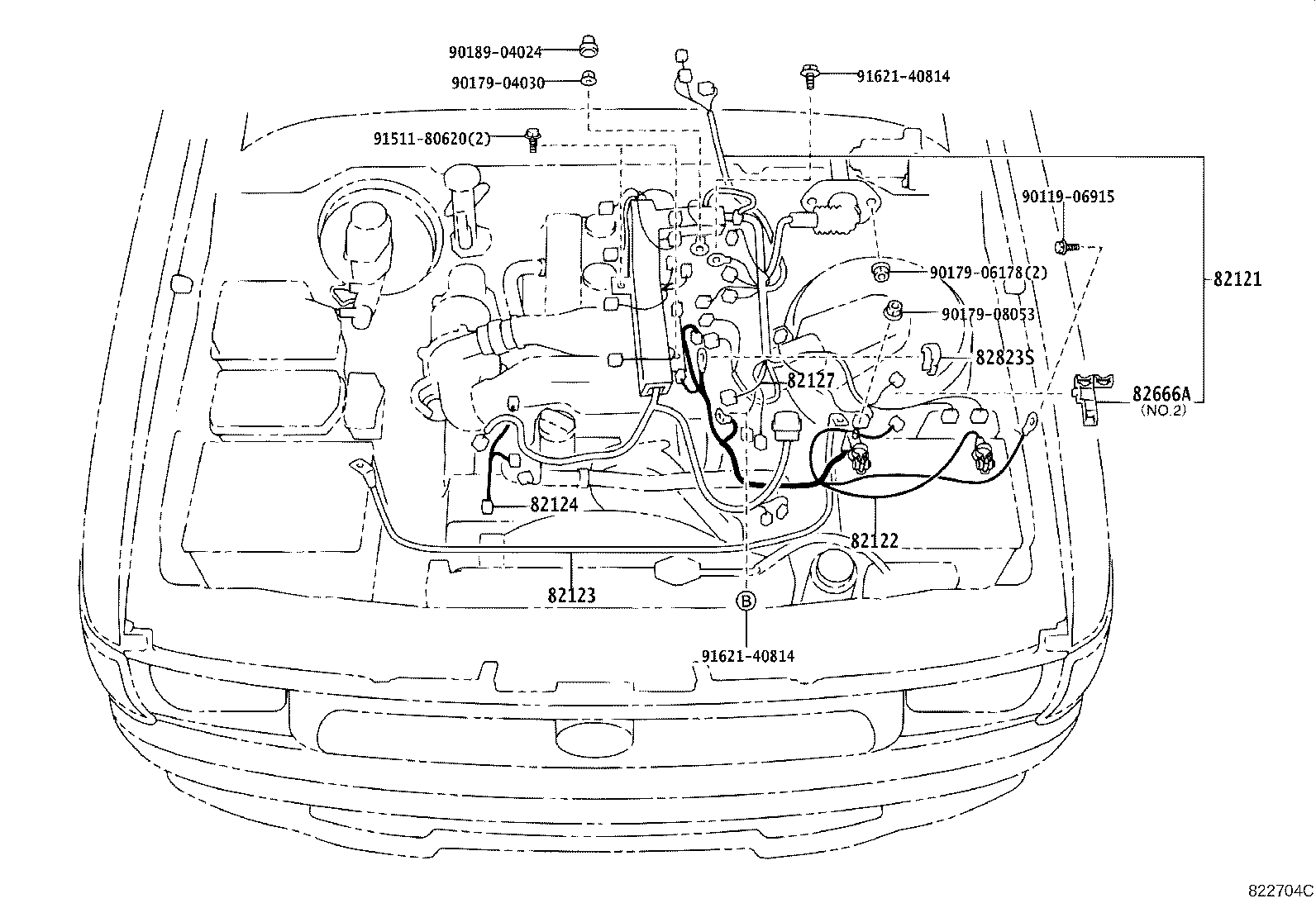

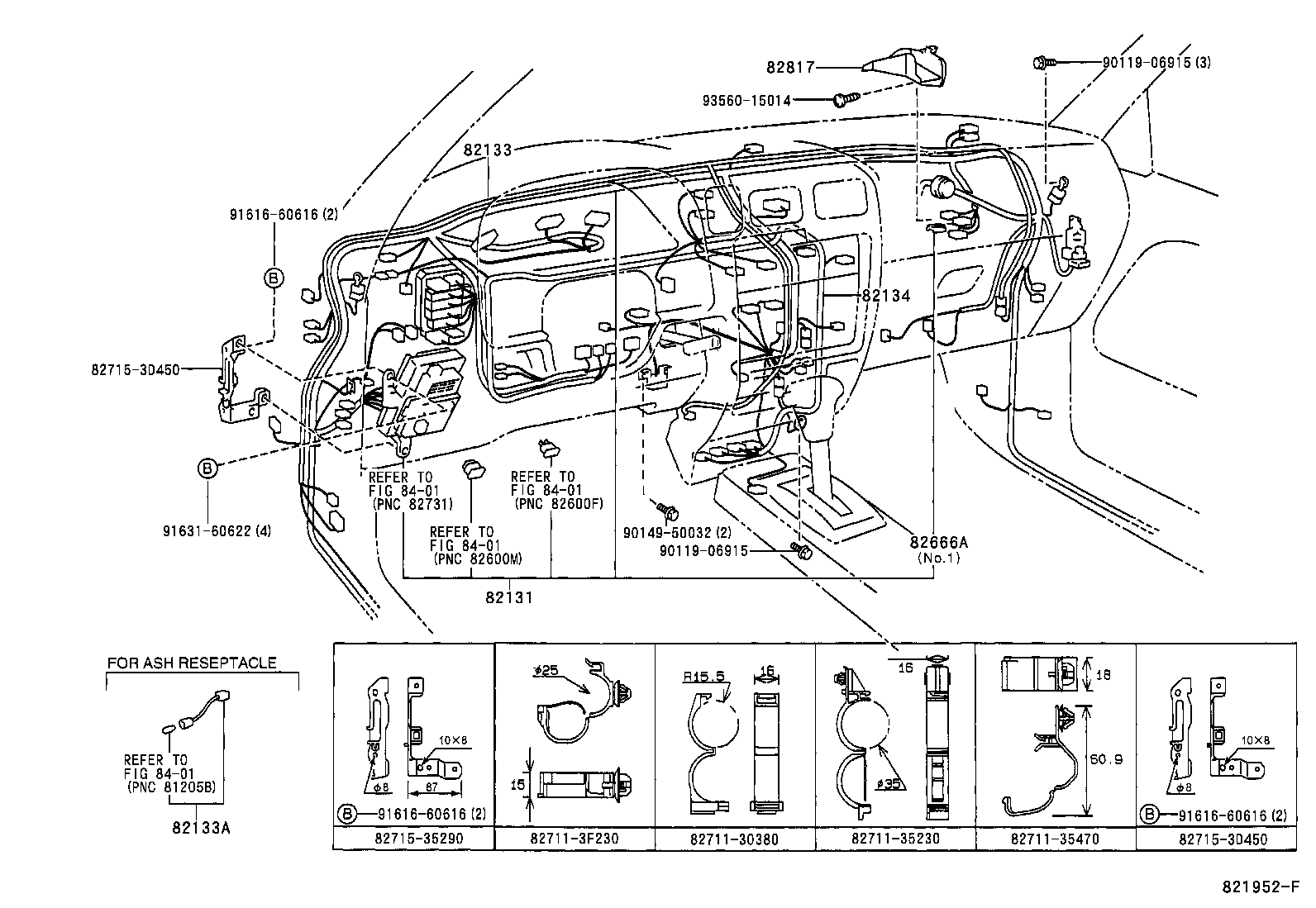

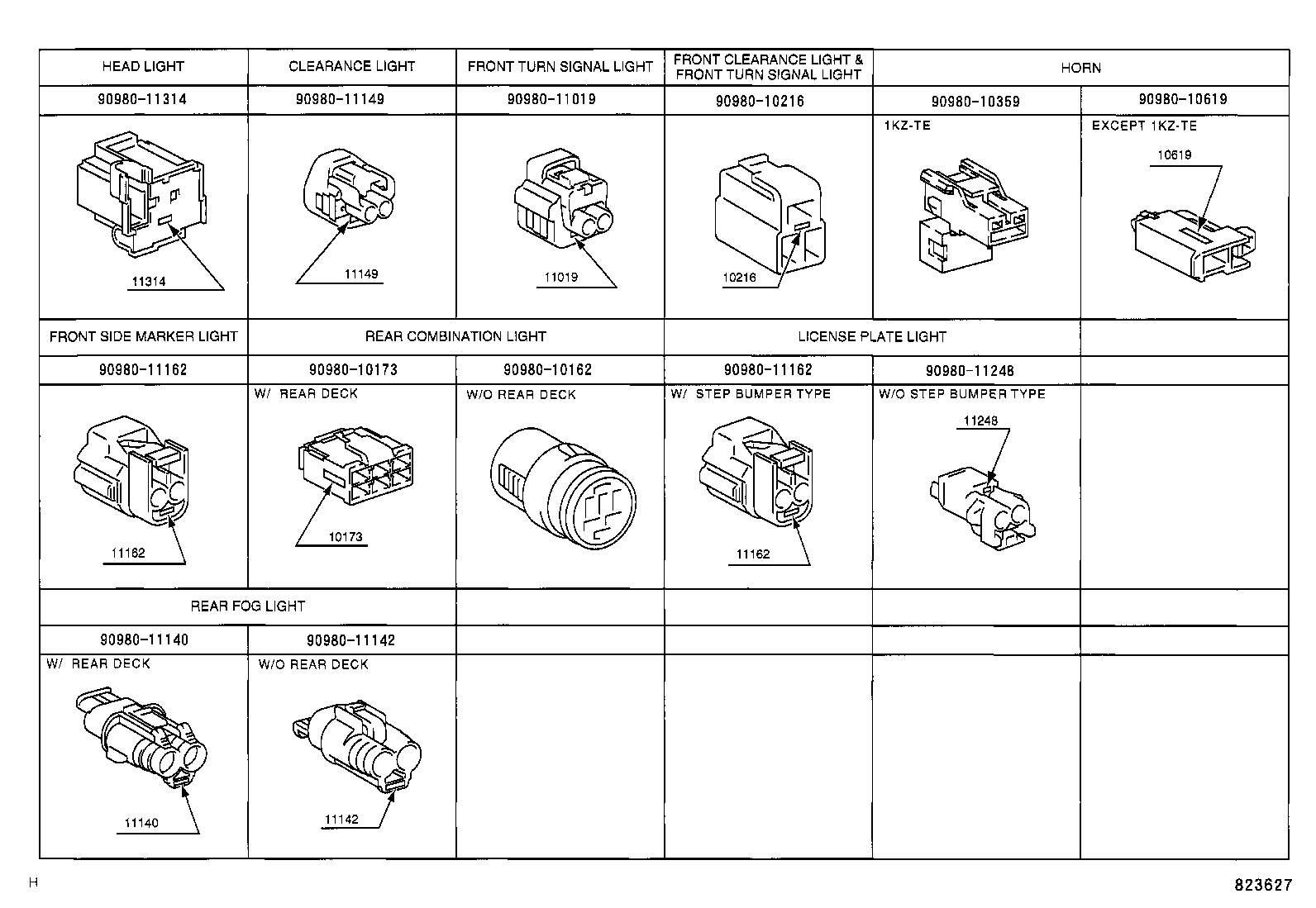

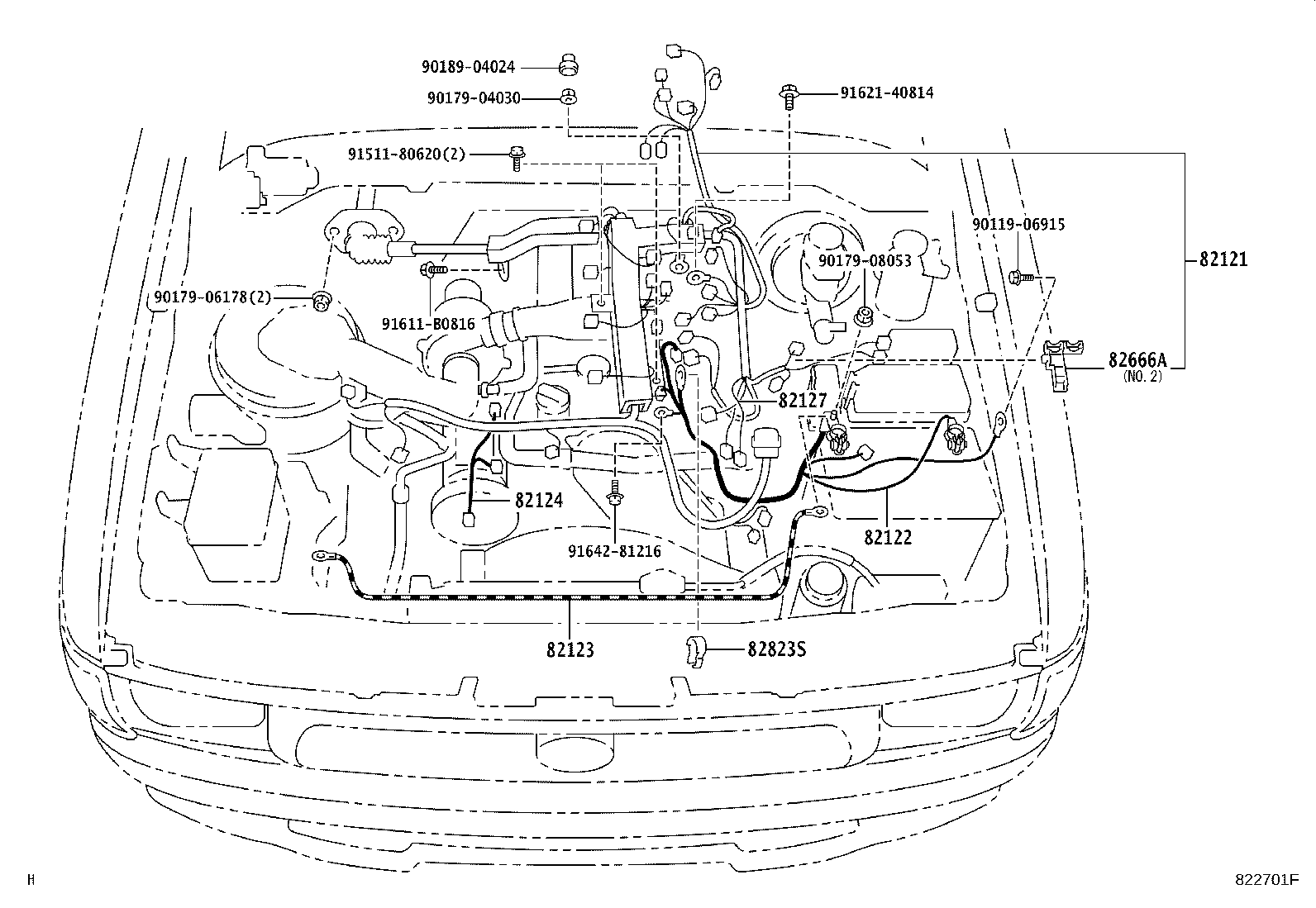

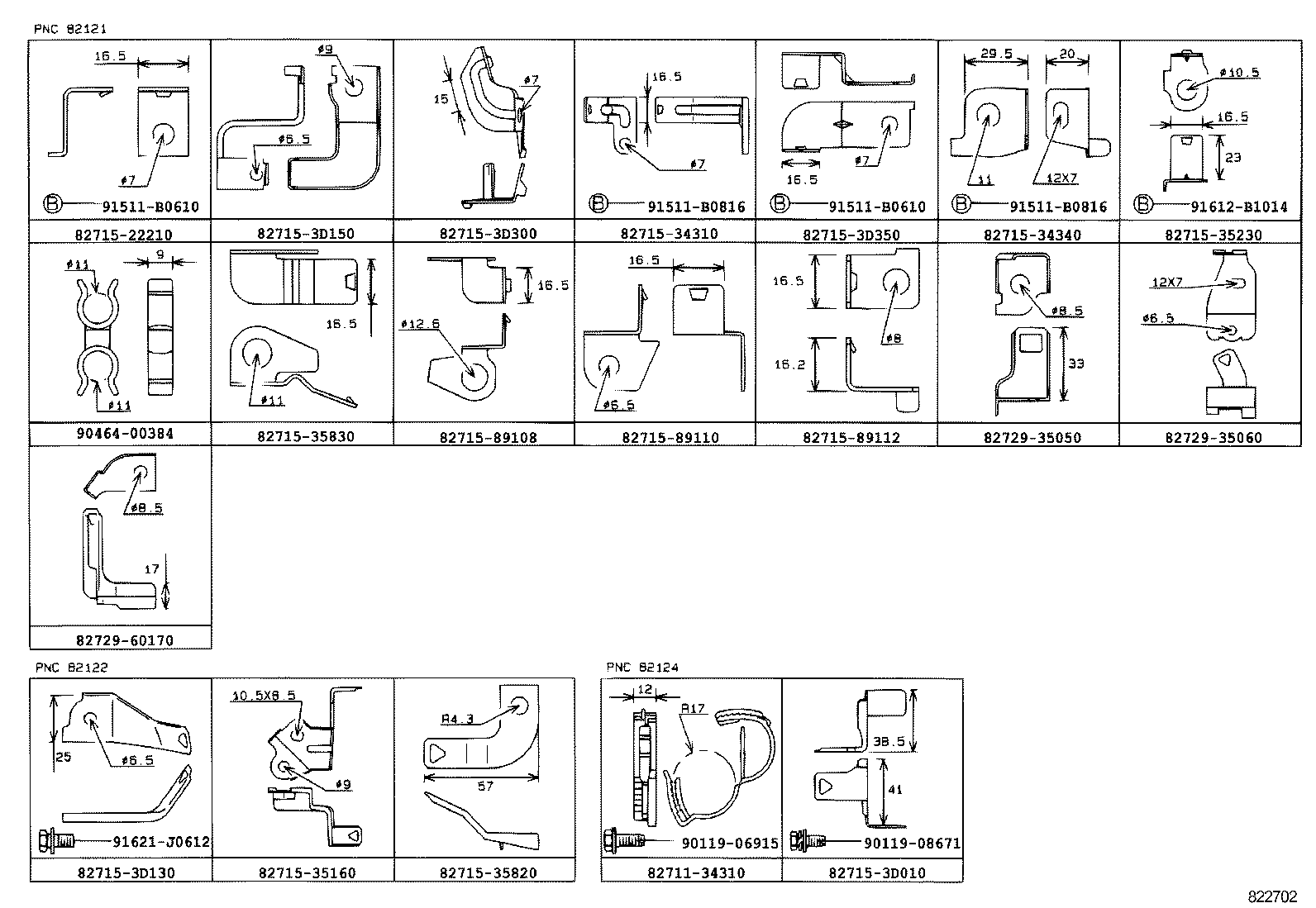

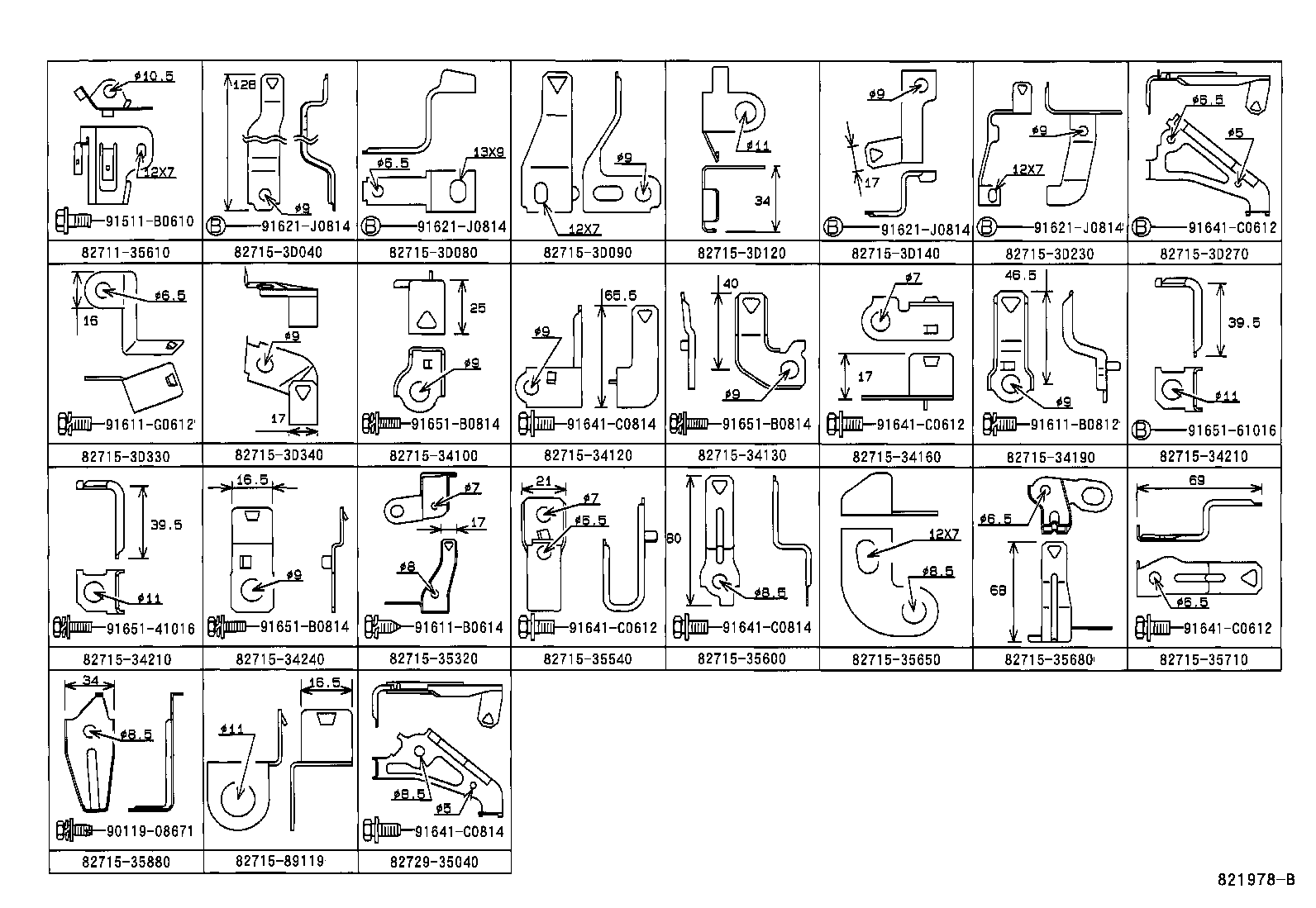

Figure 822464D 822464D 1997-08 → — Figure 821968D 821968D 1997-08 → — Figure 821977D 821977D 1997-08 → — Figure 821978B 821978B 1997-08 → — Figure 822704C 822704C 2001-08 → — Figure 822701F 822701F 2001-08 → — Figure 822702D 822702D 2001-08 → — Figure 821969D 821969D 1997-08 → — Figure 821041G 821041G 1997-08 → — Figure 822706E 822706E 2001-08 → — Figure 822703D 822703D 2001-08 → — Figure 821951D 821951D 1997-08 → — Figure 821952F 821952F 1997-08 → — Figure 821144F 821144F 1997-08 → — Figure 821100D 821100D 1997-08 → — Figure 823627 823627 1997-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82127 Wire, Differential
82127A Wire, Differential (TO WIRE FRAME)
82131 Wire, Cowl
82133 Wire, Cowl, NO.3
82133A Wire, Cowl, NO.3
82134 Wire, Cowl, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82261A Wire, Alternator
82662 Cover, Relay Block, Upper
82666A Holder, Connector NO.2
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82821A Cover, Connector
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
