Toyota Hilux
1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe
Discontinued model
Data version 2006-02
Meter
24 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |

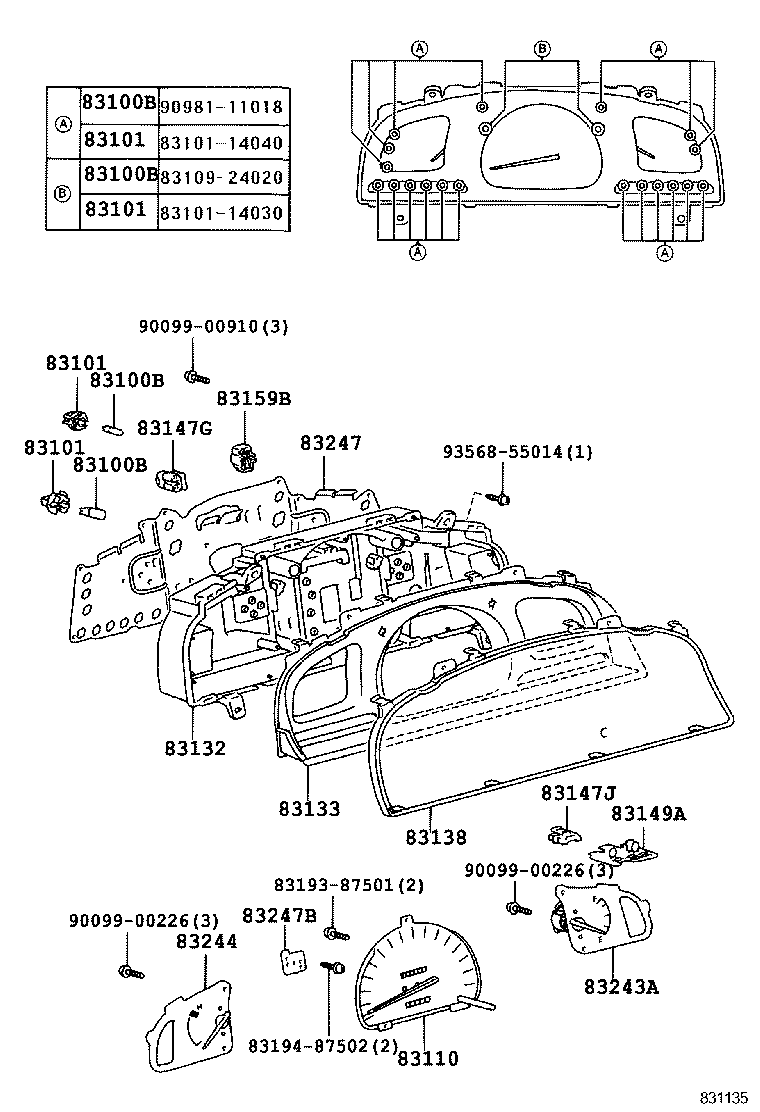

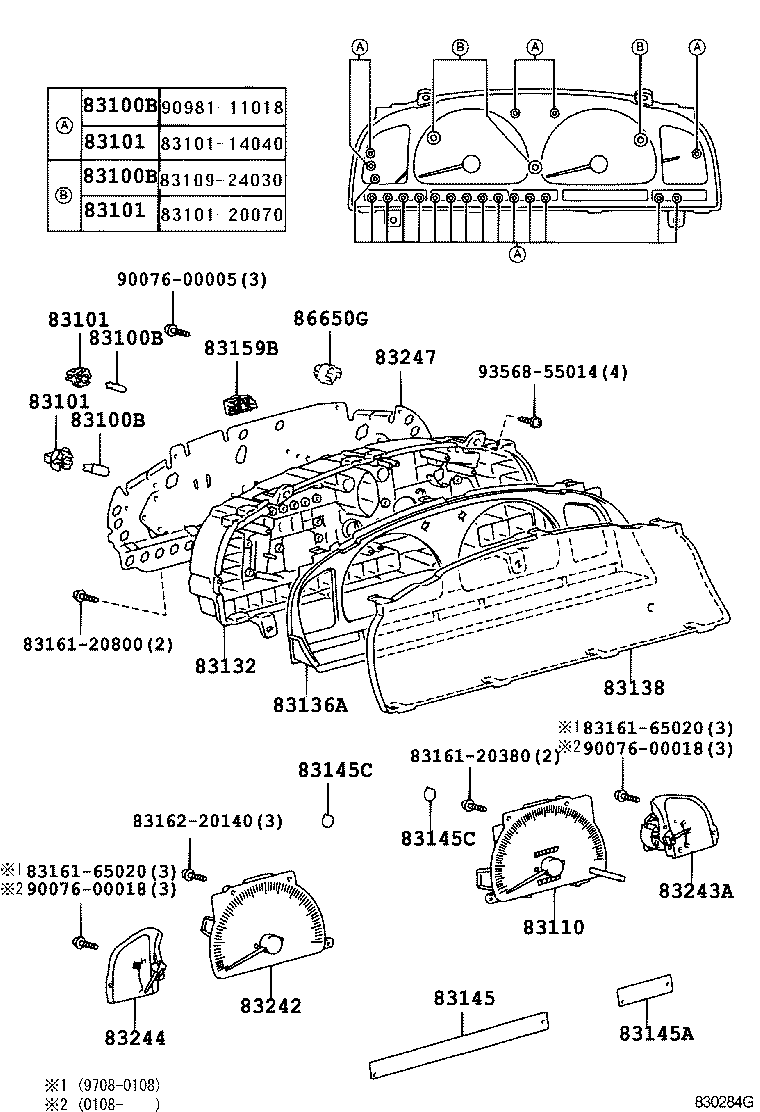

| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83136A | Cover, Combination Meter |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145C | Lens, Meter, NO.4 |
| 83147G | Connector, Combination Meter |
| 83147J | Connector, Combination Meter NO.2 |
| 83149A | Plate, Meter Circuit, NO.2 |
| 83159B | Relay Assy, Meter |
| 83180 | Detector Assy, Revolution |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |

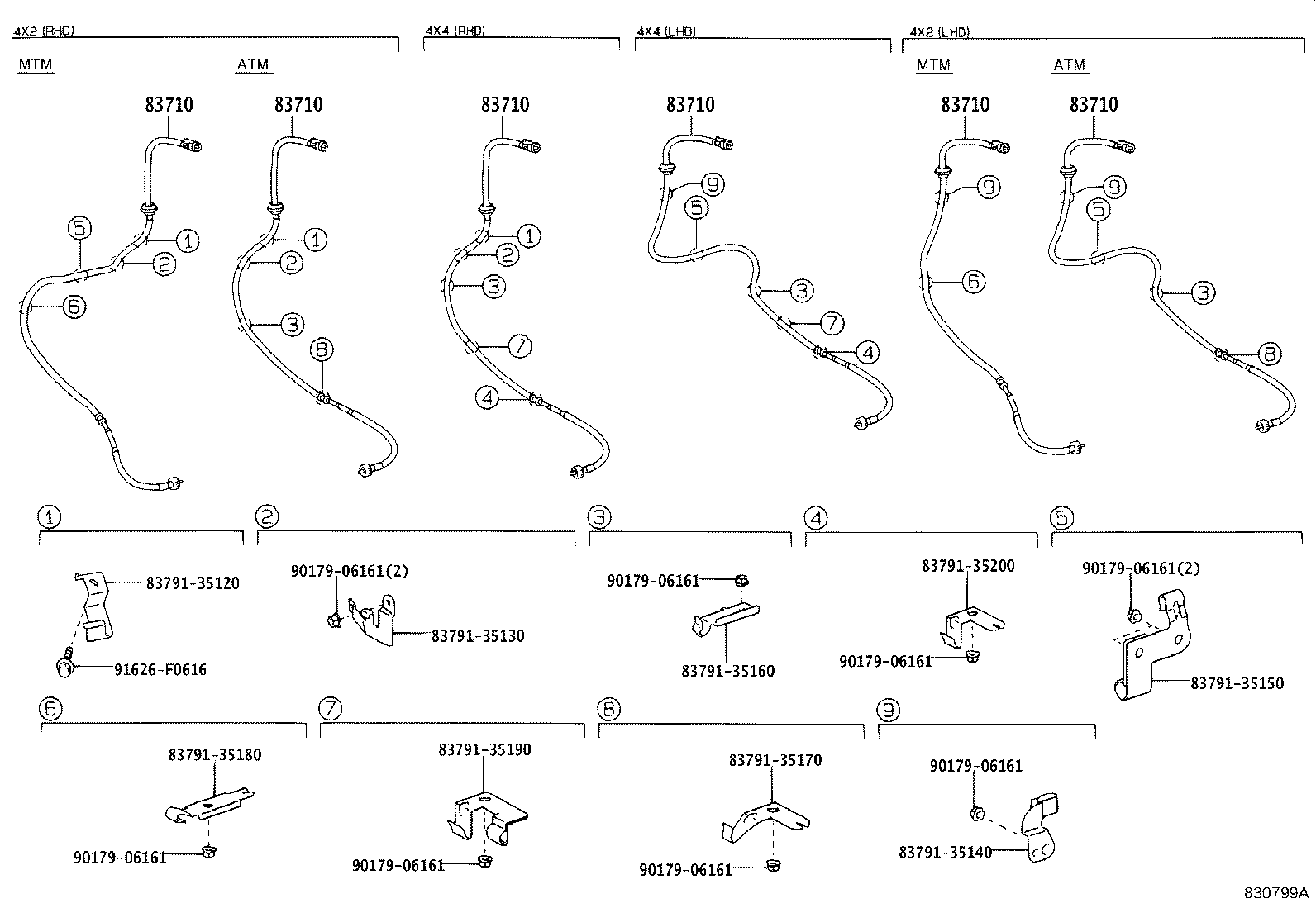

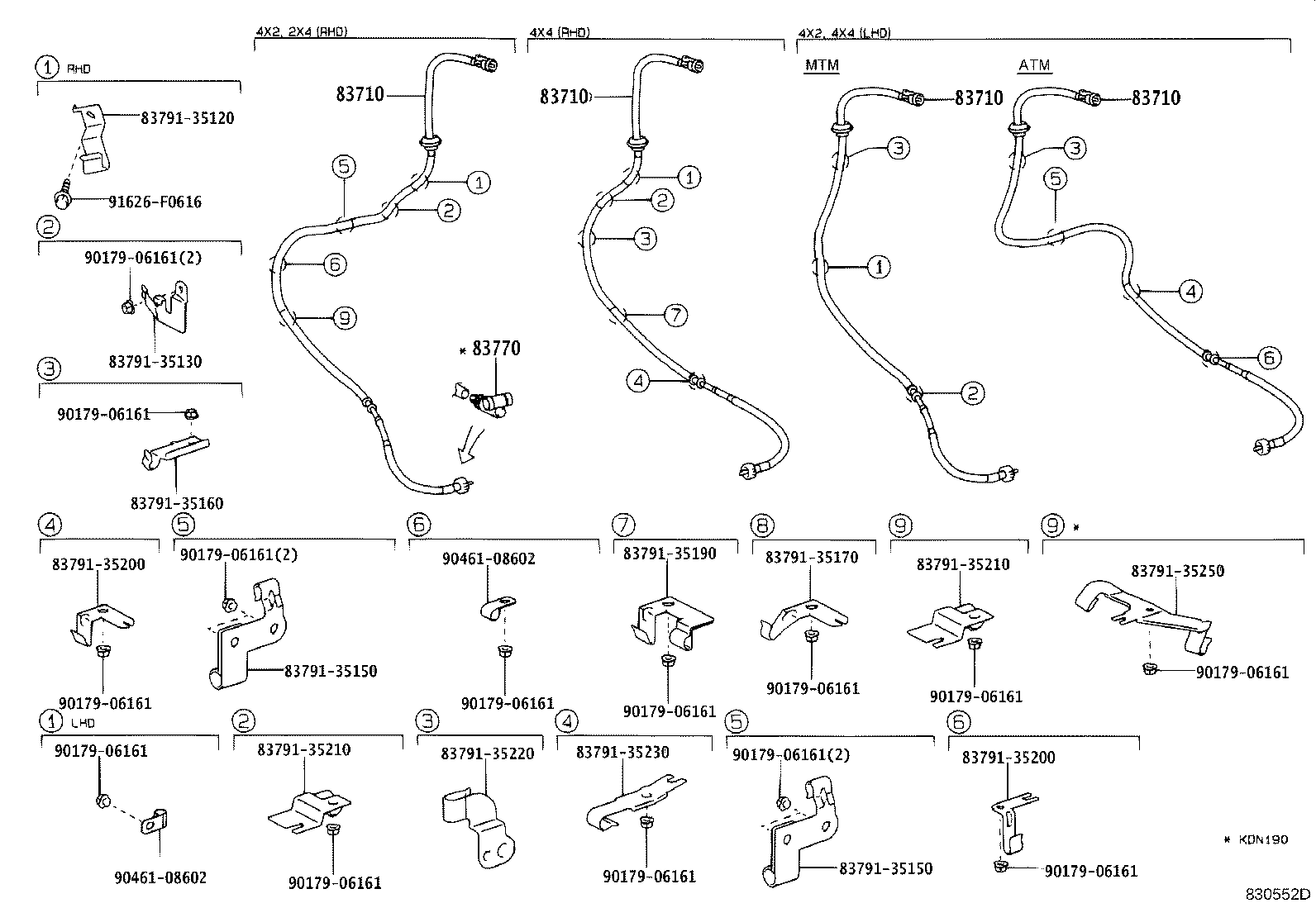

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83770 | Adapter Assy, Speedometer Cable |
| 83910 | Clock Assy |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
