Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

14 part groups · 2 illustrations

Illustrations

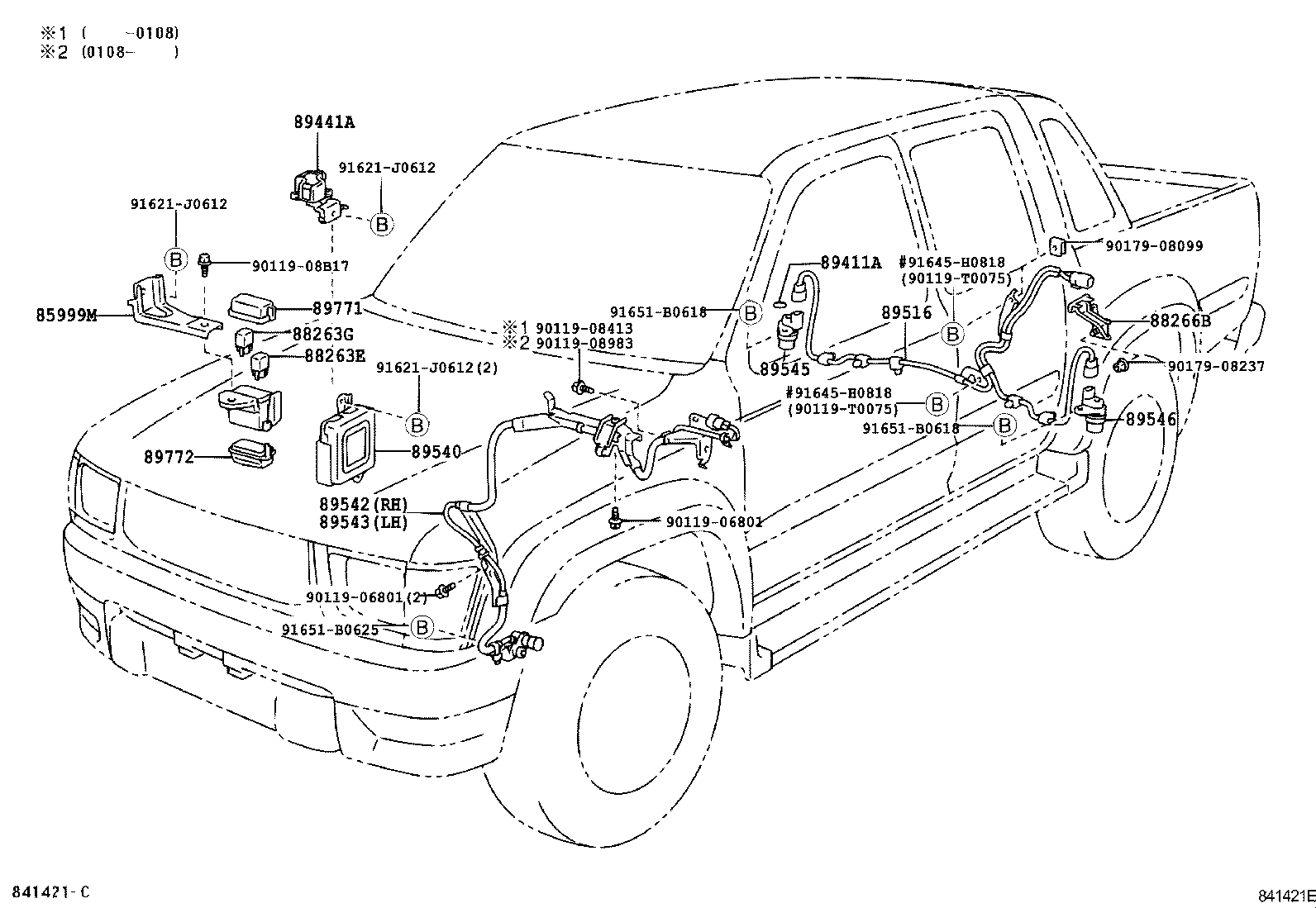

Figure 841420E 841420E 1997-08 → — Figure 841421E 841421E 1997-08 → —

Part groups

PNCDescription
85999M Bracket, Relay
88263E Relay, Skid Control NO.2
88263G Relay, Skid Control
88266B Clamp, Skid Control Sensor, NO.1
89411A Ring, O (FOR SPEED SENSOR)
89441A Sensor, Deceleration
89516 Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89771 Cover, Abs Relay Block, Upper
89772 Cover, Abs Relay Block, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
