Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

3 part groups · 2 illustrations

Illustrations

841422 1997-08 → 1999-08

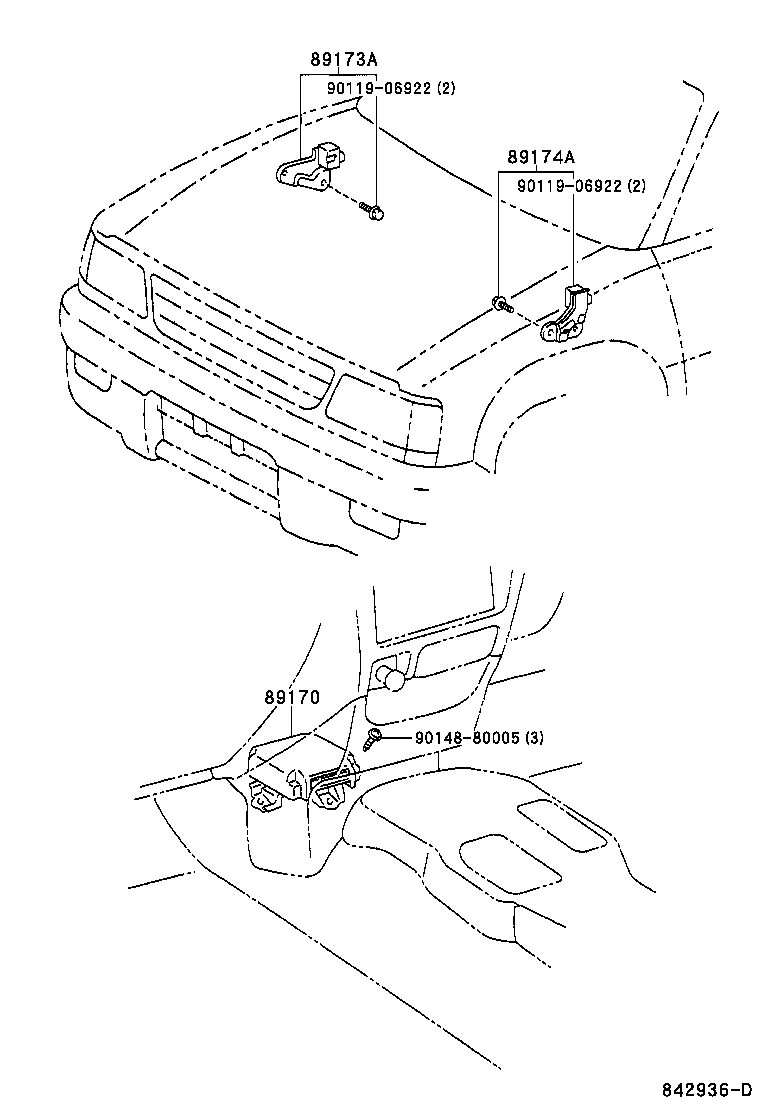

Figure 842936D

842936D 1999-08 → —

Part groups

PNC	Description
89170	Sensor Assy, Airbag
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
