Toyota Hilux
1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe
Discontinued model
Data version 2006-02

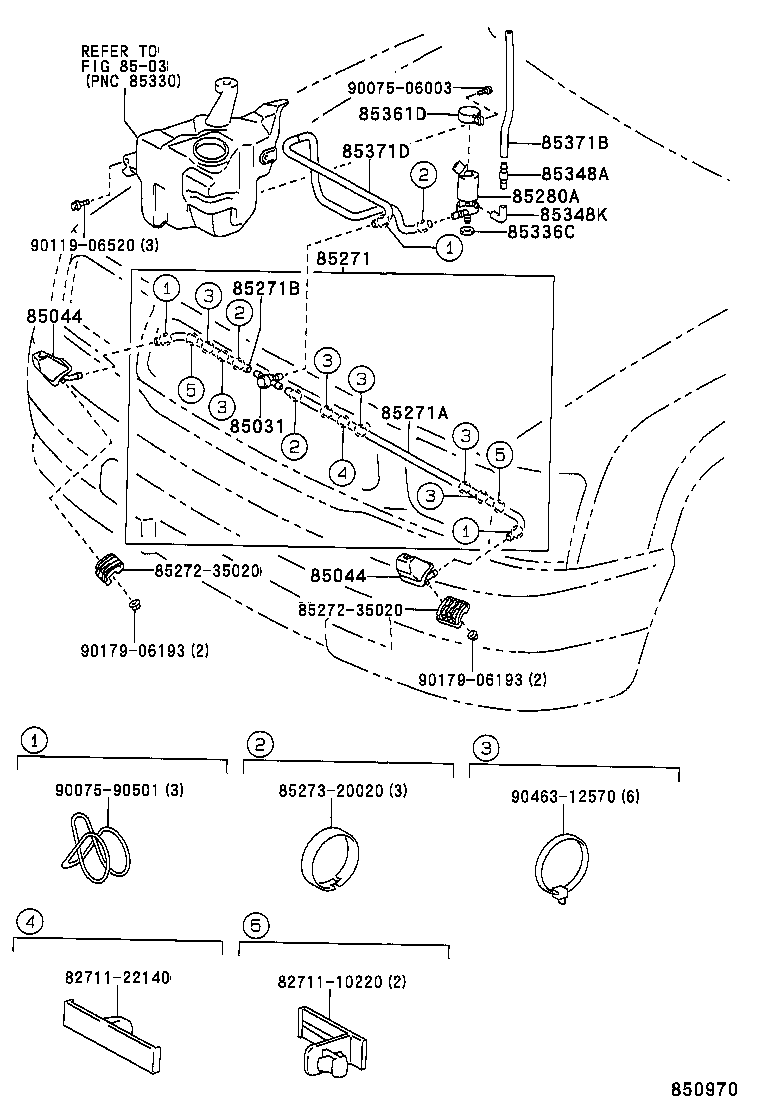

Headlamp Cleaner
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031 | Valve, Headlamp Cleaner Washer Hose |
| 85044 | Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH |
| 85271 | Hose, Headlamp Cleaner, NO.1 |
| 85271A | Hose, Headlamp Cleaner, NO.2 |
| 85271B | Hose, Headlamp Cleaner, NO.3 |
| 85280A | Motor And Pump Assy, Headlamp Cleaner |
| 85336C | Packing, Headlamp Cleaner Motor |
| 85348A | Joint, Headlamp Cleaner Hose, NO.1 |
| 85348K | Joint, Headlamp Cleaner Elbow, NO.1 |
| 85361D | Bracket, Headlamp Cleaner, NO.2 |
| 85371B | Hose, Headlamp Cleaner (FROM MOTOR TO JOINT) |
| 85371D | Hose, Headlamp Cleaner, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
