Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

7 part groups · 2 illustrations

Illustrations

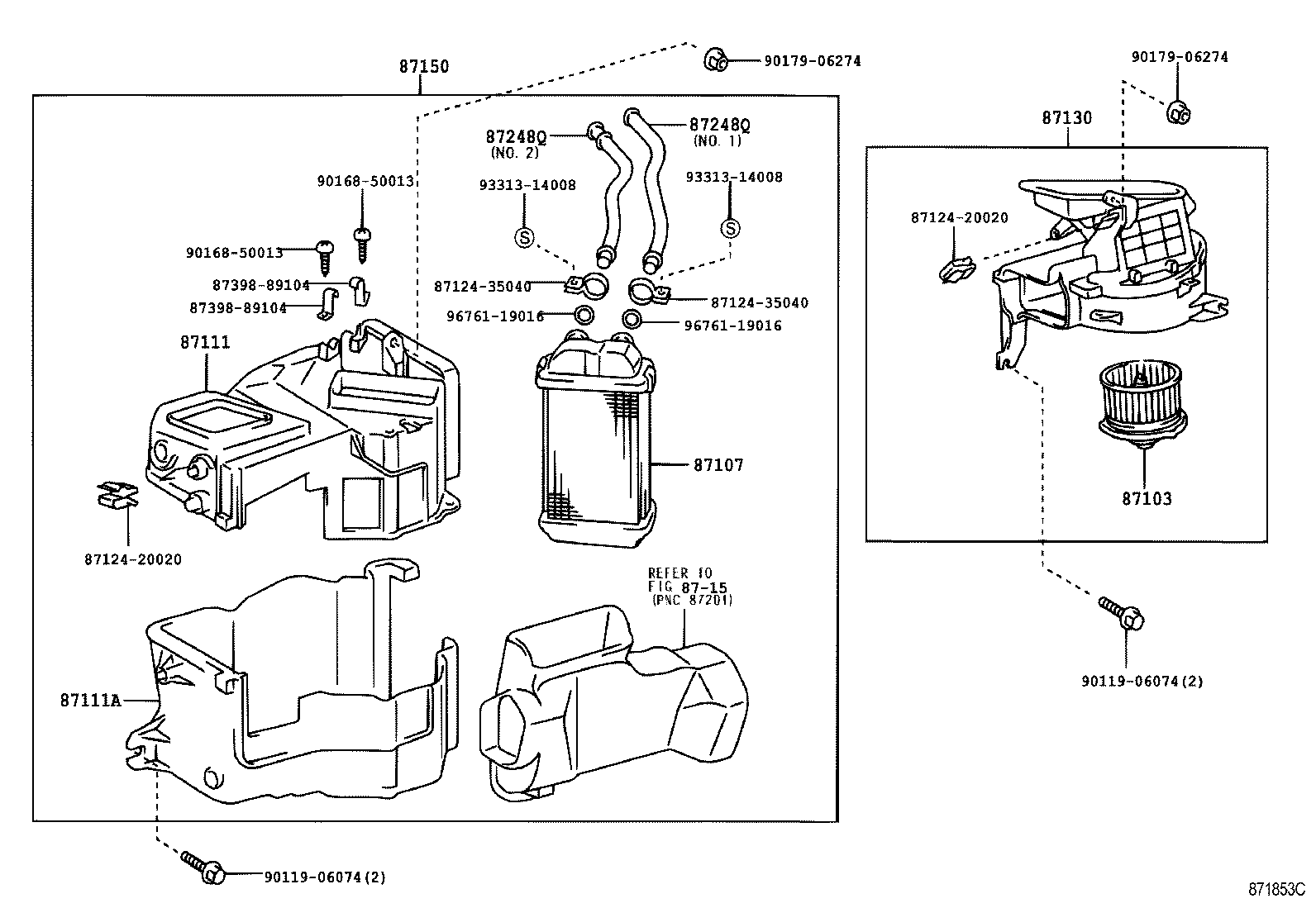

Figure 871795C 871795C 1997-08 → — Figure 871853C 871853C 1997-08 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87107 Unit Sub-assy, Heater Radiator
87111 Case, Heater
87111A Case, Heater
87130 Blower Assy, Heater, Front
87150 Radiator Assy, Heater
87248Q Pipe, Front Heater Radiator Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
