Heating & Air Conditioning - Cooler Unit

19 part groups · 6 illustrations

Illustrations

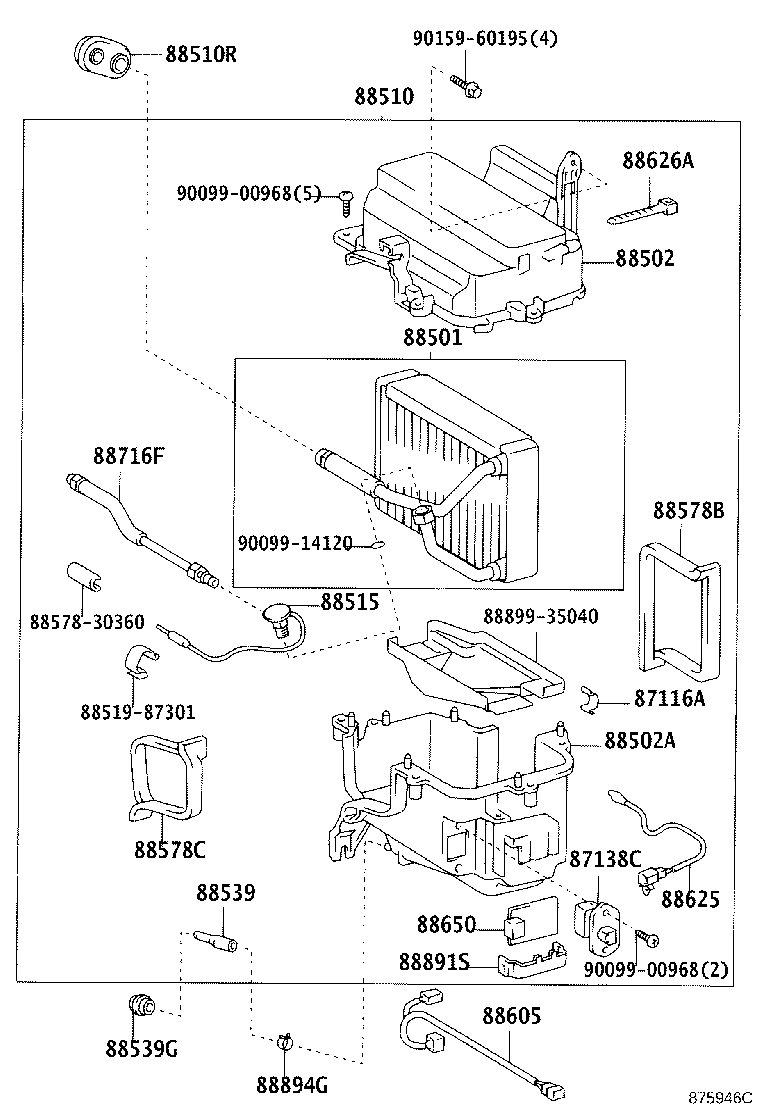

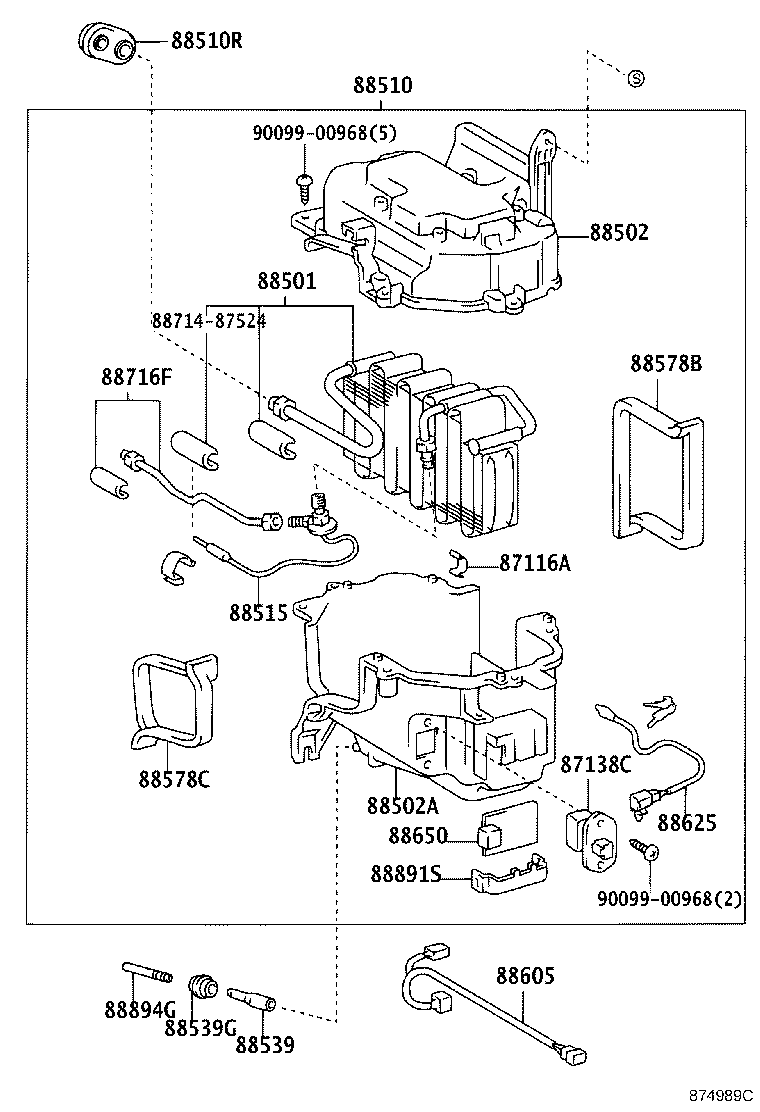

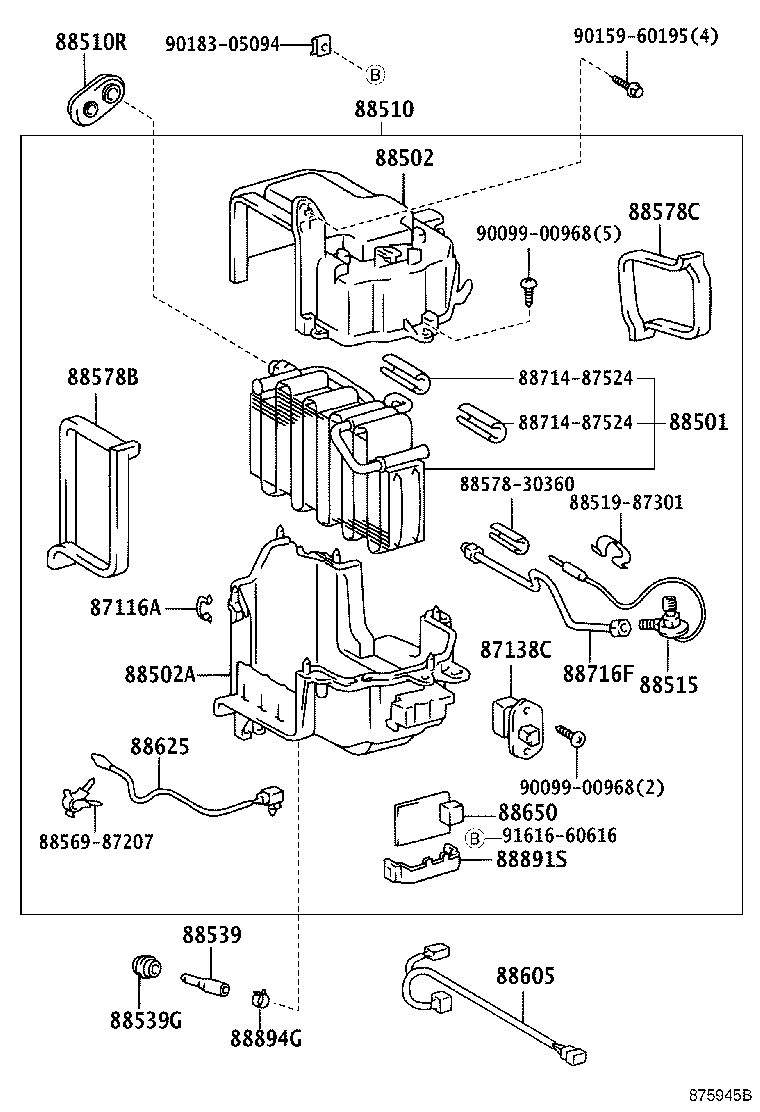

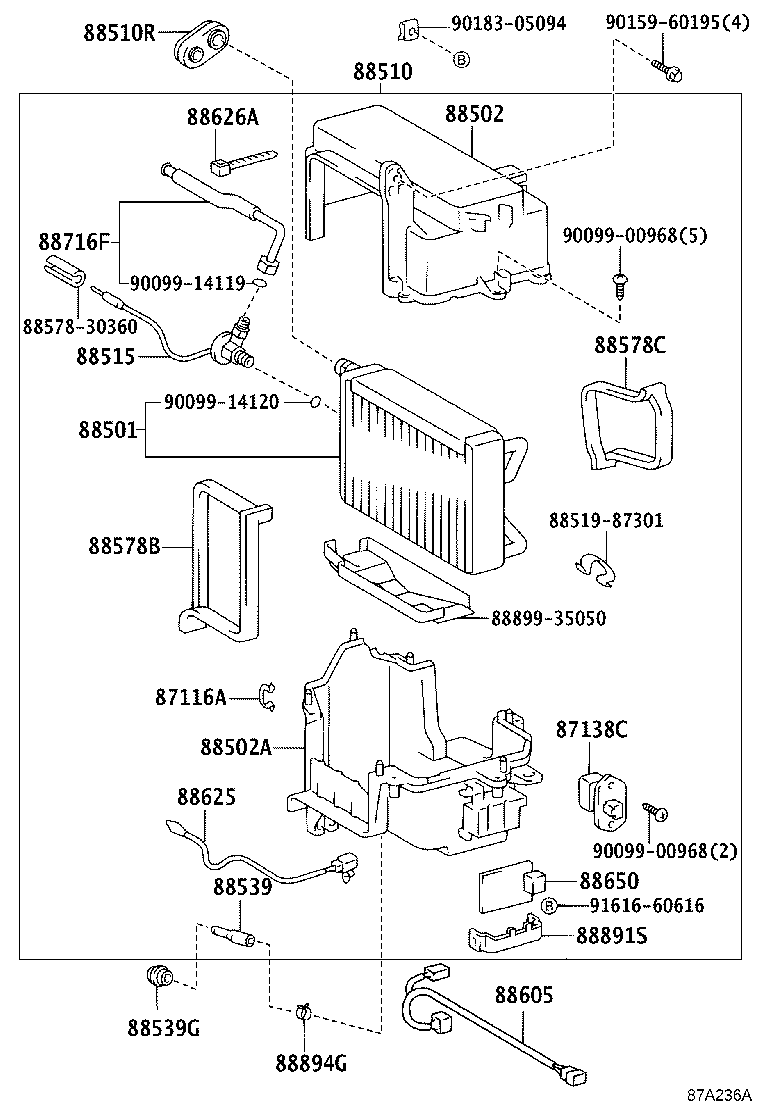

Figure 873865E 873865E 1997-08 → 2002-08 Figure 87A236A 87A236A 2002-08 → — Figure 875945B 875945B 2002-08 → — Figure 874989C 874989C 2001-08 → 2002-08 Figure 875946C 875946C 2002-08 → — Figure 870233B 870233B 1997-08 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88502A Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88510R Grommet (FOR COOLER UNIT)
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88539G Grommet (FOR COOLER UNIT DRAIN HOSE)
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
88891S Cover, Cooler, NO.1
88894G Connector, Drain Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
