Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

10 part groups · 5 illustrations

Illustrations

Figure 871897D

871897D 1997-08 → 2001-08

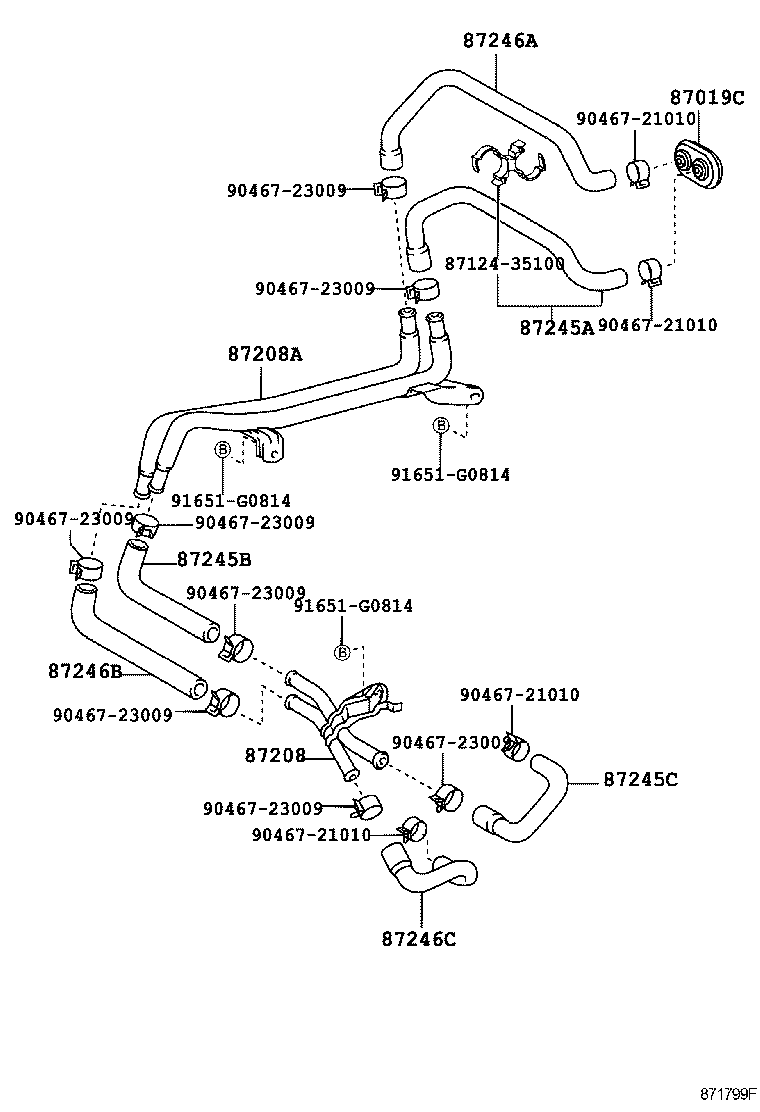

Figure 871799F

871799F 1997-08 → 2001-08

Figure 871896C

871896C 1997-08 → 2001-08

Figure 874987A

874987A 2001-08 → —

Figure 874985C

874985C 2001-08 → —

Part groups

PNC	Description
87019C	Grommet, Heater Hose
87208	Pipe Sub-assy, Heater Water
87208A	Pipe Sub-assy, Heater Water, A
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87263	Bracket, Heater Water Pipe, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
