Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

29 part groups · 7 illustrations

Illustrations

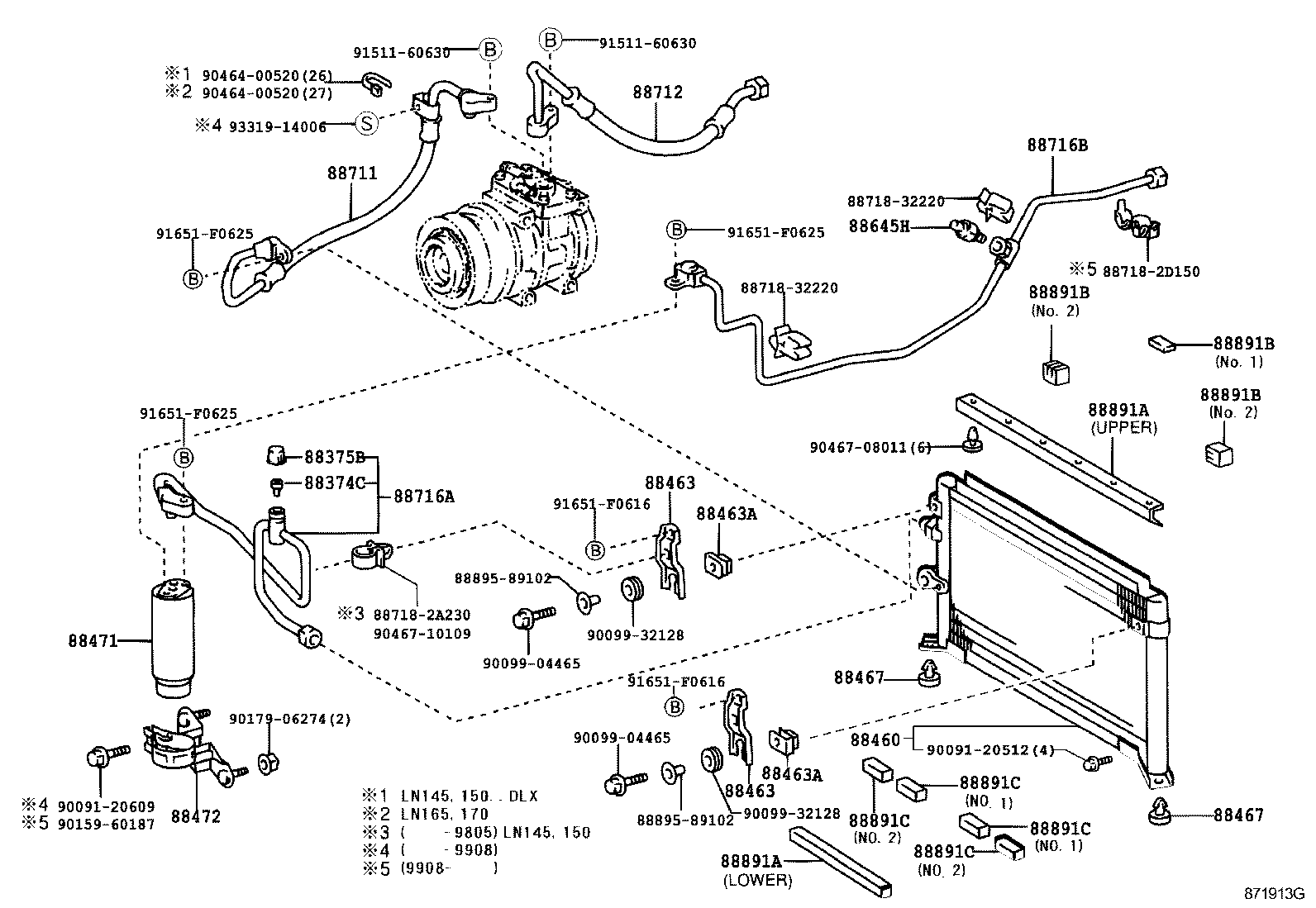

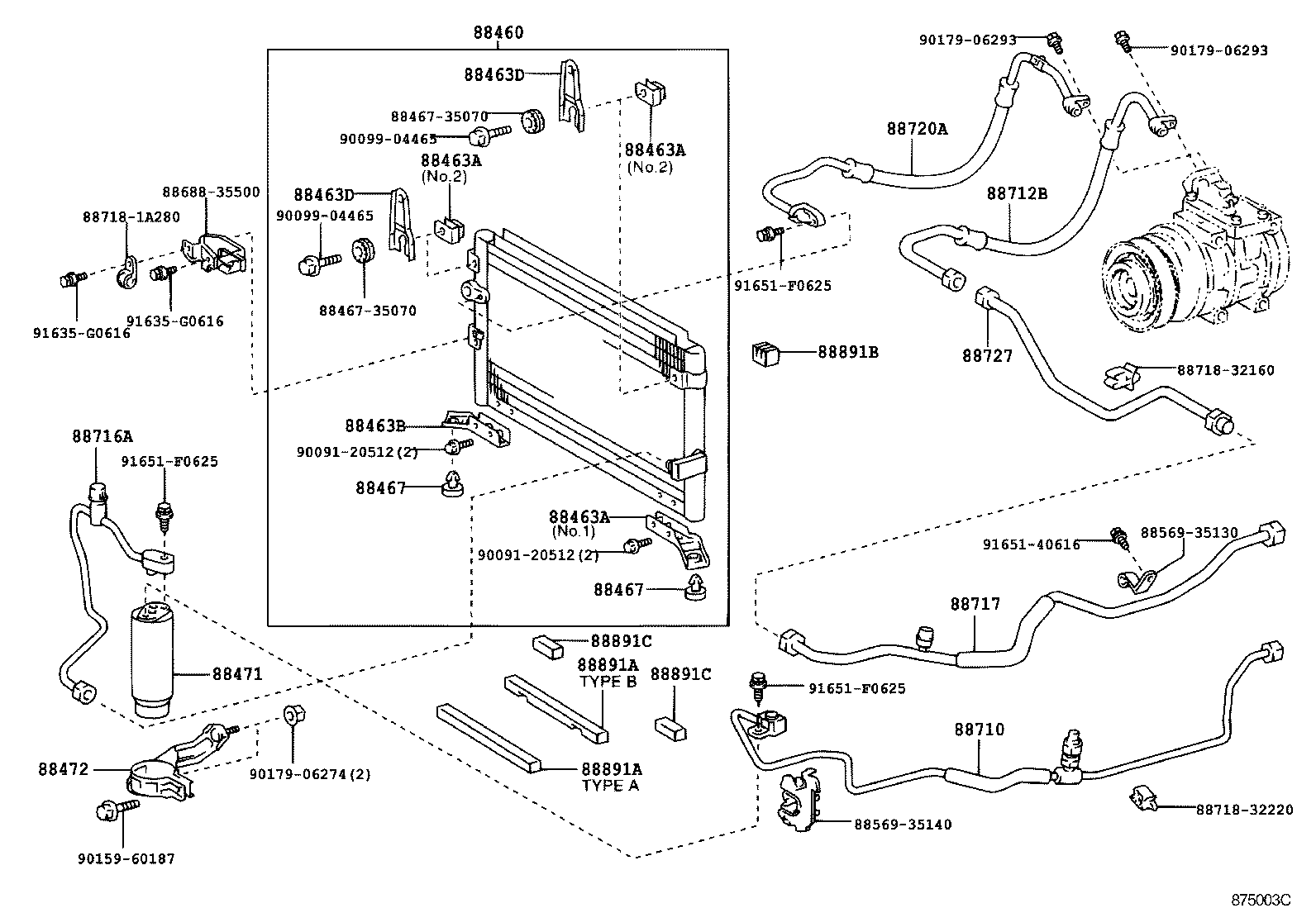

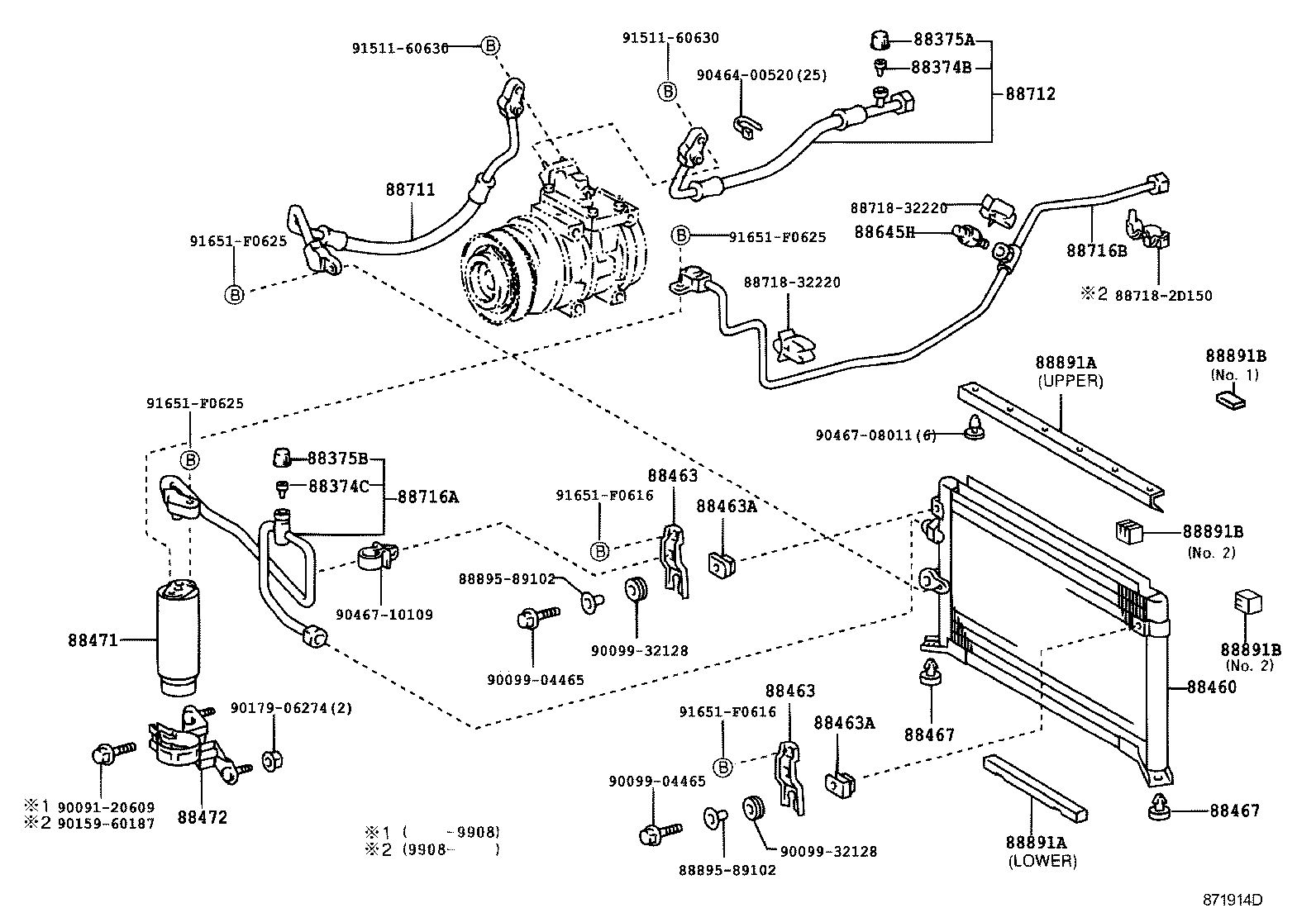

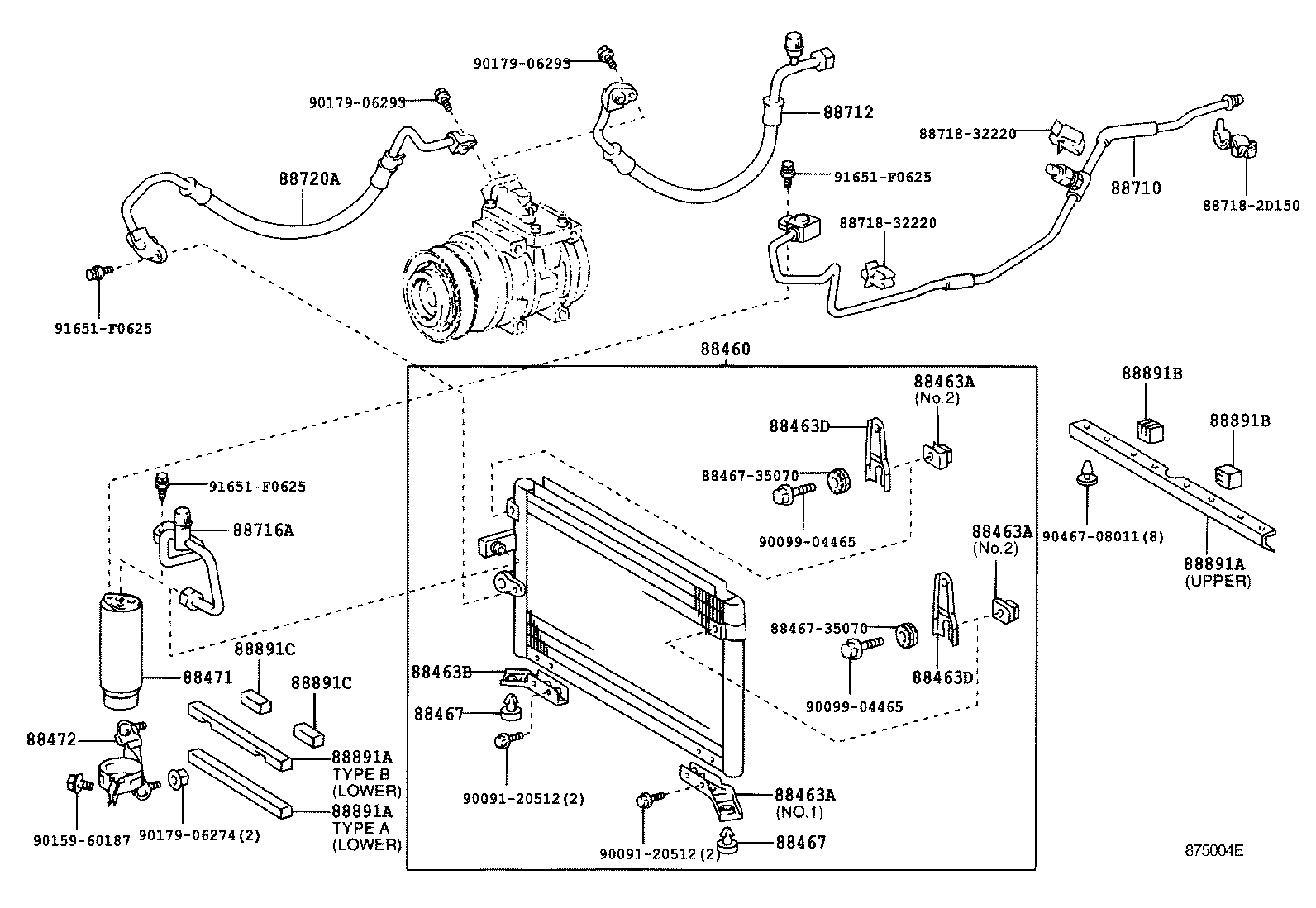

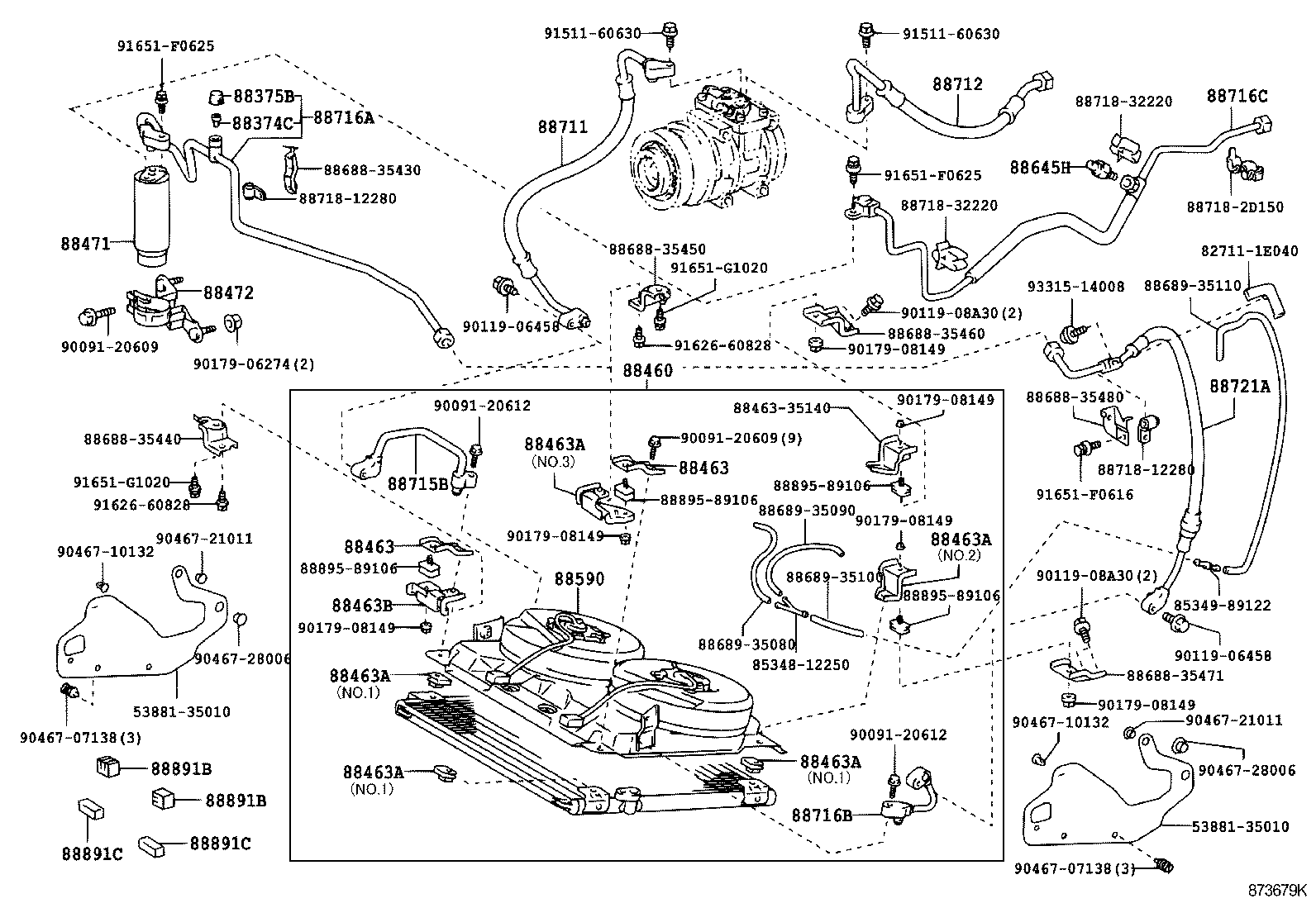

Figure 871912C 871912C 1997-08 → 2001-08 Figure 871913G 871913G 1997-08 → 2001-08 Figure 871914D 871914D 1997-08 → 2001-08 Figure 873679K 873679K 1999-08 → 2001-08 Figure 875003C 875003C 2001-08 → — Figure 875004E 875004E 2001-08 → — Figure 870233A 870233A 1997-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463D Bracket, Cooler Condenser, NO.5
88467 Cushion, Cooler Condenser, NO.1
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88720A Hose & Accessory, Air Conditioner
88721A Hose, Liquid, A
88727 Tube, Suction, NO.2
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
