Toyota Hilux
2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe
Supported model
Data version 2012-04

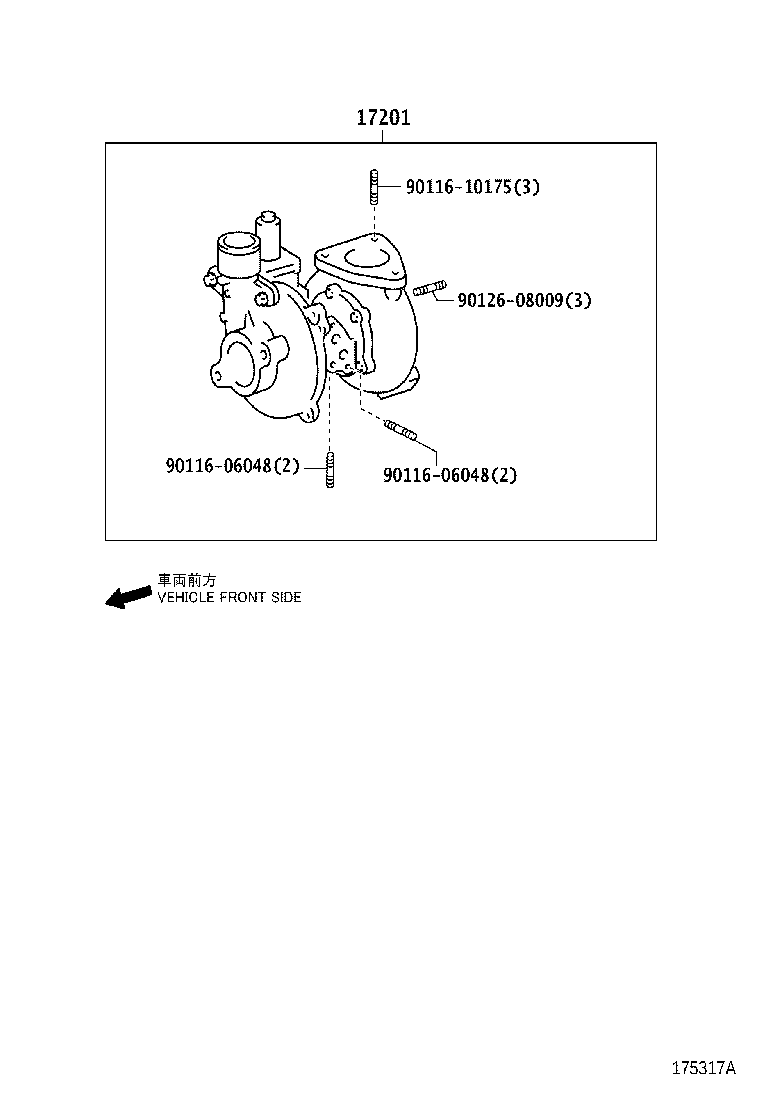

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17201 — Turbocharger Sub-assy | ||||
| 17201-0L030 note |
Turbocharger Sub-assy
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17201-0L030 note |
Turbocharger Sub-assy
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17201-0L030 note |
Turbocharger Sub-assy
2006-08 → 2006-10
ended
|
2KDFTV KUN15,25 DCB,SCB | — | |
| 17201-30110 note |
Turbocharger Sub-assy
2006-10 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F | — | |
| 17201-30120 note |
Turbocharger Sub-assy
2005-07 → 2006-08
ended
|
2KDFTV KUN15,25 | — | |
| 17201-30120 note |
Turbocharger Sub-assy
2006-08 → 2006-10
ended
|
2KDFTV KUN15,25 DCB,SCB | — | |
| 17201-30140 |
Turbocharger Sub-assy
2006-08 → 2008-10
ended
|
2KDFTV KUN15 DLX HDCR;2KDFTV +2 | — | |
| 17201-30140 |
Turbocharger Sub-assy
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17201-0L070 |
Turbocharger Sub-assy
2009-08 → 2011-08
ended
|
2KDFTV KUN25 | — | |
| 17201-30110 note |
Turbocharger Sub-assy
2008-08 → 2011-08
ended
|
1KDFTV KUN26 5F,5FC | — | |
| 17201-30140 |
Turbocharger Sub-assy
2008-08 → 2008-10
ended
|
2KDFTV KUN15,25 THDCB,THSCB,XTR | — | |
| 17201-30141 |
Turbocharger Sub-assy
2008-10 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 17201-30141 |
Turbocharger Sub-assy
2008-10 → 2011-08
ended
|
2KDFTV KUN15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
