Toyota Hilux
2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe
Supported model
Data version 2012-04

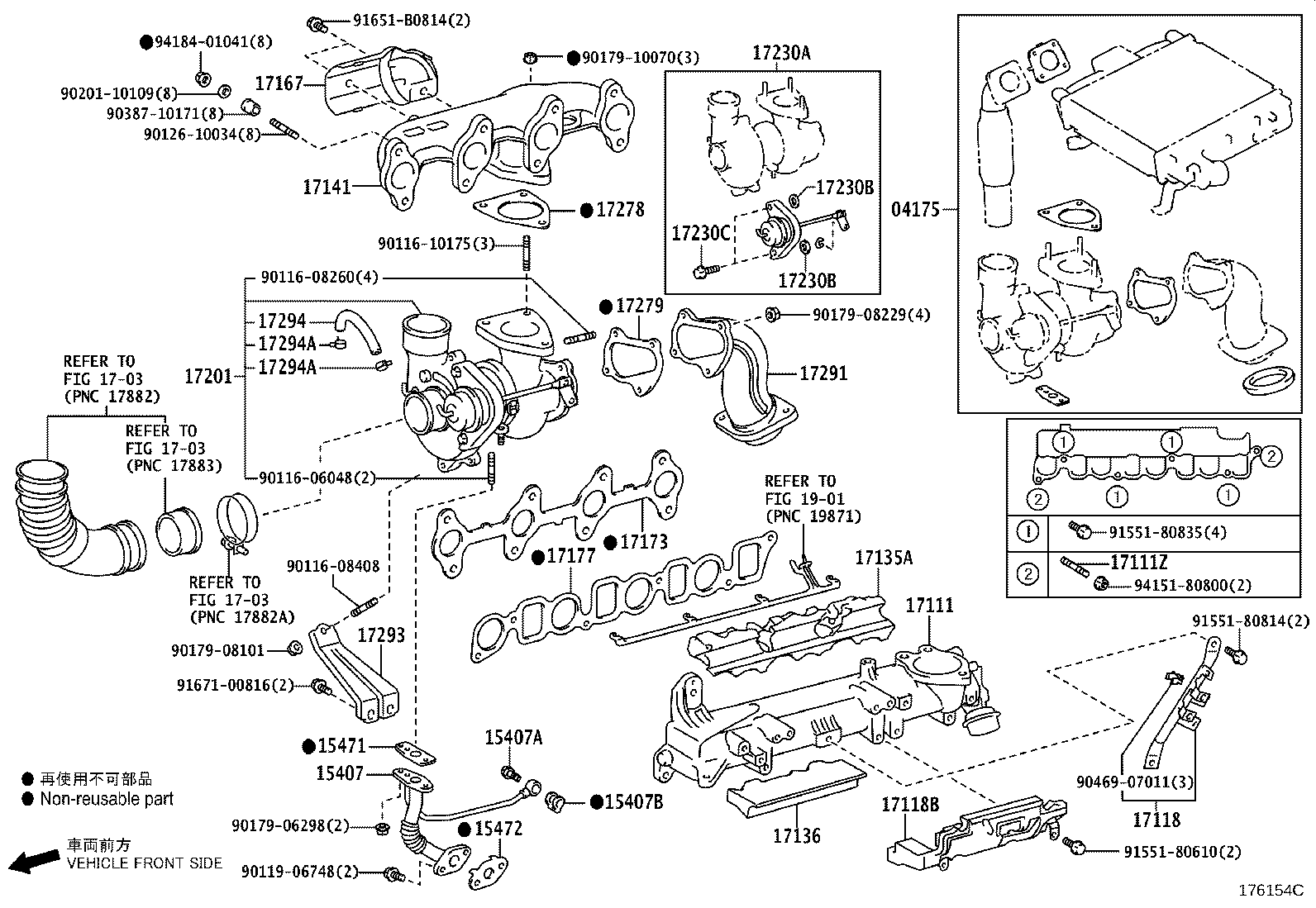

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04175 — Gasket Kit, Turbocharger | ||||
| 04175-0L010 |
Gasket Kit, Turbocharger
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 04175-0L010 |
Gasket Kit, Turbocharger
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 04175-30140 |
Gasket Kit, Turbocharger
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 04175-30140 |
Gasket Kit, Turbocharger
2006-08 → 2008-10
ended
|
2KDFTV KUN15 DLX HDCR;2KDFTV +2 | — | |
| 04175-30160 |
Gasket Kit, Turbocharger
2006-10 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F | — | |
| 04175-30140 |
Gasket Kit, Turbocharger
2008-08 → 2008-11
ended
|
2KDFTV KUN15,25 | — | |
| 04175-30141 |
Gasket Kit, Turbocharger
2008-11 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 04175-30141 |
Gasket Kit, Turbocharger
2008-11 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 04175-30160 |
Gasket Kit, Turbocharger
2008-08 → 2008-11
ended
|
1KDFTV KUN26 5F,5FC | — | |
| 04175-30161 |
Gasket Kit, Turbocharger
2008-11 → 2011-08
ended
|
1KDFTV KUN26 | — | |
| 04175-30161 |
Gasket Kit, Turbocharger
2009-08 → 2011-08
ended
|
2KDFTV KUN25 | — | |
| 15407 — Pipe Sub-assy, Turbo Oil Inlet | ||||
| 15407-0L010 note |
Pipe Sub-assy, Turbo Oil Inlet
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 15407-0L010 note |
Pipe Sub-assy, Turbo Oil Inlet
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 15407-30031 note |
Pipe Sub-assy, Turbo Oil Inlet
2005-07 → 2006-05
ended
|
2KDFTV KUN15,25 | — | |
| 15407-30032 note |
Pipe Sub-assy, Turbo Oil Inlet
2006-05 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 15407-30032 note |
Pipe Sub-assy, Turbo Oil Inlet
2006-05 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 15407-30050 |
Pipe Sub-assy, Turbo Oil Inlet
2006-10 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F | — | |
| 15407-30060 |
Pipe Sub-assy, Turbo Oil Inlet
2006-08 → 2008-10
ended
|
2KDFTV KUN15 DLX HDCR;2KDFTV +2 | — | |
| 15407-30060 |
Pipe Sub-assy, Turbo Oil Inlet
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 15407-30050 |
Pipe Sub-assy, Turbo Oil Inlet
2008-08 → 2011-08
ended
|
1KDFTV KUN26 5F,5FC | — | |
| 15407-30060 note |
Pipe Sub-assy, Turbo Oil Inlet
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 15407-30060 note |
Pipe Sub-assy, Turbo Oil Inlet
2008-08 → 2010-02
ended
|
2KDFTV KUN15 | — | |
| 15407-30061 note |
Pipe Sub-assy, Turbo Oil Inlet
2010-02 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 15407-30120 |
Pipe Sub-assy, Turbo Oil Inlet
2009-08 → 2011-08
ended
|
2KDFTV KUN25 | — | |
| 15407A — Bolt, Union(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 note |
Bolt, Union(FOR TURBO OIL INLET PIPE)
2005-07 → 2008-10
ended
|
1KDFTV,2KDFTV KUN15,2# 4FC,5F | — | |
| 90401-T0004 note |
Bolt, Union(FOR TURBO OIL INLET PIPE)
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 90401-T0004 note |
Bolt, Union(FOR TURBO OIL INLET PIPE)
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 90401-12097 note |
Bolt, Union(FOR TURBO OIL INLET PIPE)
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 90401-12097 note |
Bolt, Union(FOR TURBO OIL INLET PIPE)
2008-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,26 5F,5FC | — | |
| 90401-12097 |
Bolt, Union(FOR TURBO OIL INLET PIPE)
2009-08 → 2011-08
ended
|
2KDFTV KUN25 | — | |
| 15407B — Gasket(FOR TURBO OIL INLET PIPE) | ||||
| 90430-T0006 note |
Gasket(FOR TURBO OIL INLET PIPE)
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 90430-T0006 note |
Gasket(FOR TURBO OIL INLET PIPE)
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 90904-30004 note |
Gasket(FOR TURBO OIL INLET PIPE)
2005-07 → 2008-10
ended
|
1KDFTV,2KDFTV KUN15,2# 4FC,5F | — | |
| 90904-30004 note |
Gasket(FOR TURBO OIL INLET PIPE)
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 90904-30004 note |
Gasket(FOR TURBO OIL INLET PIPE)
2008-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,26 5F,5FC | — | |
| 90904-30004 |
Gasket(FOR TURBO OIL INLET PIPE)
2009-08 → 2011-08
ended
|
2KDFTV KUN25 | — | |
| 15471 — Gasket, Turbo Oil Inlet | ||||
| 15471-0L010 note |
Gasket, Turbo Oil Inlet
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 15471-0L010 note |
Gasket, Turbo Oil Inlet
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 15471-30010 note |
Gasket, Turbo Oil Inlet
2005-07 → 2008-10
ended
|
1KDFTV,2KDFTV KUN15,2# 4FC,5F | — | |
| 15471-30010 note |
Gasket, Turbo Oil Inlet
2008-08 → 2008-11
ended
|
1KDFTV,2KDFTV KUN15,2# 5F,5FC | — | |
| 15471-30011 note |
Gasket, Turbo Oil Inlet
2008-11 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 15471-30011 note |
Gasket, Turbo Oil Inlet
2008-11 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,26 | — | |
| 15471-30011 |
Gasket, Turbo Oil Inlet
2009-08 → 2011-08
ended
|
2KDFTV KUN25 | — | |
| 15472 — Gasket, Turbo Oil Outlet, NO.1 | ||||
| 15472-0L010 note |
Gasket, Turbo Oil Outlet, NO.1
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 15472-0L010 note |
Gasket, Turbo Oil Outlet, NO.1
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 15472-67010 note |
Gasket, Turbo Oil Outlet, NO.1
2005-07 → 2008-10
ended
|
1KDFTV,2KDFTV KUN15,2# 4FC,5F | — | |
| 15472-30010 note |
Gasket, Turbo Oil Outlet, NO.1
2010-05 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,26 | — | |
| 15472-30010 |
Gasket, Turbo Oil Outlet, NO.1
2010-05 → 2011-08
ended
|
2KDFTV KUN25 | — | |
| 15472-67010 note |
Gasket, Turbo Oil Outlet, NO.1
2008-08 → 2010-05
ended
|
1KDFTV,2KDFTV KUN15,26 5F,5FC | — | |
| 15472-67010 note |
Gasket, Turbo Oil Outlet, NO.1
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 15472-67010 |
Gasket, Turbo Oil Outlet, NO.1
2009-08 → 2010-05
ended
|
2KDFTV KUN25 | — | |
| 17111 — Manifold, Intake | ||||
| 17101-30040 |
Manifold, Intake
2006-10 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F | — | |
| 17101-30050 |
Manifold, Intake
2006-08 → 2008-10
ended
|
2KDFTV KUN15 DLX HDCR;2KDFTV +2 | — | |
| 17101-30050 |
Manifold, Intake
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17111-0L020 note |
Manifold, Intake
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17111-0L020 note |
Manifold, Intake
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17111-30100 note |
Manifold, Intake
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17111-30100 note |
Manifold, Intake
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17101-0L030 |
Manifold, Intake
2009-08 → 2011-08
ended
|
2KDFTV KUN15,25 | — | |
| 17101-30040 |
Manifold, Intake
2008-08 → 2011-08
ended
|
1KDFTV KUN26 5F,5FC | — | |
| 17101-30050 |
Manifold, Intake
2008-08 → 2009-08
ended
|
2KDFTV KUN15,25 | — | |
| 17111Z — Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-T0011 note |
Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 90116-T0011 note |
Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 92122-80822 note |
Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2005-07 → 2008-10
ended
|
1KDFTV,2KDFTV KUN15,2# 4FC,5F | — | |
| 92122-80822 note |
Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2008-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,2# 5F,5FC | — | |
| 17118 — Stay, Manifold | ||||
| 17118-0L030 note |
Stay, Manifold
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17118-0L030 note |
Stay, Manifold
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17118-30070 note |
Stay, Manifold
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17118-30070 note |
Stay, Manifold
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17118-30090 |
Stay, Manifold
2006-08 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F;2KDFTV KUN15 +4 | — | |
| 17118-30090 |
Stay, Manifold
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17118-30090 |
Stay, Manifold
2008-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,2# 5F,5FC | — | |
| 17118B — Insulator, Intake Manifold | ||||
| 17853-30010 |
Insulator, Intake Manifold
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17853-30010 |
Insulator, Intake Manifold
2006-08 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F;2KDFTV KUN15 +4 | — | |
| 17853-30010 |
Insulator, Intake Manifold
2008-08 → 2011-07
ended
|
2KDFTV KUN15 THDCB,THSCB,XTR;1KDFTV,2KDFTV KUN2# +2 | — | |
| 17853-30010 |
Insulator, Intake Manifold
2008-08 → 2011-08
ended
|
2KDFTV .KUN15,26 KUN25 (DCB,SCB) +5 | — | |
| 17135A — Insulator, Intake Manifold, NO.1 | ||||
| 17135-30011 |
Insulator, Intake Manifold, NO.1
2006-08 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F;2KDFTV KUN15 +4 | — | |
| 17135-30011 |
Insulator, Intake Manifold, NO.1
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17135-30011 |
Insulator, Intake Manifold, NO.1
2008-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,2# 5F,5FC | — | |
| 17136 — Insulator, Intake Manifold, NO.2 | ||||
| 17136-30010 |
Insulator, Intake Manifold, NO.2
2006-08 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F;2KDFTV KUN15 +4 | — | |
| 17136-30010 |
Insulator, Intake Manifold, NO.2
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17136-30010 |
Insulator, Intake Manifold, NO.2
2008-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,2# 5F,5FC | — | |
| 17141 — Manifold, Exhaust | ||||
| 17141-0L010 note |
Manifold, Exhaust
2005-07 → 2006-08
ended
|
2KDFTV KUN15,25 XTR | — | |
| 17141-0L050 note |
Manifold, Exhaust
2005-07 → 2006-10
ended
|
2KDFTV KUN15,25 DCB,SCB | — | |
| 17141-30060 note |
Manifold, Exhaust
2006-08 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F;2KDFTV KUN15 +4 | — | |
| 17141-30060 note |
Manifold, Exhaust
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17141-30070 note |
Manifold, Exhaust
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17141-30070 note |
Manifold, Exhaust
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17141-30060 note |
Manifold, Exhaust
2008-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,2# 5F,5FC | — | |
| 17167 — Insulator, Exhaust Manifold Heat, NO.1 | ||||
| 17167-30020 note |
Insulator, Exhaust Manifold Heat, NO.1
2006-08 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F;2KDFTV KUN15 +4 | — | |
| 17167-30020 note |
Insulator, Exhaust Manifold Heat, NO.1
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17167-30020 note |
Insulator, Exhaust Manifold Heat, NO.1
2008-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,2# 5F,5FC | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-0L010 note |
Gasket, Exhaust Manifold TO Head
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17173-0L010 note |
Gasket, Exhaust Manifold TO Head
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17173-30020 note |
Gasket, Exhaust Manifold TO Head
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17173-30020 note |
Gasket, Exhaust Manifold TO Head
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17173-30030 note |
Gasket, Exhaust Manifold TO Head
2006-08 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F;2KDFTV KUN15 +4 | — | |
| 17173-30030 note |
Gasket, Exhaust Manifold TO Head
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17173-30030 note |
Gasket, Exhaust Manifold TO Head
2008-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,2# 5F,5FC | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17177-0L011 note |
Gasket, Intake Manifold TO Head, NO.1
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17177-0L011 note |
Gasket, Intake Manifold TO Head, NO.1
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17177-30011 note |
Gasket, Intake Manifold TO Head, NO.1
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17177-30011 note |
Gasket, Intake Manifold TO Head, NO.1
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17177-30011 |
Gasket, Intake Manifold TO Head, NO.1
2006-08 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F;2KDFTV KUN15 +4 | — | |
| 17177-30011 |
Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17177-30011 |
Gasket, Intake Manifold TO Head, NO.1
2008-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,2# 5F,5FC | — | |
| 17201 — Turbocharger Sub-assy | ||||
| 17201-0L030 note |
Turbocharger Sub-assy
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17201-0L030 note |
Turbocharger Sub-assy
2006-08 → 2006-10
ended
|
2KDFTV KUN15,25 DCB,SCB | — | |
| 17201-0L030 note |
Turbocharger Sub-assy
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17201-30110 note |
Turbocharger Sub-assy
2006-10 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F | — | |
| 17201-30120 note |
Turbocharger Sub-assy
2005-07 → 2006-08
ended
|
2KDFTV KUN15,25 | — | |
| 17201-30120 note |
Turbocharger Sub-assy
2006-08 → 2006-10
ended
|
2KDFTV KUN15,25 DCB,SCB | — | |
| 17201-30140 |
Turbocharger Sub-assy
2006-08 → 2008-10
ended
|
2KDFTV KUN15 DLX HDCR;2KDFTV +2 | — | |
| 17201-30140 |
Turbocharger Sub-assy
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17201-0L070 |
Turbocharger Sub-assy
2009-08 → 2011-08
ended
|
2KDFTV KUN25 | — | |
| 17201-30110 note |
Turbocharger Sub-assy
2008-08 → 2011-08
ended
|
1KDFTV KUN26 5F,5FC | — | |
| 17201-30140 |
Turbocharger Sub-assy
2008-08 → 2008-10
ended
|
2KDFTV KUN15,25 THDCB,THSCB,XTR | — | |
| 17201-30141 |
Turbocharger Sub-assy
2008-10 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 17201-30141 |
Turbocharger Sub-assy
2008-10 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 17230A — Repair Actuaor Assy, W/Bracket | ||||
| 17230-39085 |
Repair Actuaor Assy, W/Bracket
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17230-39085 |
Repair Actuaor Assy, W/Bracket
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17230-39115 |
Repair Actuaor Assy, W/Bracket
2006-08 → 2008-10
ended
|
2KDFTV KUN15 DLX HDCR;2KDFTV +2 | — | |
| 17230-39115 |
Repair Actuaor Assy, W/Bracket
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17230-39115 |
Repair Actuaor Assy, W/Bracket
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 17230-39115 |
Repair Actuaor Assy, W/Bracket
2008-08 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 17230B — Washer, Plate(FOR REPAIR ACTUATOR SET) | ||||
| 90201-06042 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2005-07 → 2008-10
ended
|
2KDFTV KUN15,25 | — | |
| 90201-06043 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2005-07 → 2008-10
ended
|
2KDFTV KUN15,25 | — | |
| 90201-06044 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2005-07 → 2008-10
ended
|
2KDFTV KUN15,25 | — | |
| 90201-06045 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2005-07 → 2008-10
ended
|
2KDFTV KUN15,25 | — | |
| 90201-06042 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 90201-06042 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2008-08 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 90201-06043 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 90201-06043 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2008-08 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 90201-06044 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 90201-06044 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2008-08 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 90201-06045 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 90201-06045 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
2008-08 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 17230C — Bolt, W/Washer(FOR REPAIR ACTUATOR SET) | ||||
| 91621-60620 |
Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
2005-07 → 2008-10
ended
|
2KDFTV KUN15,25 | — | |
| 91621-60620 |
Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 91621-60620 |
Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
2008-08 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 17278 — Gasket, Turbo TO Exhaust Manifold | ||||
| 17278-0L010 note |
Gasket, Turbo TO Exhaust Manifold
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17278-0L010 note |
Gasket, Turbo TO Exhaust Manifold
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17278-67010 note |
Gasket, Turbo TO Exhaust Manifold
2005-07 → 2008-10
ended
|
1KDFTV,2KDFTV KUN15,2# 4FC,5F | — | |
| 17278-67010 note |
Gasket, Turbo TO Exhaust Manifold
2008-08 → 2011-08
ended
|
1KDFTV KUN26 5F,5FC | — | |
| 17278-67010 |
Gasket, Turbo TO Exhaust Manifold
2008-08 → 2011-08
ended
|
2KDFTV KUN15,25 | — | |
| 17279 — Gasket, Turbine Outlet Elbow | ||||
| 17279-0L020 note |
Gasket, Turbine Outlet Elbow
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 17279-0L020 note |
Gasket, Turbine Outlet Elbow
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 17279-30020 note |
Gasket, Turbine Outlet Elbow
2005-07 → 2008-10
ended
|
2KDFTV KUN15,25 | — | |
| 17279-30030 note |
Gasket, Turbine Outlet Elbow
2006-10 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F | — | |
| 17279-30020 note |
Gasket, Turbine Outlet Elbow
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 17279-30020 note |
Gasket, Turbine Outlet Elbow
2008-08 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 17279-30030 note |
Gasket, Turbine Outlet Elbow
2008-08 → 2009-08
ended
|
1KDFTV KUN26 5F,5FC | — | |
| 17279-30030 |
Gasket, Turbine Outlet Elbow
2009-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN2# | — | |
| 17291 — Elbow, Turbine Outlet | ||||
| 17291-0L040 note |
Elbow, Turbine Outlet
2005-07 → 2006-10
ended
|
2KDFTV KUN15,25 LHD DCB +2 | — | |
| 17291-0L050 |
Elbow, Turbine Outlet
2006-08 → 2008-10
ended
|
2KDFTV KUN15 DLX HDCR;2KDFTV +2 | — | |
| 17291-0L050 |
Elbow, Turbine Outlet
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17291-30020 note |
Elbow, Turbine Outlet
2005-07 → 2006-10
ended
|
2KDFTV KUN15,25 LHD DCB +2 | — | |
| 17291-30050 note |
Elbow, Turbine Outlet
2006-10 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F | — | |
| 17291-0L050 |
Elbow, Turbine Outlet
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 17291-0L050 |
Elbow, Turbine Outlet
2008-08 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 17291-0L060 |
Elbow, Turbine Outlet
2009-08 → 2011-08
ended
|
2KDFTV KUN25 | — | |
| 17291-30050 note |
Elbow, Turbine Outlet
2008-08 → 2009-08
ended
|
1KDFTV KUN26 5F,5FC | — | |
| 17291-30050 |
Elbow, Turbine Outlet
2009-08 → 2011-08
ended
|
1KDFTV KUN26 | — | |
| 17293 — Stay, Turbocharger | ||||
| 17293-30040 note |
Stay, Turbocharger
2006-10 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F | — | |
| 17293-30080 note |
Stay, Turbocharger
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 17293-30080 note |
Stay, Turbocharger
2006-08 → 2008-10
ended
|
2KDFTV KUN15 DLX HDCR;2KDFTV +2 | — | |
| 17293-0L050 |
Stay, Turbocharger
2009-08 → 2011-08
ended
|
2KDFTV KUN25 | — | |
| 17293-30040 note |
Stay, Turbocharger
2008-08 → 2009-08
ended
|
1KDFTV KUN26 5F,5FC | — | |
| 17293-30040 |
Stay, Turbocharger
2009-08 → 2011-08
ended
|
1KDFTV KUN26 | — | |
| 17293-30080 note |
Stay, Turbocharger
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 17293-30080 note |
Stay, Turbocharger
2008-08 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 17294 — Hose, Actuator | ||||
| 90445-12151 note |
Hose, Actuator
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 90445-12151 note |
Hose, Actuator
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 90445-12251 |
Hose, Actuator
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 90445-12251 |
Hose, Actuator
2006-08 → 2008-10
ended
|
2KDFTV KUN15 DLX HDCR;2KDFTV +2 | — | |
| 90445-T0010 note |
Hose, Actuator
2006-08 → 2006-10
ended
|
2KDFTV KUN15,25 DCB,SCB | — | |
| 90445-T0010 note |
Hose, Actuator
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 90445-T0010 note |
Hose, Actuator
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 90445-12251 |
Hose, Actuator
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 90445-12251 |
Hose, Actuator
2008-08 → 2011-08
ended
|
2KDFTV KUN15 | — | |
| 17294A — Clip(FOR ACTUATOR HOSE) | ||||
| 90466-12003 note |
Clip(FOR ACTUATOR HOSE)
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 90466-12003 note |
Clip(FOR ACTUATOR HOSE)
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 90466-T0008 note |
Clip(FOR ACTUATOR HOSE)
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 90466-T0008 note |
Clip(FOR ACTUATOR HOSE)
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 90466-T0008 note |
Clip(FOR ACTUATOR HOSE)
2006-08 → 2006-10
ended
|
2KDFTV KUN15,25 DCB,SCB | — | |
| 96132-51100 |
Clip(FOR ACTUATOR HOSE)
2006-08 → 2008-10
ended
|
2KDFTV KUN15 DLX HDCR;2KDFTV +2 | — | |
| 96132-51100 |
Clip(FOR ACTUATOR HOSE)
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 96132-51100 |
Clip(FOR ACTUATOR HOSE)
2008-08 → 2009-08
ended
|
2KDFTV KUN25 | — | |
| 96132-51100 |
Clip(FOR ACTUATOR HOSE)
2008-08 → 2011-08
ended
|
2KDFTV KUN15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
