Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

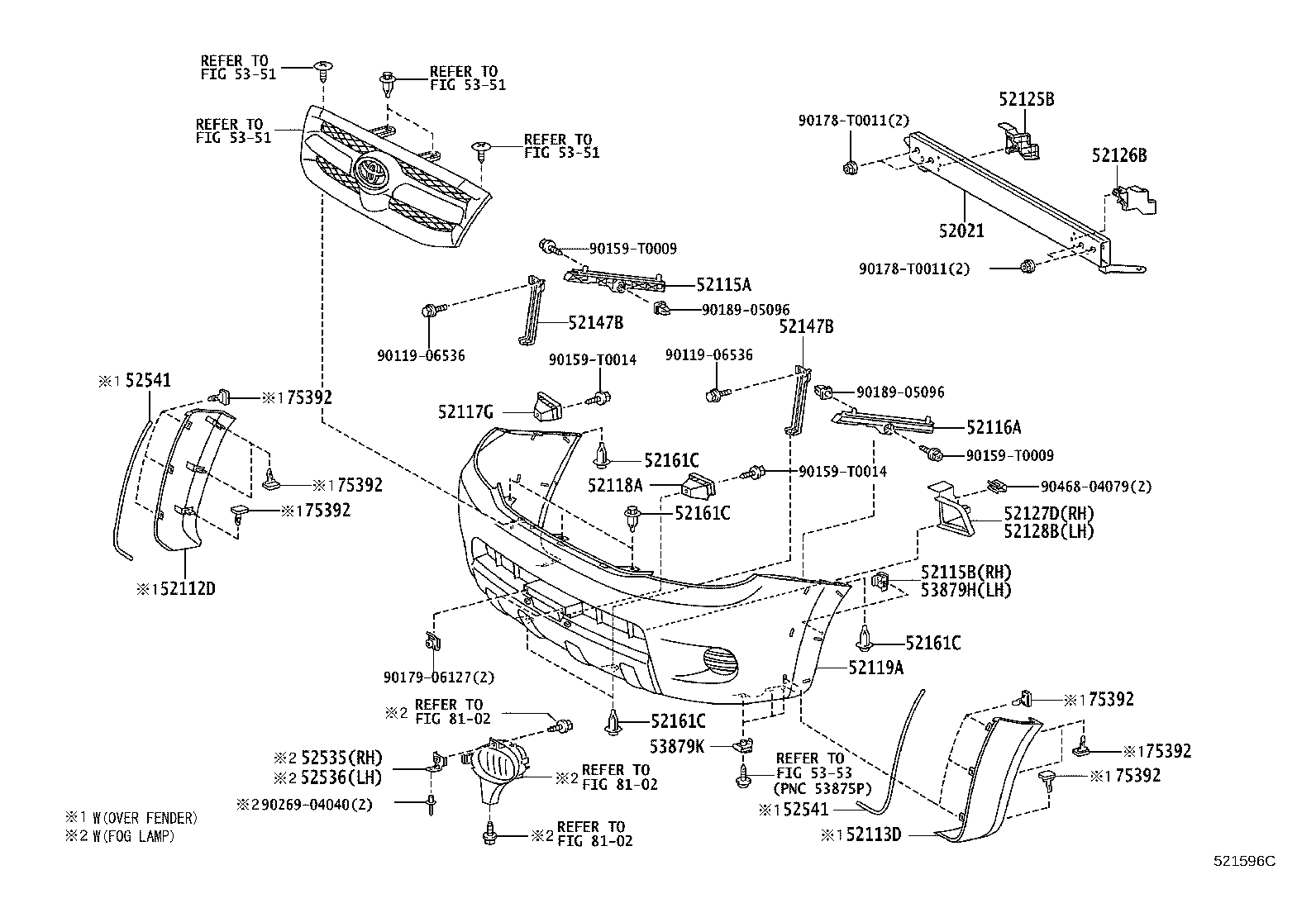

Exploded illustration 521596C 5351 — not listed in this catalogue 5351 — not listed in this catalogue 5351 — not listed in this catalogue 5351 — not listed in this catalogue 52112D — EXTENSION, FRONT BUMPER, RH (35 parts) 52113D — EXTENSION, FRONT BUMPER, LH (27 parts) 52116A — SUPPORT, FRONT BUMPER SIDE, LH (8 parts) 52118A — INSERT, FRONT BUMPER EXTENSION, NO.2 LH (1 parts) 52119A — COVER, FRONT BUMPER (37 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (1 parts) 52161C — PIECE, FRONT BUMPER (8 parts) 52161C — PIECE, FRONT BUMPER (8 parts) 52161C — PIECE, FRONT BUMPER (8 parts) 52161C — PIECE, FRONT BUMPER (8 parts) 52541 — PROTECTOR, FRONT BUMPER (43 parts) 52541 — PROTECTOR, FRONT BUMPER (43 parts) 75392 — RETAINER, OUTSIDE MOULDING (21 parts) 75392 — RETAINER, OUTSIDE MOULDING (21 parts) 75392 — RETAINER, OUTSIDE MOULDING (21 parts) 75392 — RETAINER, OUTSIDE MOULDING (21 parts) 75392 — RETAINER, OUTSIDE MOULDING (21 parts) 75392 — RETAINER, OUTSIDE MOULDING (21 parts) 52126B — EXTENSION, FRONT BUMPER REINFORCEMENT, LH (3 parts) 9011906536 — not listed in this catalogue 9011906536 — not listed in this catalogue 90159T0014 — not listed in this catalogue 90159T0014 — not listed in this catalogue 90178T0011 — not listed in this catalogue 90178T0011 — not listed in this catalogue 9018905096 — not listed in this catalogue 90159T0009 — not listed in this catalogue 9017906127 — not listed in this catalogue 9046804079 — not listed in this catalogue 52117G — INSERT, FRONT BUMPER EXTENSION, NO.2 RH (1 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (1 parts) 52125B — EXTENSION, FRONT BUMPER REINFORCEMENT, RH (3 parts) 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (7 parts) 52147B — BRACKET, FRONT BUMPER MOUNTING (7 parts) 9026904040 — not listed in this catalogue 52535 — RETAINER, FRONT BUMPER SIDE, RH (7 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (7 parts) 8102 — not listed in this catalogue 8102 — not listed in this catalogue 8102 — not listed in this catalogue 5353 — not listed in this catalogue 53879K — RETAINER, FRONT FENDER LINER (5 parts) 53879H — RETAINER, FRONT FENDER LINER (5 parts) 52115B — RETAINER, FRONT BUMPER EXTENSION, NO.1 (2 parts) 52115A — SUPPORT, FRONT BUMPER SIDE, RH (8 parts) 52147B — BRACKET, FRONT BUMPER MOUNTING (7 parts) 9018905096 — not listed in this catalogue 90159T0009 — not listed in this catalogue
521596C · 31 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
237 parts on this figure
Part number Description Fitment Price
52021 — Reinforcement Sub-assy, Front Bumper
52021-0K020 Reinforcement Sub-assy, Front Bumper
2005-07 → 2006-08 ended
KUN25 —
52021-0K022 Reinforcement Sub-assy, Front Bumper
2006-08 → 2008-10 ended
KUN2# 4FC,5F —
52021-0K030 Reinforcement Sub-assy, Front Bumper
2005-07 → 2008-10 ended
KUN15 —
52021-0K022 Reinforcement Sub-assy, Front Bumper
2008-08 → 2011-07 ended
KUN2# RHD (THDCB,THSCB) —
52021-0K022 Reinforcement Sub-assy, Front Bumper
2008-08 → 2011-08 ended
KUN2# LHD (THDCB,THSCB);KUN2# (DCB,SCB,XTR) +1 —
52021-0K030 Reinforcement Sub-assy, Front Bumper
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR —
52021-0K030 Reinforcement Sub-assy, Front Bumper
2008-08 → 2011-08 ended
KUN15 DCB,SCB —
52112D — Extension, Front Bumper, RH
52112-0K010 note Extension, Front Bumper, RH
2005-07 → 2005-08 ended
KUN25 XTR SR —
52112-0K010 note Extension, Front Bumper, RH
2005-07 → 2005-08 ended
KUN25 XTR DLX —
52112-0K010 note Extension, Front Bumper, RH
2005-07 → 2006-09 ended
KUN25 DCB SR —
52112-0K010 note Extension, Front Bumper, RH
2005-07 → 2006-09 ended
KUN25 SCB —
52112-0K010 note Extension, Front Bumper, RH
2005-07 → 2006-09 ended
KUN25 DCB DLX —
52112-0K011 note Extension, Front Bumper, RH
2005-07 → 2008-10 ended
KUN26 DCB —
52112-0K011 note Extension, Front Bumper, RH
2006-10 → 2008-10 ended
KUN25 DCB SR —
52112-0K011 note Extension, Front Bumper, RH
2006-10 → 2008-10 ended
KUN25 SCB —
52112-0K011 note Extension, Front Bumper, RH
2006-10 → 2008-10 ended
KUN25 DCB DLX —
52112-0K011 note Extension, Front Bumper, RH
2006-10 → 2008-10 ended
KUN25 DCB DLX —
52112-0K030 note Extension, Front Bumper, RH
2005-09 → 2006-09 ended
KUN25 RHD XTR —
52112-0K030 note Extension, Front Bumper, RH
2005-09 → 2006-08 ended
KUN25 XTR DLX —
52112-0K030 note Extension, Front Bumper, RH
2005-09 → 2006-08 ended
KUN25 XTR SR —
52112-0K031 note Extension, Front Bumper, RH
2006-09 → 2008-08 ended
KUN2# (THDCB,XTR) SR —
52112-0K031 note Extension, Front Bumper, RH
2007-02 → 2008-08 ended
KUN25 THSCB —
52112-0K031 note Extension, Front Bumper, RH
2006-09 → 2008-08 ended
KUN25 (THDCB,XTR) DLX —
52112-0K031 note Extension, Front Bumper, RH
2006-08 → 2008-08 ended
KUN25 (THDCB,XTR) DLX —
52112-0K031 note Extension, Front Bumper, RH
2006-08 → 2008-08 ended
KUN25 XTR SR —
52112-0K090 note Extension, Front Bumper, RH
2008-10 → 2009-01 ended
KUN25 SCB —
52112-0K090 note Extension, Front Bumper, RH
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
52112-0K090 note Extension, Front Bumper, RH
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
52112-0K090 note Extension, Front Bumper, RH
2008-10 → 2011-08 ended
KUN25 DCB SR —
52112-0K090 note Extension, Front Bumper, RH
2008-10 → 2011-08 ended
KUN25 DCB DLX —
52112-0K090 note Extension, Front Bumper, RH
2008-10 → 2011-08 ended
KUN25 DCB DLX —
52112-0K090 note Extension, Front Bumper, RH
2008-10 → 2011-08 ended
KUN25 DCB DLX —
52112-0K090 note Extension, Front Bumper, RH
2008-10 → 2011-08 ended
KUN25 (DCB,SCB) DLX —
52112-0K090 note Extension, Front Bumper, RH
2008-10 → 2011-08 ended
KUN26 DCB —
52112-0K110 note Extension, Front Bumper, RH
2008-08 → 2011-07 ended
KUN25 (THDCB,XTR) SR —
52112-0K110 note Extension, Front Bumper, RH
2010-08 → 2011-07 ended
KUN25 LHD THDCB DLX +1 —
52112-0K110 note Extension, Front Bumper, RH
2008-08 → 2011-07 ended
KUN26 THDCB —
52112-0K110 note Extension, Front Bumper, RH
2008-08 → 2011-07 ended
KUN25 THDCB DLX —
52112-0K110 note Extension, Front Bumper, RH
2008-08 → 2011-07 ended
KUN25 (THDCB,XTR) DLX —
52112-0K110 note Extension, Front Bumper, RH
2008-08 → 2011-07 ended
KUN25 THDCB DLX —
52112-0K110 note Extension, Front Bumper, RH
2008-08 → 2011-07 ended
KUN25 (THDCB,THSCB,XTR) DLX —
52112-0K110 note Extension, Front Bumper, RH
2010-08 → 2011-07 ended
KUN25 LHD THDCB DLX +1 —
52113D — Extension, Front Bumper, LH
52113-0K010 note Extension, Front Bumper, LH
2005-07 → 2008-10 ended
KUN2# DCB SR —
52113-0K010 note Extension, Front Bumper, LH
2006-10 → 2008-10 ended
KUN25 DCB DLX —
52113-0K010 note Extension, Front Bumper, LH
2005-07 → 2008-10 ended
KUN25 DCB DLX —
52113-0K010 note Extension, Front Bumper, LH
2005-07 → 2008-10 ended
KUN25 SCB —
52113-0K010 note Extension, Front Bumper, LH
2005-07 → 2005-08 ended
KUN25 XTR DLX —
52113-0K010 note Extension, Front Bumper, LH
2005-07 → 2005-08 ended
KUN25 XTR SR —
52113-0K030 note Extension, Front Bumper, LH
2006-08 → 2008-08 ended
KUN25 (THDCB,XTR) DLX —
52113-0K030 note Extension, Front Bumper, LH
2007-02 → 2008-08 ended
KUN25 THSCB —
52113-0K030 note Extension, Front Bumper, LH
2005-09 → 2008-08 ended
KUN25 (THDCB,XTR) DLX —
52113-0K030 note Extension, Front Bumper, LH
2005-09 → 2008-08 ended
KUN2# (THDCB,XTR) SR —
52113-0K040 note Extension, Front Bumper, LH
2008-10 → 2009-01 ended
KUN25 SCB —
52113-0K040 note Extension, Front Bumper, LH
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
52113-0K040 note Extension, Front Bumper, LH
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
52113-0K040 note Extension, Front Bumper, LH
2008-10 → 2011-08 ended
KUN25 DCB SR —
52113-0K040 note Extension, Front Bumper, LH
2008-10 → 2011-08 ended
KUN25 DCB DLX —
52113-0K040 note Extension, Front Bumper, LH
2008-10 → 2011-08 ended
KUN25 DCB DLX —
52113-0K040 note Extension, Front Bumper, LH
2008-10 → 2011-08 ended
KUN25 DCB DLX —
52113-0K040 note Extension, Front Bumper, LH
2008-10 → 2011-08 ended
KUN25 (DCB,SCB) DLX —
52113-0K040 note Extension, Front Bumper, LH
2008-10 → 2011-08 ended
KUN26 DCB —
52113-0K070 note Extension, Front Bumper, LH
2008-08 → 2011-07 ended
KUN25 (THDCB,XTR) SR —
52113-0K070 note Extension, Front Bumper, LH
2010-08 → 2011-07 ended
KUN25 LHD THDCB DLX +1 —
52113-0K070 note Extension, Front Bumper, LH
2008-08 → 2011-07 ended
KUN26 THDCB —
52113-0K070 note Extension, Front Bumper, LH
2008-08 → 2011-07 ended
KUN25 THDCB DLX —
52113-0K070 note Extension, Front Bumper, LH
2008-08 → 2011-07 ended
KUN25 (THDCB,XTR) DLX —
52113-0K070 note Extension, Front Bumper, LH
2008-08 → 2011-07 ended
KUN25 THDCB DLX —
52113-0K070 note Extension, Front Bumper, LH
2008-08 → 2011-07 ended
KUN25 (THDCB,THSCB,XTR) DLX —
52113-0K070 note Extension, Front Bumper, LH
2010-08 → 2011-07 ended
KUN25 LHD THDCB DLX +1 —
52115A — Support, Front Bumper Side, RH
52115-0K010 Support, Front Bumper Side, RH
2005-07 → 2006-04 ended
KUN15,25 XTR —
52115-0K011 Support, Front Bumper Side, RH
2006-05 → 2008-08 ended
KUN15,2# THDCB,THSCB,XTR —
52115-0K050 Support, Front Bumper Side, RH
2005-07 → 2006-04 ended
KUN15,25 DCB,SCB —
52115-0K051 Support, Front Bumper Side, RH
2006-05 → 2008-10 ended
KUN15,2# DCB,SCB —
52115-0K011 Support, Front Bumper Side, RH
2008-08 → 2011-07 ended
KUN15,26 THDCB,THSCB,XTR;KUN25 (THDCB,THSCB,XTR) DLX —
52115-0K011 note Support, Front Bumper Side, RH
2008-08 → 2011-07 ended
KUN25 (THDCB,XTR) SR —
52115-0K051 Support, Front Bumper Side, RH
2008-10 → 2011-08 ended
KUN15,26 DCB,SCB;KUN25 (DCB,SCB) DLX —
52115-0K051 note Support, Front Bumper Side, RH
2008-10 → 2011-08 ended
KUN25 DCB SR —
52115B — Retainer, Front Bumper Extension, NO.1
52115-0P010 Retainer, Front Bumper Extension, NO.1
2006-08 → 2008-10 ended
KUN26 4FC,5F;KUN15 DLX HDCR;KUN25 +1 —
52115-0P010 Retainer, Front Bumper Extension, NO.1
2006-10 → 2008-10 ended
KUN25 DCB,SCB —
52116A — Support, Front Bumper Side, LH
52116-0K010 Support, Front Bumper Side, LH
2005-07 → 2006-04 ended
KUN15,25 XTR —
52116-0K011 Support, Front Bumper Side, LH
2006-05 → 2008-08 ended
KUN15,2# THDCB,THSCB,XTR —
52116-0K050 Support, Front Bumper Side, LH
2005-07 → 2006-04 ended
KUN15,25 DCB,SCB —
52116-0K051 Support, Front Bumper Side, LH
2006-05 → 2008-10 ended
KUN15,2# DCB,SCB —
52116-0K011 Support, Front Bumper Side, LH
2008-08 → 2011-07 ended
KUN15,26 THDCB,THSCB,XTR;KUN25 (THDCB,THSCB,XTR) DLX —
52116-0K011 note Support, Front Bumper Side, LH
2008-08 → 2011-07 ended
KUN25 (THDCB,XTR) SR —
52116-0K051 Support, Front Bumper Side, LH
2008-10 → 2011-08 ended
KUN15,26 DCB,SCB;KUN25 (DCB,SCB) DLX —
52116-0K051 note Support, Front Bumper Side, LH
2008-10 → 2011-08 ended
KUN25 DCB SR —
52117G — Insert, Front Bumper Extension, NO.2 RH
52117-0K010 Insert, Front Bumper Extension, NO.2 RH
2005-07 → 2008-10 ended
KUN15,2# 4FC,5F —
52118A — Insert, Front Bumper Extension, NO.2 LH
52118-0K010 Insert, Front Bumper Extension, NO.2 LH
2005-07 → 2008-10 ended
KUN15,2# 4FC,5F —
52119A — Cover, Front Bumper
52119-0K010 note Cover, Front Bumper
2005-07 → 2006-07 ended
KUN15,25 (SCB,XTR) DLX —
52119-0K010 note Cover, Front Bumper
2005-07 → 2006-08 ended
KUN25 DCB SR —
52119-0K010 note Cover, Front Bumper
2005-07 → 2006-08 ended
KUN15 DCB;KUN25 DCB DLX —
52119-0K010 note Cover, Front Bumper
2005-07 → 2006-07 ended
KUN25 XTR SR —
52119-0K011 note Cover, Front Bumper
2006-10 → 2008-10 ended
KUN25 DCB SR —
52119-0K011 note Cover, Front Bumper
2006-08 → 2008-10 ended
KUN25 DCB SR —
52119-0K011 note Cover, Front Bumper
2006-08 → 2008-10 ended
KUN15 DCB,SCB,THSCB;KUN25 (DCB,SCB,THSCB) DLX —
52119-0K020 note Cover, Front Bumper
2005-07 → 2006-07 ended
KUN25 XTR SR —
52119-0K020 note Cover, Front Bumper
2005-07 → 2006-07 ended
KUN25 (SCB,XTR) DLX —
52119-0K020 note Cover, Front Bumper
2005-07 → 2006-08 ended
KUN25 DCB SR —
52119-0K020 note Cover, Front Bumper
2005-07 → 2006-08 ended
KUN25 DCB DLX —
52119-0K021 note Cover, Front Bumper
2006-10 → 2008-10 ended
KUN25 DCB DLX —
52119-0K021 note Cover, Front Bumper
2006-08 → 2008-10 ended
KUN25 (DCB,SCB,THSCB) DLX —
52119-0K021 note Cover, Front Bumper
2006-08 → 2008-10 ended
KUN2# DCB SR —
52119-0K967 note Cover, Front Bumper
2006-08 → 2008-08 ended
KUN25 (THDCB,XTR) SR —
52119-0K967 note Cover, Front Bumper
2006-08 → 2008-08 ended
KUN25 (THDCB,XTR) SR —
52119-0K967 note Cover, Front Bumper
2006-08 → 2008-08 ended
KUN15,25 (THDCB,XTR) DLX —
52119-0K968 note Cover, Front Bumper
2006-08 → 2008-08 ended
KUN25 (THDCB,XTR) DLX —
52119-0K968 note Cover, Front Bumper
2006-08 → 2008-08 ended
KUN25 (THDCB,XTR) DLX —
52119-0K968 note Cover, Front Bumper
2006-08 → 2008-08 ended
KUN2# (THDCB,XTR) SR —
52119-0K350 note Cover, Front Bumper
2008-08 → 2011-08 ended
KUN15,25 (DCB,SCB,THSCB,XTR) DLX —
52119-0K360 note Cover, Front Bumper
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
52119-0K360 note Cover, Front Bumper
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
52119-0K360 note Cover, Front Bumper
2008-10 → 2011-08 ended
KUN25 DCB DLX —
52119-0K360 note Cover, Front Bumper
2008-10 → 2011-08 ended
KUN25 DCB DLX —
52119-0K360 note Cover, Front Bumper
2008-08 → 2011-08 ended
KUN25 (DCB,XTR) DLX —
52119-0K360 note Cover, Front Bumper
2008-08 → 2011-08 ended
KUN25 (DCB,SCB,THSCB,XTR) DLX —
52119-0K360 note Cover, Front Bumper
2008-10 → 2009-01 ended
KUN25 SCB —
52119-0K971 note Cover, Front Bumper
2008-08 → 2011-08 ended
KUN26 5F,5FC —
52119-0K971 note Cover, Front Bumper
2008-08 → 2011-08 ended
KUN25 SR —
52119-0K972 note Cover, Front Bumper
2008-08 → 2011-07 ended
KUN15,25 THDCB DLX —
52119-0K974 note Cover, Front Bumper
2010-08 → 2011-07 ended
KUN25 LHD THDCB DLX +1 —
52119-0K974 note Cover, Front Bumper
2010-08 → 2011-07 ended
KUN25 LHD THDCB DLX +1 —
52119-0K974 note Cover, Front Bumper
2008-08 → 2011-07 ended
KUN25 THDCB DLX —
52119-0K974 note Cover, Front Bumper
2008-08 → 2011-07 ended
KUN25 THDCB DLX —
52119-0K974 note Cover, Front Bumper
2008-08 → 2011-07 ended
KUN25 THDCB DLX —
52119-0K974 note Cover, Front Bumper
2008-08 → 2011-07 ended
KUN25 THDCB DLX —
52125B — Extension, Front Bumper Reinforcement, RH
52125-0K010 Extension, Front Bumper Reinforcement, RH
2005-07 → 2008-10 ended
KUN2# 4FC,5F —
52125-0K010 Extension, Front Bumper Reinforcement, RH
2008-08 → 2011-07 ended
KUN2# RHD (THDCB,THSCB) —
52125-0K010 Extension, Front Bumper Reinforcement, RH
2008-08 → 2011-08 ended
KUN2# LHD (THDCB,THSCB);KUN2# (DCB,SCB,XTR) +1 —
52126B — Extension, Front Bumper Reinforcement, LH
52126-0K010 Extension, Front Bumper Reinforcement, LH
2005-07 → 2008-10 ended
KUN2# 4FC,5F —
52126-0K010 Extension, Front Bumper Reinforcement, LH
2008-08 → 2011-07 ended
KUN2# RHD (THDCB,THSCB) —
52126-0K010 Extension, Front Bumper Reinforcement, LH
2008-08 → 2011-08 ended
KUN2# LHD (THDCB,THSCB);KUN2# (DCB,SCB,XTR) +1 —
52127D — Cover, Front Bumper Hole, RH
52127-0K010 Cover, Front Bumper Hole, RH
2005-07 → 2008-10 ended
KUN15,2# 4FC,5F —
52128B — Cover, Front Bumper Hole, LH
52128-0K010 Cover, Front Bumper Hole, LH
2005-07 → 2008-10 ended
KUN15,2# 4FC,5F —
52147B — Bracket, Front Bumper Mounting
52147-0K010 Bracket, Front Bumper Mounting
2005-07 → 2008-10 ended
KUN15,2# 4FC,5F —
52147-0K010 note Bracket, Front Bumper Mounting
2009-03 → 2011-07 ended
KUN25 RHD THDCB SR —
52147-0K010 note Bracket, Front Bumper Mounting
2009-03 → 2011-08 ended
KUN25 (DCB,XTR) SR;KUN25 LHD +2 —
52147-0K010 Bracket, Front Bumper Mounting
2009-03 → 2011-08 ended
KUN15,26 HSCB) DCB,SCB;KUN26 DLX +6 —
52147-0K010 Bracket, Front Bumper Mounting
2009-03 → 2011-07 ended
KUN26 RHD THDCB;KUN15 THDCB,THSCB,XTR;KUN25 +3 —
52147-0K010 note Bracket, Front Bumper Mounting
2008-08 → 2009-02 ended
KUN25 SR —
52147-0K010 Bracket, Front Bumper Mounting
2008-08 → 2009-02 ended
KUN15,25 DLX;KUN26 5F,5FC —
52161C — Piece, Front Bumper
52161-0K040 Piece, Front Bumper
2005-07 → 2006-08 ended
KUN25 XTR —
52161-0K040 Piece, Front Bumper
2005-07 → 2006-10 ended
KUN15 XTR DCR;KUN15,25 DCB,SCB —
52161-0K040 Piece, Front Bumper
2006-08 → 2008-10 ended
KUN26 4FC,5F;KUN15 DLX HDCR;KUN25 +1 —
52161-0K040 Piece, Front Bumper
2006-10 → 2008-10 ended
KUN25 DCB,SCB —
52161-0K040 Piece, Front Bumper
2008-08 → 2011-07 ended
KUN26 RHD THDCB;KUN15 THDCB,THSCB,XTR;KUN25 +3 —
52161-0K040 note Piece, Front Bumper
2008-08 → 2011-07 ended
KUN25 RHD THDCB SR —
52161-0K040 Piece, Front Bumper
2008-08 → 2011-08 ended
KUN26 HD LHD (THDCB,THSCB) +7 —
52161-0K040 note Piece, Front Bumper
2008-08 → 2011-08 ended
KUN25 (DCB,XTR) SR;KUN25 LHD +2 —
52535 — Retainer, Front Bumper Side, RH
52535-0K010 note Retainer, Front Bumper Side, RH
2006-08 → 2008-10 ended
KUN25 (THDCB,XTR) SR —
52535-0K010 note Retainer, Front Bumper Side, RH
2006-10 → 2008-10 ended
KUN25 DCB DLX —
52535-0K010 note Retainer, Front Bumper Side, RH
2006-10 → 2008-10 ended
KUN25 DCB SR —
52535-0K010 note Retainer, Front Bumper Side, RH
2006-10 → 2008-10 ended
KUN25 DCB —
52535-0K010 note Retainer, Front Bumper Side, RH
2006-08 → 2008-10 ended
KUN25 (THDCB,XTR) DLX —
52535-0K010 note Retainer, Front Bumper Side, RH
2006-08 → 2008-10 ended
KUN25 THDCB,XTR;KUN15 (DCB,THDCB,XTR) DLX +1 —
52535-0K010 Retainer, Front Bumper Side, RH
2006-10 → 2008-10 ended
KUN26 4FC,5F —
52536 — Retainer, Front Bumper Side, LH
52536-0K010 note Retainer, Front Bumper Side, LH
2006-08 → 2008-10 ended
KUN25 THDCB,XTR;KUN15 (DCB,THDCB,XTR) DLX +1 —
52536-0K010 note Retainer, Front Bumper Side, LH
2006-08 → 2008-10 ended
KUN25 (THDCB,XTR) SR —
52536-0K010 note Retainer, Front Bumper Side, LH
2006-08 → 2008-10 ended
KUN25 (THDCB,XTR) DLX —
52536-0K010 Retainer, Front Bumper Side, LH
2006-10 → 2008-10 ended
KUN26 4FC,5F —
52536-0K010 note Retainer, Front Bumper Side, LH
2006-10 → 2008-10 ended
KUN25 DCB —
52536-0K010 note Retainer, Front Bumper Side, LH
2006-10 → 2008-10 ended
KUN25 DCB SR —
52536-0K010 note Retainer, Front Bumper Side, LH
2006-10 → 2008-10 ended
KUN25 DCB DLX —
52541 — Protector, Front Bumper
52541-0K010-B0 note Protector, Front Bumper
2005-07 → 2008-10 ended
KUN25 DCB DLX CBU —
52541-0K010-B0 note Protector, Front Bumper
2005-07 → 2008-10 ended
KUN25 DCB SR —
52541-0K010-B0 note Protector, Front Bumper
2005-07 → 2008-10 ended
KUN25 DCB IV3;KUN25 THDCB +1 —
52541-0K010-B0 note Protector, Front Bumper
2006-08 → 2008-08 ended
KUN25 XTR DLX —
52541-0K010-B0 note Protector, Front Bumper
2006-10 → 2008-10 ended
KUN26 4FC,5F;KUN25 THDCB SR —
52541-0K010-B0 note Protector, Front Bumper
2006-10 → 2008-10 ended
KUN25 DCB DLX CBU —
52541-0K010-B0 note Protector, Front Bumper
2005-09 → 2008-08 ended
KUN25 XTR DLX —
52541-0K010-B0 note Protector, Front Bumper
2005-09 → 2008-08 ended
KUN25 XTR SR —
52541-0K010-B0 note Protector, Front Bumper
2006-10 → 2008-10 ended
KUN25 DCB IV3;KUN25 THDCB +1 —
52541-0K010-B0 note Protector, Front Bumper
2005-07 → 2005-09 ended
KUN25 XTR DLX —
52541-0K010-B0 note Protector, Front Bumper
2005-07 → 2005-09 ended
KUN25 XTR SR —
52541-0K010-C0 note Protector, Front Bumper
2005-07 → 2008-10 ended
KUN2# (DCB,THDCB) (4FC,5F) SR —
52541-0K010-C0 note Protector, Front Bumper
2005-07 → 2008-10 ended
KUN25 (DCB,THDCB) DLX —
52541-0K010-C0 note Protector, Front Bumper
2006-10 → 2008-10 ended
KUN25 (DCB,THDCB) DLX —
52541-0K010-C0 note Protector, Front Bumper
2006-08 → 2008-08 ended
KUN25 XTR DLX —
52541-0K010-C0 note Protector, Front Bumper
2005-09 → 2008-08 ended
KUN25 XTR DLX —
52541-0K010-C0 note Protector, Front Bumper
2005-09 → 2008-08 ended
KUN25 XTR SR —
52541-0K010-C0 note Protector, Front Bumper
2005-07 → 2005-09 ended
KUN25 XTR DLX —
52541-0K010-C0 note Protector, Front Bumper
2005-07 → 2005-09 ended
KUN25 XTR SR —
52541-0K010-C0 note Protector, Front Bumper
2005-07 → 2008-10 ended
KUN25 SCB,THSCB —
52541-0K010-B0 note Protector, Front Bumper
2010-08 → 2011-08 ended
KUN25 LHD THDCB DLX +1 —
52541-0K010-B0 note Protector, Front Bumper
2010-08 → 2011-08 ended
KUN25 LHD THDCB DLX +1 —
52541-0K010-B0 note Protector, Front Bumper
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
52541-0K010-B0 note Protector, Front Bumper
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
52541-0K010-B0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN25 SR —
52541-0K010-B0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN25 (DCB,THDCB) DLX —
52541-0K010-B0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN25 (DCB,THDCB) DLX —
52541-0K010-B0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN25 (DCB,THDCB) DLX —
52541-0K010-B0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN25 (DCB,THDCB) DLX —
52541-0K010-B0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN26 5F,5FC —
52541-0K010-C0 note Protector, Front Bumper
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
52541-0K010-C0 note Protector, Front Bumper
2010-08 → 2011-08 ended
KUN25 LHD THDCB DLX +1 —
52541-0K010-C0 note Protector, Front Bumper
2010-08 → 2011-08 ended
KUN25 LHD THDCB DLX +1 —
52541-0K010-C0 note Protector, Front Bumper
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
52541-0K010-C0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN25 (SCB,THSCB,XTR) DLX —
52541-0K010-C0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN25 SR —
52541-0K010-C0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN25 (DCB,THDCB) DLX —
52541-0K010-C0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN25 (DCB,THDCB) DLX —
52541-0K010-C0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN25 (DCB,THDCB) DLX —
52541-0K010-C0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN25 (DCB,THDCB) DLX —
52541-0K010-C0 note Protector, Front Bumper
2008-08 → 2011-08 ended
KUN26 5F,5FC —
52541-0K010-C0 note Protector, Front Bumper
2008-08 → 2011-07 ended
KUN25 XTR DLX —
52541-0K010-C0 note Protector, Front Bumper
2008-10 → 2009-01 ended
KUN25 SCB —
53879H — Retainer, Front Fender Liner
53879-0K010 Retainer, Front Fender Liner
2005-07 → 2008-10 ended
KUN15,2# 4FC,5F —
53879-0K010 Retainer, Front Fender Liner
2008-08 → 2011-07 ended
KUN26 RHD THDCB;KUN15 THDCB,THSCB,XTR;KUN25 +3 —
53879-0K010 note Retainer, Front Fender Liner
2008-08 → 2011-08 ended
KUN25 (DCB,XTR) SR;KUN25 LHD +2 —
53879-0K010 note Retainer, Front Fender Liner
2008-08 → 2011-07 ended
KUN25 RHD THDCB SR —
53879-0K010 Retainer, Front Fender Liner
2008-08 → 2011-08 ended
KUN26 HD LHD (THDCB,THSCB) +7 —
53879K — Retainer, Front Fender Liner
53879-0K020 Retainer, Front Fender Liner
2006-08 → 2007-07 ended
KUN15,2# THDCB,THSCB,XTR —
53879-0K020 Retainer, Front Fender Liner
2006-08 → 2007-09 ended
KUN26 DCB;KUN15 (DCB,SCB) DLX +1 —
53879-0K020 Retainer, Front Fender Liner
2006-10 → 2007-09 ended
KUN25 DCB,SCB —
90467-05138 Retainer, Front Fender Liner
2007-08 → 2008-10 ended
KUN15,2# (THDCB,THSCB,XTR) (4FC,5F) —
90467-05138 Retainer, Front Fender Liner
2007-10 → 2008-10 ended
KUN15,2# DCB,SCB —
75392 — Retainer, Outside Moulding
75392-35200 note Retainer, Outside Moulding
2006-08 → 2008-10 ended
KUN25 (THDCB,XTR) DLX —
75392-35200 note Retainer, Outside Moulding
2006-10 → 2008-10 ended
KUN25 DCB DLX —
75392-35200 note Retainer, Outside Moulding
2005-07 → 2008-10 ended
KUN25 DLX —
75392-35200 Retainer, Outside Moulding
2005-07 → 2008-10 ended
KUN2# (4FC,5F) SR —
75392-35200 note Retainer, Outside Moulding
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
75392-35200 note Retainer, Outside Moulding
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
75392-35200 note Retainer, Outside Moulding
2010-08 → 2011-08 ended
KUN25 LHD THDCB DLX +1 —
75392-35200 note Retainer, Outside Moulding
2010-08 → 2011-08 ended
KUN25 LHD THDCB DLX +1 —
75392-35200 note Retainer, Outside Moulding
2008-08 → 2011-08 ended
KUN25 (DCB,XTR) SR;KUN25 LHD +2 —
75392-35200 note Retainer, Outside Moulding
2008-08 → 2011-08 ended
KUN25 DCB DLX;KUN25 LHD +2 —
75392-35200 note Retainer, Outside Moulding
2008-08 → 2011-08 ended
KUN25 (DCB,XTR) DLX;KUN25 LHD +2 —
75392-35200 note Retainer, Outside Moulding
2008-08 → 2011-08 ended
KUN25 DCB DLX;KUN25 LHD +2 —
75392-35200 note Retainer, Outside Moulding
2008-08 → 2011-08 ended
KUN25 (DCB,SCB,XTR) DLX;KUN25 LHD +2 —
75392-35200 Retainer, Outside Moulding
2008-08 → 2011-08 ended
KUN26 LHD THDCB;KUN26 DCB +1 —
75392-35200 note Retainer, Outside Moulding
2008-08 → 2011-07 ended
KUN25 RHD THDCB SR —
75392-35200 note Retainer, Outside Moulding
2008-08 → 2011-07 ended
KUN25 RHD THDCB DLX —
75392-35200 note Retainer, Outside Moulding
2008-08 → 2011-07 ended
KUN25 RHD THDCB DLX —
75392-35200 note Retainer, Outside Moulding
2008-08 → 2011-07 ended
KUN25 RHD THDCB DLX —
75392-35200 note Retainer, Outside Moulding
2008-08 → 2011-07 ended
KUN25 RHD (THDCB,THSCB) DLX —
75392-35200 Retainer, Outside Moulding
2008-08 → 2011-07 ended
KUN26 RHD THDCB —
75392-35200 note Retainer, Outside Moulding
2008-08 → 2009-01 ended
KUN25 SCB —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
