Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

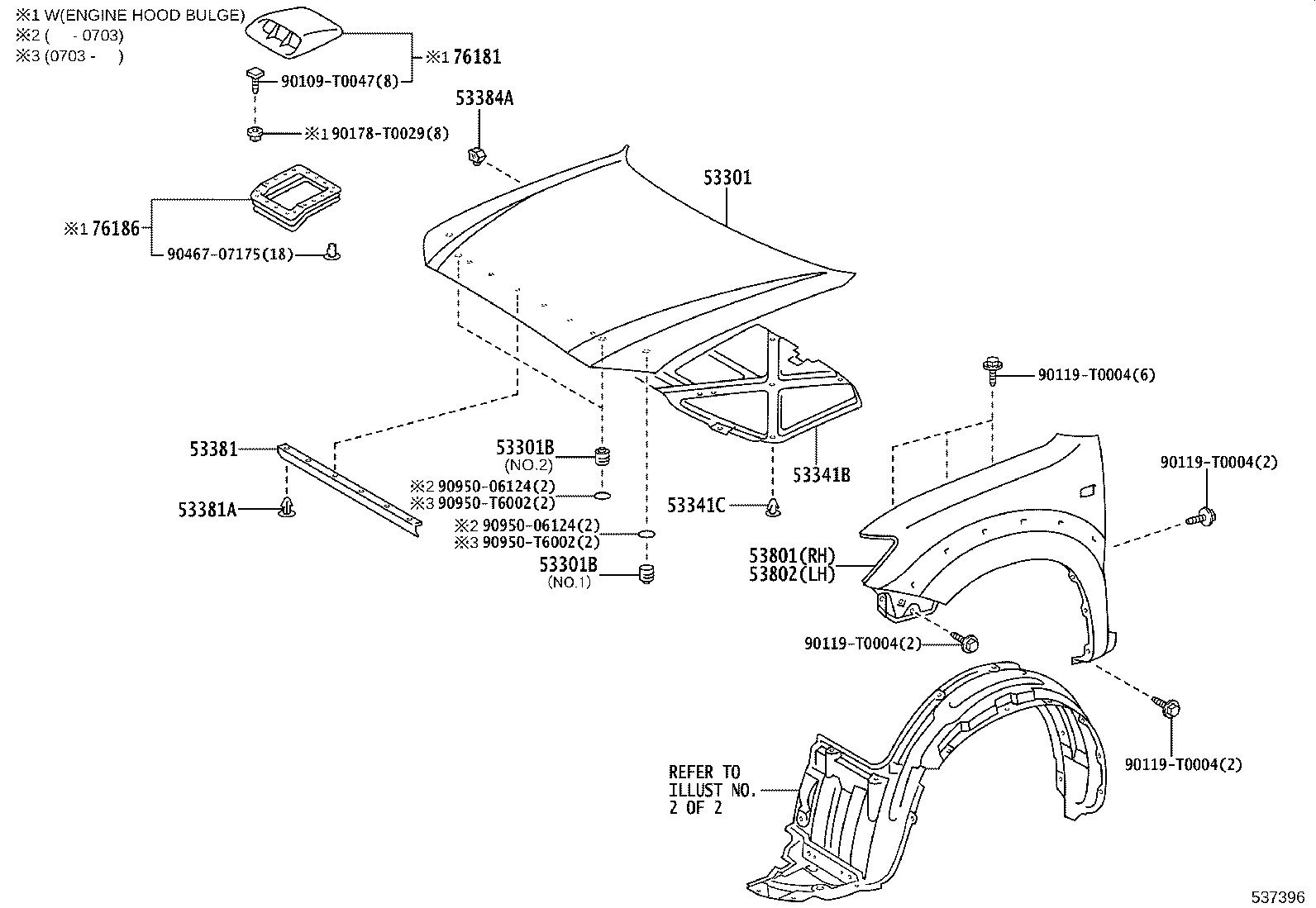

Exploded illustration 537396 53301 — HOOD SUB-ASSY (8 parts) 53301B — CUSHION, HOOD BUMPER (10 parts) 53381 — SEAL, HOOD TO RADIATOR SUPPORT (3 parts) 53341B — INSULATOR, HOOD (8 parts) 53341C — CLIP(FOR HOOD INSULATOR) (6 parts) 53381A — CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) (3 parts) 53384A — BUMPER, FENDER TO HOOD (3 parts) 53801 — FENDER SUB-ASSY, FRONT RH (14 parts) 53802 — FENDER SUB-ASSY, FRONT LH (14 parts) 76181 — BULGE, HOOD (4 parts) 76186 — SEAL, HOOD AIR INTAKE (4 parts) 90119T0004 — not listed in this catalogue 90119T0004 — not listed in this catalogue 90119T0004 — not listed in this catalogue 90119T0004 — not listed in this catalogue 90178T0029 — not listed in this catalogue 90109T0047 — not listed in this catalogue 9046707175 — not listed in this catalogue 9095006124 — not listed in this catalogue 90950T6002 — not listed in this catalogue 9095006124 — not listed in this catalogue 90950T6002 — not listed in this catalogue 53301B — CUSHION, HOOD BUMPER (10 parts)
537396 · 12 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
53301 — Hood Sub-assy
53301-0K010 Hood Sub-assy
2005-07 → 2006-10 ended
KUN15 XTR DCR;KUN15,25 DCB,SCB —
53301-0K010 Hood Sub-assy
2005-07 → 2006-08 ended
KUN25 XTR —
53301-0K020 Hood Sub-assy
2006-10 → 2007-02 ended
KUN25 DCB,SCB —
53301-0K020 Hood Sub-assy
2006-08 → 2007-02 ended
KUN26;KUN25 XTR;KUN15 DLX HDCR —
53301-0K020 Hood Sub-assy
2006-08 → 2007-03 ended
KUN15,2# THDCB,THSCB —
53301-0K021 Hood Sub-assy
2007-03 → 2008-10 ended
KUN15,2# 4FC,5F —
53301-0K021 Hood Sub-assy
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN2# RHD (THDCB,THSCB) —
53301-0K021 Hood Sub-assy
2008-08 → 2011-08 ended
KUN25 DCB,SCB,XTR;KUN2# LHD (THDCB,THSCB);KUN15,26 +2 —
53301B — Cushion, Hood Bumper
90541-15019 note Cushion, Hood Bumper
2005-07 → 2007-01 ended
KUN15,2# —
90541-15019 note Cushion, Hood Bumper
2007-01 → 2008-10 ended
KUN15,2# 4FC,5F —
90541-15024 note Cushion, Hood Bumper
2005-07 → 2008-10 ended
KUN15,2# 4FC,5F —
90541-T0006 note Cushion, Hood Bumper
2007-01 → 2008-10 ended
KUN15,2# 4FC,5F —
90541-15019 note Cushion, Hood Bumper
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN2# RHD (THDCB,THSCB) —
90541-15019 note Cushion, Hood Bumper
2008-08 → 2011-08 ended
KUN25 DCB,SCB,XTR;KUN2# LHD (THDCB,THSCB);KUN15,26 +2 —
90541-15024 note Cushion, Hood Bumper
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN2# RHD (THDCB,THSCB) —
90541-15024 note Cushion, Hood Bumper
2008-08 → 2011-08 ended
KUN25 DCB,SCB,XTR;KUN2# LHD (THDCB,THSCB);KUN15,26 +2 —
90541-T0006 note Cushion, Hood Bumper
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN2# RHD (THDCB,THSCB) —
90541-T0006 note Cushion, Hood Bumper
2008-08 → 2011-08 ended
KUN25 DCB,SCB,XTR;KUN2# LHD (THDCB,THSCB);KUN15,26 +2 —
53341B — Insulator, Hood
53341-0K010 Insulator, Hood
2005-07 → 2006-08 ended
KUN15,25 XTR —
53341-0K020 Insulator, Hood
2006-08 → 2008-08 ended
KUN15,2# THDCB,THSCB,XTR —
53341-0K030 Insulator, Hood
2006-10 → 2008-10 ended
KUN15,2# DCB,SCB —
53341-0K040 Insulator, Hood
2005-07 → 2006-10 ended
KUN15,25 DCB,SCB —
53341-0K020 Insulator, Hood
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN2# RHD (THDCB,THSCB) —
53341-0K020 Insulator, Hood
2008-08 → 2011-08 ended
KUN25 XTR;KUN2# LHD (THDCB,THSCB) —
53341-0K020 Insulator, Hood
2009-12 → 2011-08 ended
KUN15,2# DCB,SCB —
53341-0K030 Insulator, Hood
2008-10 → 2009-12 ended
KUN15,2# DCB,SCB —
53341C — Clip(FOR HOOD INSULATOR)
90467-T0014 Clip(FOR HOOD INSULATOR)
2006-10 → 2008-10 ended
KUN25 DCB,SCB —
90467-T0014 Clip(FOR HOOD INSULATOR)
2006-08 → 2008-10 ended
KUN26 4FC,5F;KUN15 DLX HDCR;KUN25 +1 —
90467-T0014 Clip(FOR HOOD INSULATOR)
2005-07 → 2006-10 ended
KUN15 XTR DCR;KUN15,25 DCB,SCB —
90467-T0014 Clip(FOR HOOD INSULATOR)
2005-07 → 2006-08 ended
KUN25 XTR —
90467-T0014 Clip(FOR HOOD INSULATOR)
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN2# RHD (THDCB,THSCB) —
90467-T0014 Clip(FOR HOOD INSULATOR)
2008-08 → 2011-08 ended
KUN25 DCB,SCB,XTR;KUN2# LHD (THDCB,THSCB);KUN15,26 +2 —
53381 — Seal, Hood TO Radiator Support
53381-0K010 Seal, Hood TO Radiator Support
2005-07 → 2008-10 ended
KUN15,2# 4FC,5F —
53381-0K010 Seal, Hood TO Radiator Support
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN2# RHD (THDCB,THSCB) —
53381-0K010 Seal, Hood TO Radiator Support
2008-08 → 2011-08 ended
KUN25 DCB,SCB,XTR;KUN2# LHD (THDCB,THSCB);KUN15,26 +2 —
53381A — Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-T0013 Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2005-07 → 2008-10 ended
KUN15,2# 4FC,5F —
90467-T0013 Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN2# RHD (THDCB,THSCB) —
90467-T0013 Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2008-08 → 2011-08 ended
KUN25 DCB,SCB,XTR;KUN2# LHD (THDCB,THSCB);KUN15,26 +2 —
53384A — Bumper, Fender TO Hood
53384-0K010 Bumper, Fender TO Hood
2005-07 → 2008-10 ended
KUN15,2# 4FC,5F —
53384-0K010 Bumper, Fender TO Hood
2008-08 → 2011-08 ended
KUN25 DCB,SCB,XTR;KUN2# LHD (THDCB,THSCB);KUN15,26 +2 —
53384-0K010 Bumper, Fender TO Hood
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN2# RHD (THDCB,THSCB) —
53801 — Fender Sub-assy, Front RH
53811-0K010 note Fender Sub-assy, Front RH
2005-07 → 2008-10 ended
KUN25 SR —
53811-0K010 Fender Sub-assy, Front RH
2005-07 → 2008-10 ended
KUN15;KUN25 DLX —
53811-0K020 Fender Sub-assy, Front RH
2005-07 → 2008-10 ended
KUN2# (4FC,5F) SR —
53811-0K020 note Fender Sub-assy, Front RH
2005-07 → 2008-10 ended
KUN25 DLX —
53811-0K010 Fender Sub-assy, Front RH
2008-08 → 2011-08 ended
KUN15 DCB,SCB;KUN25 (DCB,SCB,XTR) DLX;KUN25 +3 —
53811-0K010 Fender Sub-assy, Front RH
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN25 RHD (THDCB,THSCB) +1 —
53811-0K020 Fender Sub-assy, Front RH
2008-08 → 2011-07 ended
KUN2# RHD THDCB SR —
53811-0K020 note Fender Sub-assy, Front RH
2008-08 → 2011-07 ended
KUN25 RHD (THDCB,THSCB) DLX —
53811-0K020 note Fender Sub-assy, Front RH
2008-08 → 2011-07 ended
KUN25 RHD THDCB DLX —
53811-0K020 Fender Sub-assy, Front RH
2008-08 → 2011-08 ended
KUN2# LHD THDCB SR;KUN2# +3 —
53811-0K020 note Fender Sub-assy, Front RH
2008-08 → 2011-08 ended
KUN25 (DCB,SCB,XTR) DLX;KUN25 LHD +2 —
53811-0K020 note Fender Sub-assy, Front RH
2008-08 → 2011-08 ended
KUN25 (DCB,XTR) DLX;KUN25 LHD +2 —
53811-0K020 note Fender Sub-assy, Front RH
2010-08 → 2011-08 ended
KUN25 LHD THDCB DLX +1 —
53811-0K020 note Fender Sub-assy, Front RH
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
53802 — Fender Sub-assy, Front LH
53812-0K010 Fender Sub-assy, Front LH
2005-07 → 2008-10 ended
KUN15;KUN25 DLX —
53812-0K010 note Fender Sub-assy, Front LH
2005-07 → 2008-10 ended
KUN25 SR —
53812-0K020 note Fender Sub-assy, Front LH
2005-07 → 2008-10 ended
KUN25 DLX —
53812-0K020 Fender Sub-assy, Front LH
2005-07 → 2008-10 ended
KUN2# (4FC,5F) SR —
53812-0K010 Fender Sub-assy, Front LH
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN25 RHD (THDCB,THSCB) +1 —
53812-0K010 Fender Sub-assy, Front LH
2008-08 → 2011-08 ended
KUN15 DCB,SCB;KUN25 (DCB,SCB,XTR) DLX;KUN25 +3 —
53812-0K020 note Fender Sub-assy, Front LH
2010-08 → 2011-08 ended
KUN25 LHD THDCB DLX +1 —
53812-0K020 note Fender Sub-assy, Front LH
2010-10 → 2011-08 ended
KUN25 LHD DCB DLX +1 —
53812-0K020 note Fender Sub-assy, Front LH
2008-08 → 2011-08 ended
KUN25 (DCB,XTR) DLX;KUN25 LHD +2 —
53812-0K020 note Fender Sub-assy, Front LH
2008-08 → 2011-08 ended
KUN25 (DCB,SCB,XTR) DLX;KUN25 LHD +2 —
53812-0K020 Fender Sub-assy, Front LH
2008-08 → 2011-08 ended
KUN2# LHD THDCB SR;KUN2# +3 —
53812-0K020 note Fender Sub-assy, Front LH
2008-08 → 2011-07 ended
KUN25 RHD THDCB DLX —
53812-0K020 note Fender Sub-assy, Front LH
2008-08 → 2011-07 ended
KUN25 RHD (THDCB,THSCB) DLX —
53812-0K020 Fender Sub-assy, Front LH
2008-08 → 2011-07 ended
KUN2# RHD THDCB SR —
76181 — Bulge, Hood
76180-0K905 Bulge, Hood
2006-08 → 2008-08 ended
KUN15,2# THDCB,THSCB,XTR —
76180-0K906 Bulge, Hood
2006-10 → 2008-10 ended
KUN15,2# DCB,SCB —
76180-0K905 Bulge, Hood
2008-08 → 2011-07 ended
KUN15,2# THDCB,THSCB,XTR —
76180-0K906 Bulge, Hood
2008-10 → 2011-08 ended
KUN15,2# DCB,SCB —
76186 — Seal, Hood Air Intake
76186-0K010 Seal, Hood Air Intake
2006-08 → 2008-10 ended
KUN26 4FC,5F;KUN15 DLX HDCR;KUN25 +1 —
76186-0K010 Seal, Hood Air Intake
2006-10 → 2008-10 ended
KUN25 DCB,SCB —
76186-0K010 Seal, Hood Air Intake
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR;KUN2# RHD (THDCB,THSCB) —
76186-0K010 Seal, Hood Air Intake
2008-08 → 2011-08 ended
KUN25 DCB,SCB,XTR;KUN2# LHD (THDCB,THSCB);KUN15,26 +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
