Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

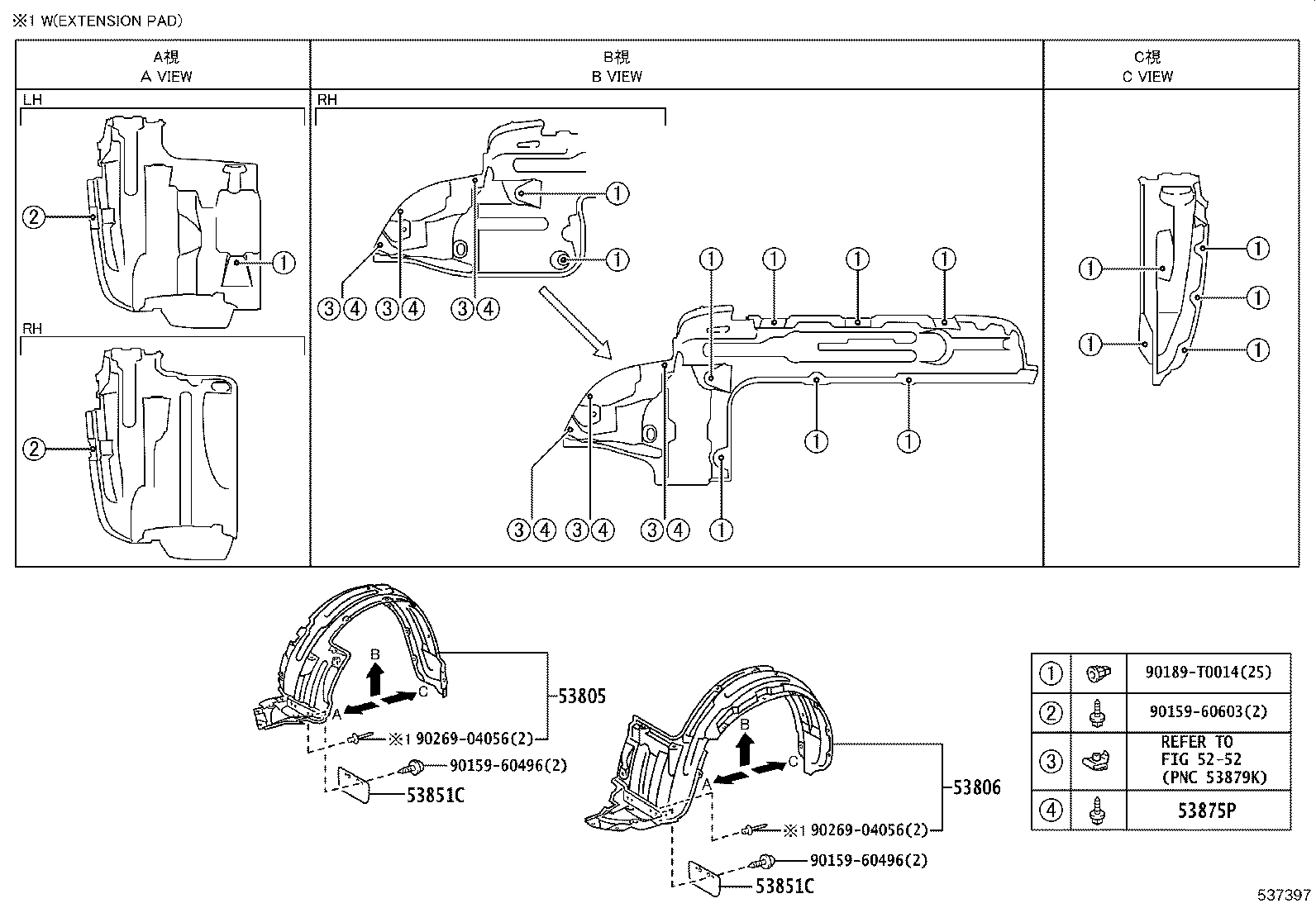

Exploded illustration 537397 90189T0014 — not listed in this catalogue 9015960603 — not listed in this catalogue 5252 — not listed in this catalogue 53875P — SCREW, NO.1 (2 parts) 53851C — PAD, FRONT WHEEL OPENING EXTENSION, NO.1 (4 parts) 9015960496 — not listed in this catalogue 9026904056 — not listed in this catalogue 53806 — SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH (9 parts) 9026904056 — not listed in this catalogue 53805 — SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH (9 parts) 9015960496 — not listed in this catalogue 53851C — PAD, FRONT WHEEL OPENING EXTENSION, NO.1 (4 parts)
537397 · 5 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
53805 — Shield Sub-assy, Front Fender Splash, RH
53805-0K090 Shield Sub-assy, Front Fender Splash, RH
2006-08 → 2007-09 ended
KUN15,2# —
53805-0K091 Shield Sub-assy, Front Fender Splash, RH
2007-10 → 2008-08 ended
KUN15 DCB,SCB —
53805-0K091 Shield Sub-assy, Front Fender Splash, RH
2007-10 → 2008-10 ended
KUN2# 4FC,5F;KUN15 THDCB,THSCB,XTR —
53875-0K120 Shield Sub-assy, Front Fender Splash, RH
2008-08 → 2008-10 ended
KUN15 DCB,SCB —
53805-0K030 Shield Sub-assy, Front Fender Splash, RH
2009-05 → 2011-07 ended
KUN2# RHD (THDCB,THSCB) —
53805-0K030 Shield Sub-assy, Front Fender Splash, RH
2009-05 → 2011-08 ended
KUN2# DCB,SCB,XTR;KUN2# LHD (THDCB,THSCB) —
53805-0K091 Shield Sub-assy, Front Fender Splash, RH
2008-08 → 2009-05 ended
KUN2# 5F,5FC —
53875-0K120 Shield Sub-assy, Front Fender Splash, RH
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR —
53875-0K120 Shield Sub-assy, Front Fender Splash, RH
2008-08 → 2011-08 ended
KUN15 DCB,SCB —
53806 — Shield Sub-assy, Front Fender Splash, LH
53806-0K090 Shield Sub-assy, Front Fender Splash, LH
2006-08 → 2007-09 ended
KUN15,2# —
53806-0K091 Shield Sub-assy, Front Fender Splash, LH
2007-10 → 2008-08 ended
KUN15 DCB,SCB —
53806-0K091 Shield Sub-assy, Front Fender Splash, LH
2007-10 → 2008-10 ended
KUN2# 4FC,5F;KUN15 THDCB,THSCB,XTR —
53876-0K130 Shield Sub-assy, Front Fender Splash, LH
2008-08 → 2008-10 ended
KUN15 DCB,SCB —
53806-0K030 Shield Sub-assy, Front Fender Splash, LH
2009-05 → 2011-07 ended
KUN2# RHD (THDCB,THSCB) —
53806-0K030 Shield Sub-assy, Front Fender Splash, LH
2009-05 → 2011-08 ended
KUN2# DCB,SCB,XTR;KUN2# LHD (THDCB,THSCB) —
53806-0K091 Shield Sub-assy, Front Fender Splash, LH
2008-08 → 2009-05 ended
KUN2# 5F,5FC —
53876-0K130 Shield Sub-assy, Front Fender Splash, LH
2008-08 → 2011-07 ended
KUN15 THDCB,THSCB,XTR —
53876-0K130 Shield Sub-assy, Front Fender Splash, LH
2008-08 → 2011-08 ended
KUN15 DCB,SCB —
53851C — Pad, Front Wheel Opening Extension, NO.1
53851-0K070 Pad, Front Wheel Opening Extension, NO.1
2006-08 → 2008-08 ended
KUN15 (DCB,SCB) DLX HDCR —
53851-0K070 Pad, Front Wheel Opening Extension, NO.1
2006-08 → 2008-10 ended
KUN15 SR;KUN15 DCR;KUN2# 4FC,5F;KUN15 +1 —
53851-0K070 Pad, Front Wheel Opening Extension, NO.1
2008-08 → 2011-07 ended
KUN2# RHD (THDCB,THSCB) —
53851-0K070 Pad, Front Wheel Opening Extension, NO.1
2008-08 → 2011-08 ended
KUN2# LHD (THDCB,THSCB);KUN2# (DCB,SCB,XTR) +1 —
53875P — Screw, NO.1
90159-60217 Screw, NO.1
2007-08 → 2008-10 ended
KUN15,2# 4FC,5F —
90159-60217 Screw, NO.1
2008-08 → 2011-08 ended
KUN15,2# 5F,5FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
