Toyota Hilux
2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe
Supported model
Data version 2012-04

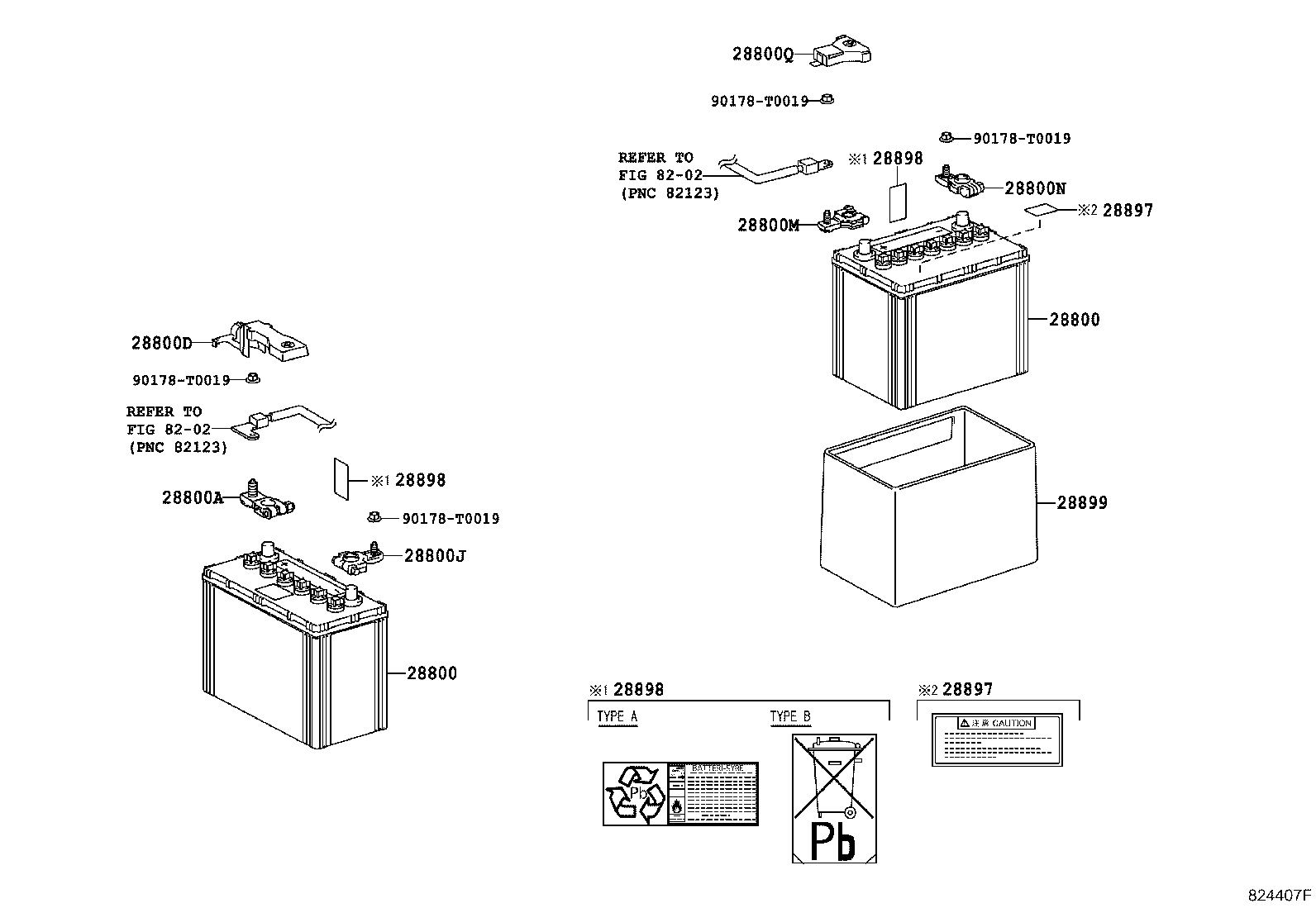

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-0L010 note |
Battery
2005-07 → 2008-08
ended
|
2KDFTV KUN15,25 THDCB,THSCB,XTR | — | |
| 28800-0L010 note |
Battery
2005-07 → 2008-08
ended
|
2KDFTV KUN15 LHD XTR +4 | — | |
| 28800-0L010 note |
Battery
2006-08 → 2008-08
ended
|
2KDFTV KUN15,25 LHD (THDCB,THSCB,XTR) | — | |
| 28800-0L010 note |
Battery
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 28800-0L030 note |
Battery
2007-02 → 2008-08
ended
|
1KDFTV KUN26 THDCB | — | |
| 28800-0L100 note |
Battery
2006-08 → 2008-08
ended
|
2KDFTV KUN15,25 LHD (THDCB,THSCB,XTR) | — | |
| 28800-0L120 note |
Battery
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 28800-0L120 note |
Battery
2005-07 → 2008-08
ended
|
2KDFTV KUN15,25 THDCB,THSCB,XTR | — | |
| 28800-0L120 note |
Battery
2005-07 → 2008-08
ended
|
2KDFTV KUN15 LHD XTR +4 | — | |
| 28800-0L150 note |
Battery
2007-02 → 2008-08
ended
|
1KDFTV KUN26 THDCB | — | |
| 28800-0L010 note |
Battery
2008-08 → 2011-07
ended
|
2KDFTV KUN15,25 RHD (THDCB,THSCB,XTR) | — | |
| 28800-0L010 note |
Battery
2008-08 → 2011-07
ended
|
2KDFTV KUN15,25 THDCB,THSCB,XTR | — | |
| 28800-0L030 note |
Battery
2008-08 → 2011-07
ended
|
1KDFTV KUN26 THDCB | — | |
| 28800-0L100 note |
Battery
2008-08 → 2011-07
ended
|
2KDFTV KUN15,25 LHD (THDCB,THSCB,XTR) | — | |
| 28800-0L120 note |
Battery
2008-08 → 2011-07
ended
|
2KDFTV KUN15,25 THDCB,THSCB,XTR | — | |
| 28800-0L120 note |
Battery
2008-08 → 2011-07
ended
|
2KDFTV KUN15,25 RHD (THDCB,THSCB,XTR) | — | |
| 28800-0L150 note |
Battery
2008-08 → 2011-07
ended
|
1KDFTV KUN26 THDCB | — | |
| 28800-0L360 note |
Battery
2009-03 → 2011-07
ended
|
2KDFTV KUN15,25 THDCB,THSCB,XTR | — | |
| 28800-0L360 note |
Battery
2009-03 → 2011-07
ended
|
2KDFTV KUN15,25 RHD (THDCB,THSCB,XTR) | — | |
| 28800-0L370 note |
Battery
2009-03 → 2011-07
ended
|
2KDFTV KUN15,25 LHD (THDCB,THSCB,XTR) | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05056 |
Terminal, Battery Positive
2006-08 → 2008-10
ended
|
1KDFTV KUN26 4FC,5F;2KDFTV KUN15 +4 | — | |
| 90982-05056 |
Terminal, Battery Positive
2006-10 → 2008-10
ended
|
2KDFTV KUN25 DCB,SCB | — | |
| 90982-05056 note |
Terminal, Battery Positive
2006-02 → 2006-08
ended
|
2KDFTV KUN15,25 XTR | — | |
| 90982-05066 |
Terminal, Battery Positive
2005-07 → 2006-10
ended
|
2KDFTV KUN15 XTR DCR;2KDFTV +2 | — | |
| 90982-05066 |
Terminal, Battery Positive
2005-07 → 2006-08
ended
|
2KDFTV KUN25 XTR | — | |
| 90982-05056 |
Terminal, Battery Positive
2008-08 → 2011-08
ended
|
2KDFTV UN2# KUN25 LHD +6 | — | |
| 90982-05056 note |
Terminal, Battery Positive
2008-10 → 2011-08
ended
|
1KDFTV KUN26 DCB 5FC | — | |
| 90982-05056 |
Terminal, Battery Positive
2008-08 → 2011-07
ended
|
2KDFTV KUN15 THDCB,THSCB,XTR;1KDFTV,2KDFTV KUN2# +2 | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-0K030 |
Cover, Connector(FOR BATTERY TERMINAL)
2005-07 → 2008-10
ended
|
1KDFTV,2KDFTV KUN15,2# 4FC,5F | — | |
| 82821-0K030 |
Cover, Connector(FOR BATTERY TERMINAL)
2008-08 → 2011-07
ended
|
2KDFTV KUN15 THDCB,THSCB,XTR;1KDFTV,2KDFTV KUN2# +2 | — | |
| 82821-0K030 |
Cover, Connector(FOR BATTERY TERMINAL)
2008-08 → 2011-08
ended
|
2KDFTV UN2# KUN25 LHD +6 | — | |
| 82821-0K030 note |
Cover, Connector(FOR BATTERY TERMINAL)
2008-10 → 2011-08
ended
|
1KDFTV KUN26 DCB 5FC | — | |
| 28800J — Terminal, Battery Negative | ||||
| 90982-06024 |
Terminal, Battery Negative
2005-07 → 2008-10
ended
|
1KDFTV,2KDFTV KUN15,2# 4FC,5F | — | |
| 90982-06024 |
Terminal, Battery Negative
2008-08 → 2009-09
ended
|
1KDFTV,2KDFTV KUN15,2# (DCB,SCB) 5F | — | |
| 90982-06024 note |
Terminal, Battery Negative
2008-10 → 2009-09
ended
|
1KDFTV KUN26 DCB 5FC | — | |
| 90982-06024 |
Terminal, Battery Negative
2008-08 → 2009-07
ended
|
1KDFTV,2KDFTV KUN15,2# THDCB,THSCB,XTR | — | |
| 90982-06059 |
Terminal, Battery Negative
2009-08 → 2011-07
ended
|
2KDFTV KUN15 THDCB,THSCB,XTR;1KDFTV,2KDFTV KUN2# +2 | — | |
| 90982-06059 |
Terminal, Battery Negative
2009-08 → 2011-08
ended
|
2KDFTV KUN25 XTR;1KDFTV,2KDFTV KUN2# +2 | — | |
| 90982-06059 |
Terminal, Battery Negative
2009-10 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,2# DCB,SCB | — | |
| 28800M — Terminal, Battery Positive | ||||
| 90982-05054 note |
Terminal, Battery Positive
2006-02 → 2006-08
ended
|
2KDFTV KUN15,25 LHD 5F | — | |
| 90982-05056 note |
Terminal, Battery Positive
2006-08 → 2008-10
ended
|
2KDFTV KUN15,25 LHD 5F | — | |
| 90982-05066 note |
Terminal, Battery Positive
2005-07 → 2006-02
ended
|
2KDFTV KUN15,25 LHD 5F | — | |
| 90982-05066 note |
Terminal, Battery Positive
2005-07 → 2008-10
ended
|
2KDFTV KUN15,25 RHD | — | |
| 90982-05056 note |
Terminal, Battery Positive
2008-08 → 2011-08
ended
|
2KDFTV KUN25 LHD;1KDFTV,2KDFTV KUN15,26 +3 | — | |
| 90982-05056 note |
Terminal, Battery Positive
2010-08 → 2011-08
ended
|
2KDFTV KUN25 LHD THDCB +1 | — | |
| 90982-05056 note |
Terminal, Battery Positive
2010-10 → 2011-08
ended
|
1KDFTV,2KDFTV KUN2# LHD DCB +1 | — | |
| 90982-05056 note |
Terminal, Battery Positive
2008-08 → 2011-07
ended
|
2KDFTV KUN15 LHD (THDCB,THSCB,XTR) | — | |
| 90982-05056 note |
Terminal, Battery Positive
2008-10 → 2010-10
ended
|
1KDFTV KUN26 LHD DCB | — | |
| 90982-05066 note |
Terminal, Battery Positive
2008-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,2# RHD (DCB,SCB,XTR) +1 | — | |
| 90982-05066 note |
Terminal, Battery Positive
2008-08 → 2011-07
ended
|
2KDFTV KUN15,25 RHD (THDCB,THSCB) | — | |
| 28800N — Terminal, Battery Negative | ||||
| 90982-06022 note |
Terminal, Battery Negative
2007-01 → 2008-10
ended
|
2KDFTV KUN15,25 LHD | — | |
| 90982-06024 note |
Terminal, Battery Negative
2005-07 → 2006-12
ended
|
2KDFTV KUN15,25 LHD 5F +1 | — | |
| 90982-06024 note |
Terminal, Battery Negative
2005-07 → 2008-10
ended
|
2KDFTV KUN15 DCR;2KDFTV KUN15,25 +2 | — | |
| 90982-06022 note |
Terminal, Battery Negative
2008-08 → 2011-07
ended
|
2KDFTV KUN15 LHD (THDCB,THSCB,XTR) | — | |
| 90982-06022 note |
Terminal, Battery Negative
2008-08 → 2011-08
ended
|
2KDFTV KUN25 LHD;1KDFTV,2KDFTV KUN15,26 +3 | — | |
| 90982-06024 note |
Terminal, Battery Negative
2008-08 → 2009-07
ended
|
2KDFTV KUN15,25 RHD;1KDFTV KUN26 +3 | — | |
| 90982-06059 note |
Terminal, Battery Negative
2009-08 → 2011-07
ended
|
2KDFTV KUN15,25 RHD (THDCB,THSCB) | — | |
| 90982-06059 note |
Terminal, Battery Negative
2009-08 → 2011-08
ended
|
1KDFTV,2KDFTV KUN15,2# RHD (DCB,SCB,XTR) | — | |
| 28800Q — Cover, Connector(FOR BATTERY) | ||||
| 82821-0K040 note |
Cover, Connector(FOR BATTERY)
2005-07 → 2008-10
ended
|
2KDFTV KUN15,25 5F | — | |
| 82821-0K040 note |
Cover, Connector(FOR BATTERY)
2010-08 → 2011-08
ended
|
2KDFTV KUN25 LHD THDCB +1 | — | |
| 82821-0K040 note |
Cover, Connector(FOR BATTERY)
2010-10 → 2011-08
ended
|
1KDFTV,2KDFTV KUN2# LHD DCB +1 | — | |
| 82821-0K040 note |
Cover, Connector(FOR BATTERY)
2008-08 → 2011-08
ended
|
2KDFTV 26 KUN25 (DCB,SCB) +6 | — | |
| 82821-0K040 note |
Cover, Connector(FOR BATTERY)
2008-08 → 2011-07
ended
|
2KDFTV KUN15 THDCB,THSCB,XTR;2KDFTV KUN25 +2 | — | |
| 82821-0K040 note |
Cover, Connector(FOR BATTERY)
2008-10 → 2010-10
ended
|
1KDFTV KUN26 LHD DCB | — | |
| 28897 — Plate, Battery Caution | ||||
| 28897-54030 note |
Plate, Battery Caution
2005-07 → 2006-08
ended
|
2KDFTV KUN15,25 LHD XTR | — | |
| 28897-54030 note |
Plate, Battery Caution
2005-07 → 2006-08
ended
|
2KDFTV KUN15 XTR | — | |
| 28897-54030 note |
Plate, Battery Caution
2005-07 → 2006-10
ended
|
2KDFTV KUN15,25 LHD (DCB,SCB) +1 | — | |
| 28897-54030 note |
Plate, Battery Caution
2005-07 → 2006-10
ended
|
2KDFTV KUN15 (DCB,SCB) DCR | — | |
| 28897-54030 note |
Plate, Battery Caution
2005-07 → 2008-08
ended
|
2KDFTV KUN15 RHD XTR +1 | — | |
| 28897-54030 note |
Plate, Battery Caution
2005-07 → 2008-10
ended
|
2KDFTV DLX KUN25;2KDFTV HDCR +6 | — | |
| 28897-54030 note |
Plate, Battery Caution
2008-08 → 2011-07
ended
|
2KDFTV SCB,XTR) KUN15 RHD;2KDFTV +6 | — | |
| 28897-54030 note |
Plate, Battery Caution
2008-08 → 2011-08
ended
|
2KDFTV 2# KUN15 (DCB,SCB,XTR) +7 | — | |
| 28898 — Plate, Battery | ||||
| 28898-0L010 note |
Plate, Battery
2007-08 → 2008-10
ended
|
2KDFTV KUN25;2KDFTV KUN15 LHD +3 | — | |
| 28898-0L010 note |
Plate, Battery
2007-08 → 2008-10
ended
|
2KDFTV UN15 KUN15 DCB,SCB,THDCB,THSCB +8 | — | |
| 28898-0L010 note |
Plate, Battery
2007-08 → 2008-08
ended
|
2KDFTV KUN15 RHD XTR | — | |
| 28898-0L010 note |
Plate, Battery
2007-08 → 2008-08
ended
|
2KDFTV KUN15 RHD XTR;1KDFTV +3 | — | |
| 28898-46010 note |
Plate, Battery
2005-07 → 2006-10
ended
|
2KDFTV KUN15,25 LHD (DCB,SCB) +1 | — | |
| 28898-46010 note |
Plate, Battery
2005-07 → 2006-08
ended
|
2KDFTV KUN15,25 LHD XTR | — | |
| 28898-46010 note |
Plate, Battery
2005-07 → 2006-08
ended
|
2KDFTV KUN15,25 LHD XTR | — | |
| 28898-46010 note |
Plate, Battery
2005-07 → 2006-10
ended
|
2KDFTV KUN15,25 LHD (DCB,SCB) +1 | — | |
| 28898-46020 note |
Plate, Battery
2005-07 → 2006-10
ended
|
2KDFTV KUN15 DCB,SCB | — | |
| 28898-46020 note |
Plate, Battery
2005-07 → 2006-10
ended
|
2KDFTV KUN15,25 LHD (DCB,SCB) +1 | — | |
| 28898-46020 note |
Plate, Battery
2005-07 → 2006-10
ended
|
2KDFTV KUN15 (DCB,SCB) DCR | — | |
| 28898-46020 note |
Plate, Battery
2005-07 → 2007-07
ended
|
1KDFTV,2KDFTV KUN2#;2KDFTV KUN15 DLX +1 | — | |
| 28898-46020 note |
Plate, Battery
2005-07 → 2007-07
ended
|
2KDFTV KUN15,25 5F HDCR | — | |
| 28898-46020 note |
Plate, Battery
2005-07 → 2006-08
ended
|
2KDFTV KUN15 XTR | — | |
| 28898-46020 note |
Plate, Battery
2005-07 → 2006-08
ended
|
2KDFTV KUN15,25 LHD XTR | — | |
| 28898-46020 note |
Plate, Battery
2005-07 → 2006-08
ended
|
2KDFTV KUN15 XTR | — | |
| 28898-0L010 note |
Plate, Battery
2008-08 → 2011-07
ended
|
2KDFTV FTV KUN25 KUN15,26 +7 | — | |
| 28898-0L010 note |
Plate, Battery
2008-08 → 2011-08
ended
|
2KDFTV 2# KUN15 (DCB,SCB,XTR) +7 | — | |
| 28898-0L010 note |
Plate, Battery
2008-08 → 2011-08
ended
|
2KDFTV TV KUN15 KUN2# +7 | — | |
| 28898-0L010 note |
Plate, Battery
2008-08 → 2011-07
ended
|
2KDFTV SCB,XTR) KUN15 RHD;2KDFTV +6 | — | |
| 28899 — Insulator, Battery | ||||
| 28899-17040 note |
Insulator, Battery
2005-07 → 2006-08
ended
|
2KDFTV KUN15 XTR | — | |
| 28899-17040 note |
Insulator, Battery
2005-07 → 2008-08
ended
|
2KDFTV KUN15,25 (THDCB,THSCB,XTR) HDCR | — | |
| 28899-27020 note |
Insulator, Battery
2005-07 → 2006-10
ended
|
2KDFTV KUN15 (DCB,SCB) DCR | — | |
| 28899-27020 note |
Insulator, Battery
2005-07 → 2008-10
ended
|
2KDFTV KUN15,25 (DCB,SCB) 5F +1 | — | |
| 28899-17040 note |
Insulator, Battery
2008-08 → 2011-07
ended
|
2KDFTV KUN15,25 THDCB,THSCB,XTR | — | |
| 28899-27020 note |
Insulator, Battery
2008-10 → 2011-07
ended
|
2KDFTV KUN15 RHD SCB | — | |
| 28899-27020 note |
Insulator, Battery
2008-10 → 2011-08
ended
|
1KDFTV,2KDFTV KUN2# DCB,SCB;2KDFTV KUN15 +2 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
