Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 6 illustrations

Illustrations

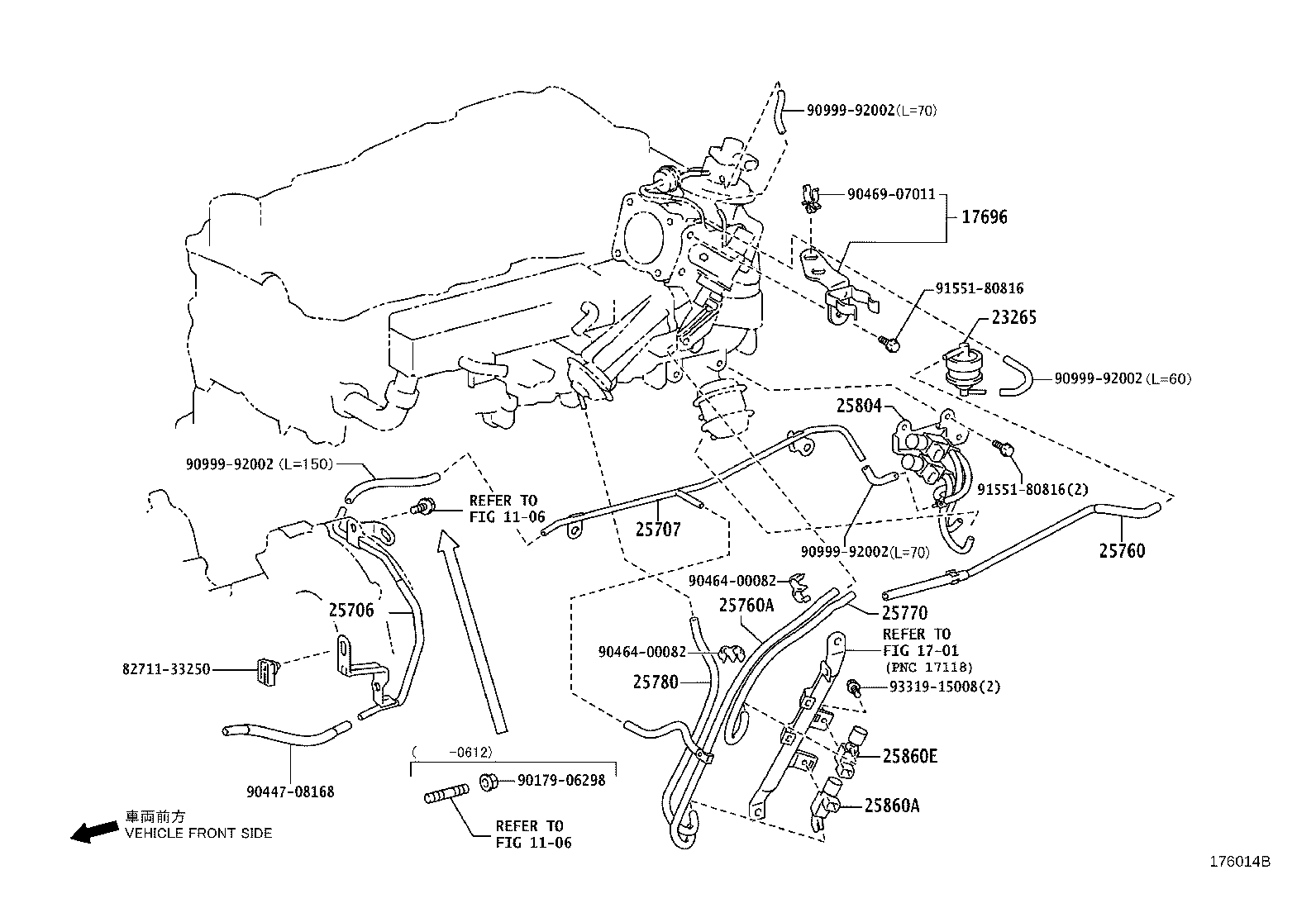

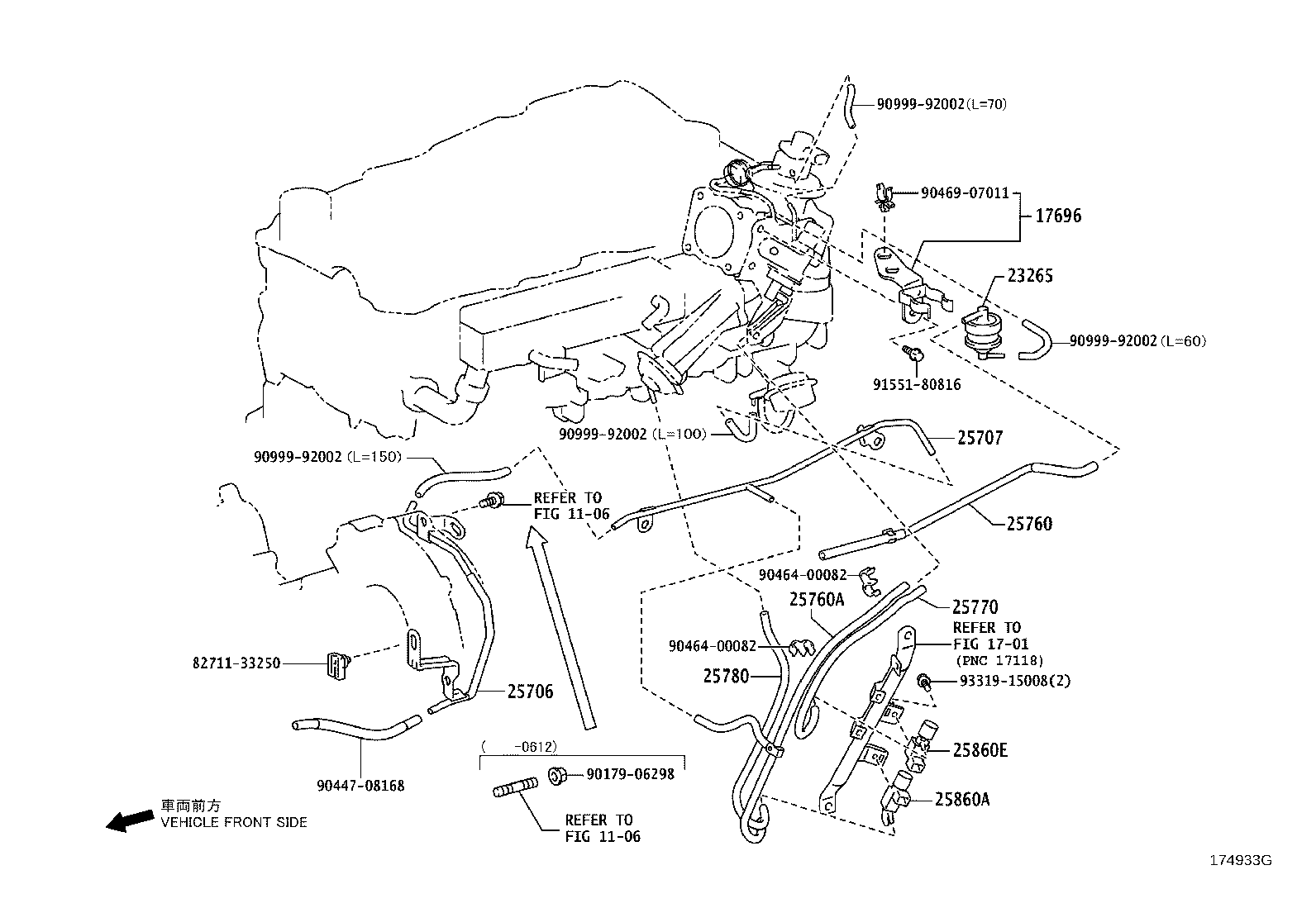

Figure 174517E 174517E 2005-07 → 2006-08 Figure 174517E 174517E 2005-07 → 2006-10 Figure 174518D 174518D 2005-07 → 2006-10 Figure 174933G 174933G 2006-08 → — Figure 174933G 174933G 2006-10 → — Figure 176014B 176014B 2006-10 → —

Part groups

PNCDescription
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25804 Valve Set, Vacuum Control
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
