Toyota Hilux
2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe
Supported model
Data version 2012-04

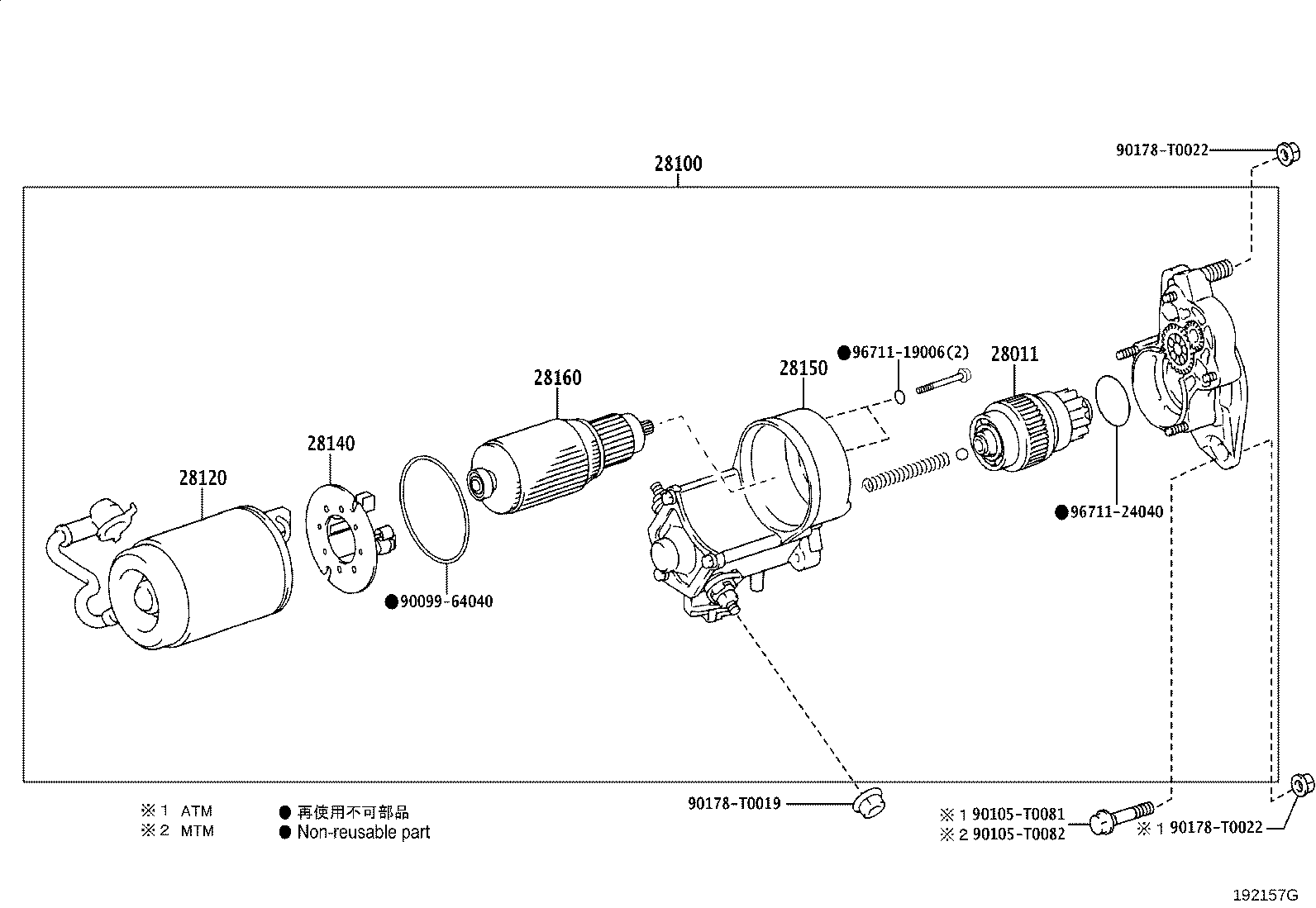

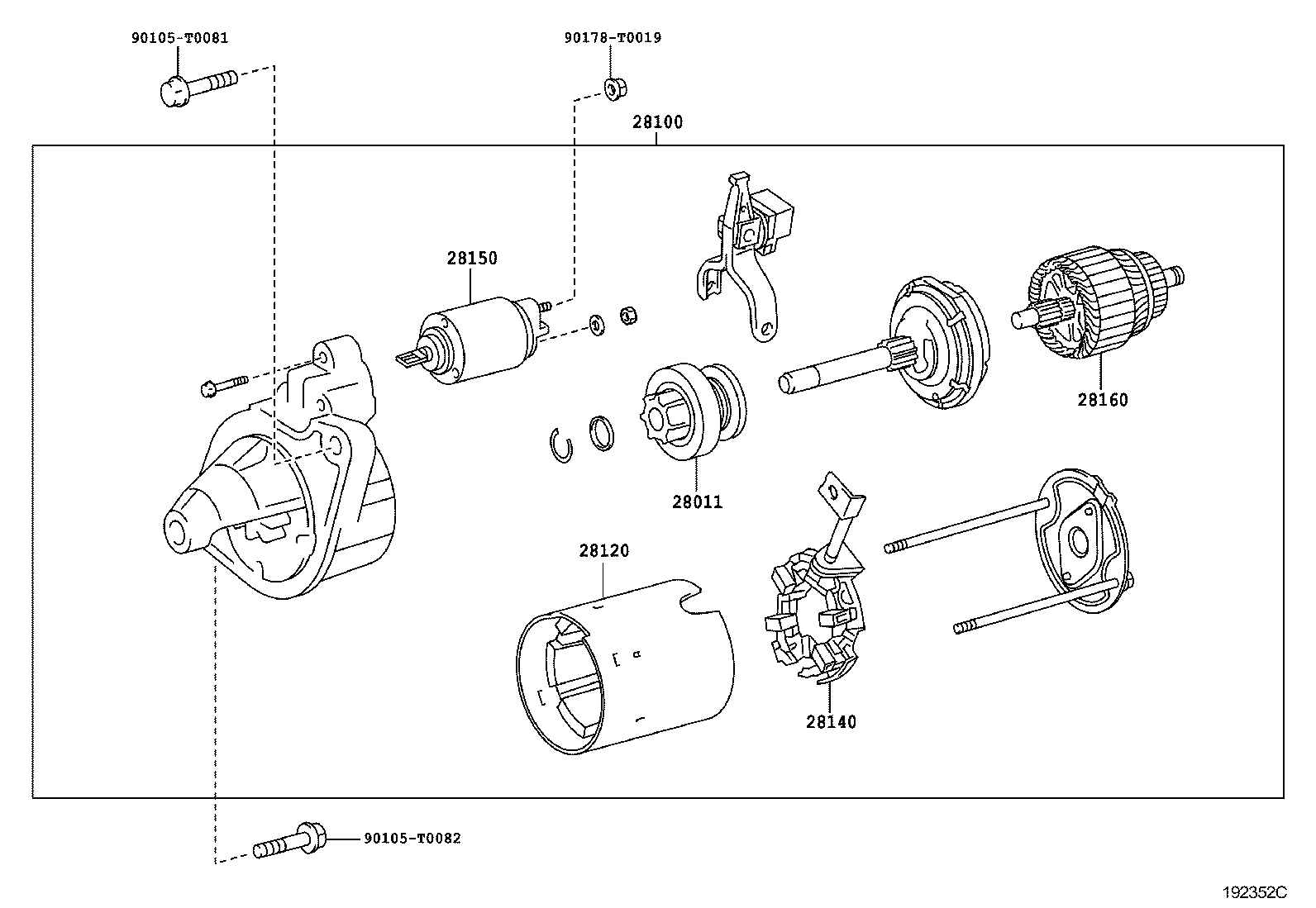

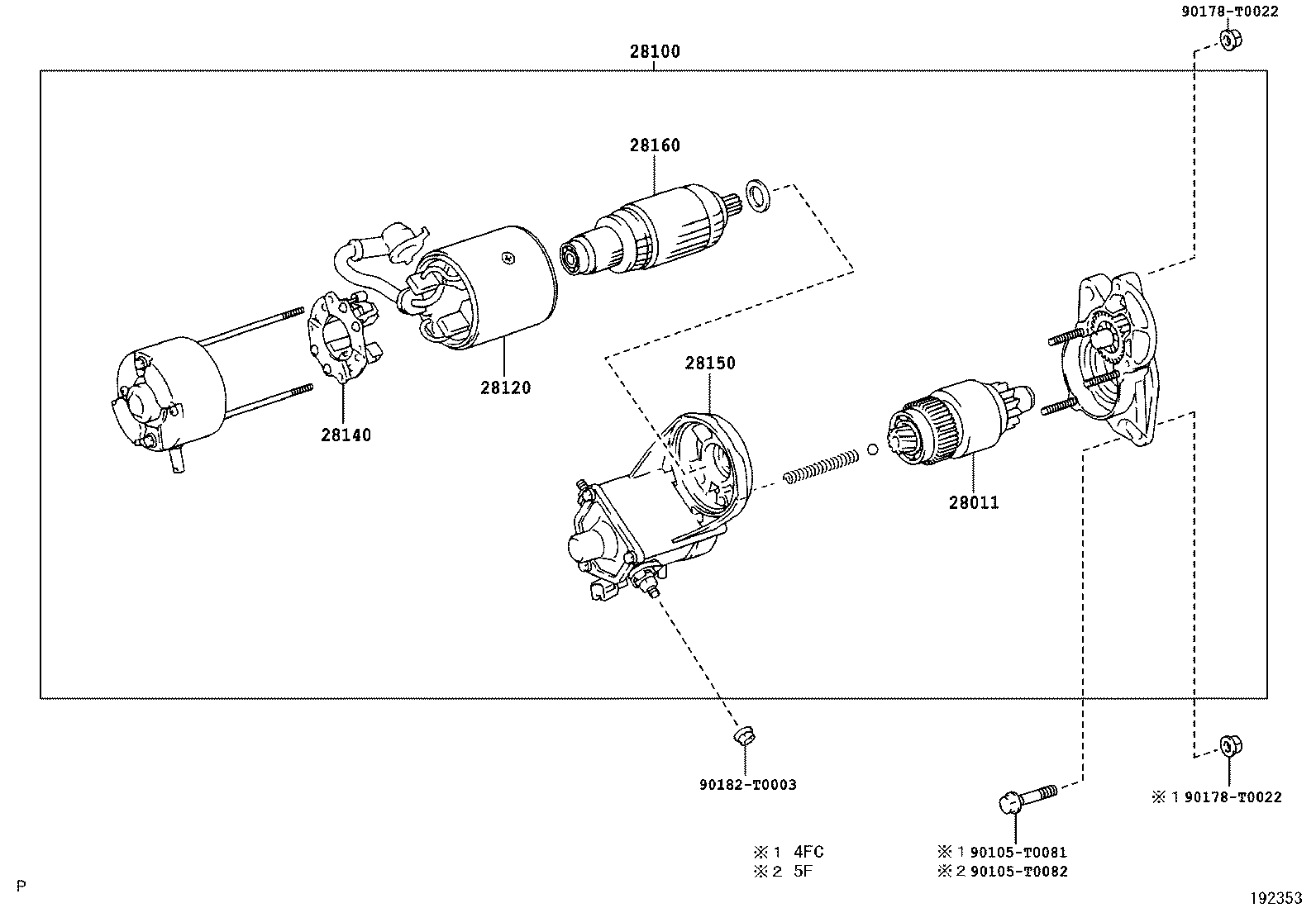

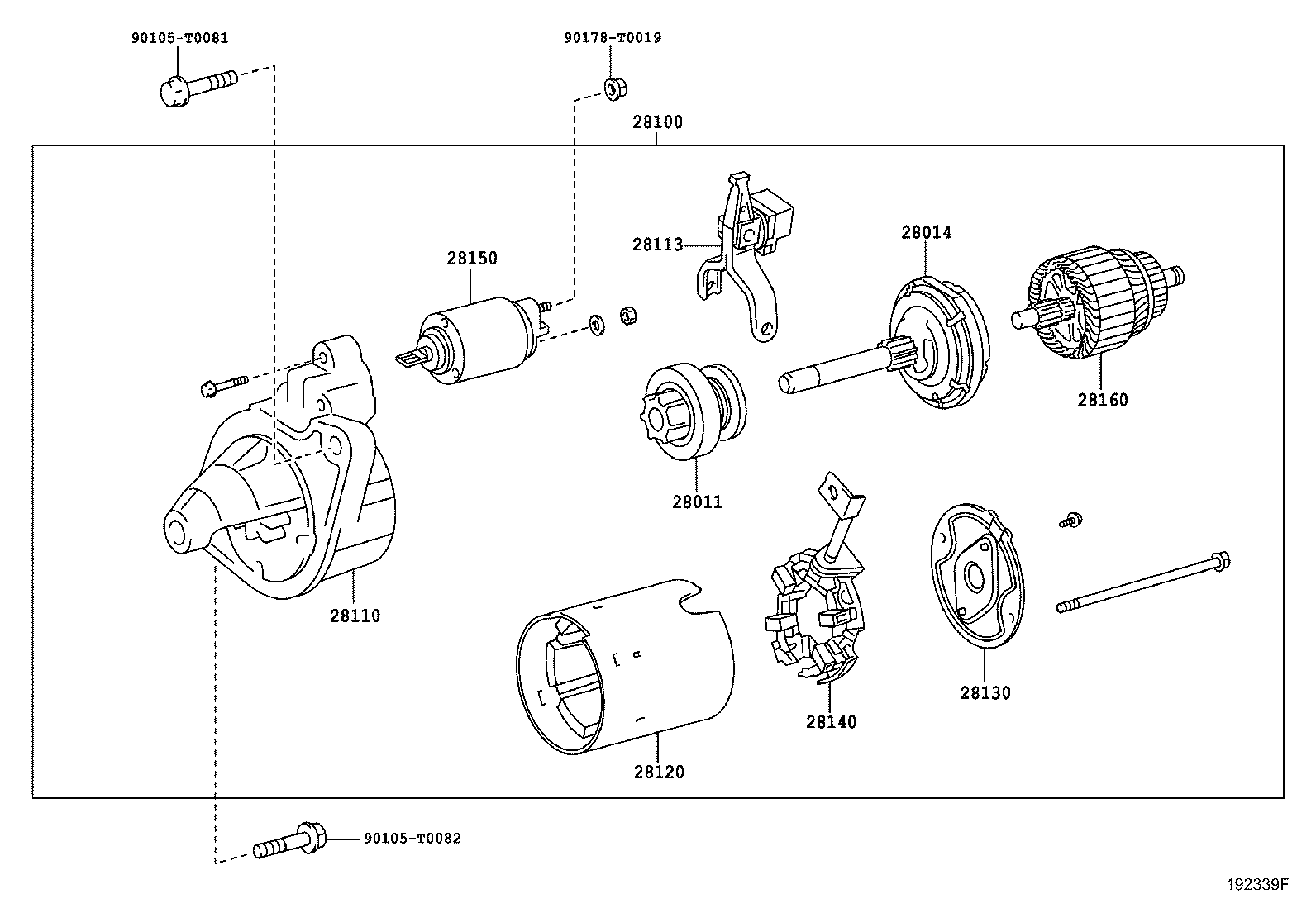

Starter
19 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28011A | Ball, Starter Clutch |
| 28014 | Shaft Sub-assy, Planet Carrier |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28113 | Lever, Starter Pinion Drive |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28130 | Frame Assy, Starter Commutator End |
| 28140 | Holder Assy, Starter Brush |
| 28143 | Spring, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28165 | Spring, Starter Magnet Switch Return |
| 28199A | Protector, Dust Starter |
| 28228A | Roller, Starter Clutch |
| 28229 | Retainer, Starter Idle Gear |
| 28251 | Pinion, Starter Drive |
| 28252 | Gear, Starter Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
