Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

9 part groups · 6 illustrations

Illustrations

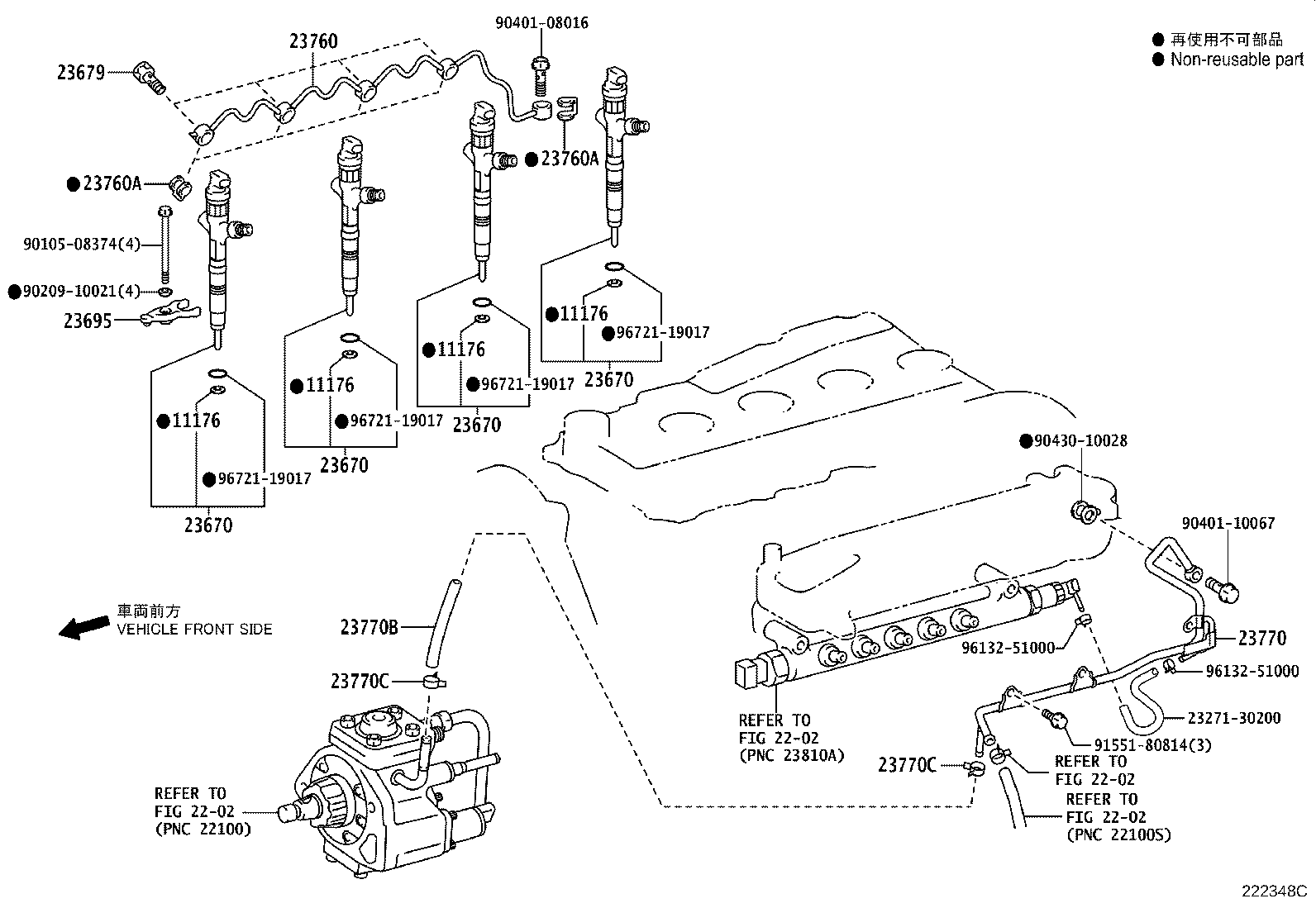

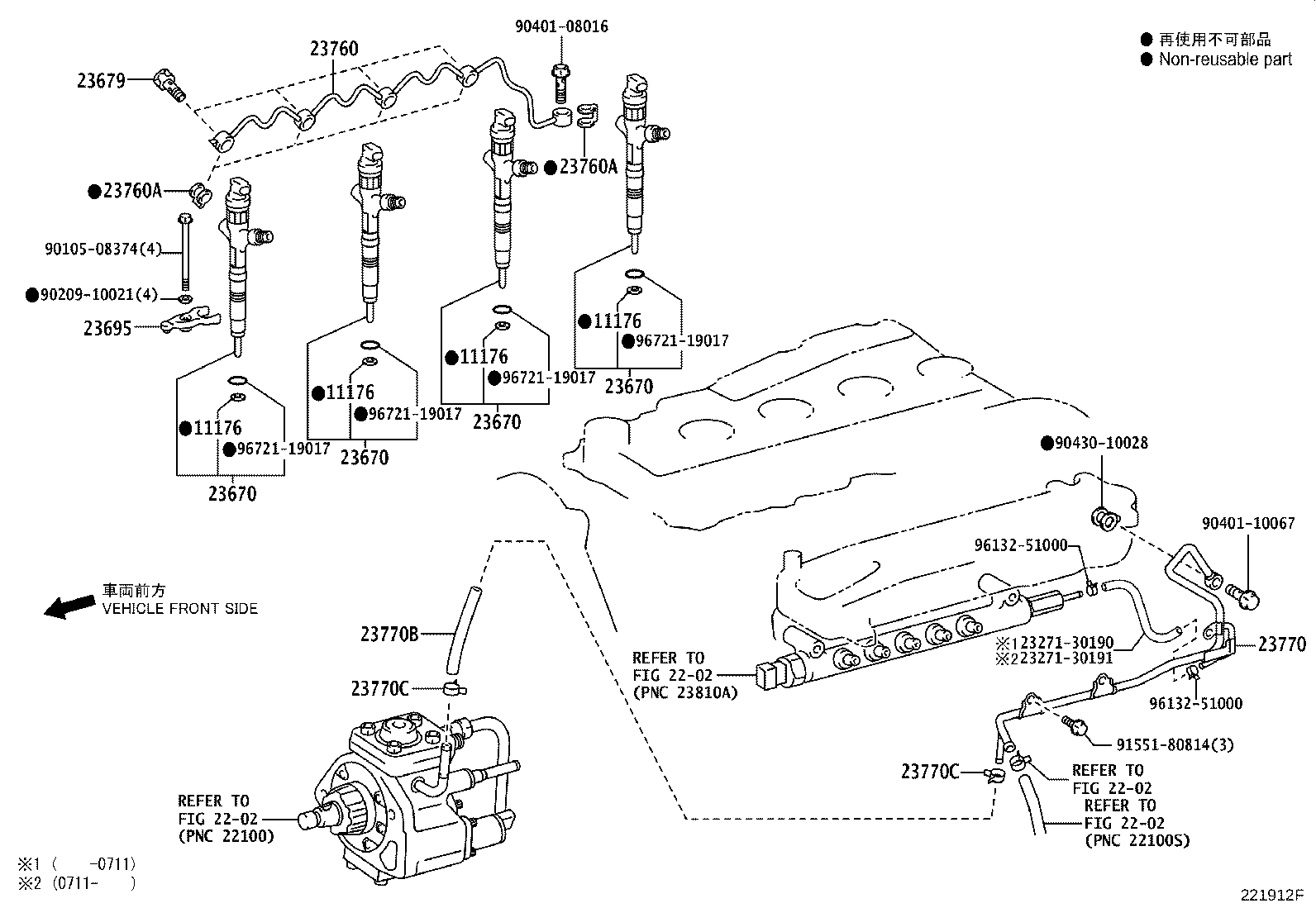

Figure 221905H 221905H 2005-07 → 2006-08 Figure 221905H 221905H 2005-07 → 2006-10 Figure 221912F 221912F 2006-08 → 2009-08 Figure 221912F 221912F 2006-10 → 2009-08 Figure 222348C 222348C 2006-10 → 2009-08 Figure 222348C 222348C 2009-08 → —

Part groups

PNCDescription
11176 Seat, Injection Nozzle
23670 Injector Assy
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23770 Pipe Assy, Nozzle Leakage, NO.2
23770B Hose, Fuel
23770C Clamp OR Clip(FOR FUEL HOSE SET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
