Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

11 part groups · 4 illustrations

Illustrations

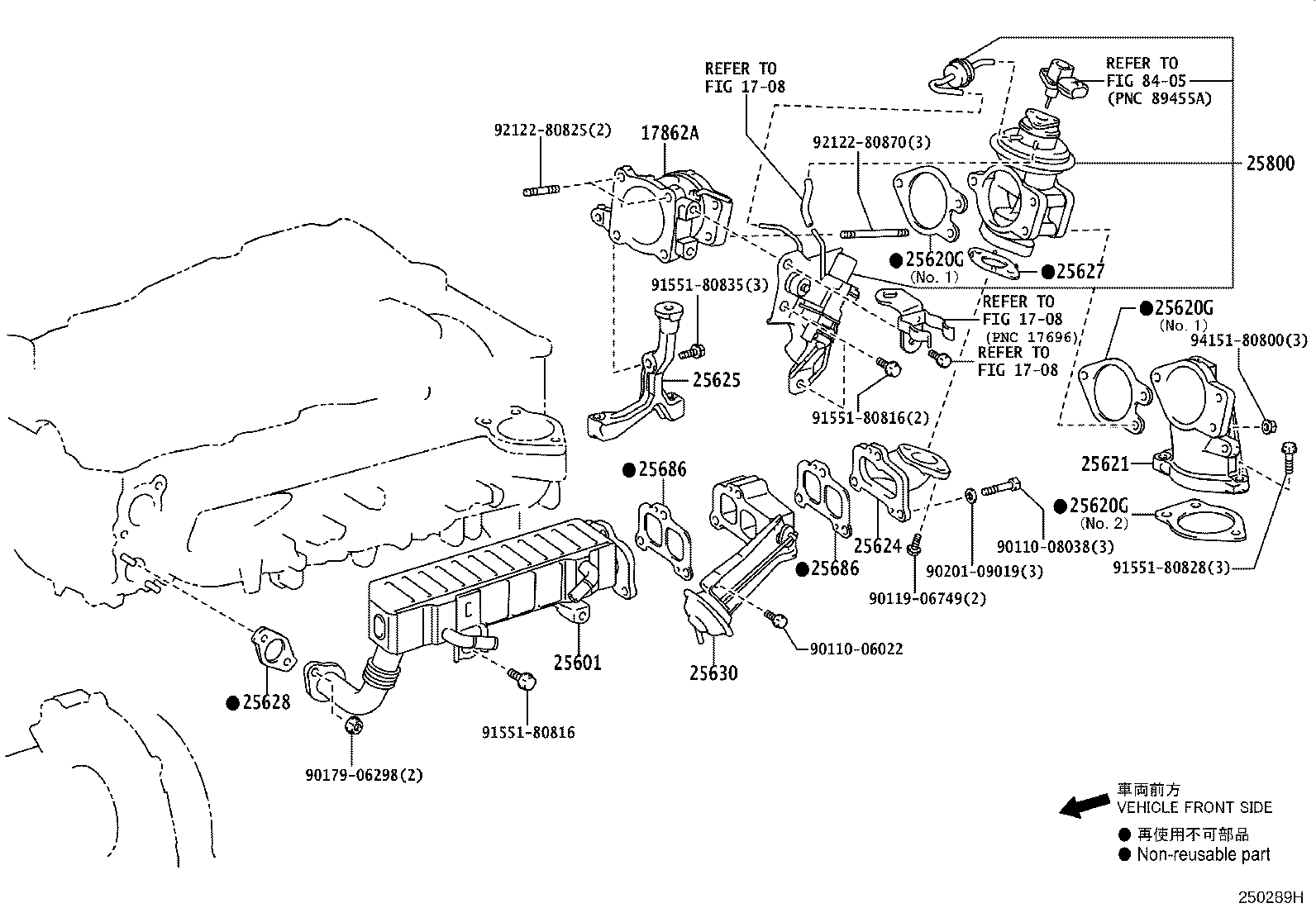

Figure 250278G 250278G 2005-07 → 2006-08 Figure 250278G 250278G 2005-07 → 2006-10 Figure 250289H 250289H 2006-08 → — Figure 250289H 250289H 2006-10 → —

Part groups

PNCDescription
17862A Connector, Intake Air, NO.2
25601 Pipe Sub-assy, Egr, NO.1
25620G Gasket, Diesel Throttle
25621 Connector, Intake Air(FOR GASKET)
25624 Adapter, Egr Valve
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25630 Valve Assy, Egr, NO.2
25686 Gasket, Egr Cooler, NO.2
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
