Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

10 part groups · 6 illustrations

Illustrations

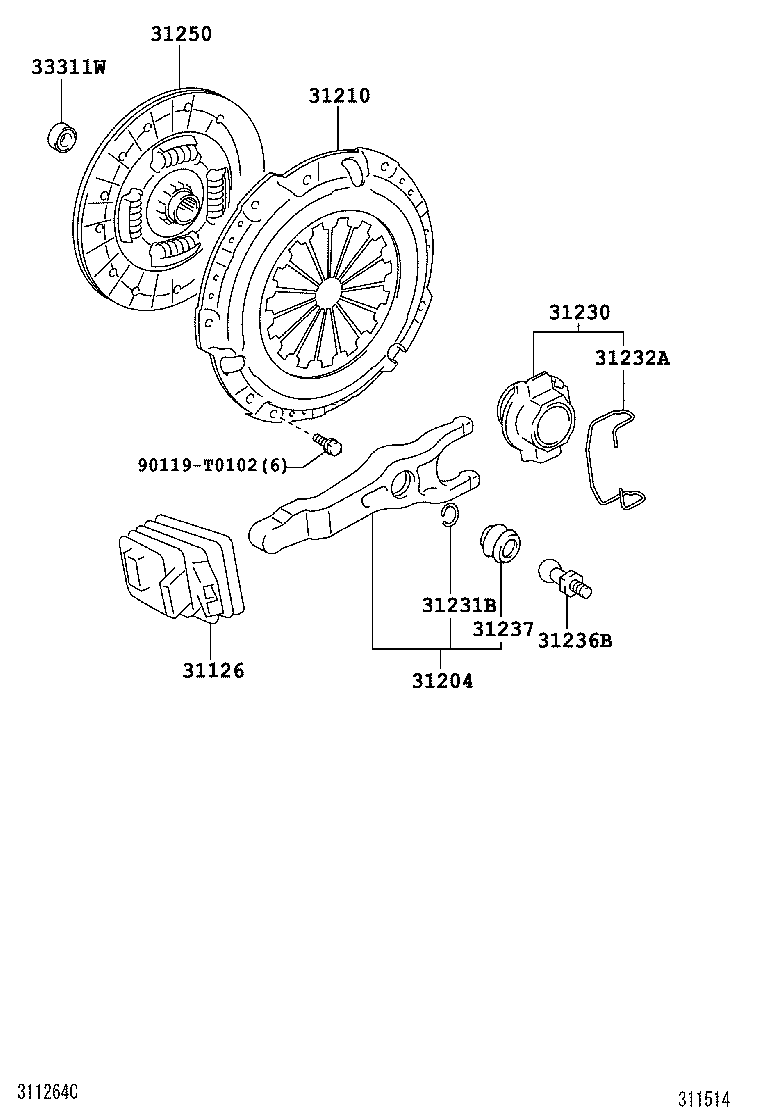

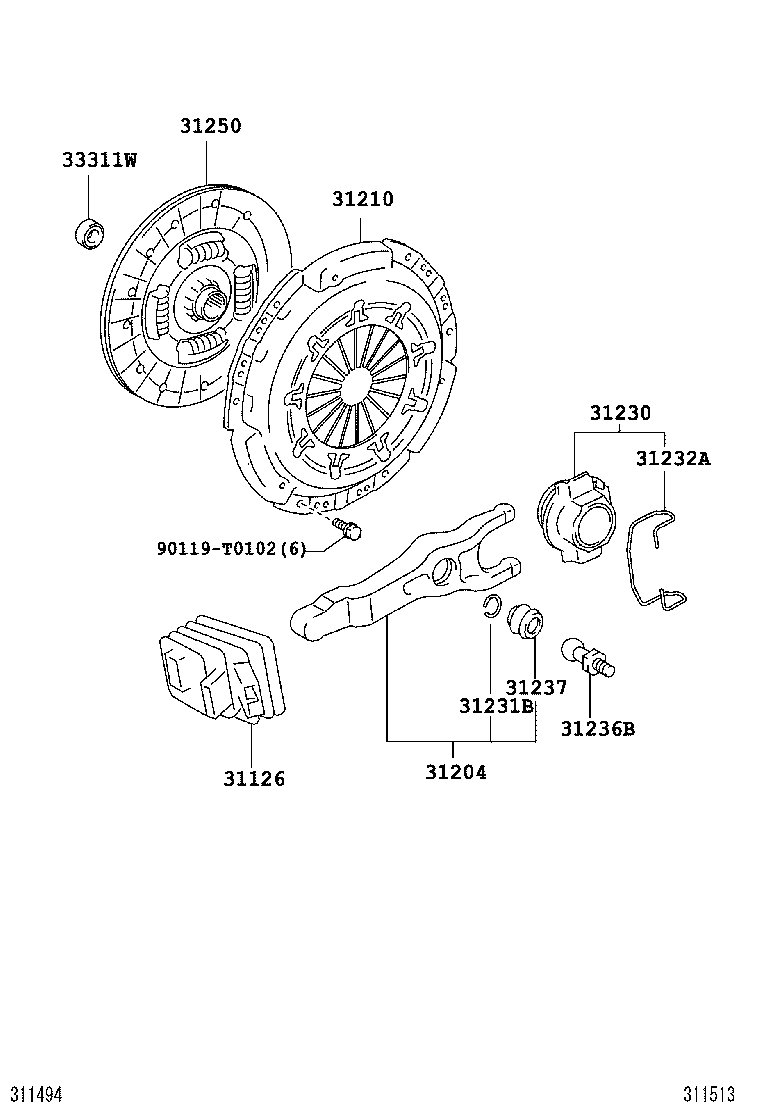

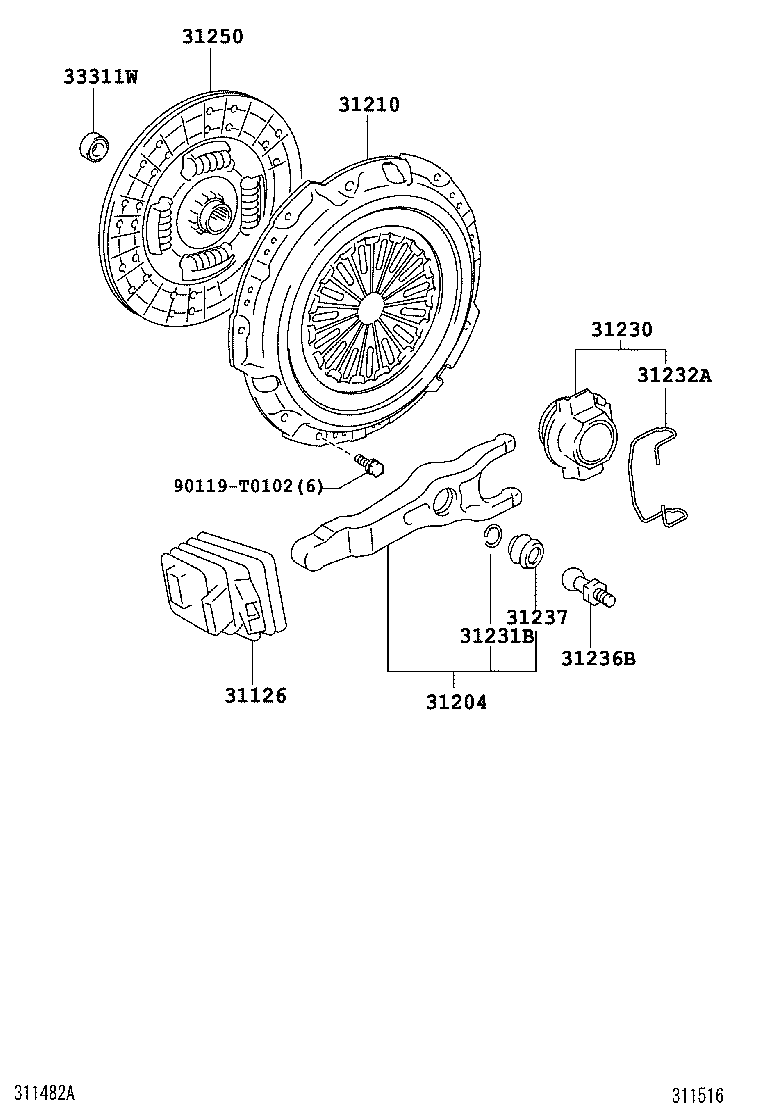

Figure 311494D 311494D 2005-07 → — Figure 311494D 311494D 2006-10 → — Figure 311516 311516 2005-07 → — Figure 311516 311516 2006-10 → — Figure 311513 311513 2005-07 → — Figure 311514 311514 2005-07 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31231B Ring, Snap(FOR CLUTCH RELEASE HUB)
31232A Clip, Release Bearing Hub
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
