Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 3 illustrations

Illustrations

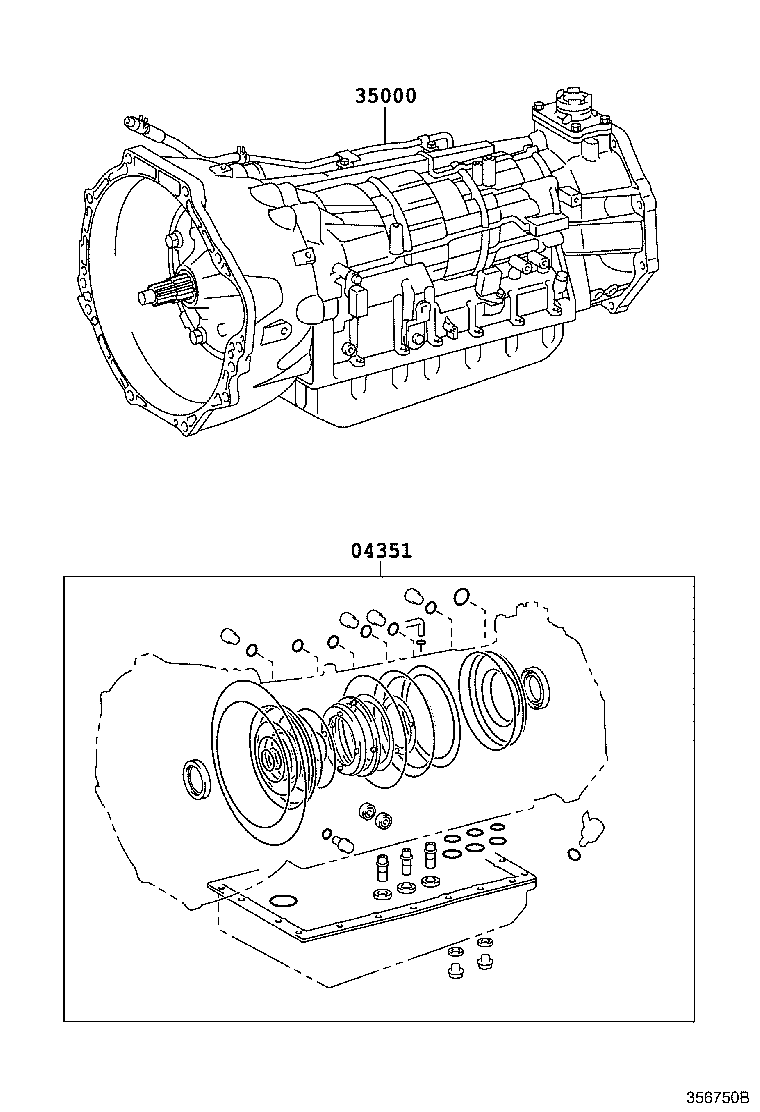

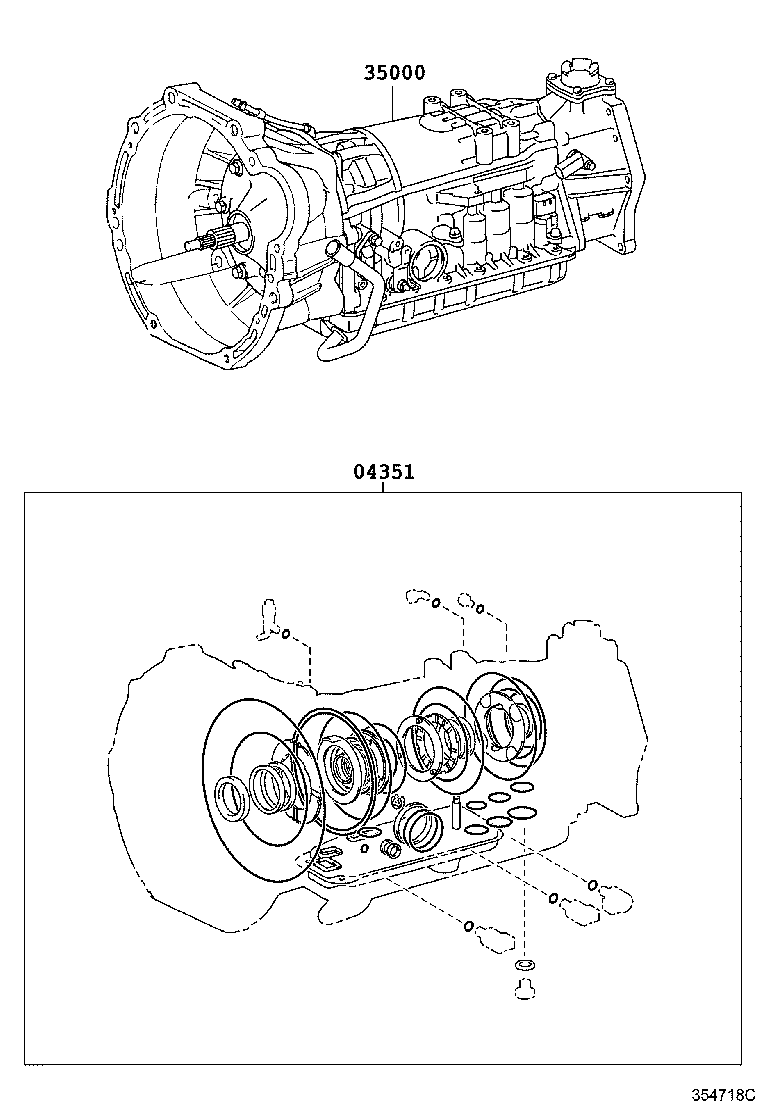

Figure 354716C 354716C 2005-07 → — Figure 354718C 354718C 2006-10 → — Figure 356750B 356750B 2008-08 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
