Toyota Hilux
2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe
Supported model
Data version 2012-04

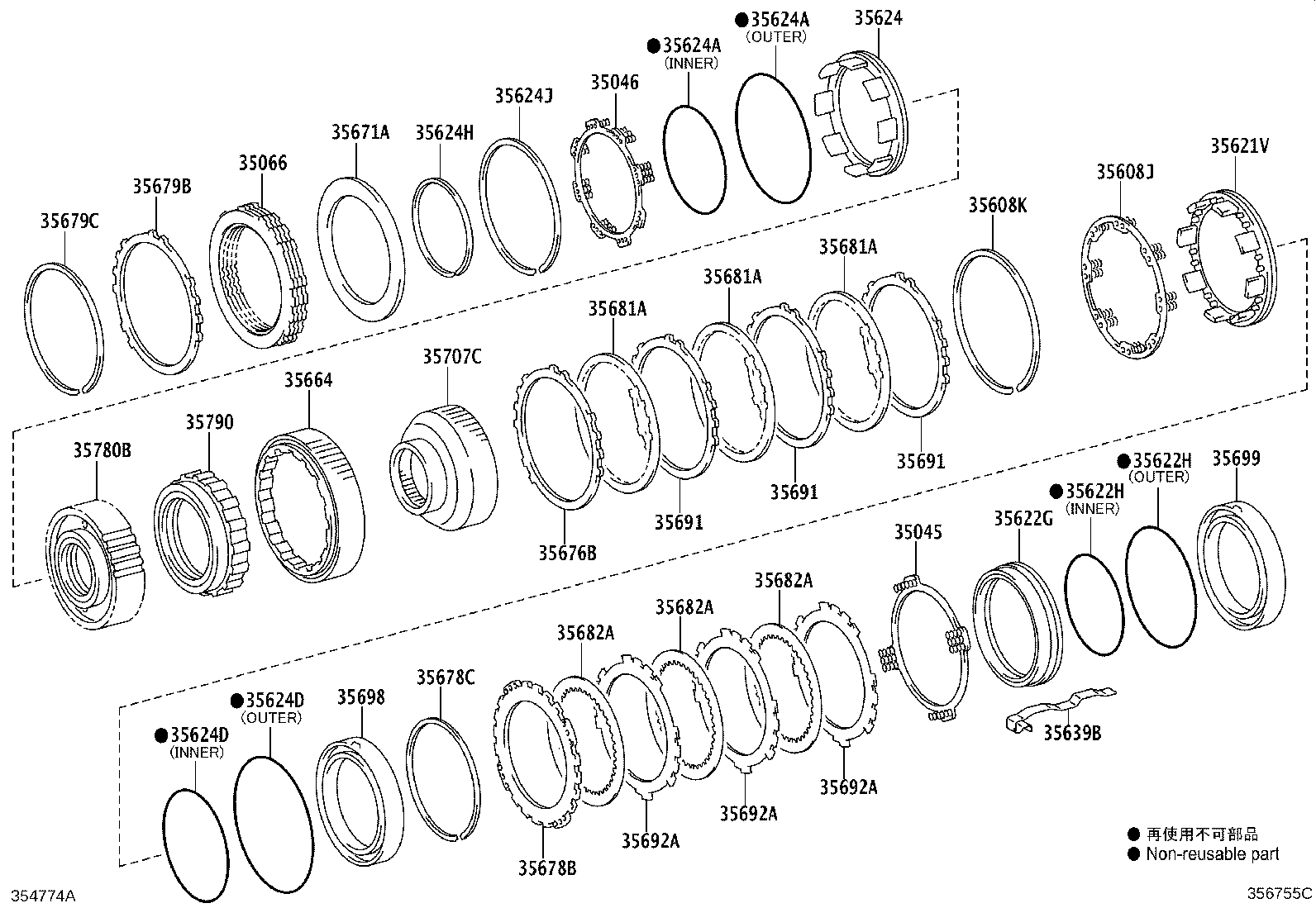

Center Support & Planetary Sun Gear (ATM)
48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35045 | Spring Sub-assy, Brake Piston Return,NO.2 |
| 35046 | Spring Sub-assy, Brake Piston Return, NO.3 |
| 35066 | Disc Set, 2ND Brake |
| 35608 | Spring Sub-assy, 2ND Brake Piston Return |
| 35608J | Spring Sub-assy, Brake Piston Return |
| 35608K | Ring, Snap (FOR BRAKE PISTON RETURN SPRING) |
| 35621V | Piston, Brake, NO.1 |
| 35622G | Piston, Brake, NO.2 |
| 35622H | Ring, O (FOR BRAKE PISTON NO.2) |
| 35624 | Piston, 2ND Brake |
| 35624A | Ring, O (FOR 2ND BRAKE PISTON) |
| 35624D | Ring, O (FOR BRAKE PISTON NO.4) |
| 35624H | Ring, Snap (FOR 2ND BRAKE PISTON) |
| 35624J | Ring, Hole Snap (FOR 2ND BRAKE PISTON) |
| 35626C | Sleeve, 2ND Brake Piston |
| 35627B | Seat, 2ND Brake Piston Return Spring |
| 35627C | Ring, Shaft Snap(FOR 2ND BRAKE PISTON RETURN SPRING SEAT) |
| 35639B | Spring, Brake Plate Stopper |
| 35648 | Plate, Clutch (FOR 2ND BRAKE) |
| 35664 | Cylinder, 2ND Brake |
| 35671A | Plate, Brake Cushion |
| 35676 | Flange, Brake (FOR 2ND BRAKE) |
| 35676B | Flange, Brake, NO.1 |
| 35676E | Ring, Hole Snap (FOR 2ND BRAKE) |
| 35677 | Disc, Clutch (FOR 2ND BRAKE) |
| 35678B | Flange, Brake, NO.2 |
| 35678C | Ring, Snap (FOR BRAKE NO.2) |
| 35679B | Flange, Brake, NO.3 |
| 35679C | Ring, Snap (FOR BRAKE NO.3) |
| 35681A | Disc, Brake, NO.1 |
| 35682A | Disc, Brake, NO.2 |
| 35691 | Plate, Brake, NO.1 |
| 35692A | Plate, Brake, NO.2 |
| 35698 | Cylinder, Brake, NO.1 |
| 35699 | Cylinder, Brake, NO.2 |
| 35706H | Gear Sub-assy, Planetary Sun |
| 35706J | Bearing, Thrust Needle Roller (FOR PLANETARY SUN GEAR) |
| 35707C | Race Sub-assy, 1 Way Clutch, Inner |
| 35709F | Drum Sub-assy, 2ND Brake |
| 35709G | Ring, Hole Snap (FOR 2ND BRAKE DRUM) |
| 35729A | Washer, Planetary Carrier Thrust, NO.4 |
| 35738A | Washer, 1 Way Clutch Thrust, NO.1 |
| 35749A | Ring, Sun Gear Shaft Oil Seal |
| 35755 | Drum, Sun Gear Input |
| 35755A | Ring, Shaft Snap (FOR SUN GEAR INPUT DRUM) |
| 35780B | Clutch Assy, 1 Way N0.2 |
| 35789E | Race, Thrust Bearing (FOR PLANETARY SUN GEAR) |
| 35790 | Clutch Assy, 1 Way |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
