Toyota Hilux
2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe
Supported model
Data version 2012-04

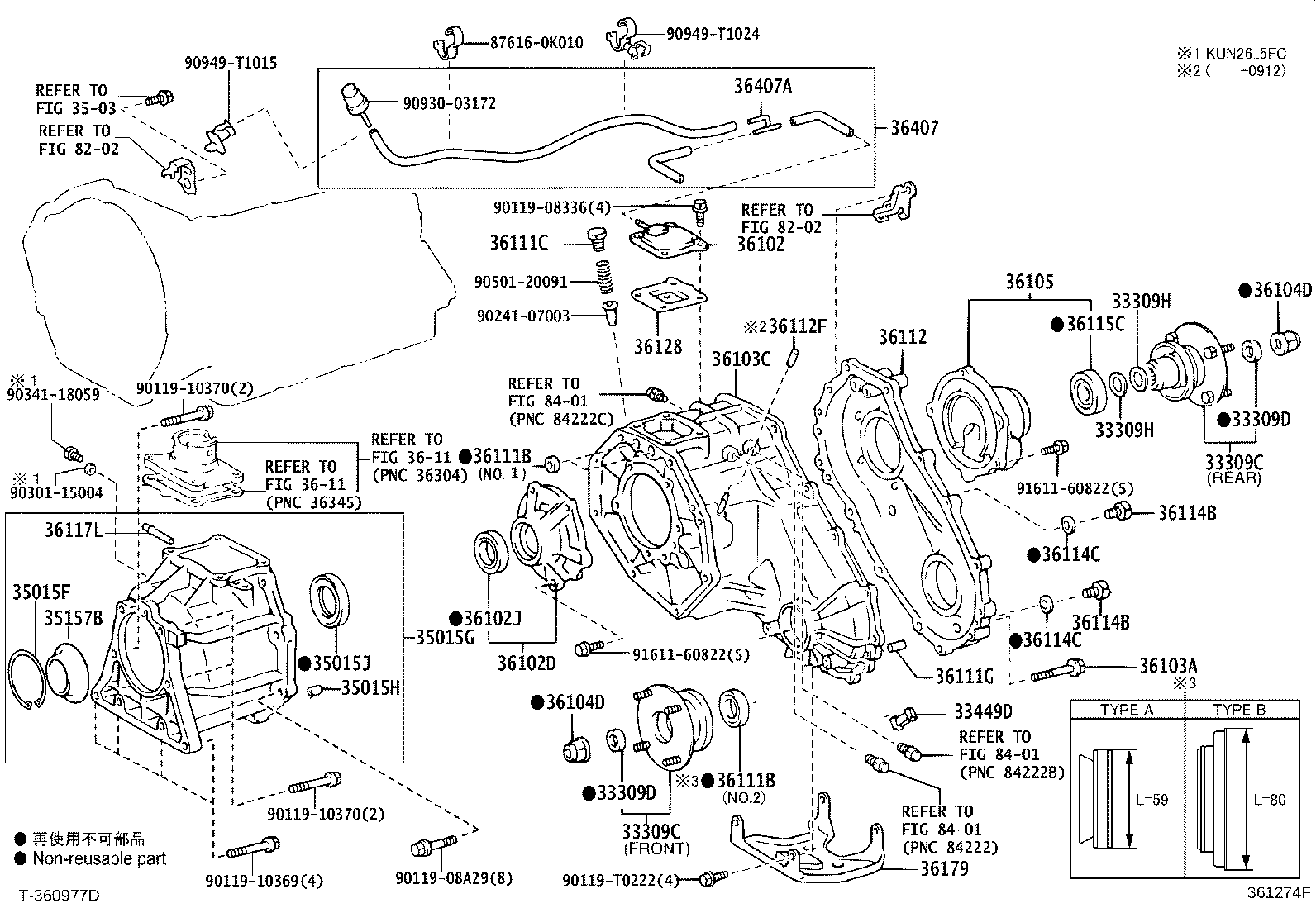

Transfer Case & Extension Housing
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33124E | Pipe, Oil Receiver(FOR TRANSFER) |
| 33309C | Flange Sub-assy, Output Shaft Companion |
| 33309D | Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) |
| 33309H | Washer, Transfer Output Shaft |
| 33449D | Magnet (FOR TRANSFER CASE) |
| 35015F | Ring, Hole Snap(FOR TRANSFER ADAPTER) |
| 35015G | Adapter, Transfer, Rear |
| 35015H | Pin, Ring(FOR TRANSFER CASE) |
| 35015J | Seal, Oil(FOR TRANSFER CASE ADAPTER REAR) |
| 35157B | Receiver, Transfer Case Rear Adapter Oil |
| 36102 | Cover Sub-assy, Transfer Case |
| 36102D | Retainer Sub-assy, Transfer RH Bearing |
| 36102J | Seal, Type T Oil (FOR TRANSFER COVER) |
| 36103A | Bolt (FOR TRANSFER CASE) |
| 36103C | Case, Transfer, Front |
| 36104D | Nut (FOR TRANSFER OUTPUT SHAFT) |
| 36105 | Housing Sub-assy, Transfer Extension, Front |
| 36111B | Seal, Oil (FOR TRANSFER CASE) |
| 36111C | Plug (FOR TRANSFER CASE) |
| 36111E | Gasket (FOR TRANSFER CASE) |
| 36111F | Plug (FOR TRANSFER CASE) |
| 36111G | Pin, Straight (FOR TRANSFER CASE) |
| 36112 | Case, Transfer, Rear |
| 36112F | Cap, Transfer, Rear Case |
| 36114B | Plug, NO.1 (FOR TRANSFER CASE) |
| 36114C | Gasket, NO.1 (FOR TRANSFER CASE) |
| 36115C | Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING) |
| 36117 | Adapter, Transfer |
| 36117A | Seal, Oil(FOR TRANSFER ADAPTER) |
| 36117G | Plug, W/Head Straight Screw(FOR TRANSFER ADAPTER) |
| 36117L | Tube(FOR TRANSFER ADAPTER) |
| 36128 | Deflector, Breather Oil |
| 36179 | Protector, Transfer Case Lower |
| 36407 | Hose Sub-assy, Transfer Breather |
| 36407A | Way, 3(FOR TRANSFER BREATHER HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
