Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

7 part groups · 2 illustrations

Illustrations

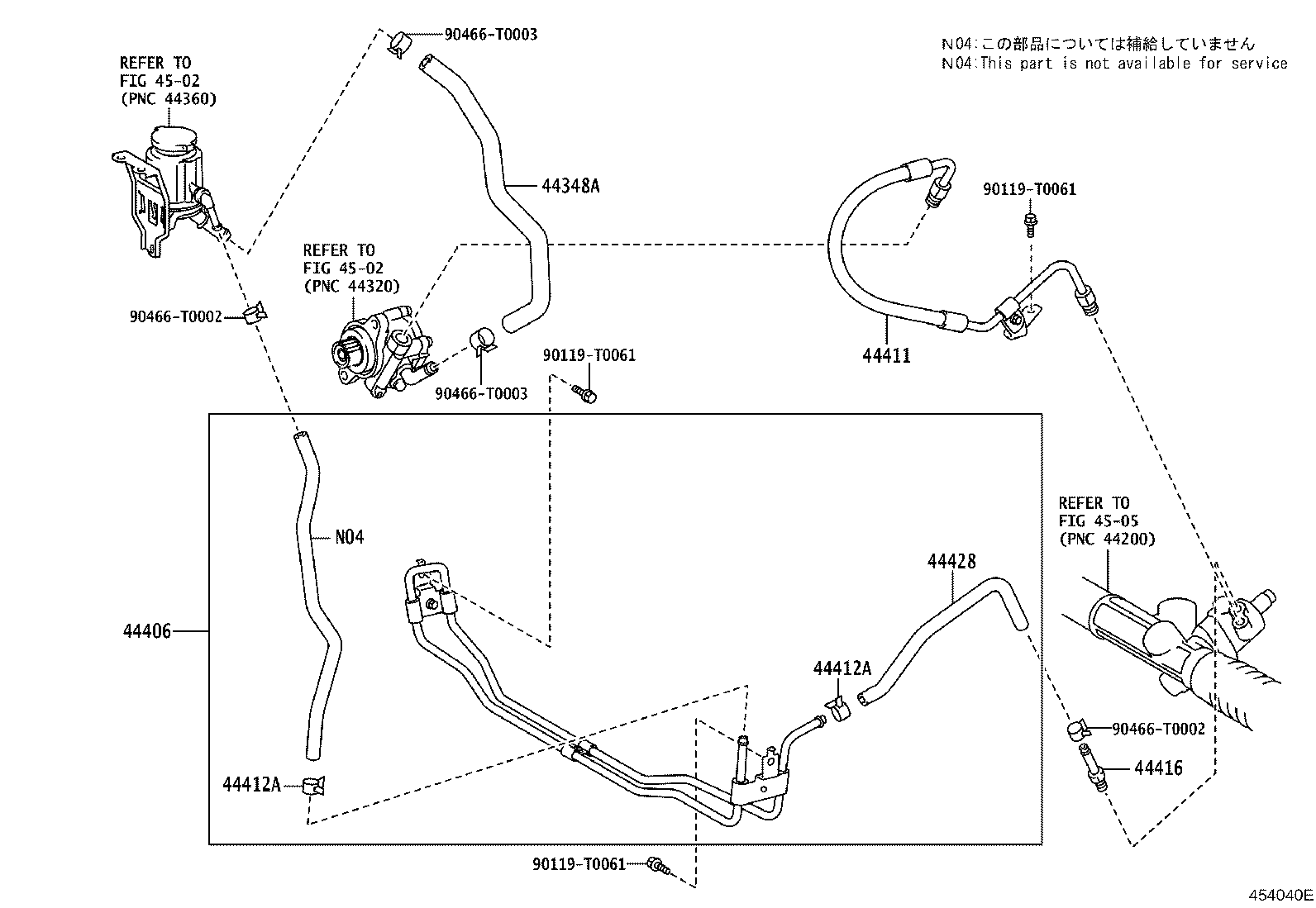

Figure 453916E 453916E 2005-07 → — Figure 454040E 454040E 2005-07 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44412A Clamp, Rubber Hose Complete (FOR RETURN HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44428 Hose, Return, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
