Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

7 part groups · 8 illustrations

Illustrations

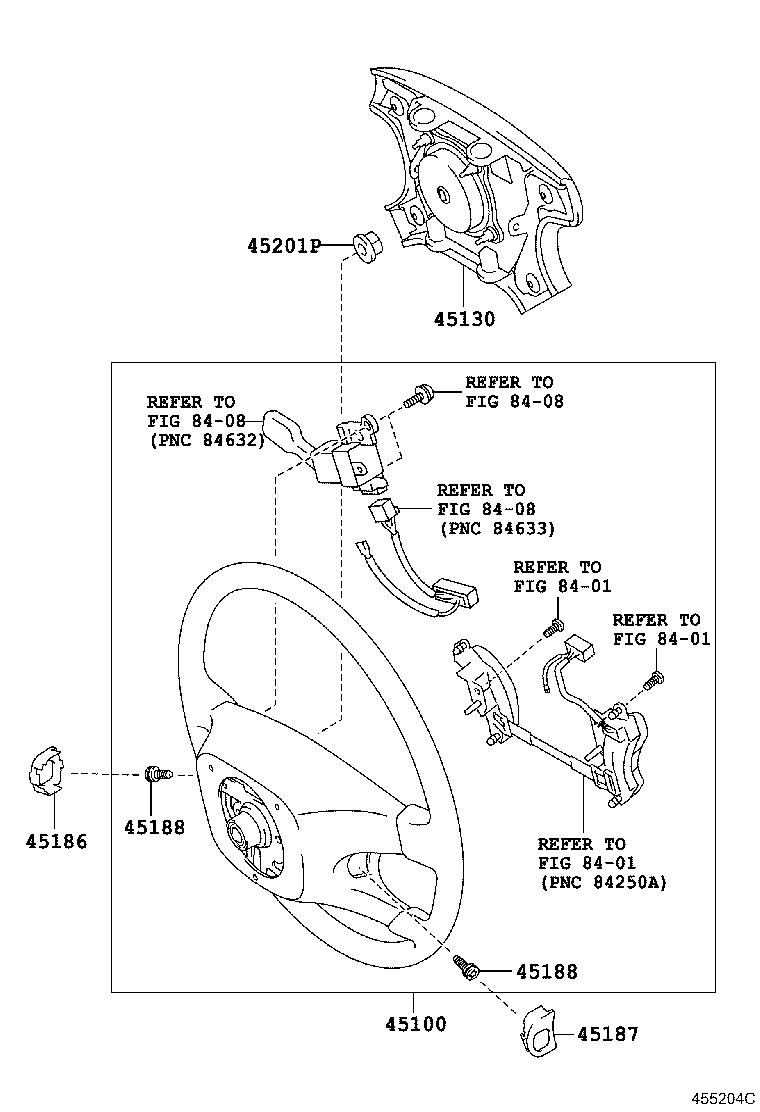

Figure 454264C 454264C 2005-07 → — Figure 454265B 454265B 2005-07 → 2008-08 Figure 454265B 454265B 2008-08 → 2008-10 Figure 454265B 454265B 2008-08 → — Figure 454265B 454265B 2008-10 → — Figure 454265B 454265B 2008-10 → — Figure 455204C 455204C 2008-08 → — Figure 455204C 455204C 2008-10 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
