Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

10 part groups · 2 illustrations

Illustrations

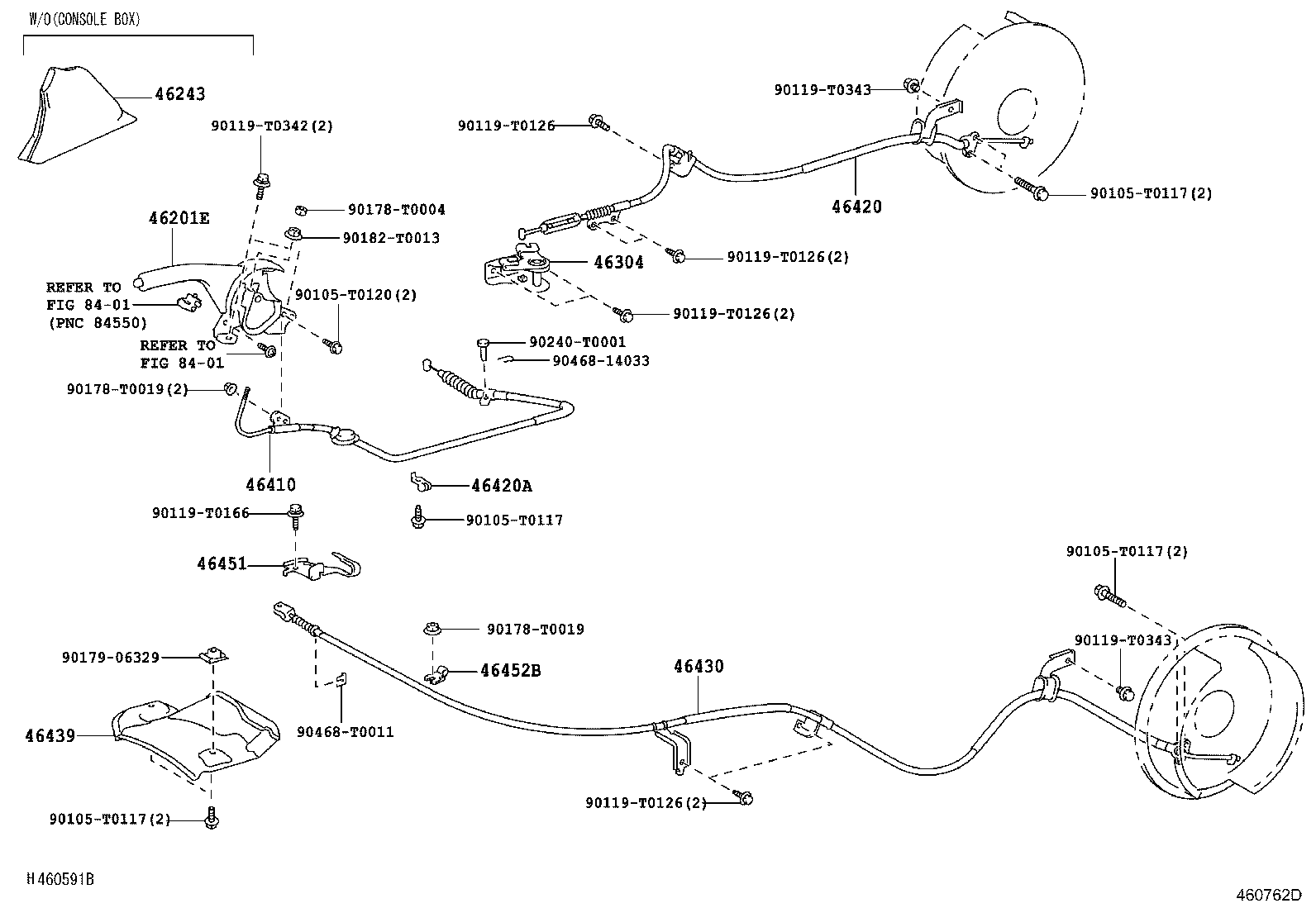

Figure 460761D 460761D 2005-07 → — Figure 460762D 460762D 2005-07 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46243 Cover, Parking Brake Lever
46304 Equalizer Sub-assy, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46439 Insulator, Parking Brake Cable Heat
46451 Bracket, Cable Support
46452B Bracket, Cable Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
