Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

16 part groups · 10 illustrations

Illustrations

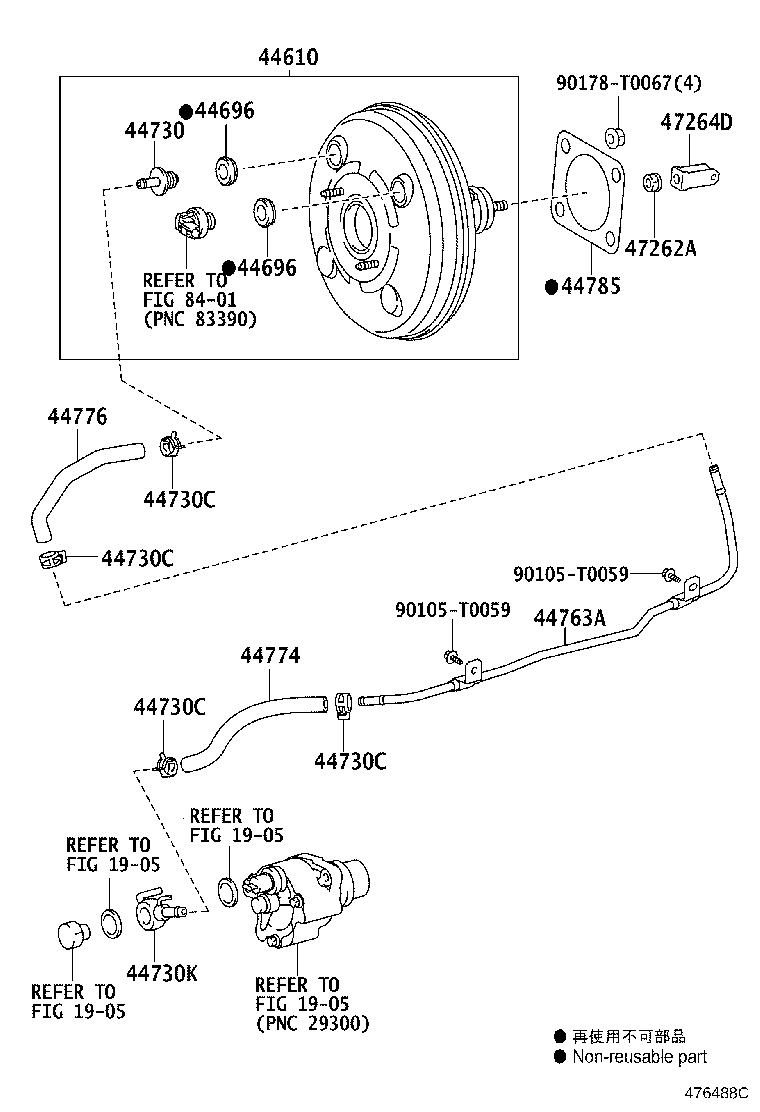

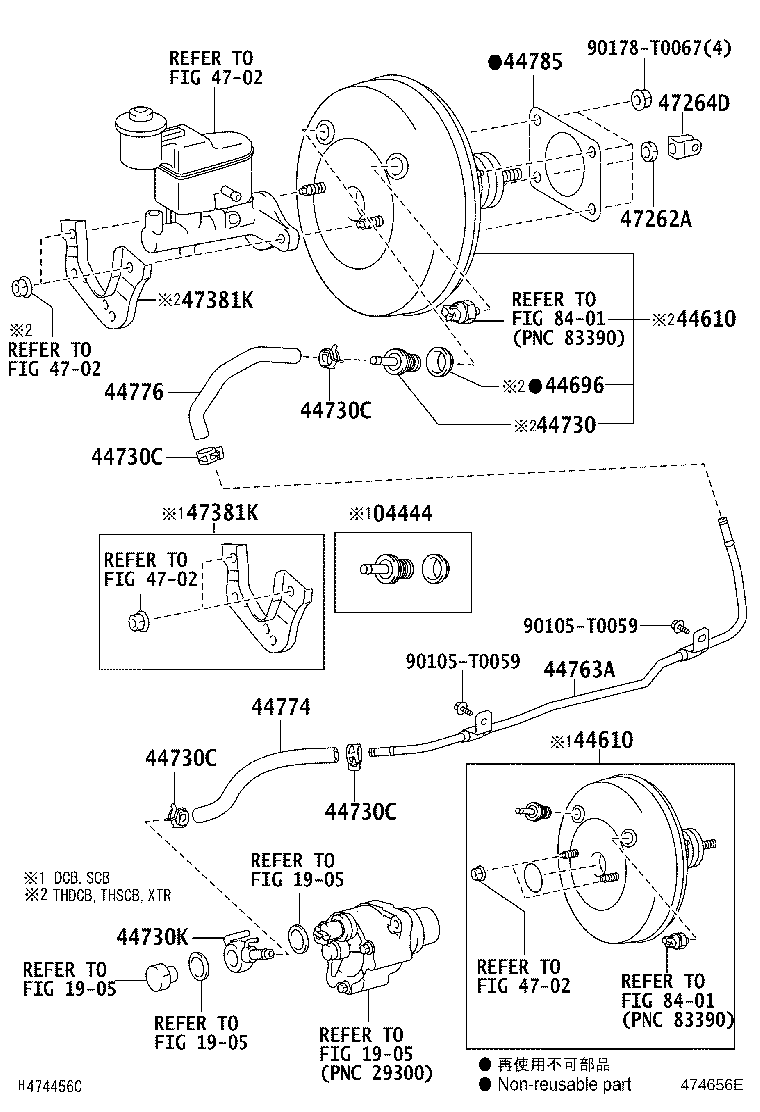

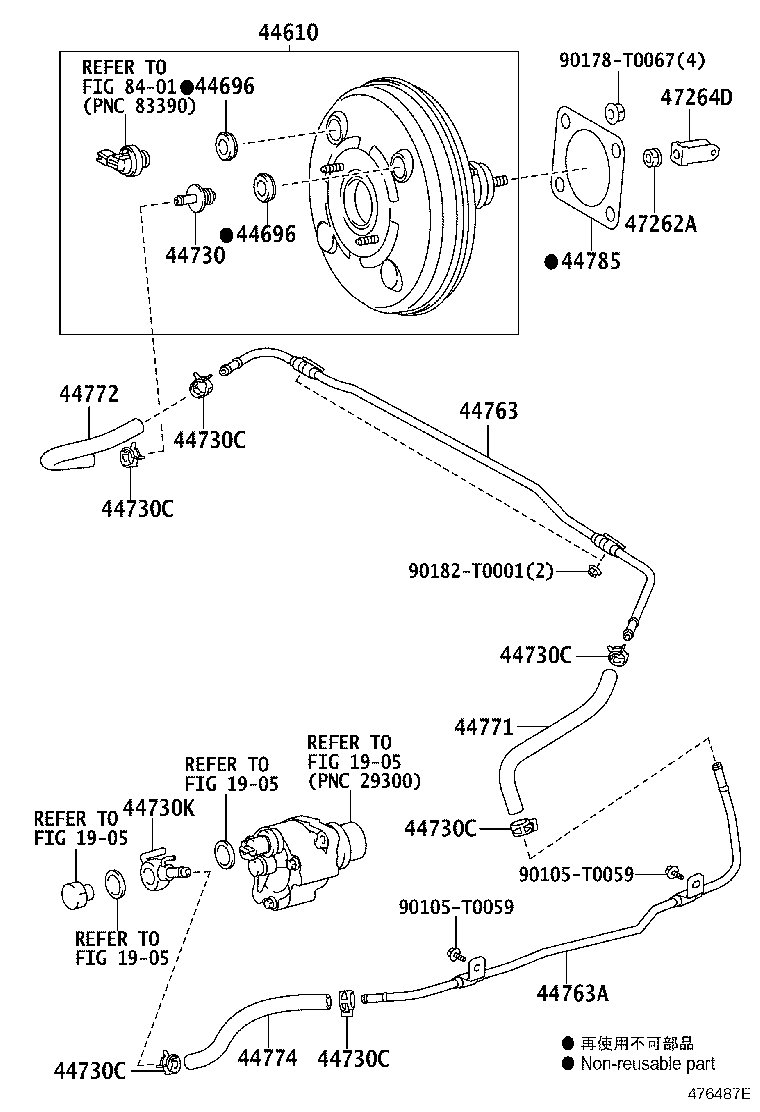

Figure 474655F 474655F 2005-07 → — Figure 474656E 474656E 2005-07 → — Figure 476487E 476487E 2008-08 → — Figure 476487E 476487E 2008-10 → — Figure 476487E 476487E 2010-08 → — Figure 476487E 476487E 2010-10 → — Figure 476488C 476488C 2008-08 → — Figure 476488C 476488C 2008-10 → — Figure 476488C 476488C 2010-08 → — Figure 476488C 476488C 2010-10 → —

Part groups

PNCDescription
04444 Valve Kit, Booster Control
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730C Clip(FOR VACUUM HOSE)
44730K Union, Vacuum Hose(FOR VACUUM PUMP)
44763 Tube, Booster Vacuum
44763A Tube, Hose TO Hose, NO.1
44771 Hose, Vacuum Tube Connector
44772 Hose, Check Valve TO Connector Tube
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44785 Gasket, Brake Booster
47262A Nut, Master Cylinder Push Rod Clevis Lock
47264D Clevis, Brake Master Cylinder Push Rod
47381K Bracket, Brake Booster Tube Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
