Front Disc Brake Caliper & Dust Cover

27 part groups · 12 illustrations

Illustrations

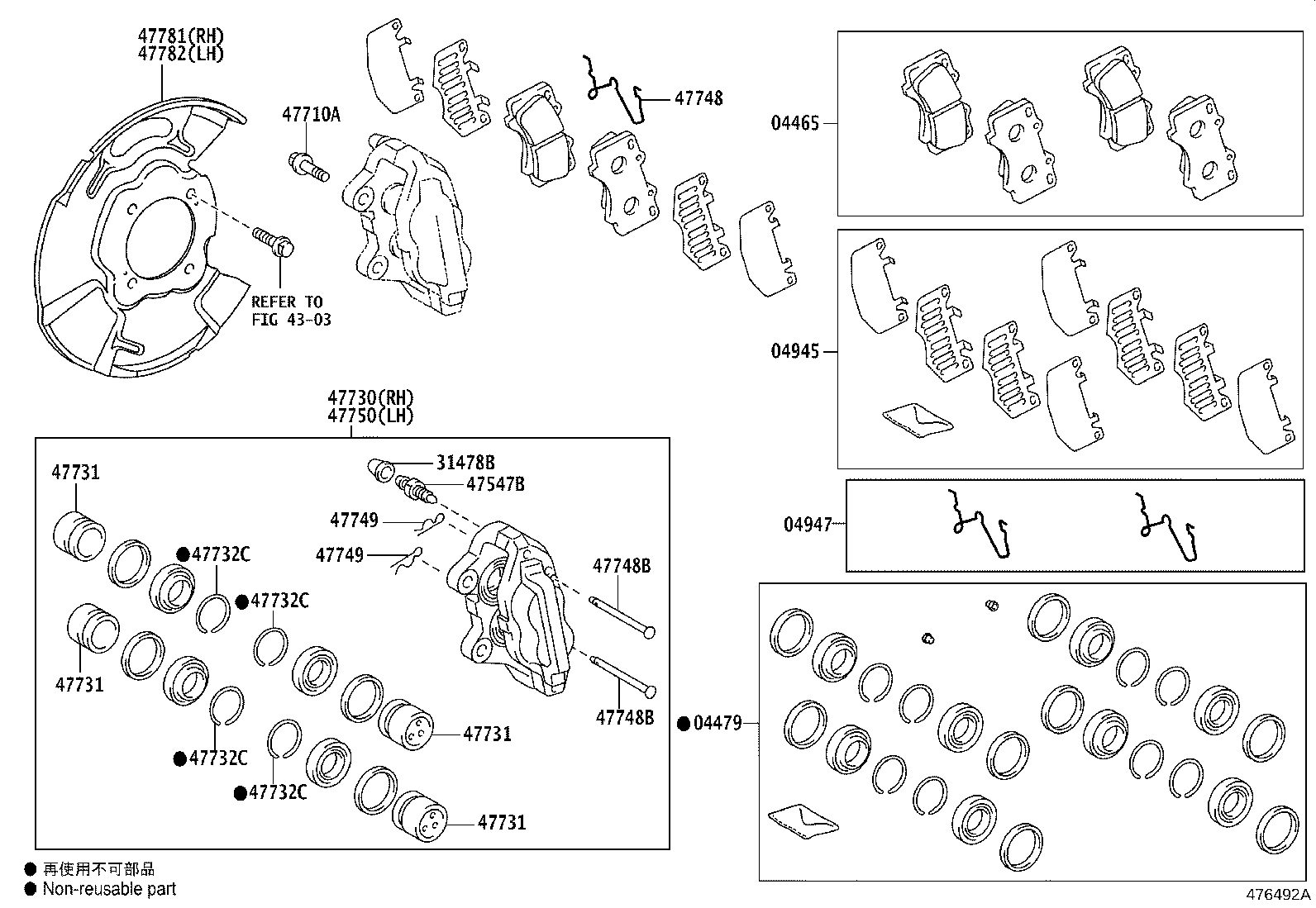

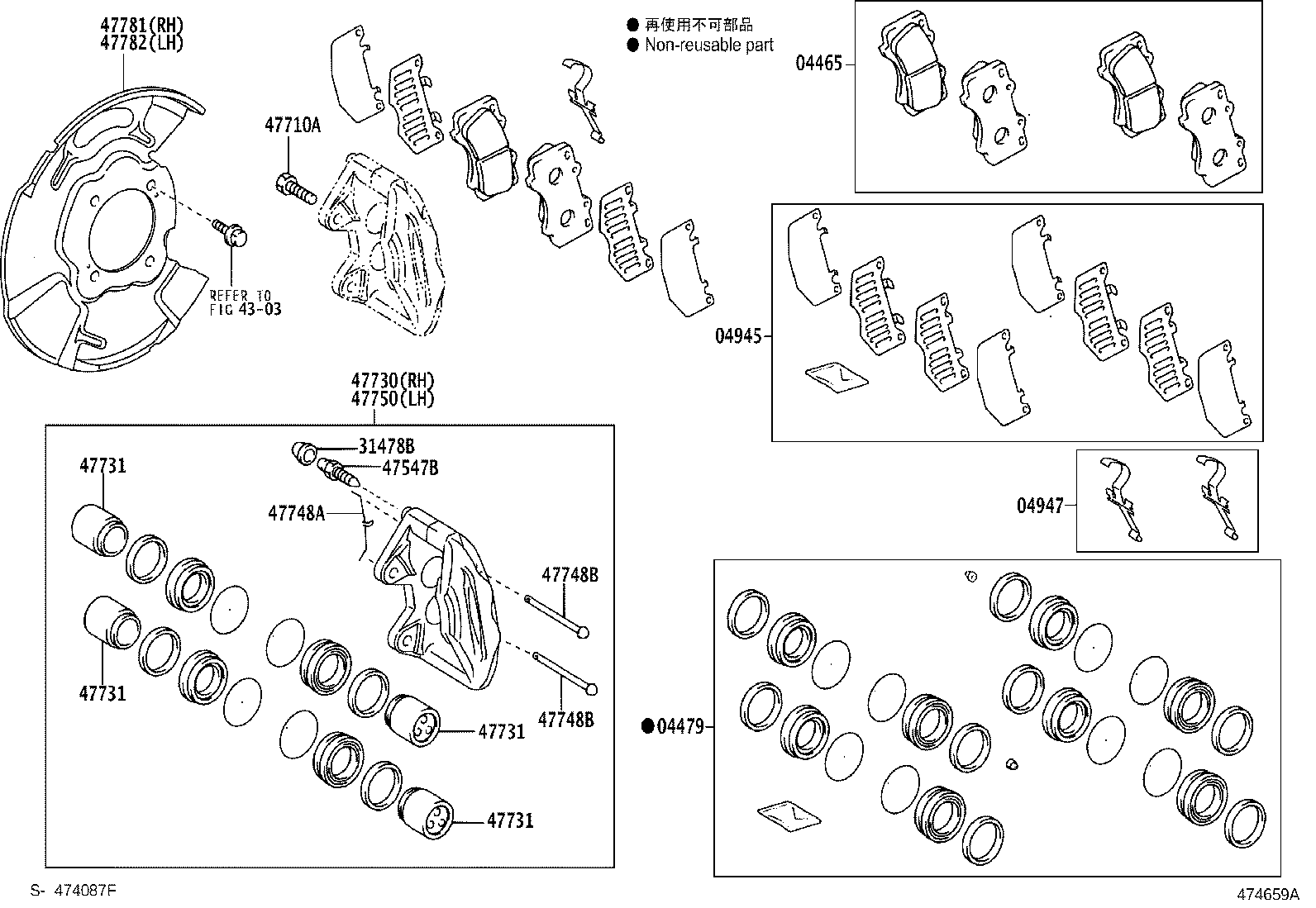

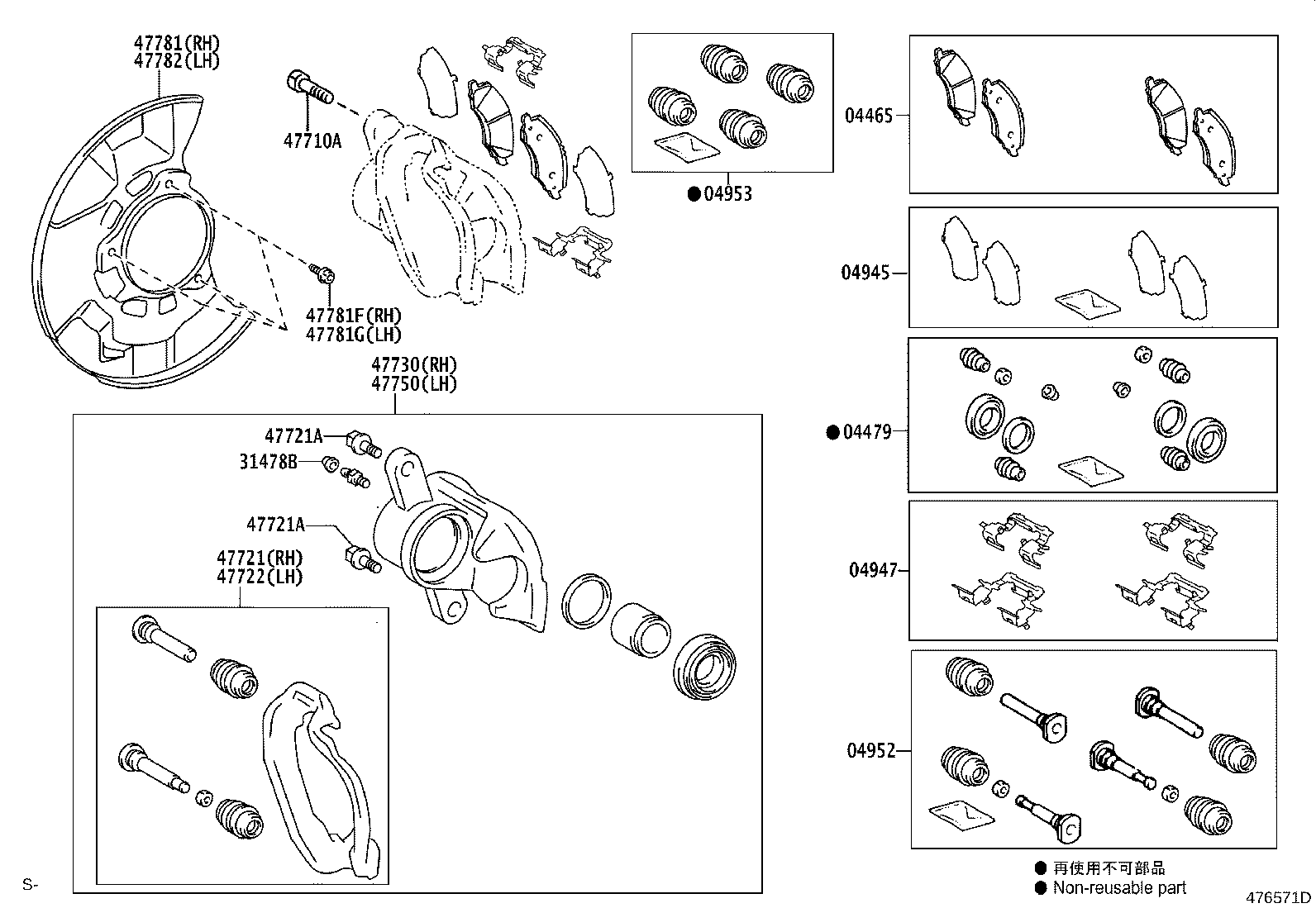

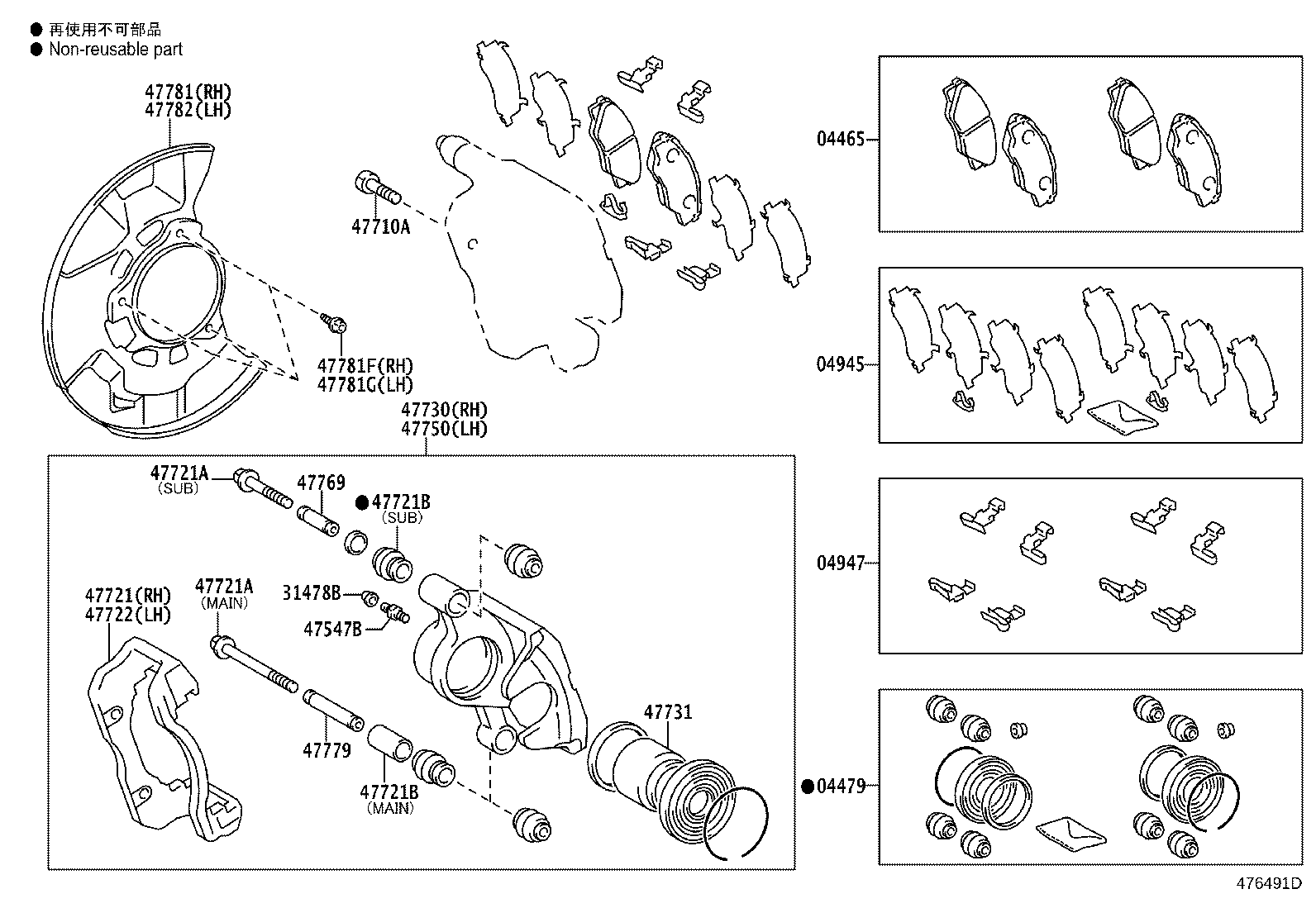

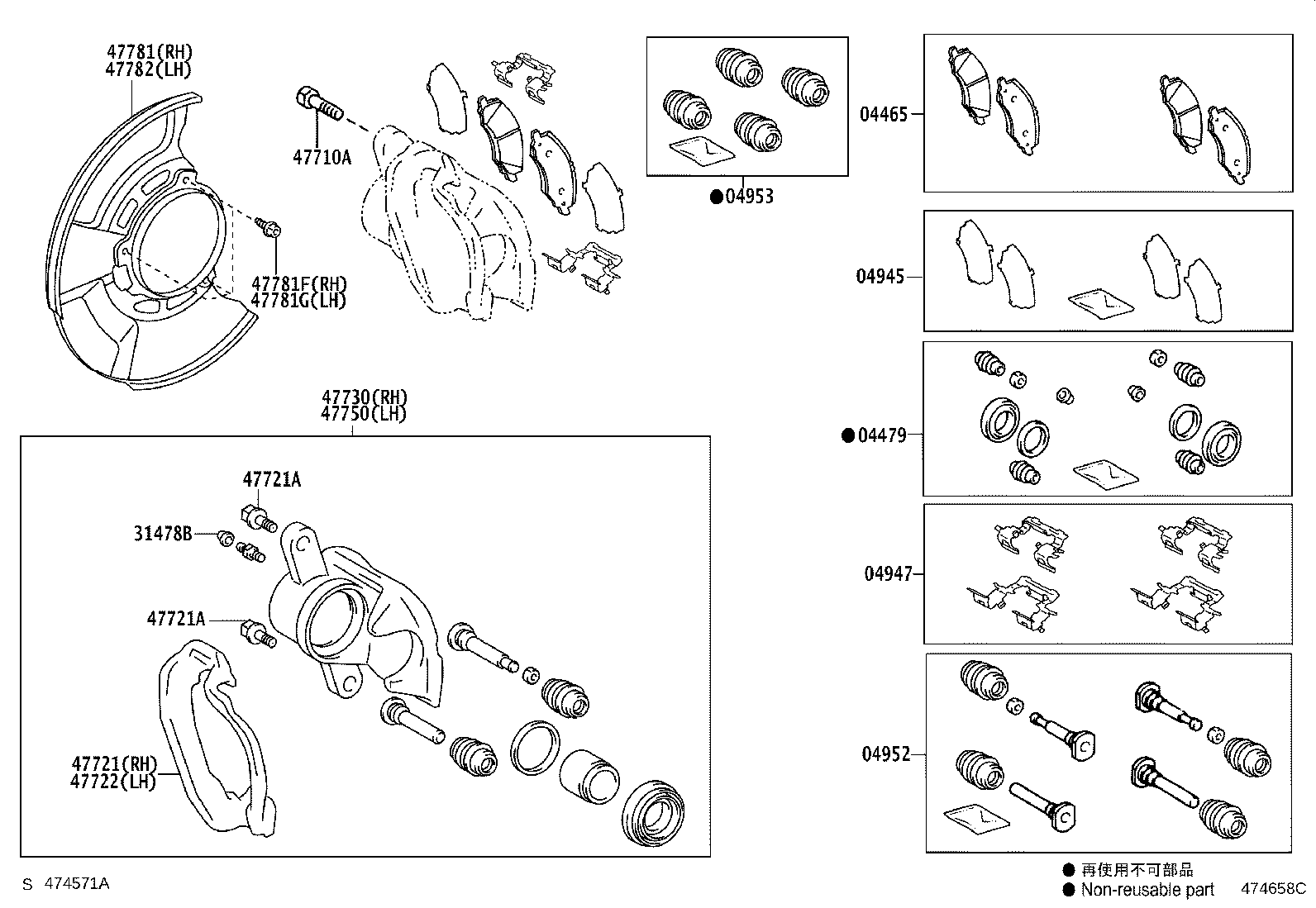

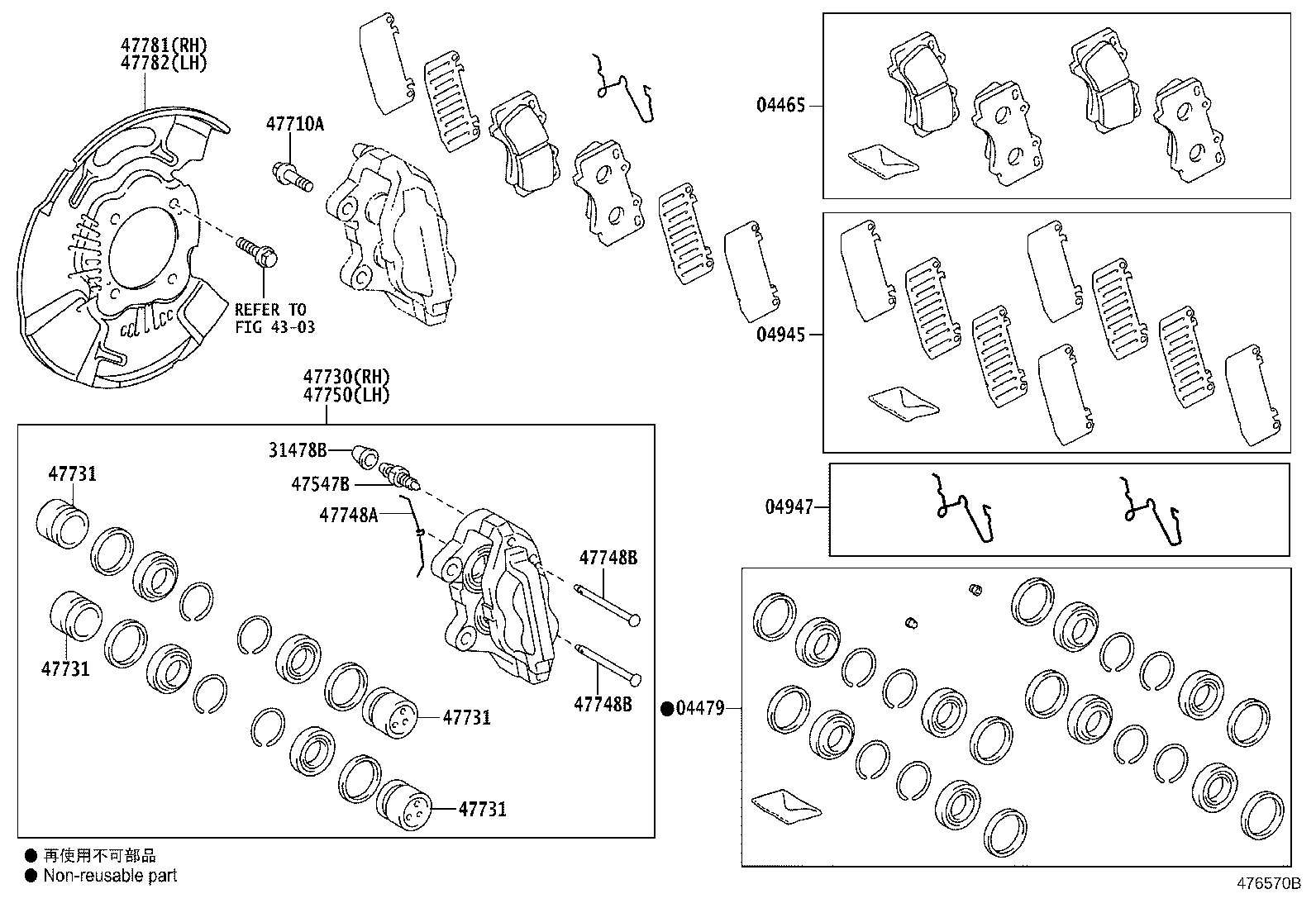

Figure 474657D 474657D 2005-07 → 2008-08 Figure 476491D 476491D 2008-08 → — Figure 474658C 474658C 2005-07 → 2008-10 Figure 476571D 476571D 2008-10 → — Figure 474659A 474659A 2005-07 → 2008-10 Figure 474659A 474659A 2008-10 → — Figure 476570B 476570B 2008-10 → — Figure 476492A 476492A 2008-08 → — Figure 476492A 476492A 2008-10 → — Figure 476492A 476492A 2010-08 → — Figure 476492A 476492A 2010-10 → — Figure 476492A 476492A 2010-10 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
04952 Pin Kit, Front Disc Brake Cylinder Slide
04953 Boot Kit, Front Disc Brake Cylinder Slide Pin
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47721 Mounting, Front Disc Brake Cylinder, RH
47721A Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47721B Collar(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47722 Mounting, Front Disc Brake Cylinder, LH
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47732C Ring, Set, NO.2(FOR FRONT DISC BRAKE)
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47748A Clip(FOR FRONT DISC BRAKE ANTI-RATTLE)
47748B Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
47749 Clip, Pin Hold
47750 Cylinder Assy, Disc Brake, LH
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47779 Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
47781 Cover, Disc Brake Dust, Front RH
47781F Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
47781G Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
