Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

66 part groups · 33 illustrations

Illustrations

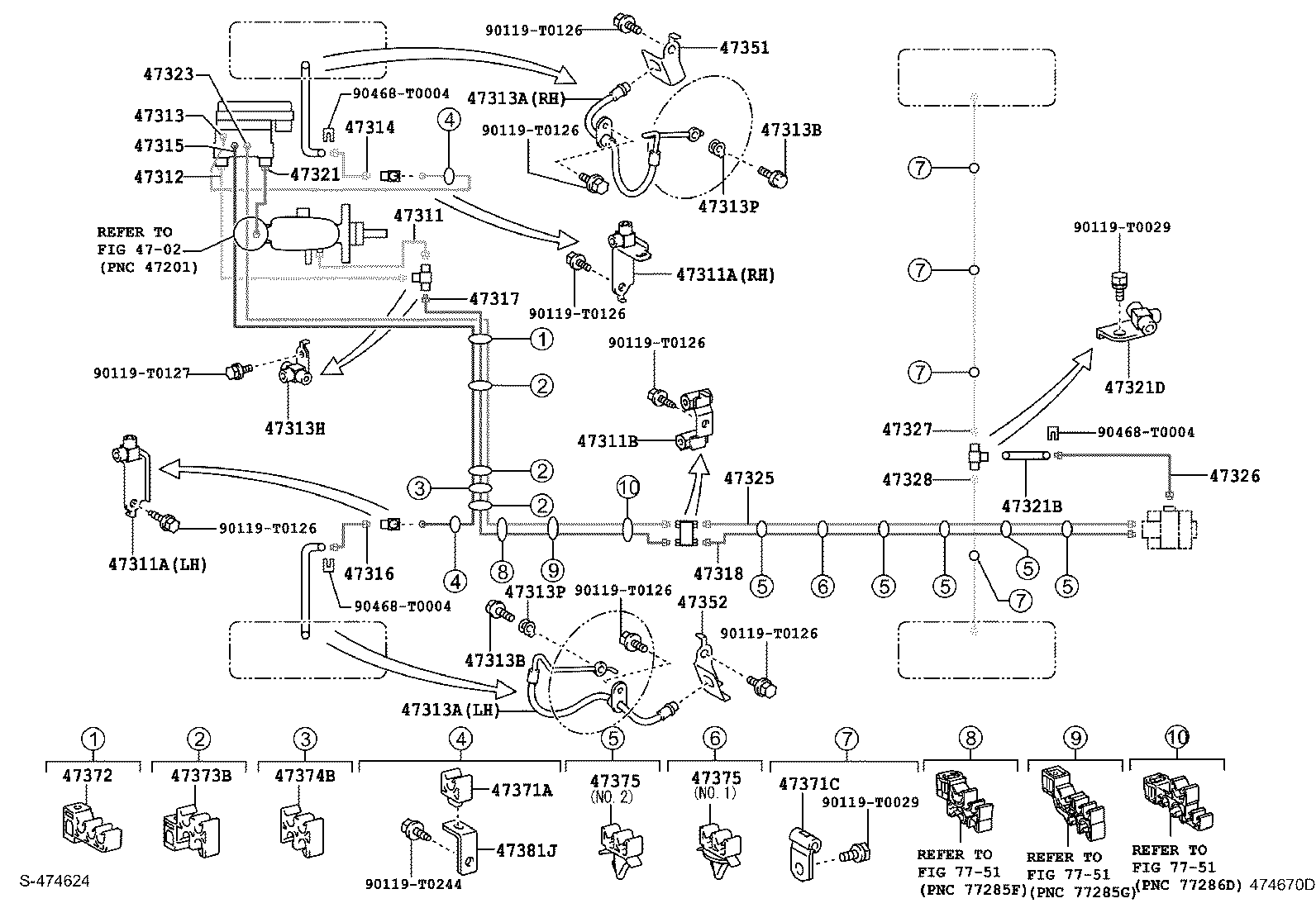

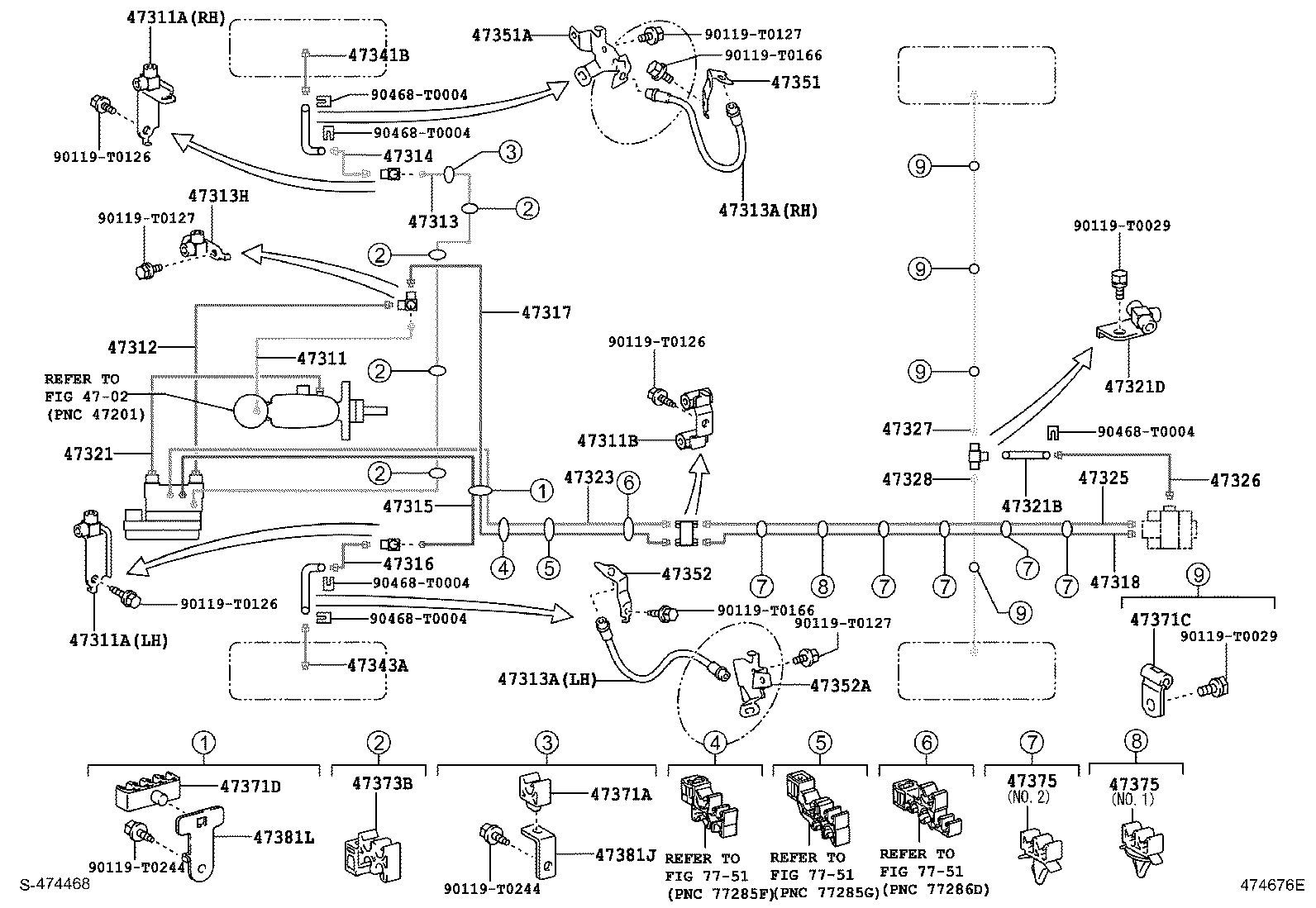

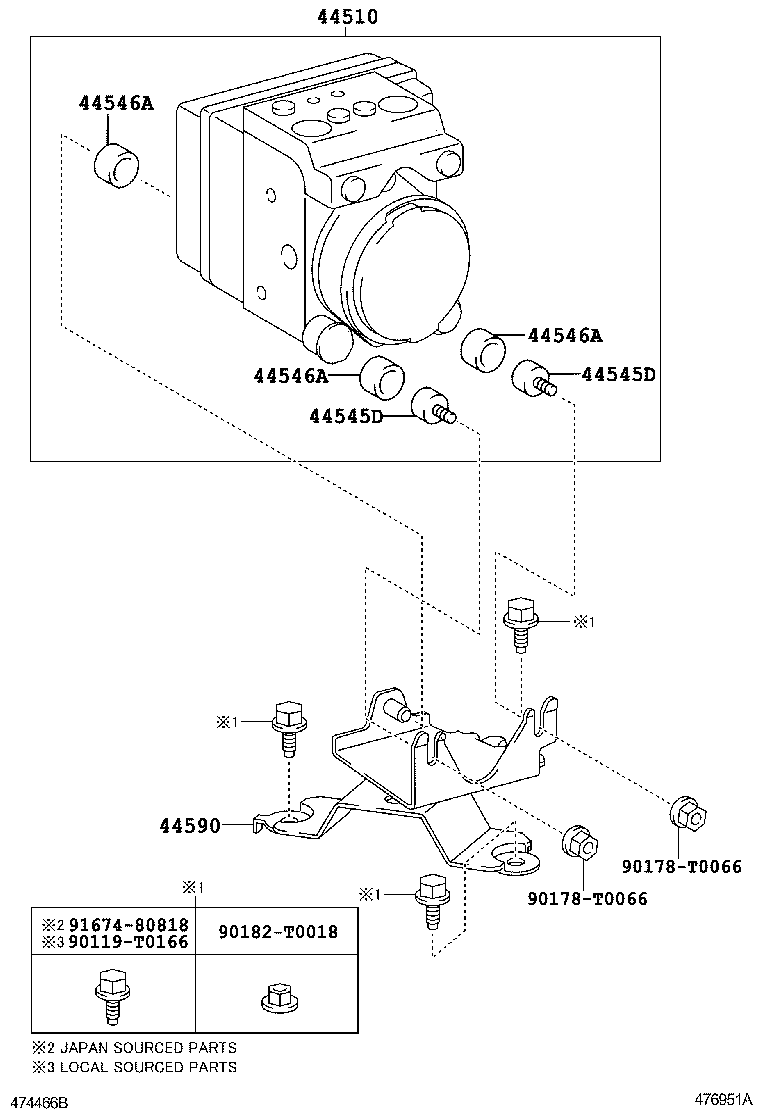

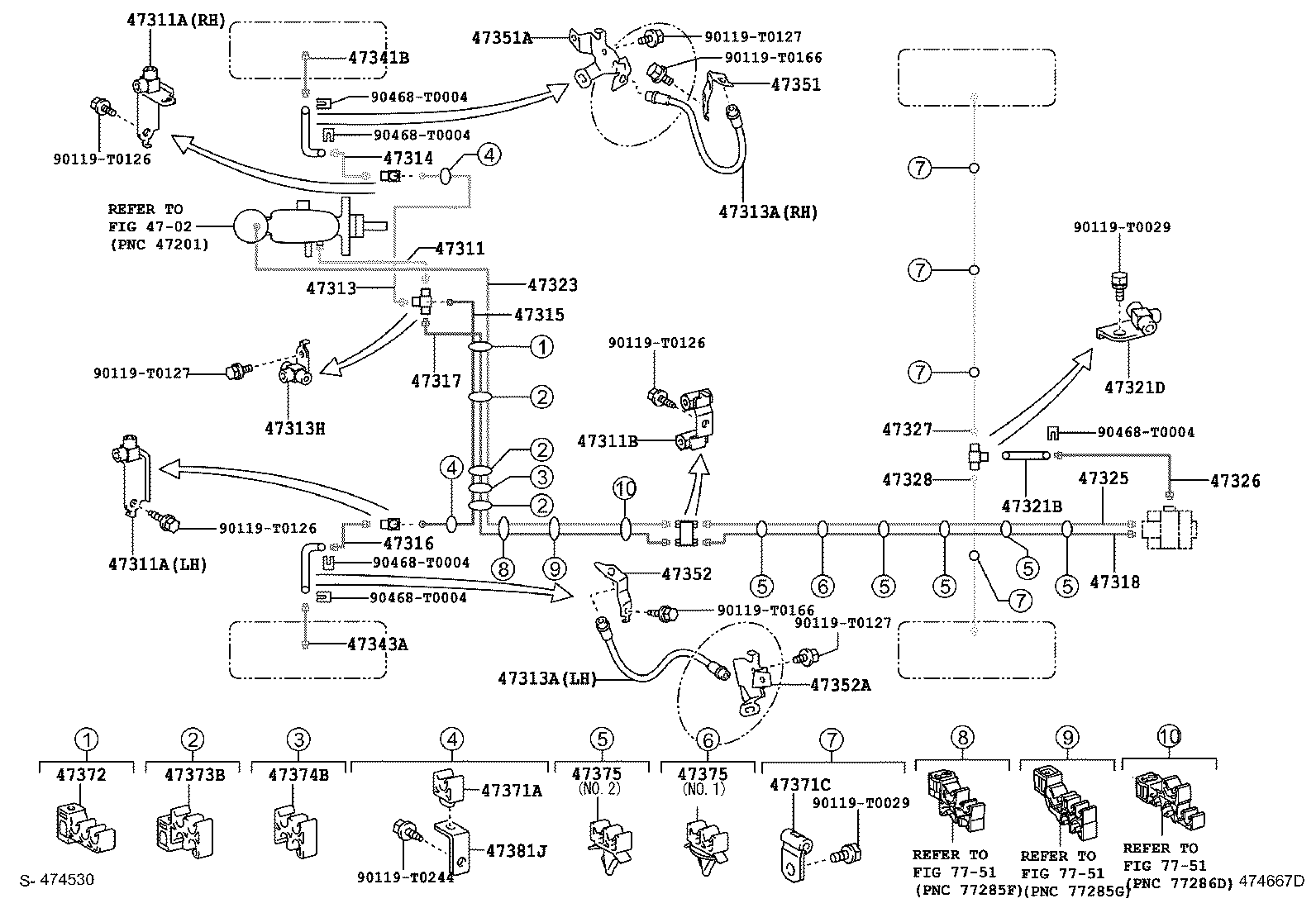

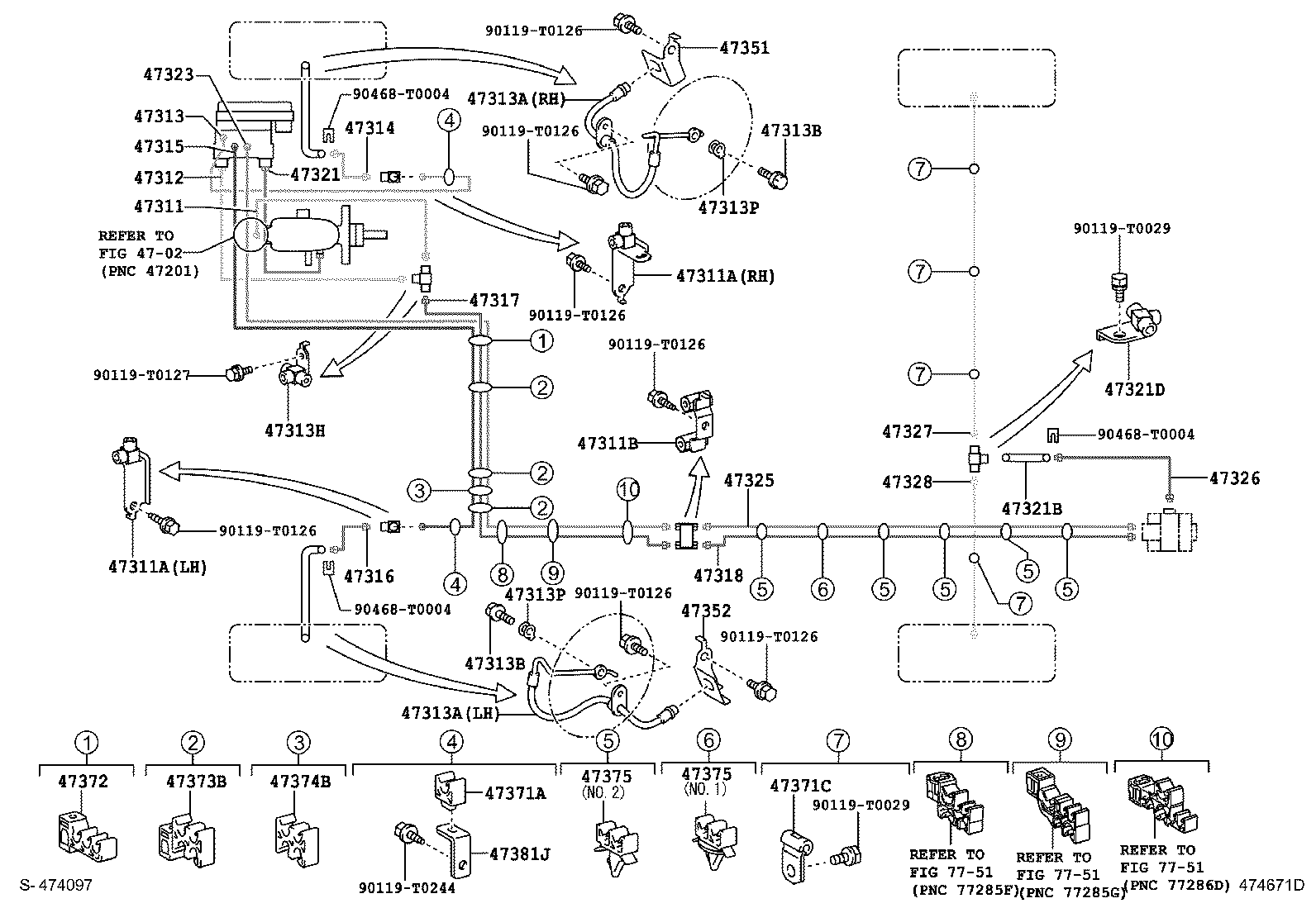

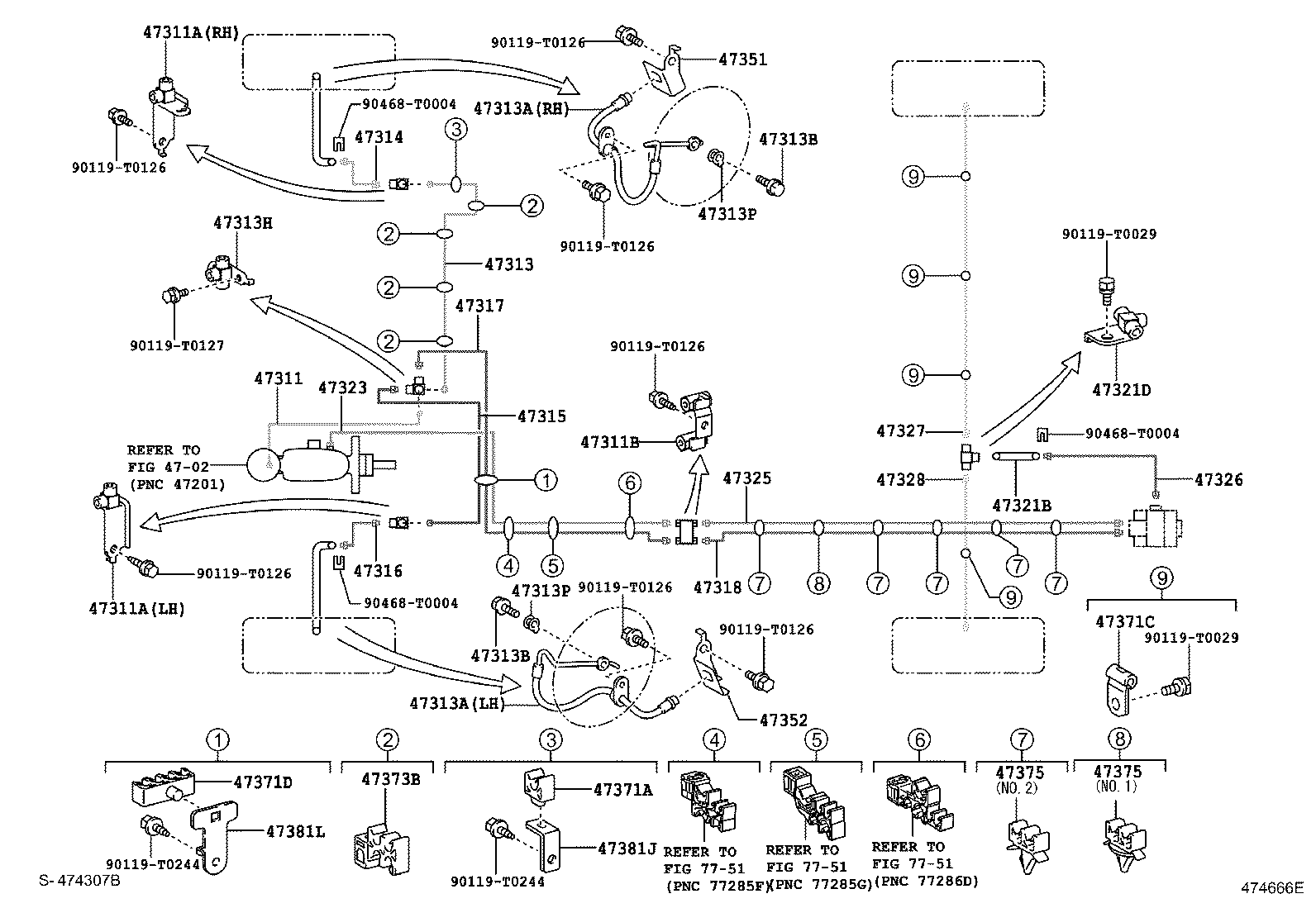

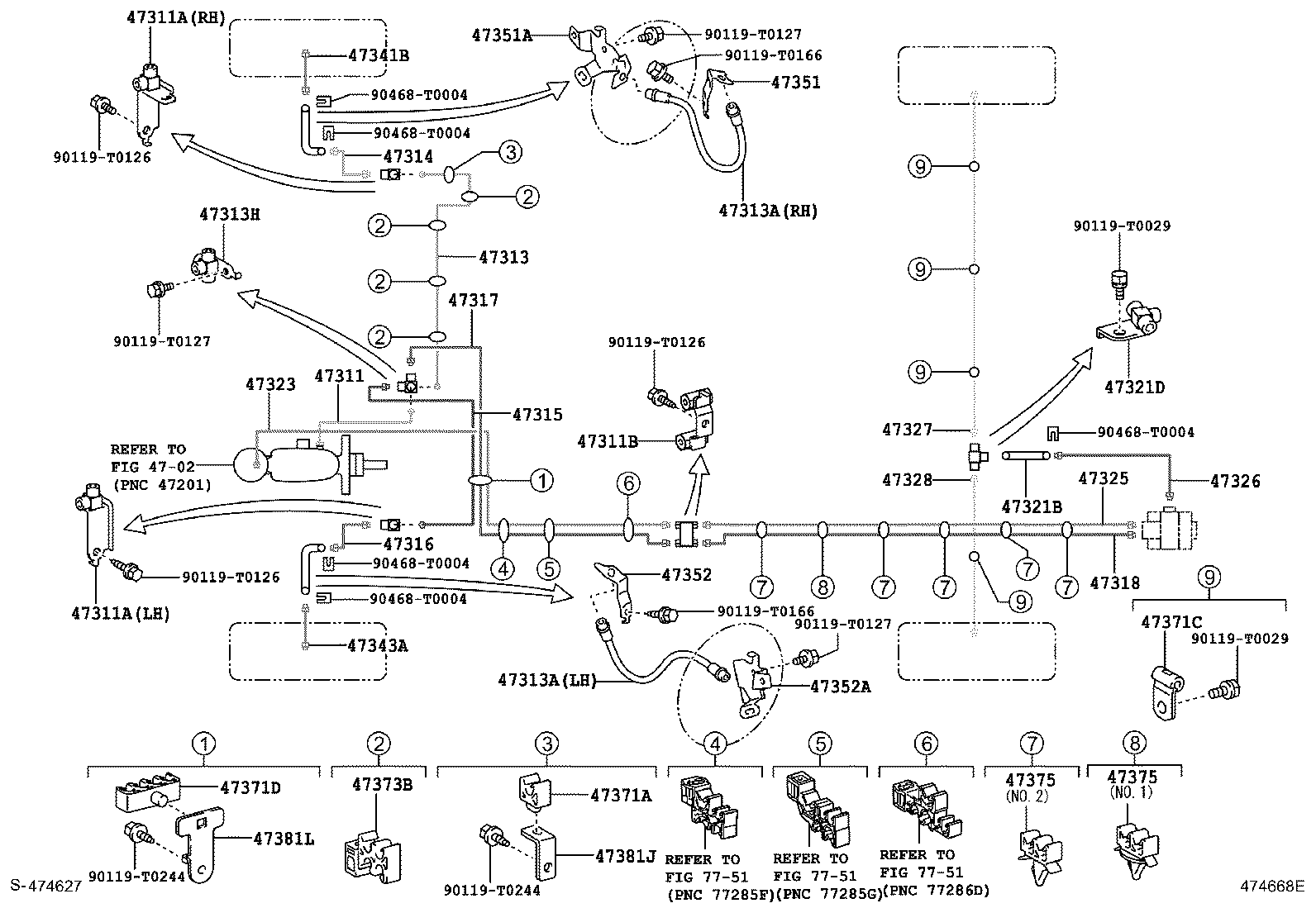

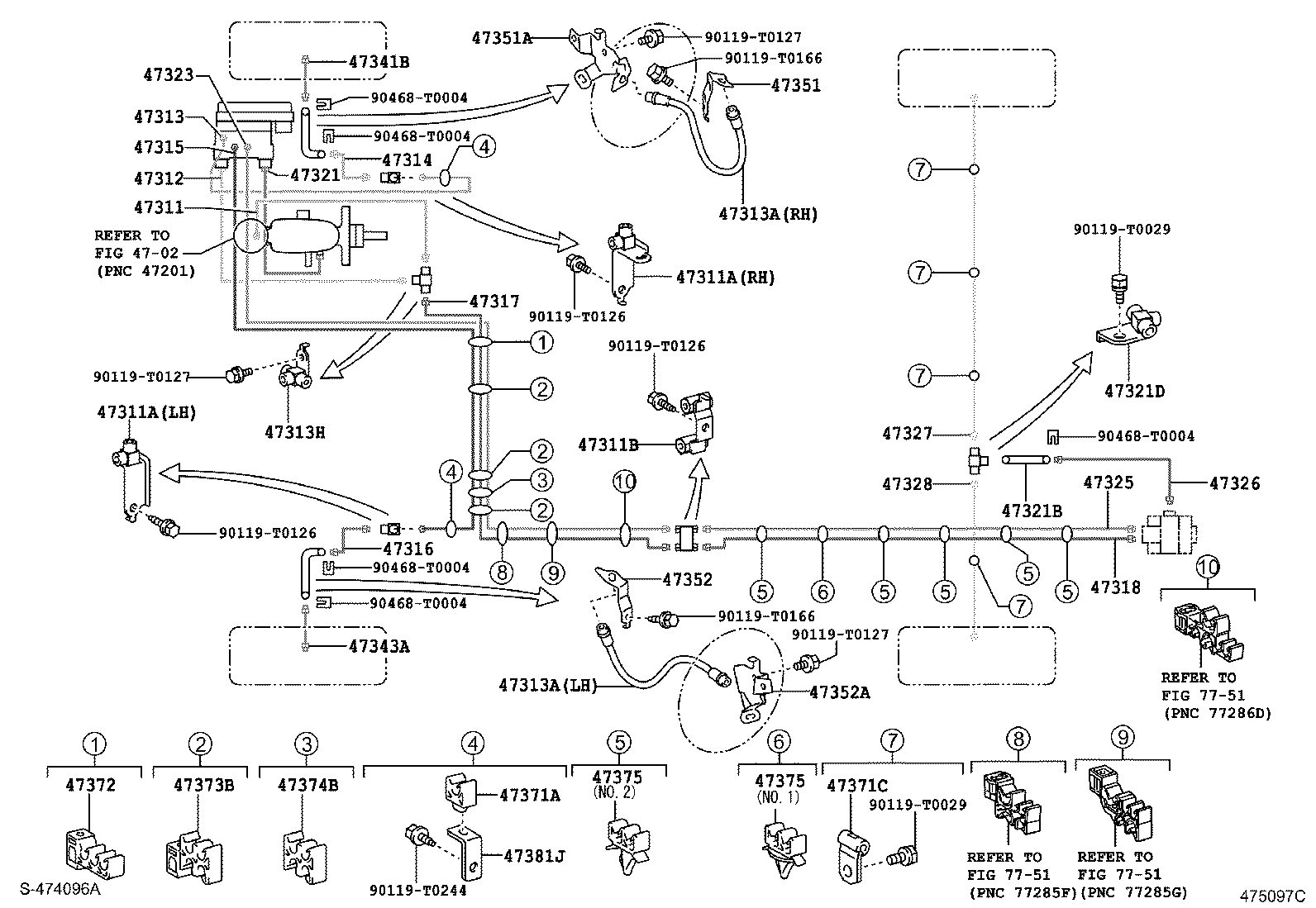

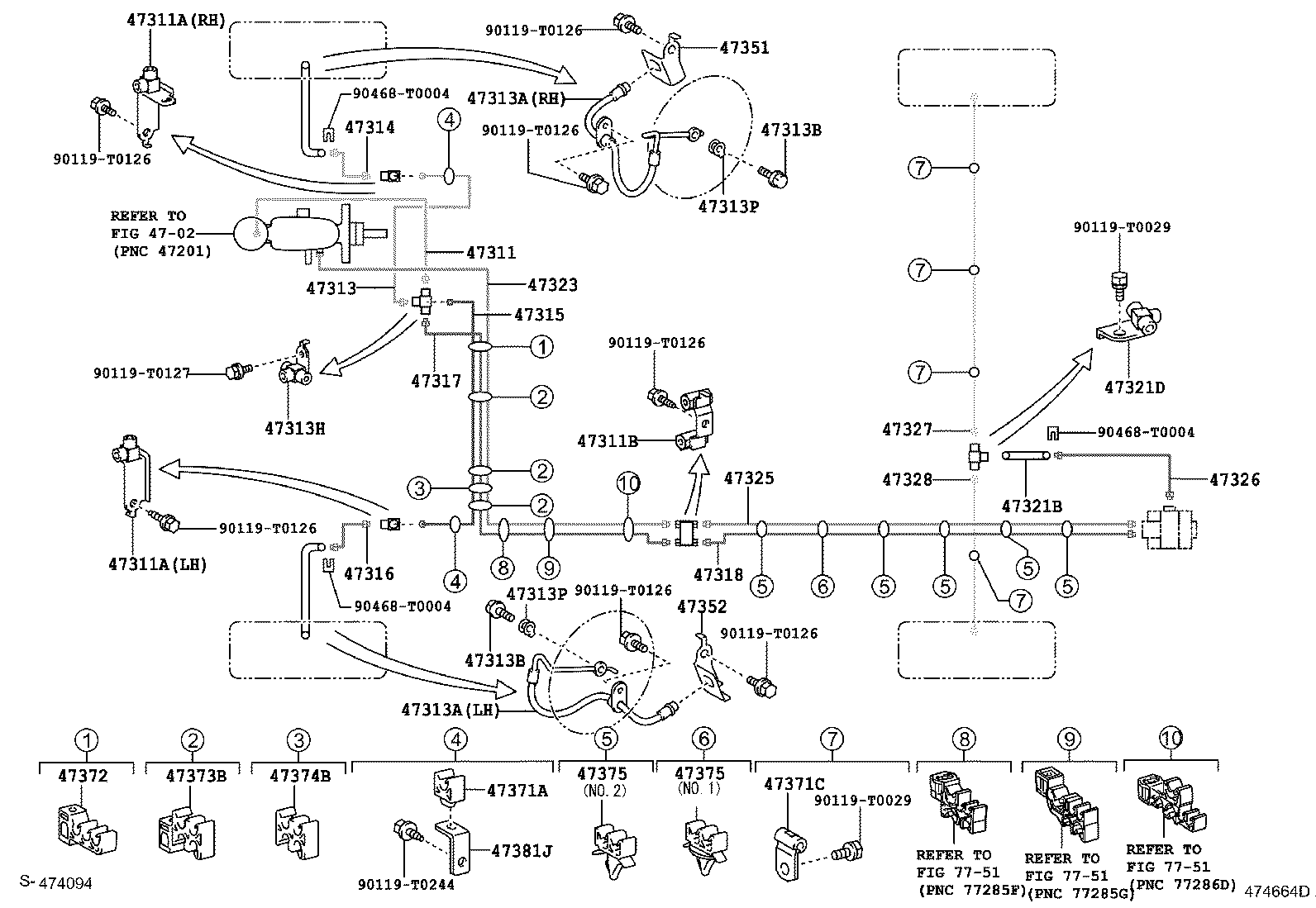

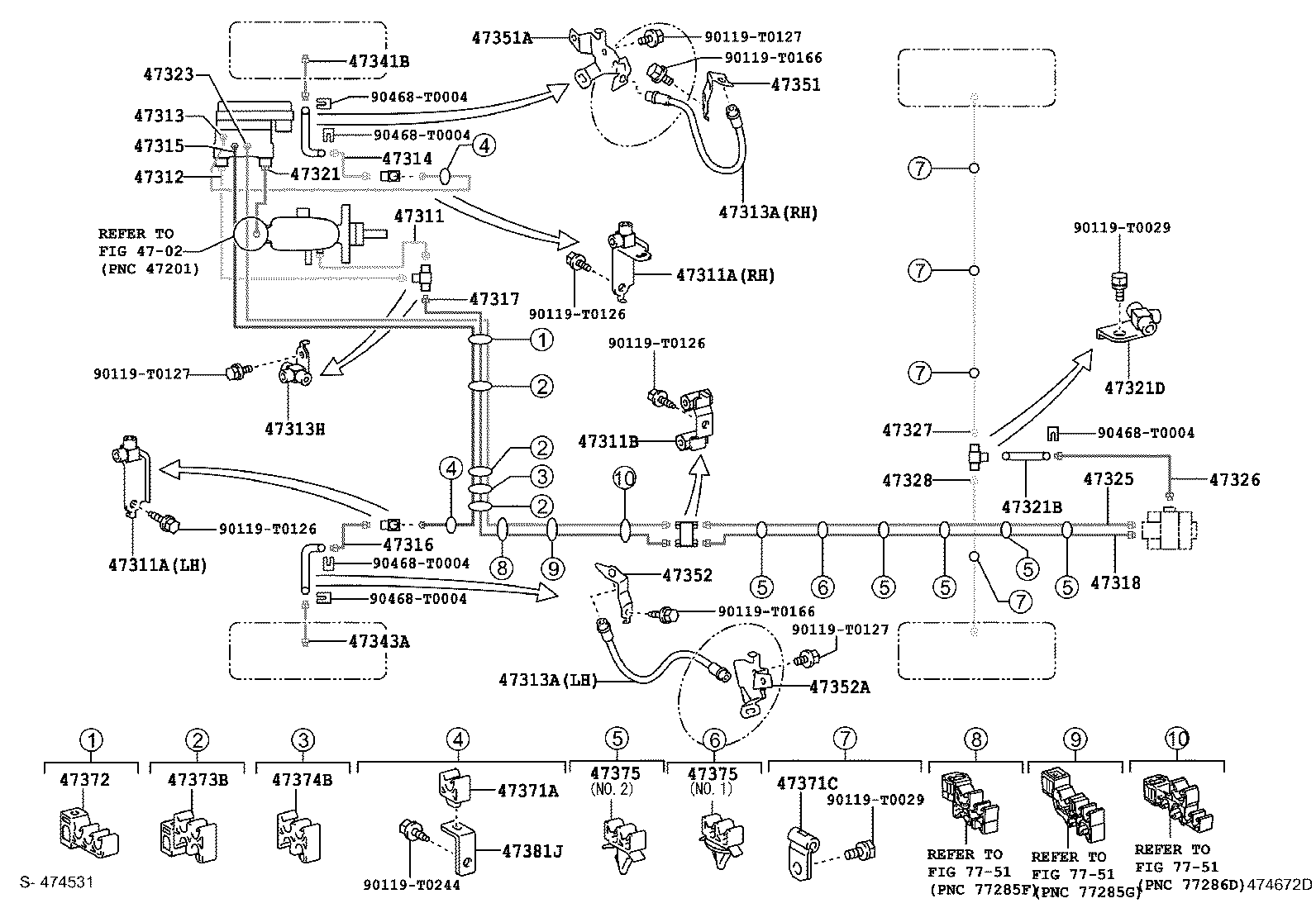

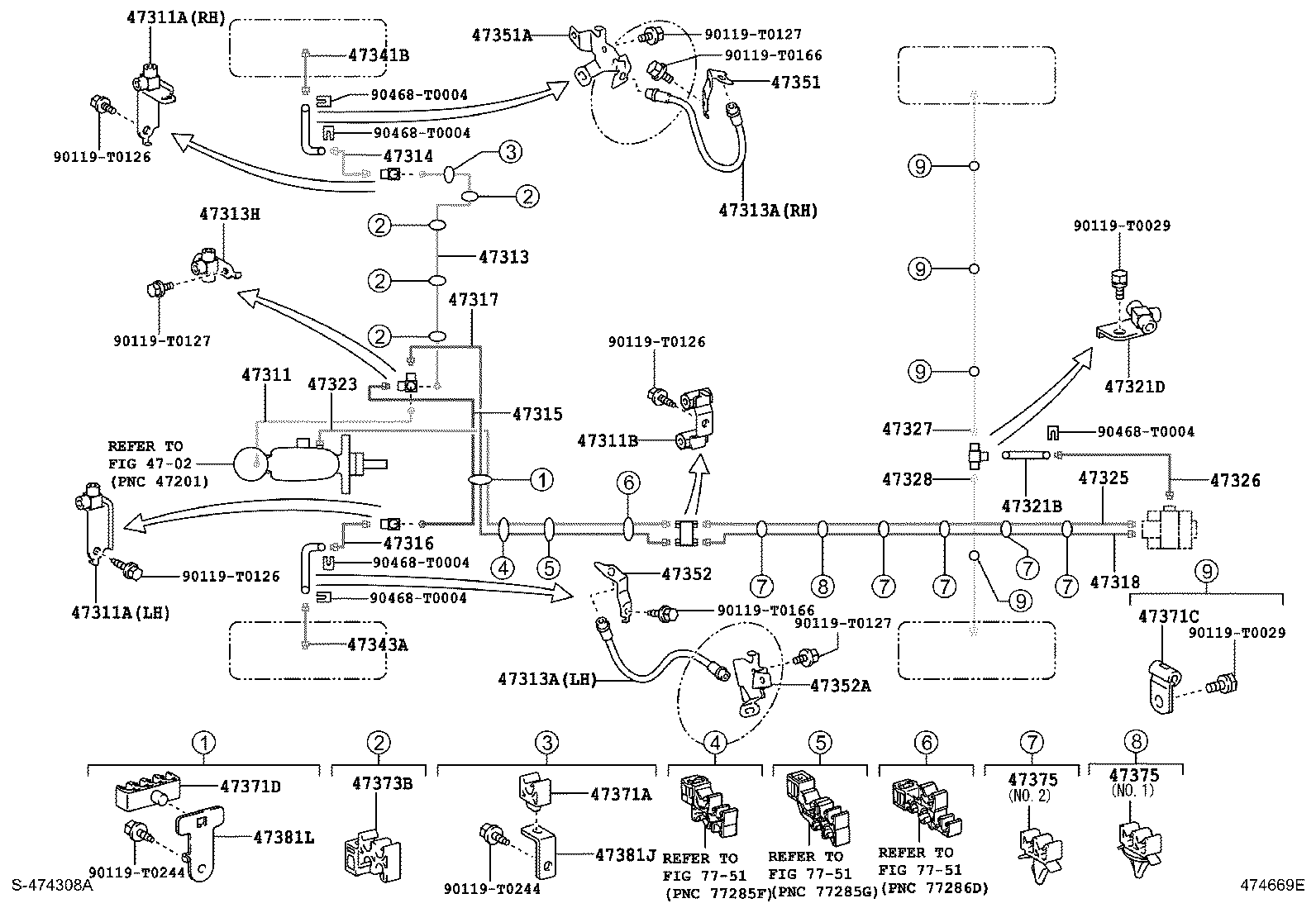

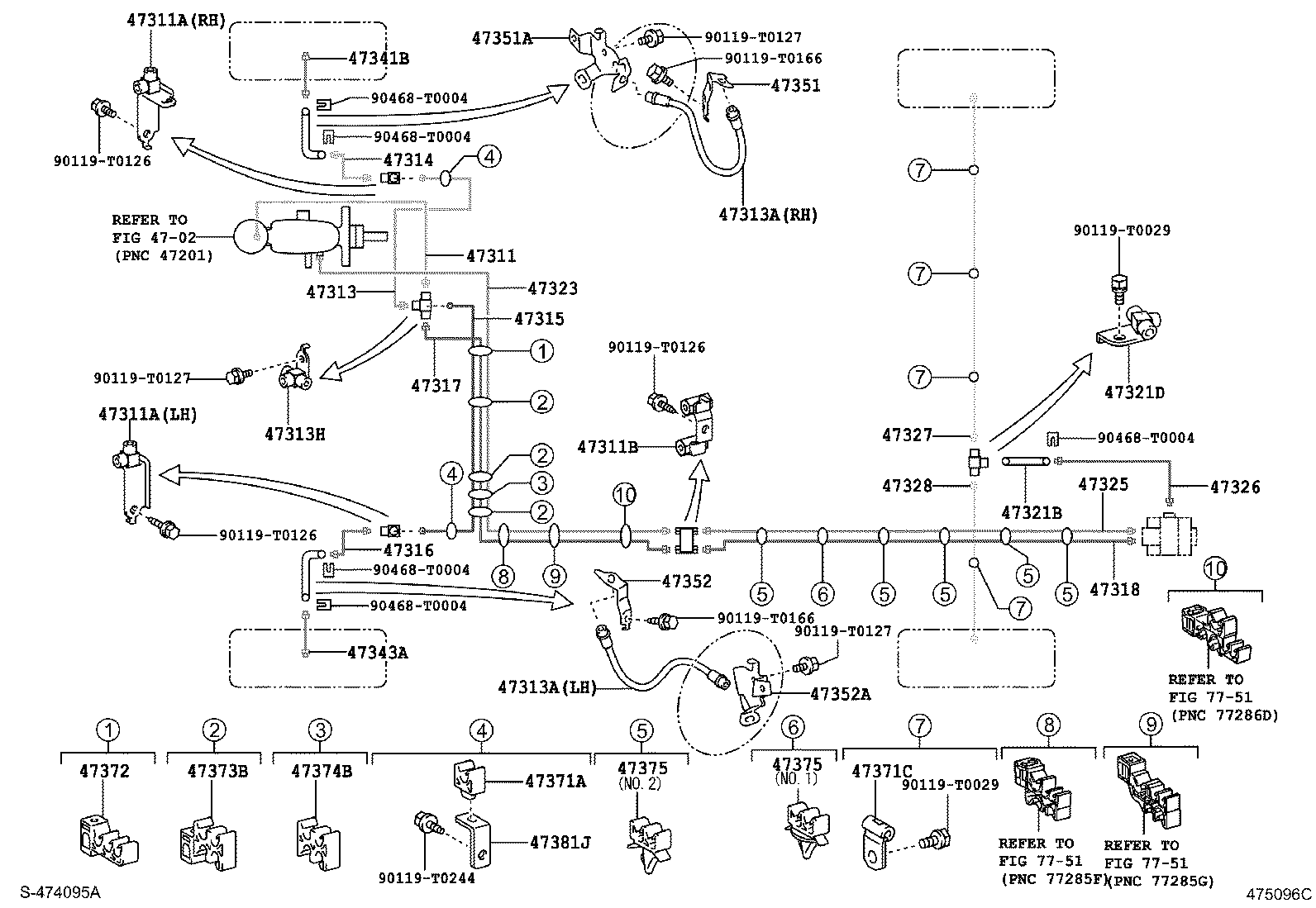

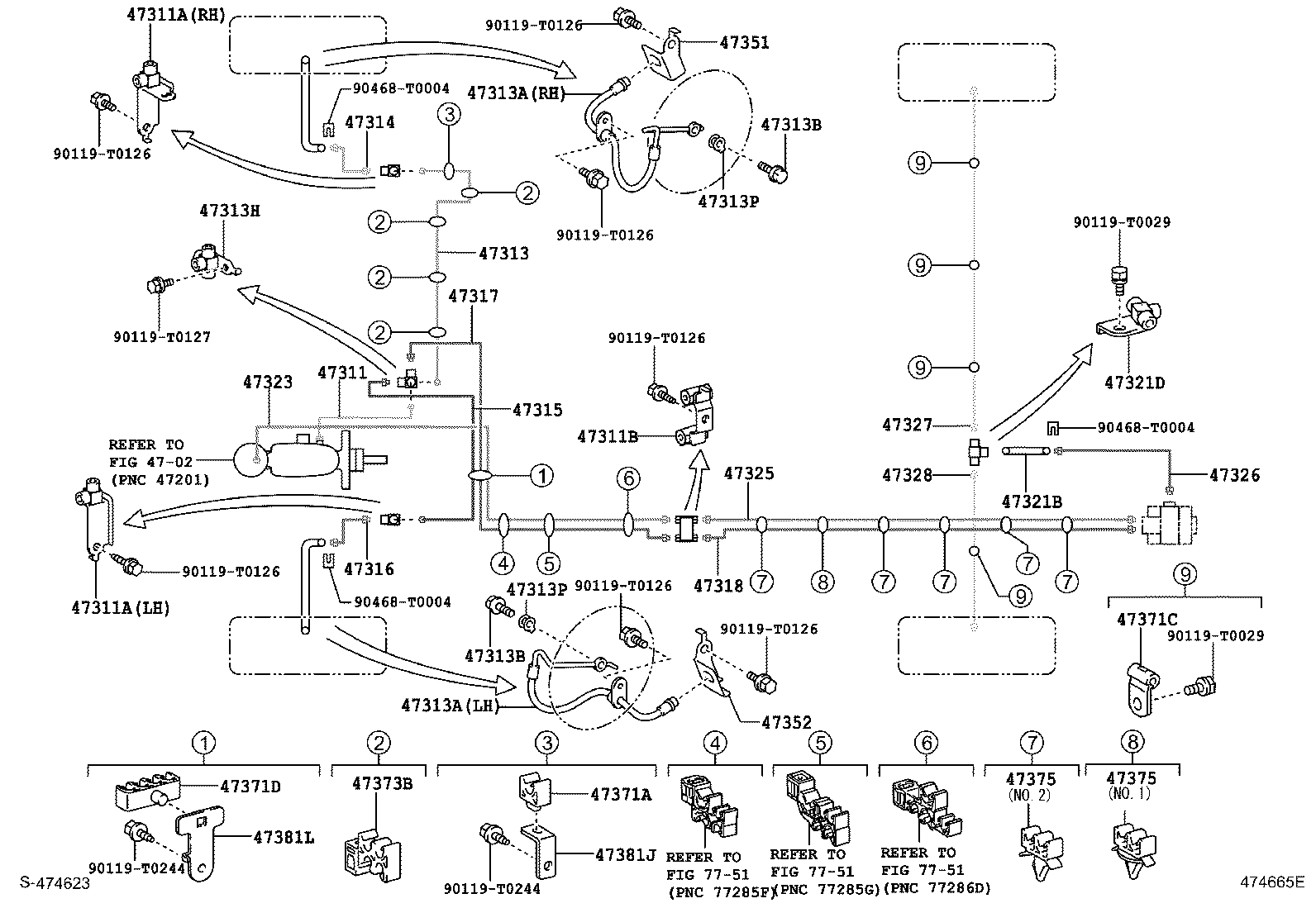

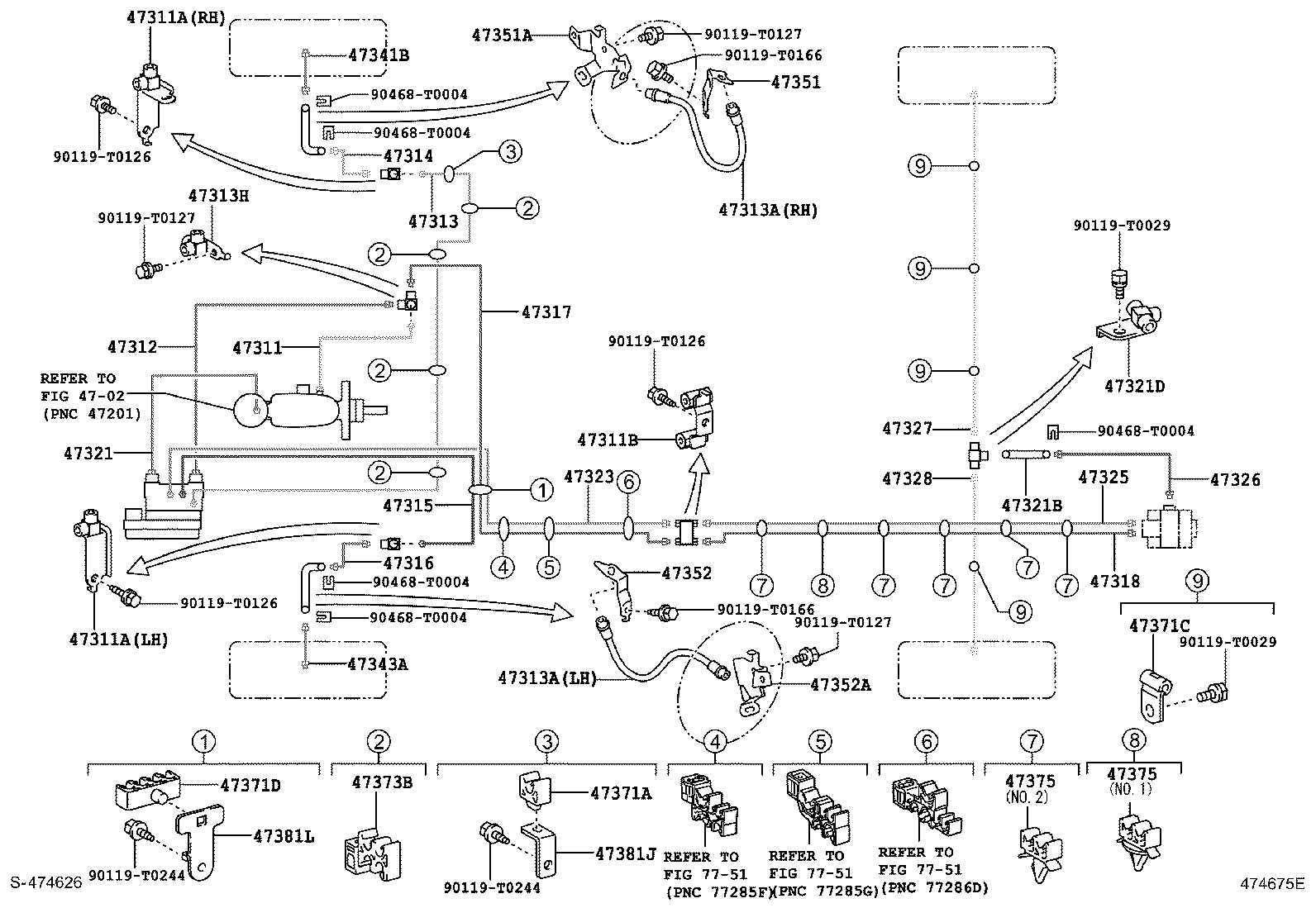

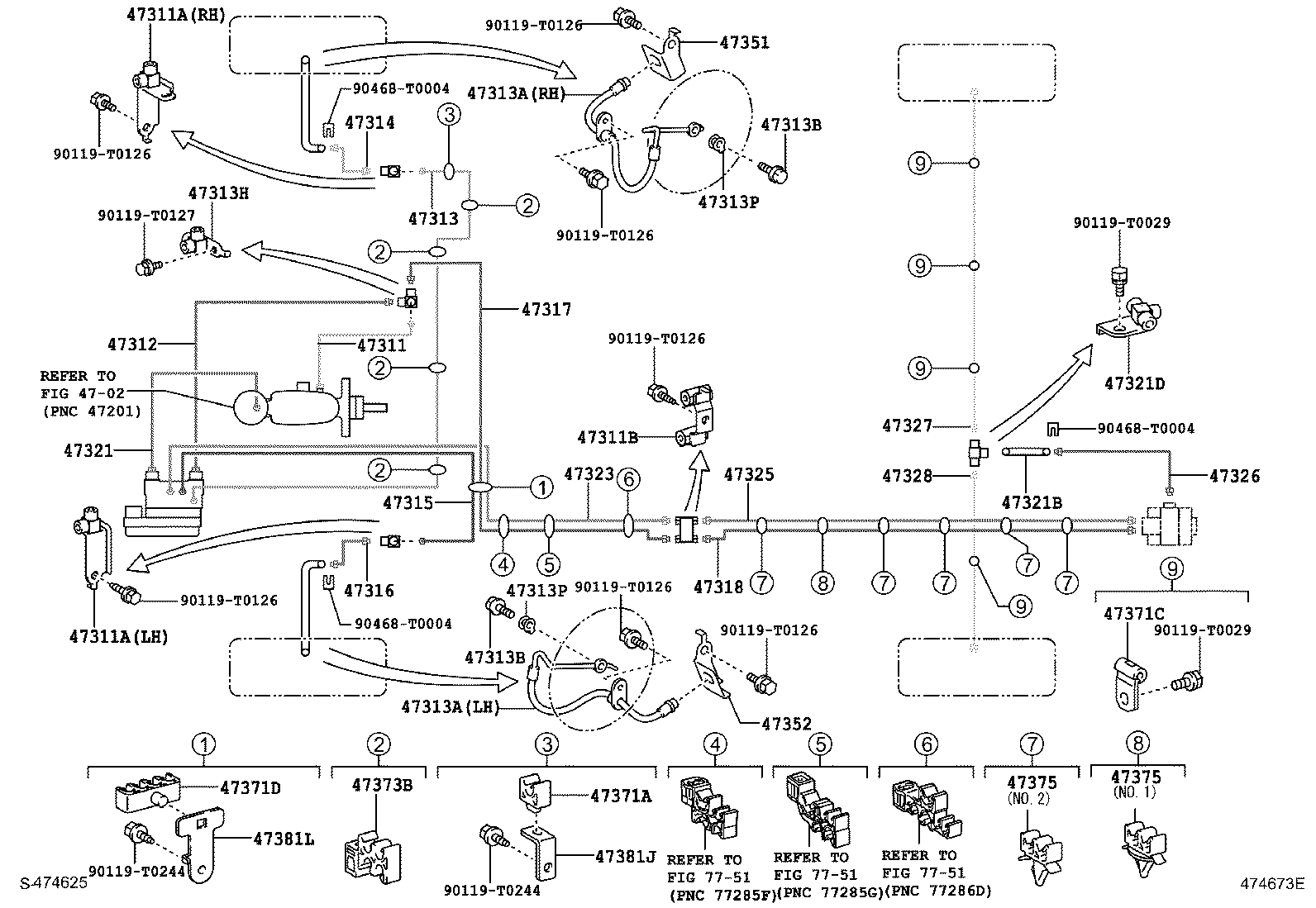

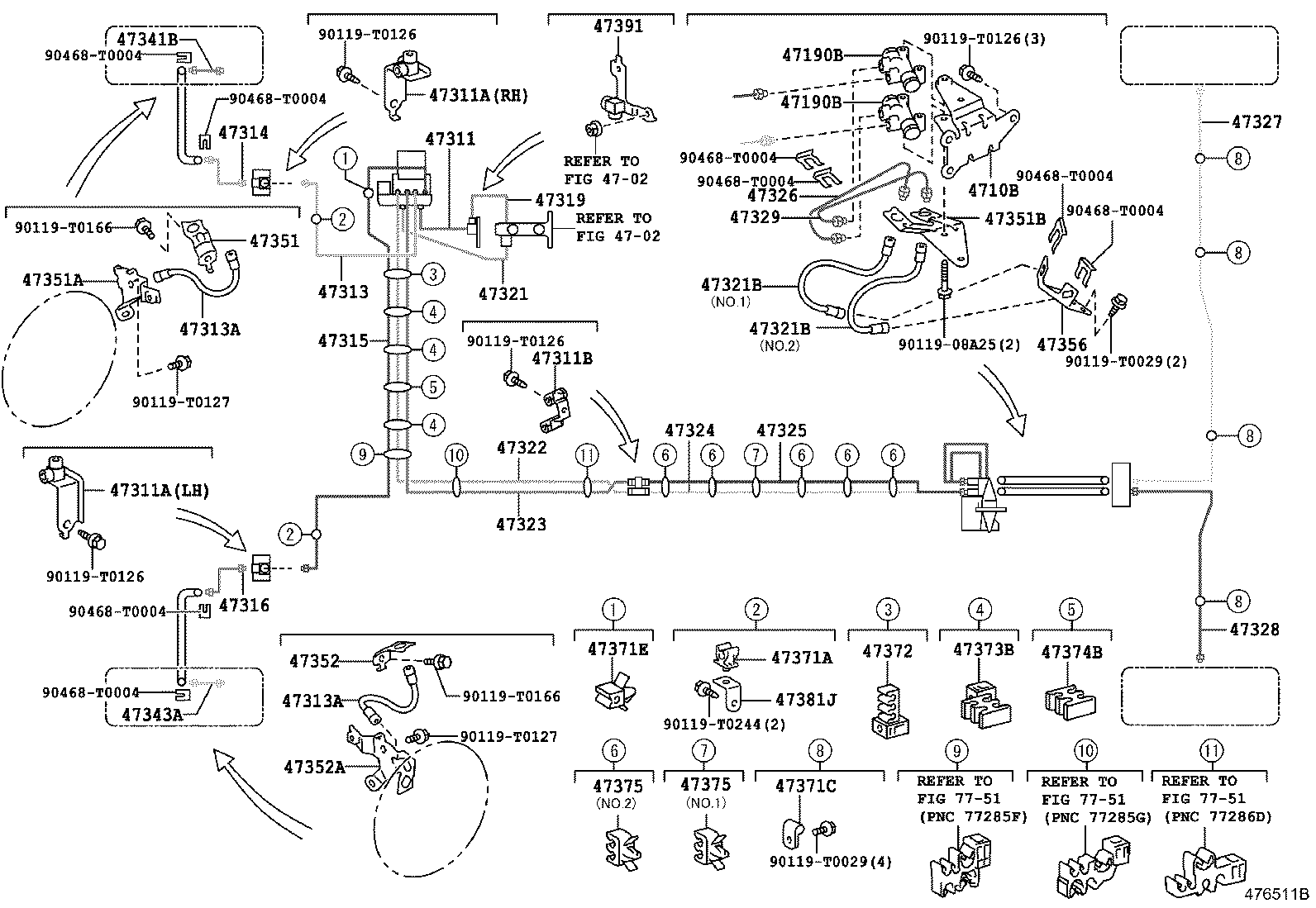

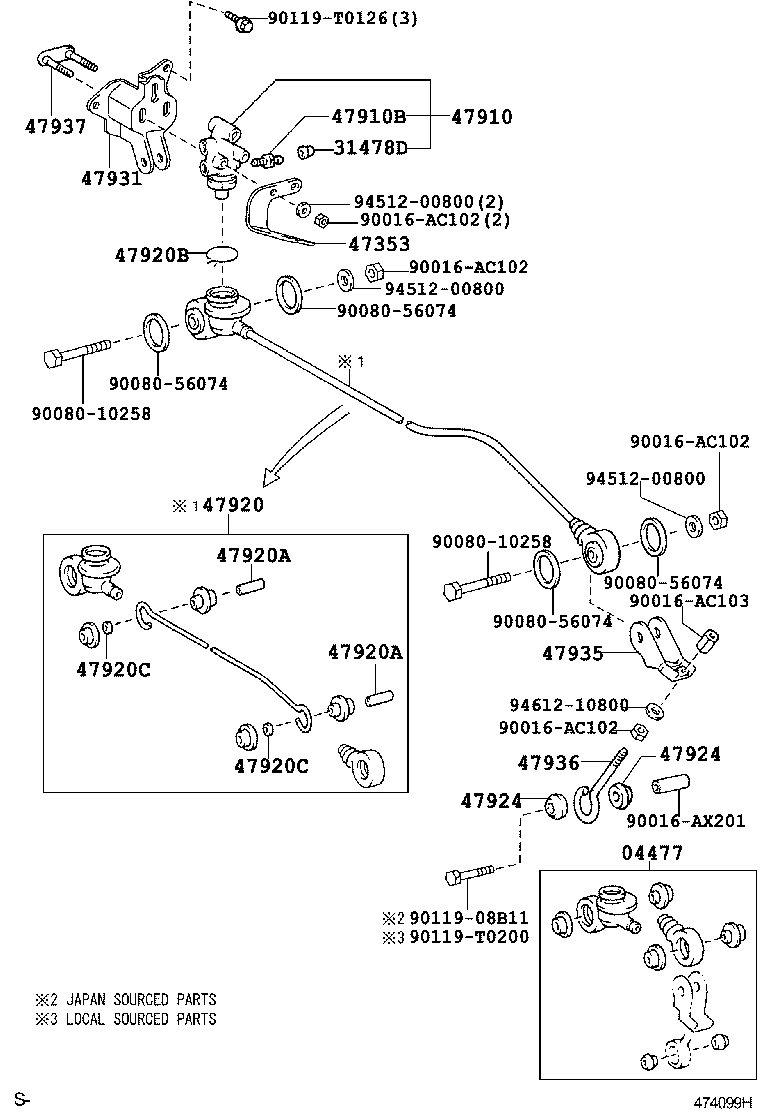

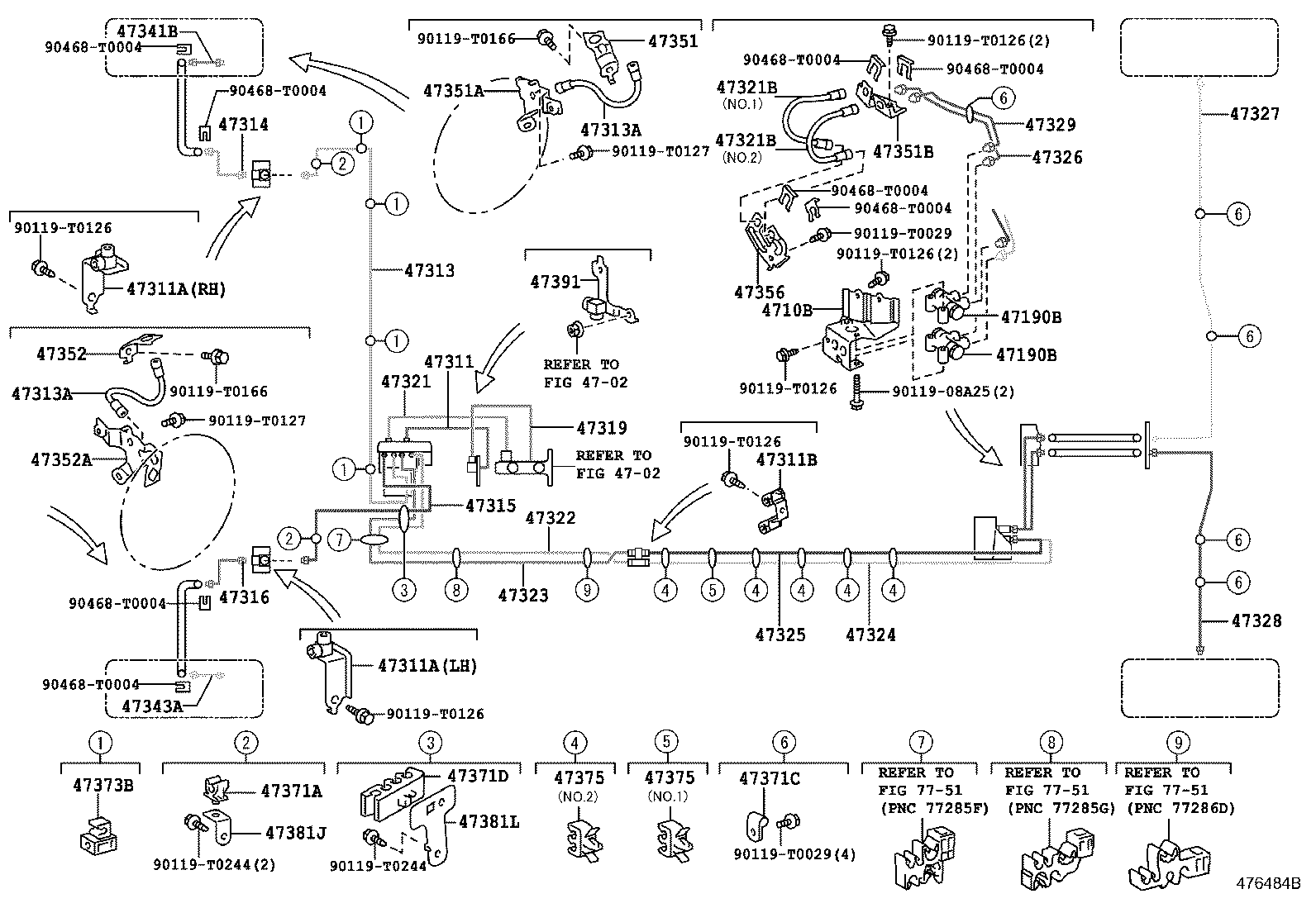

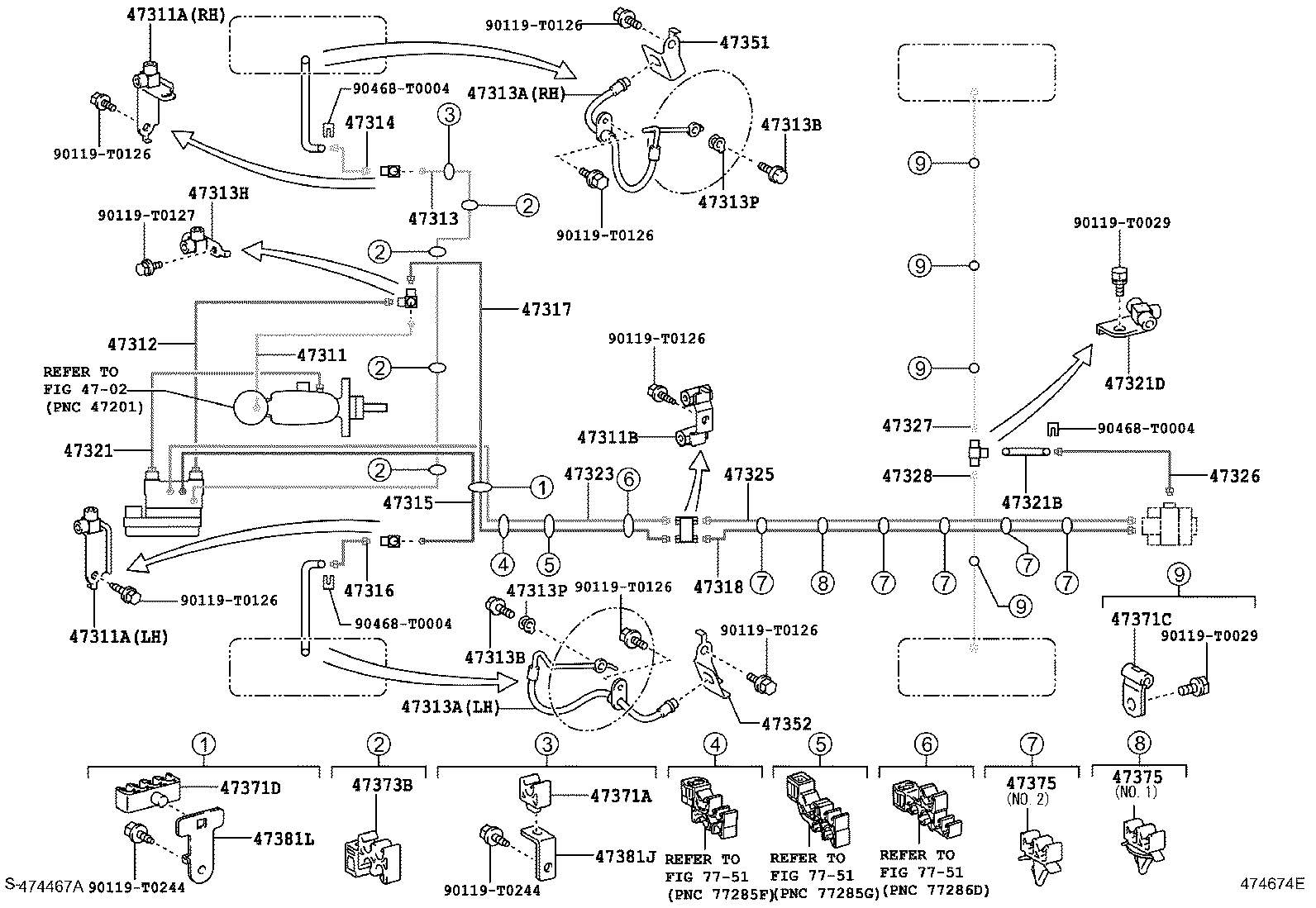

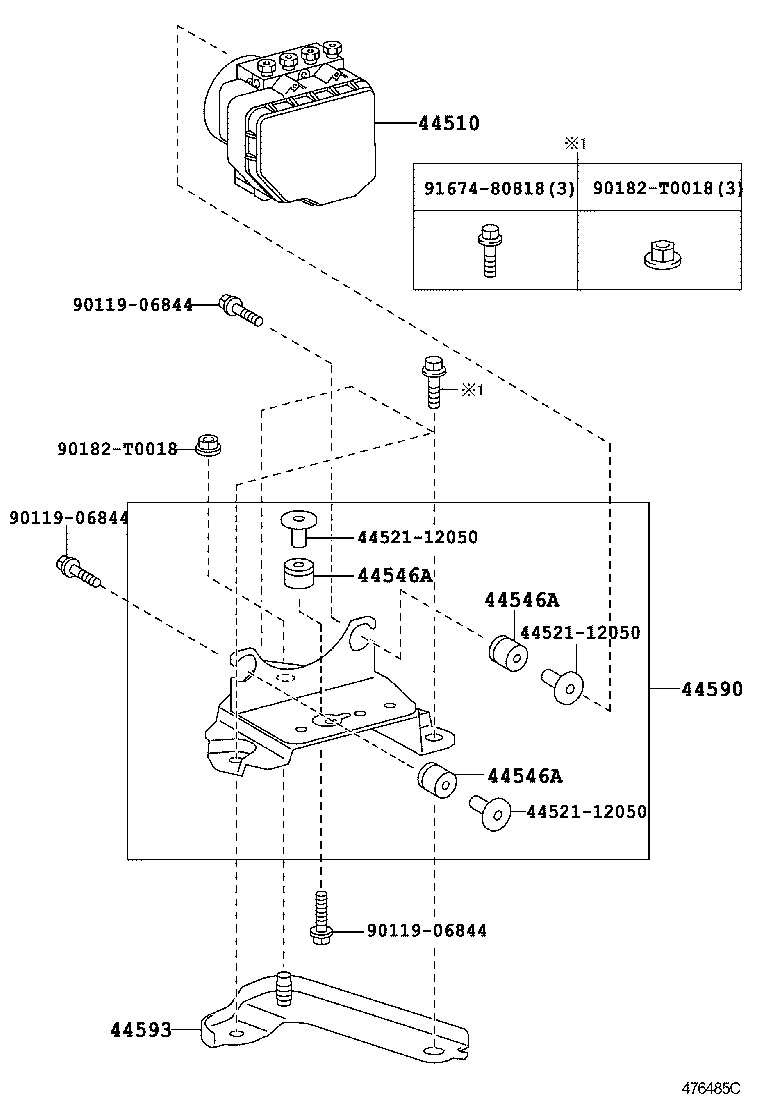

Figure 474663D 474663D 2005-07 → 2008-10 Figure 474664D 474664D 2005-07 → 2008-08 Figure 474667D 474667D 2005-07 → 2008-10 Figure 475096C 475096C 2006-02 → 2008-08 Figure 474665E 474665E 2005-07 → — Figure 474666E 474666E 2005-07 → — Figure 474668E 474668E 2005-07 → — Figure 474669E 474669E 2005-07 → — Figure 474669E 474669E 2006-02 → — Figure 474670D 474670D 2005-07 → — Figure 474671D 474671D 2005-07 → — Figure 474672D 474672D 2005-07 → — Figure 475097C 475097C 2006-02 → — Figure 474673E 474673E 2005-07 → — Figure 474674E 474674E 2005-07 → — Figure 474675E 474675E 2005-07 → — Figure 474676E 474676E 2005-07 → — Figure 476511B 476511B 2008-08 → — Figure 476511B 476511B 2008-10 → — Figure 476511B 476511B 2010-08 → — Figure 476511B 476511B 2010-10 → — Figure 476484B 476484B 2008-08 → — Figure 476484B 476484B 2008-10 → — Figure 476484B 476484B 2010-10 → — Figure 474093B 474093B 2005-07 → — Figure 476951A 476951A 2005-07 → — Figure 476510 476510 2008-08 → — Figure 476510 476510 2008-10 → — Figure 476510 476510 2010-08 → — Figure 476510 476510 2010-10 → — Figure 476485C 476485C 2008-08 → — Figure 476485C 476485C 2010-10 → — Figure 474099H 474099H 2005-07 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
31478D Cap, Bleeder Plug(FOR LSPV)
44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
44593 Bracket, Brake Actuator, NO.3
4710B Bracket Sub-assy, Blend Proportioning Valve
47190B Valve Assy, Blend Proportioning
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47319 Tube, Front Brake, NO.9
47321 Tube, Rear Brake, NO.1
47321B Hose, Flexible(FOR REAR BRAKE TUBE)
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47341B Tube, Wheel Cylinder, Front RH NO.1
47343A Tube, Wheel Cylinder, Front LH NO.1
47351 Bracket, Flexible Hose(FOR FRONT RH)
47351A Bracket, Flexible Hose, Front RH NO.1
47351B Bracket, Flexible Hose, NO.1
47352 Bracket, Flexible Hose(FOR FRONT LH)
47352A Bracket, Flexible Hose, Front LH NO.1
47353 Bracket, Flexible Hose(FOR REAR)
47356 Bracket, Flexible Hose, NO.6
47371A Clamp, Brake Tube, NO.1
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47381J Bracket, Brake Tube Clamp, NO.2
47381L Bracket, Brake Tube Clamp, NO.3
47391 Way, Brake Tube
47910 Valve Assy, Load Sensing Proportioning
47910B Plug, Bleeder
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47924 Bush, Load Sensing Valve
47931 Bracket, Load Sensing Valve
47935 Shackle, Load Sensing Spring, NO.1
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
