Toyota Hilux
2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe
Supported model
Data version 2012-04

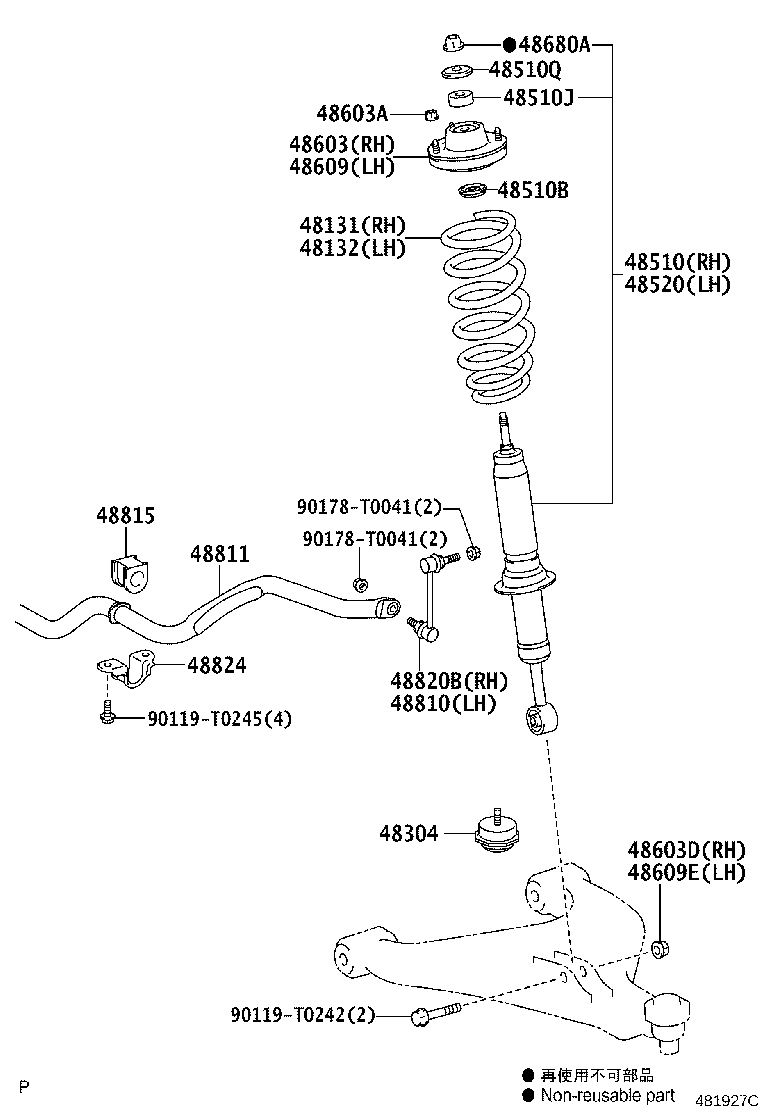

Front Spring & Shock Absorber
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 48131 | Spring, Front Coil, RH |
| 48132 | Spring, Front Coil, LH |
| 48157B | Insulator, Front Coil Spring, Upper RH |
| 48157C | Insulator, Front Coil Spring, Upper LH |
| 48304 | Bumper Sub-assy, Front Spring, NO.1 |
| 48510 | Absorber Assy, Shock, Front RH |
| 48510B | Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER) |
| 48510J | Cushion, Front Shock Absorber, NO.1 |
| 48510Q | Retainer, Cushion, NO.3(FOR FRONT SHOCK ABSORBER) |
| 48520 | Absorber Assy, Shock, Front LH |
| 48603 | Support Sub-assy, Front Suspension, RH |
| 48603A | Nut(FOR FRONT SUSPENSION SUPPORT) |
| 48603D | Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) |
| 48609 | Support Sub-assy, Front Suspension, LH |
| 48609E | Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) |
| 48680A | Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) |
| 48810 | Link Assy, Front Stabilizer, LH |
| 48811 | Bar, Stabilizer, Front |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48817 | Cushion, Front Stabilizer |
| 48817A | Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR) |
| 48820B | Link Assy, Front Stabilizer, RH |
| 48824 | Bracket, Stabilizer, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
