Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

31 part groups · 11 illustrations

Illustrations

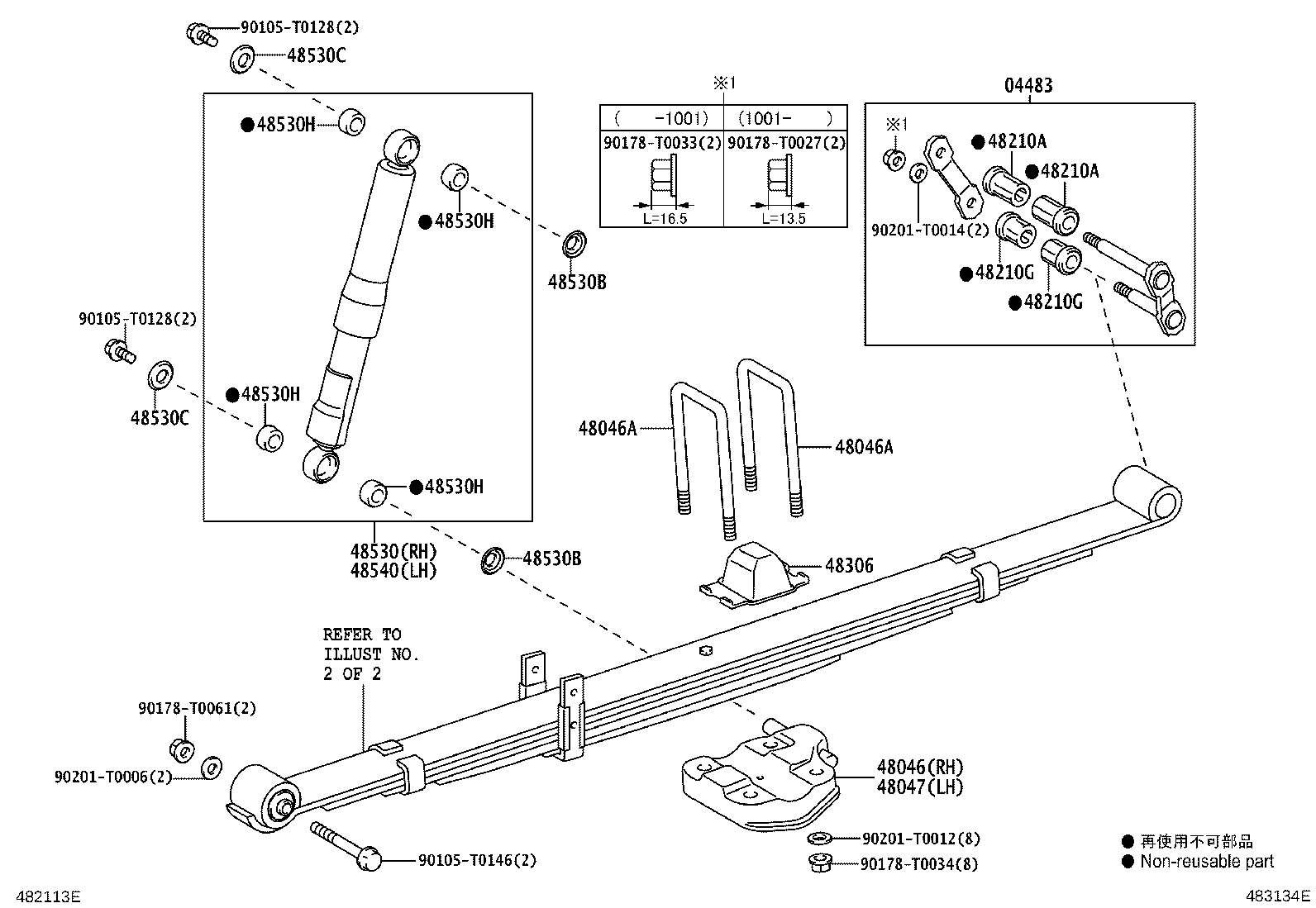

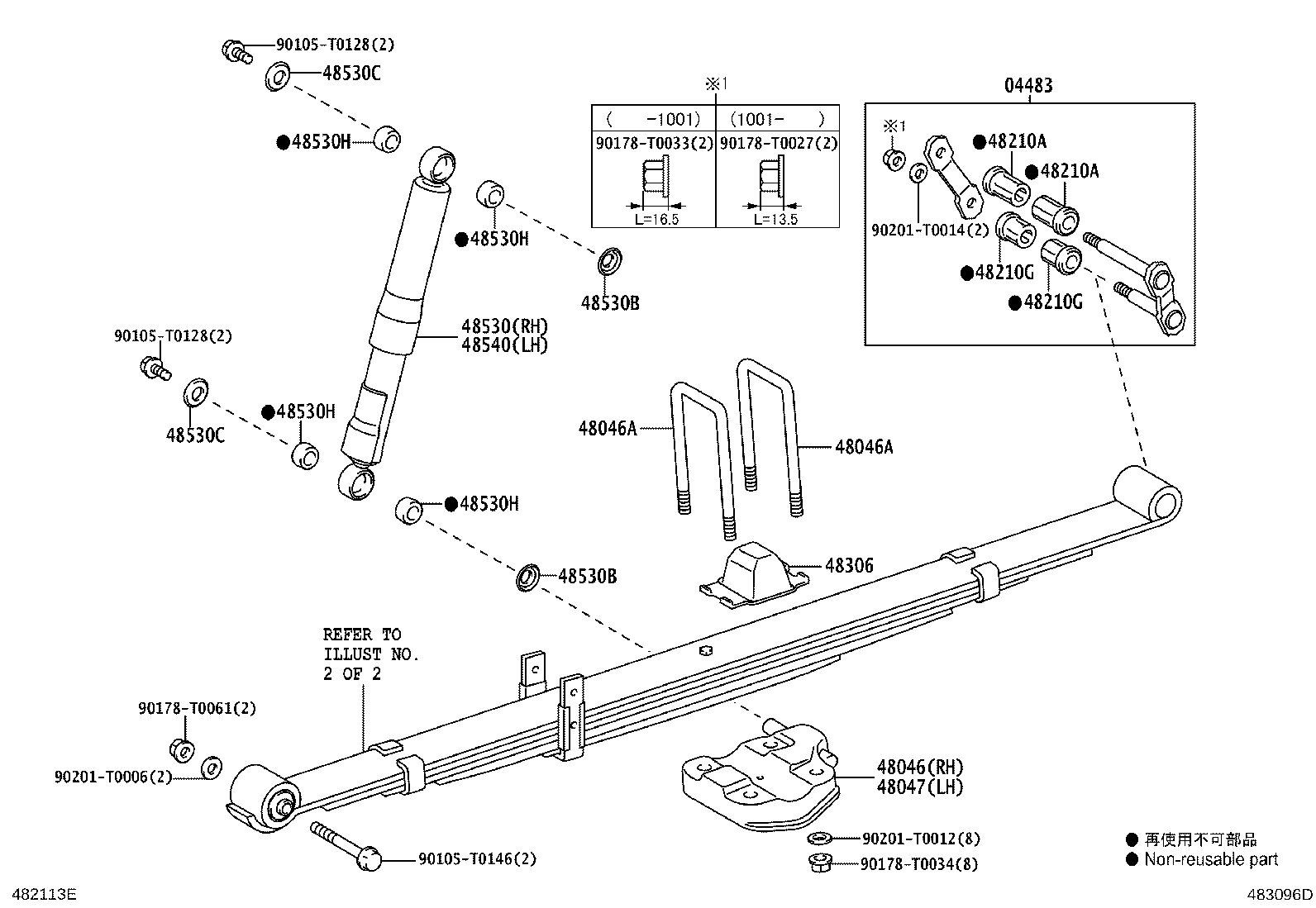

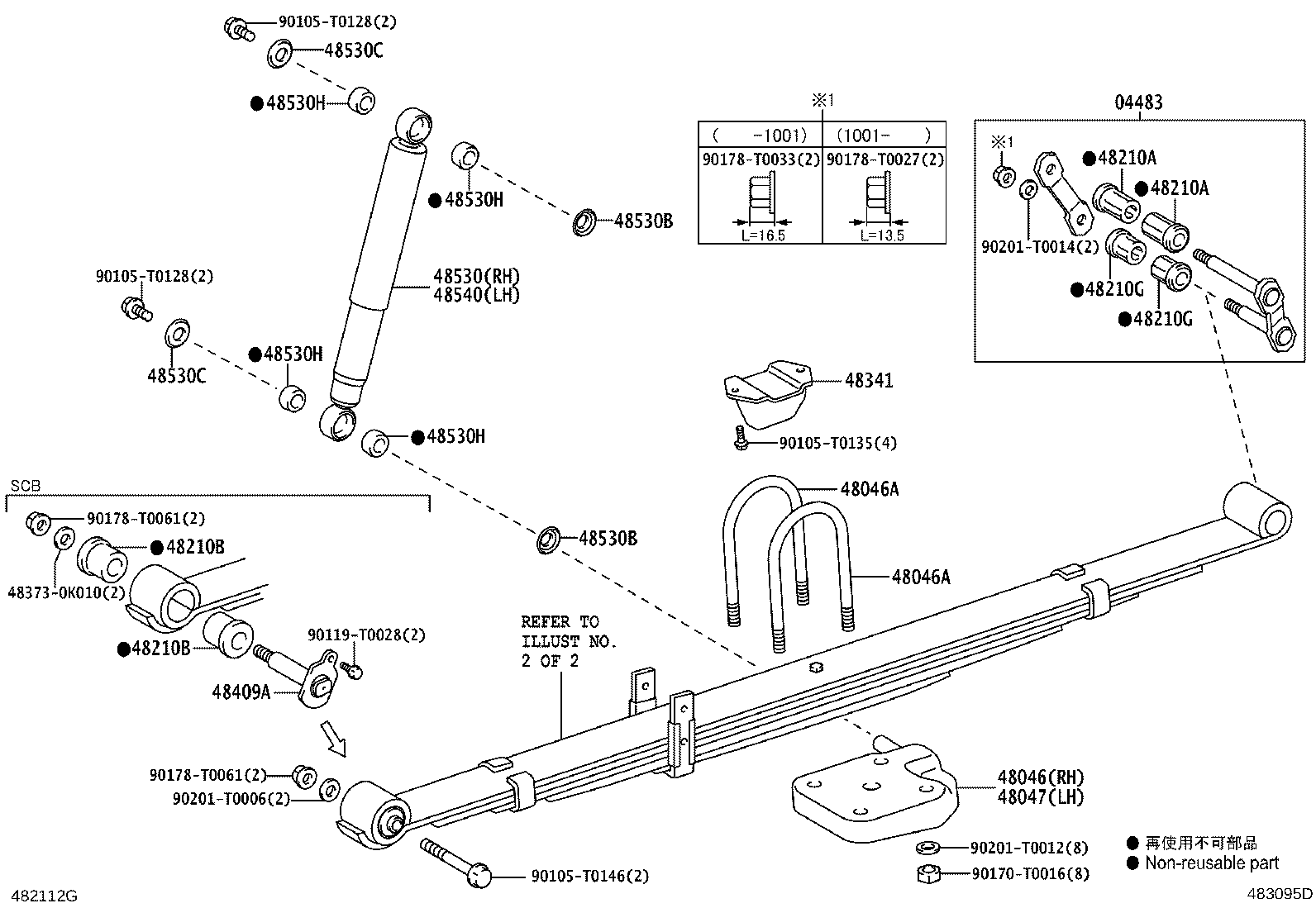

Figure 482112L 482112L 2005-07 → — Figure 483095D 483095D 2005-07 → — Figure 483134E 483134E 2005-07 → — Figure 483096D 483096D 2005-07 → — Figure 482114C 482114C 2005-07 → — Figure 482115B 482115B 2005-07 → — Figure 482117C 482117C 2005-07 → 2008-08 Figure 482118B 482118B 2005-07 → 2008-10 Figure 482395B 482395B 2007-02 → — Figure 482950B 482950B 2008-08 → — Figure 482104F 482104F 2008-10 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48220 Spring Assy, Rear LH
48247 Bolt, Rear Spring, Center
48248B Spacer, Rear Spring, NO.3
48252 Silencer, Rear Spring
48253 Spacer, Rear Spring, NO.1
48254 Spacer, Rear Spring Leaf
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48284 Nut, Rear Spring Center Bolt
48306 Bumper Sub-assy, Rear Spring
48341 Bumper, Rear Spring
48409A Pin Sub-assy, Rear Spring Bracket
48530 Absorber Assy, Shock, Rear RH
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530H Bush, Rear Shock Absorber
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
