Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

6 part groups · 2 illustrations

Illustrations

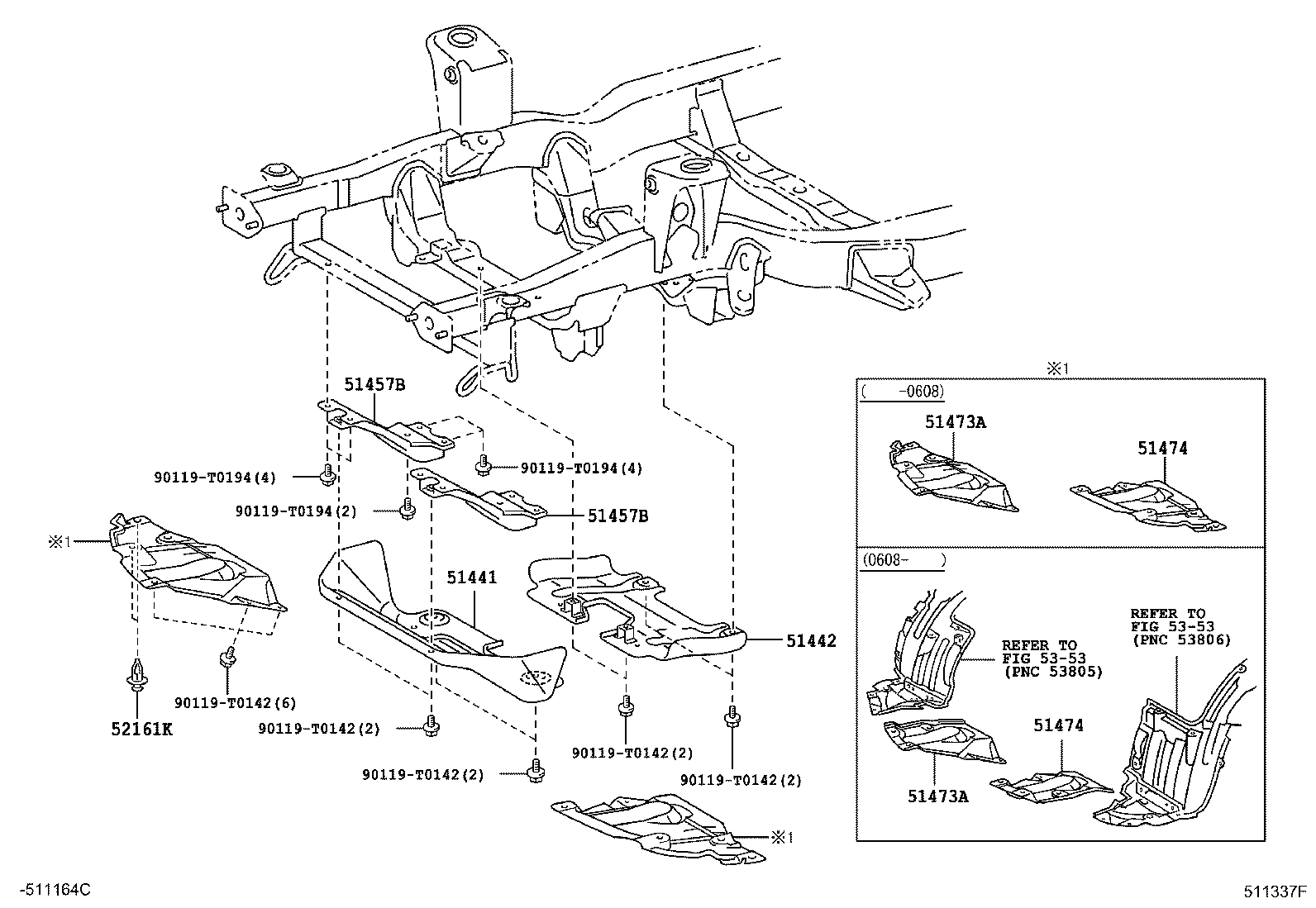

Figure 511336 511336 2005-07 → — Figure 511337F 511337F 2005-07 → —

Part groups

PNCDescription
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51457B Brace, Front Side Member TO Front Suspension Crossmember
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
52161K Piece, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
