Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 4 illustrations

Illustrations

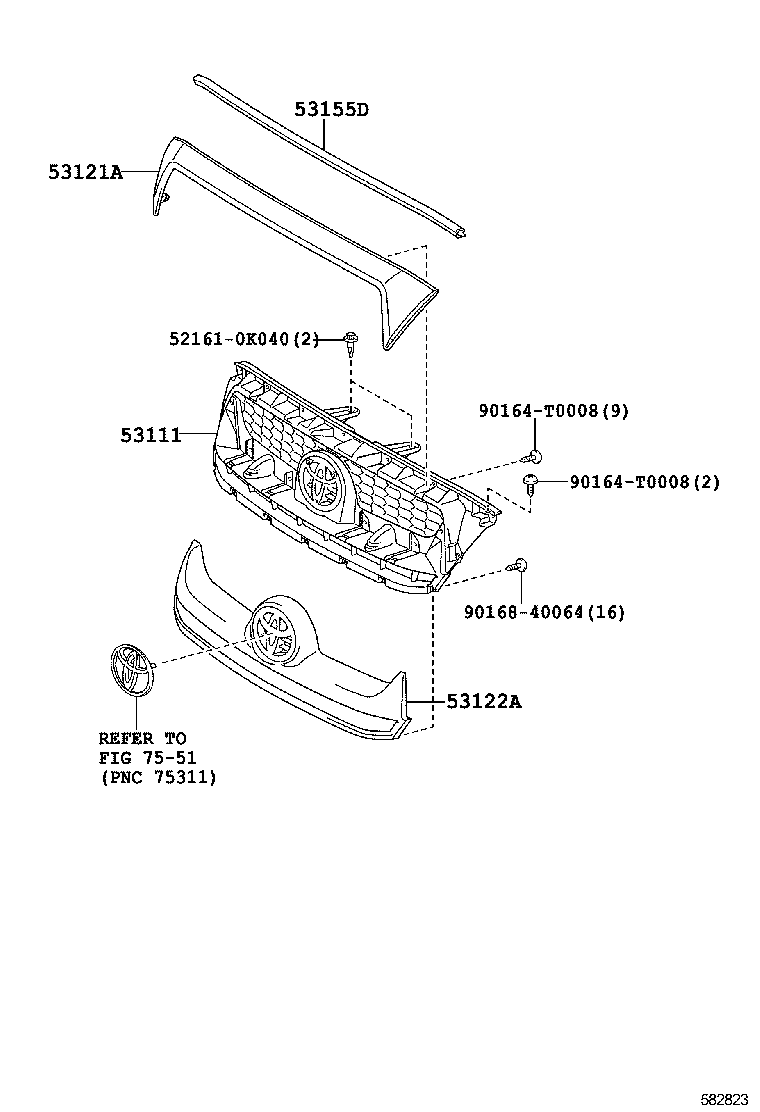

Figure 531969F 531969F 2005-07 → 2008-08 Figure 531969F 531969F 2005-07 → 2008-10 Figure 532823 532823 2008-08 → — Figure 532823 532823 2008-10 → —

Part groups

PNCDescription
53111 Grille, Radiator
53117C Retainer, Radiator Grille, NO.1
53121A Moulding, Radiator Grille
53121C Plate, Radiator Grille Finish, RH
53122A Moulding, Radiator Grille, Lower
53122C Plate, Radiator Grille Finish, LH
53155D Seal, Radiator Grille, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
