Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

15 part groups · 2 illustrations

Illustrations

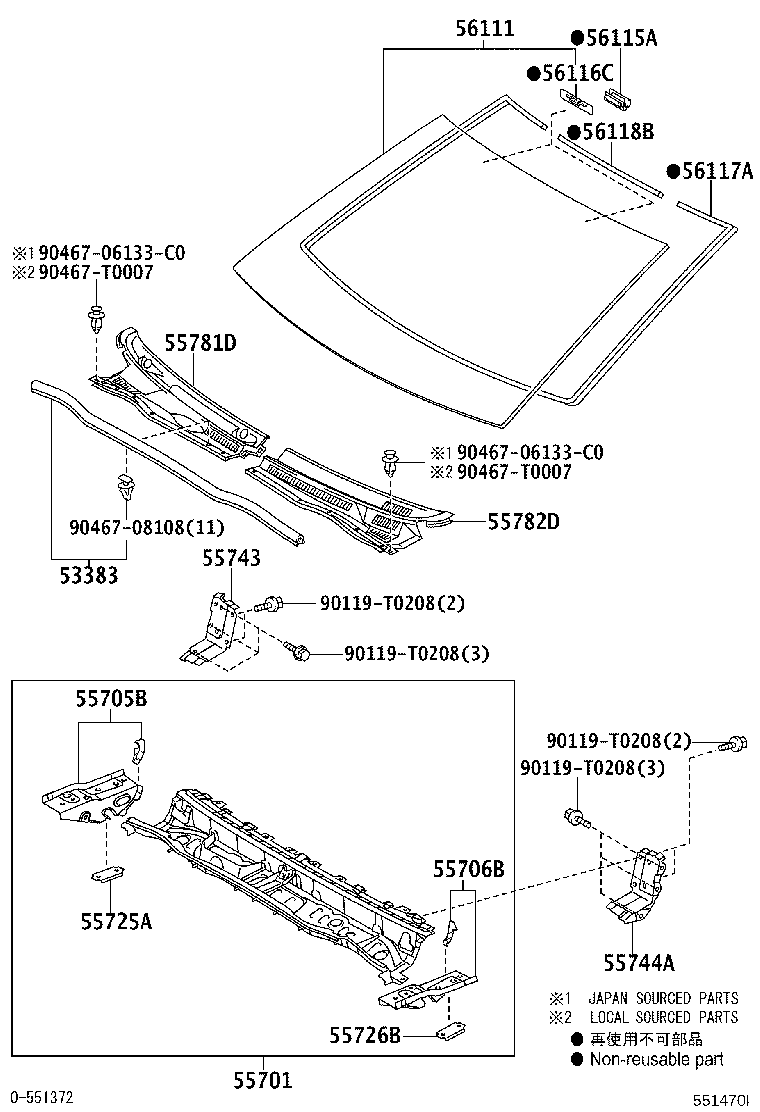

Figure 552774A 552774A 2005-07 → — Figure 551470I 551470I 2005-07 → —

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
55701 Panel Sub-assy, Cowl
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55725A Reinforcement, Hood Hinge Mounting, RH
55726B Reinforcement, Hood Hinge Mounting, LH
55743 Panel, Cowl Top Outside Corner, RH
55744A Reinforcement, Pedal Bracket Mounting
55781D Louver, Cowl Top Ventilator, RH
55782D Louver, Cowl Top Ventilator, LH
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56118B Dam, Window Glass Adhesive, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
