Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04

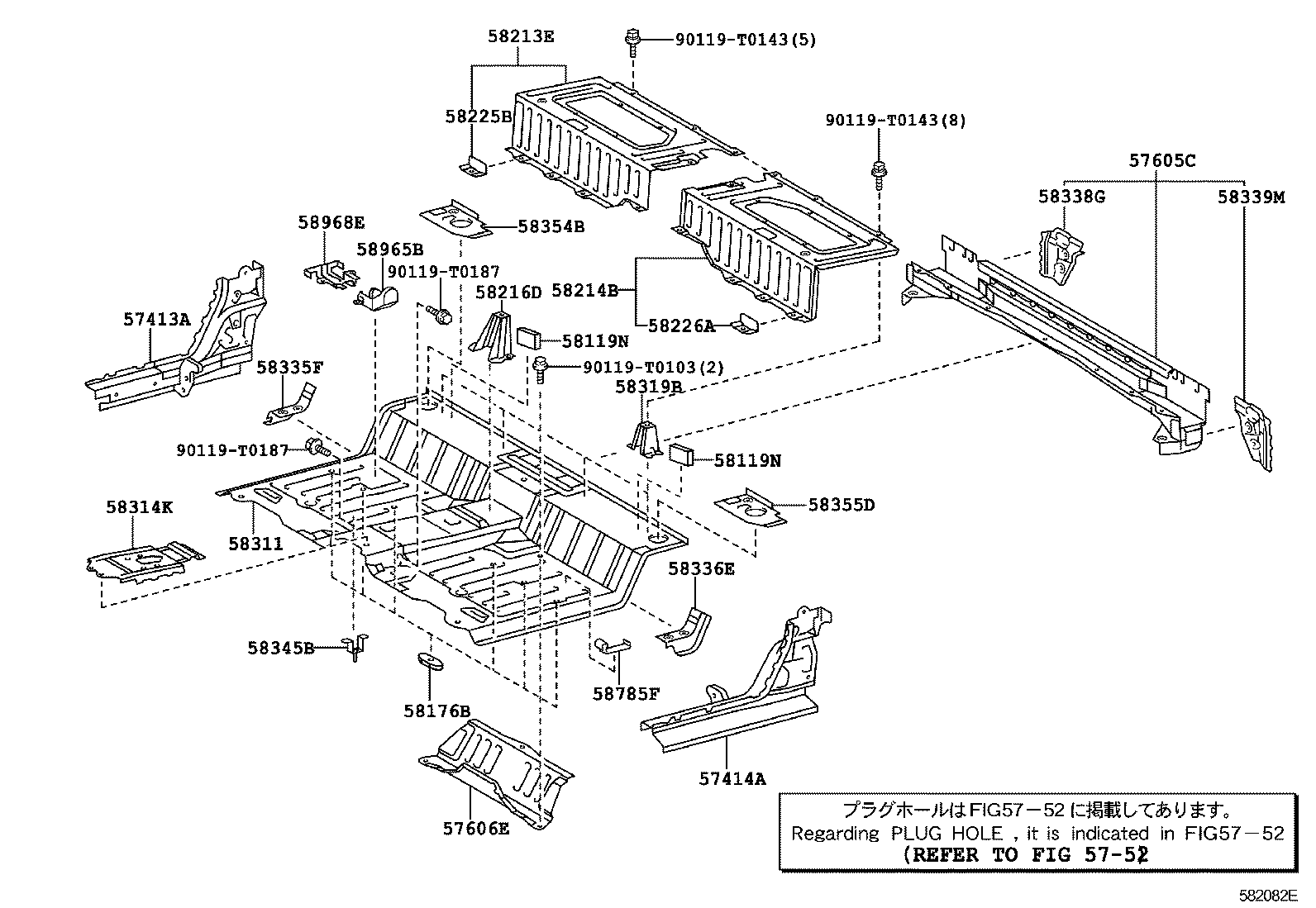

Rear Floor Panel & Rear Floor Member

38 part groups · 2 illustrations

PNC	Description
57413A	Member, Floor Side, Inner Rear RH
57414A	Member, Floor Side, Inner Rear LH
57461A	Member, Center Floor Cross
57605C	Member Sub-assy, Rear Floor Cross
57606E	Member Sub-assy, Rear Floor Cross, NO.2
57628F	Plate, Rear Floor Side Member, RH
57629D	Plate, Rear Floor Side Member, LH
58027B	Reinforce Sub-assy, Seat Belt Anchor
58028A	Reinforce Sub-assy, Seat Belt Anchor, NO.2
58119N	Cushion, Rear Floor
58176B	Plate, RR Seat Setting Nut
58213E	Panel, Seat Floor Side, RH
58214B	Panel, Seat Floor Side, LH
58215E	Bracket, Rear Seat Mounting, RH
58216D	Bracket, Rear Seat Mounting, LH
58225B	Plate, Front Floor Side, Lower RH
58226A	Plate, Front Floor Side, Lower LH
58247D	Bracket, Rear Seat Hinge, Outer RH
58302D	Panel Sub-assy, Rear Floor, Front
58305F	Panel Sub-assy, Rear Floor Side, RH
58306F	Panel Sub-assy, Rear Floor Side, LH
58311	Pan, Rear Floor
58314K	Panel, Rear Floor, Center
58316G	Retainer, Rear Seat, NO.1
58319B	Bracket, Rear Floor Side Panel
58335F	Plate, Floor Side, Front RH
58336E	Plate, Floor Side, Front LH
58338G	Gusset, Cab Rear Mounting, RR RH
58339M	Gusset, Cab Rear Mounting, Rear LH
58345B	Bracket, Rear Floor Heat Insulator, NO.1
58353F	Reinforcement, Rear Floor Panel, NO.3
58354B	Reinforcement, Rear Floor Panel, NO.4
58355D	Reinforcement, Rear Floor Panel, NO.5
58363D	Reinforcement, Rear Floor Panel, NO.2 RH
58785F	Bracket, Tool Bag Band
58965B	Holder, Jack
58968E	Bracket, Jack Support, NO.2
61665G	Reinforcement, Seat Belt Anchorage TO Quater Whee House, RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
