Toyota Hilux
2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe
Supported model
Data version 2012-04

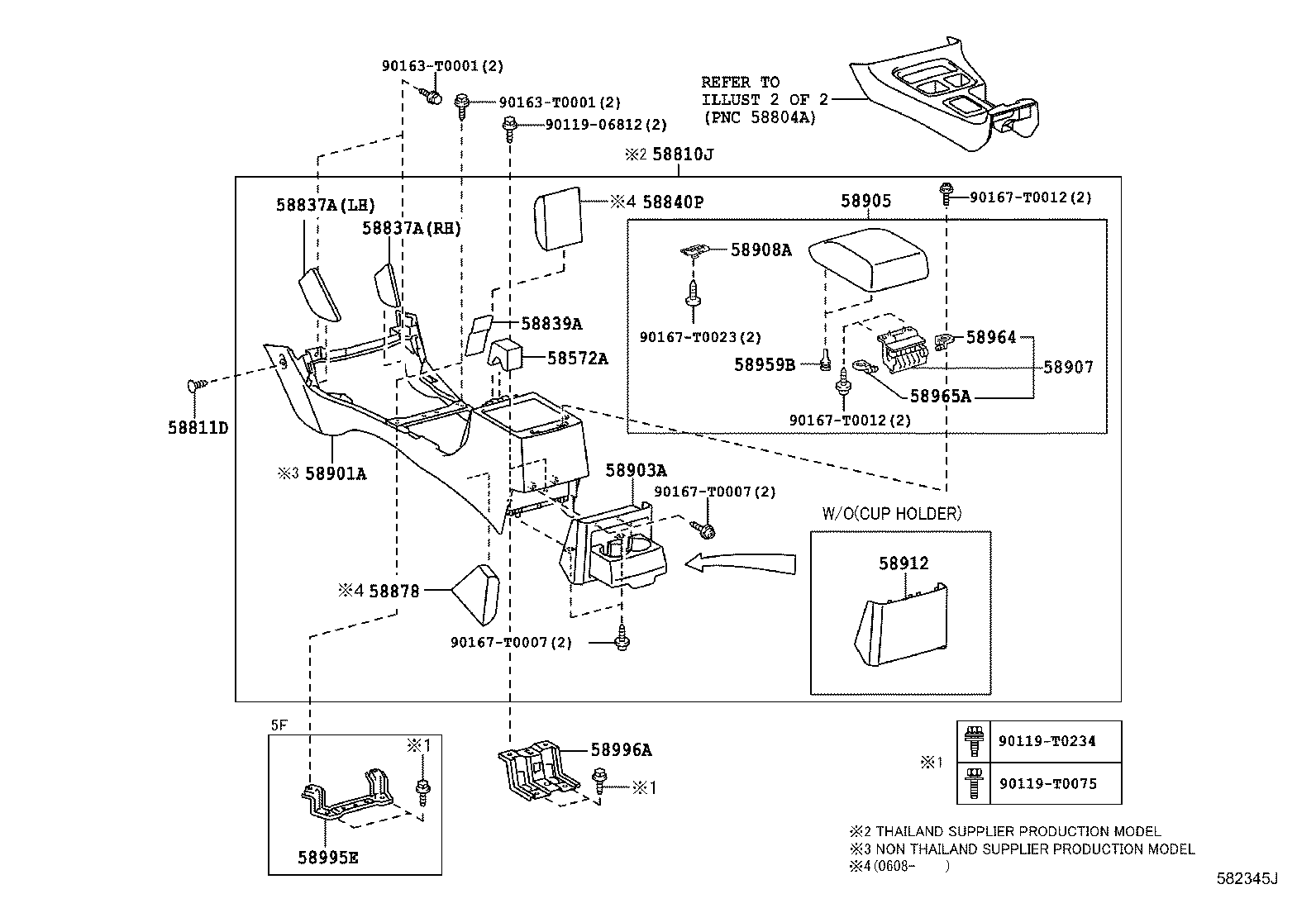

Console Box & Bracket
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58572A | Cushion, Console Box |
| 58804A | Panel Sub-assy, Console, Upper |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58837A | Pad, Console Box Silencer, NO.2 |
| 58839A | Cover, Console Box Hole |
| 58840P | Pad, Console Box Silencer, NO.3 |
| 58844 | Bezel, Console Box |
| 58878 | Pad, Console Box Silencer, NO.4 |
| 58901A | Box Sub-assy, Console, Rear |
| 58903A | Panel Sub-assy, Console Rear End |
| 58904B | Cover Sub-assy, Parking Brake Hole |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58912 | Box, Rear Console, NO.2 |
| 58959B | Cushion, Console Compartment Door |
| 58964 | Stopper, Console Compartment Door, NO.1 |
| 58965A | Stopper, Console Compartment Door, NO.2 |
| 58995E | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
