Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

12 part groups · 3 illustrations

Illustrations

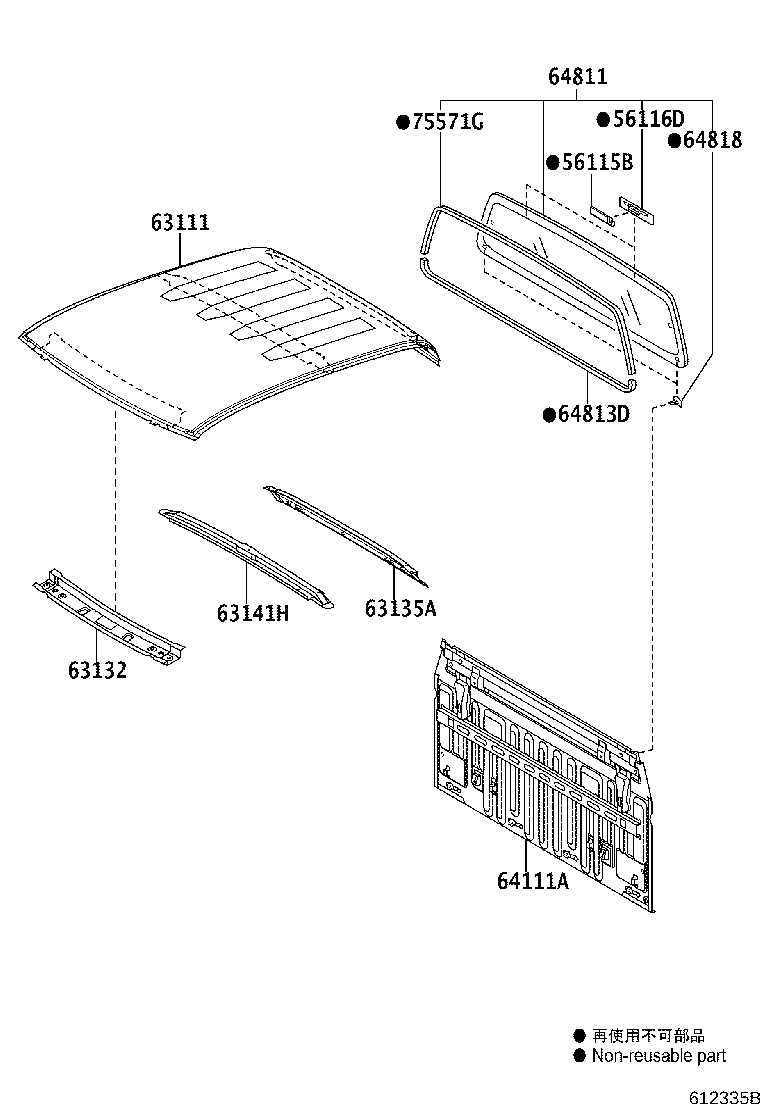

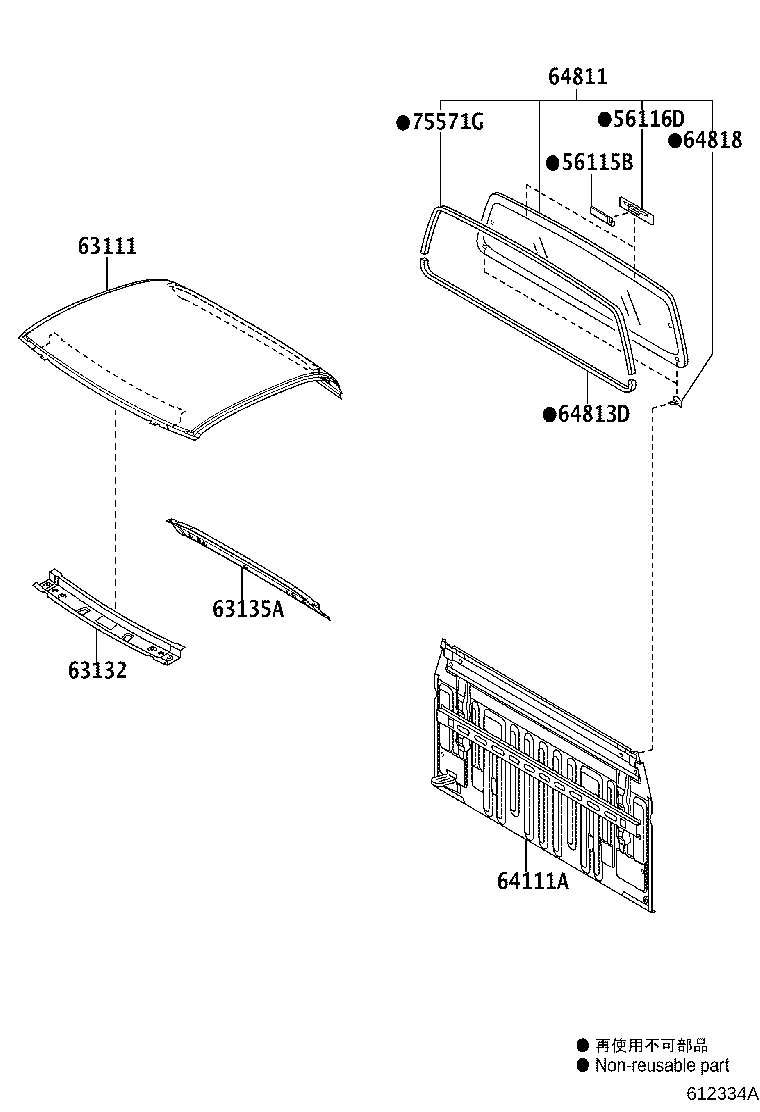

Figure 612333B 612333B 2005-07 → — Figure 612334A 612334A 2005-07 → — Figure 612335B 612335B 2005-07 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
63111 Panel, Roof
63132 Panel, Windshield Header, Inner
63135A Frame, Back Door Opening, Lower
63141H Reinforcement, Roof Panel, Center
63142 Reinforcement, Roof Panel, NO.2
64111A Panel, Back
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
64818 Spacer, Back Window Glass
75571G Moulding, Back Window, Outside Upper, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
