Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

12 part groups · 5 illustrations

Illustrations

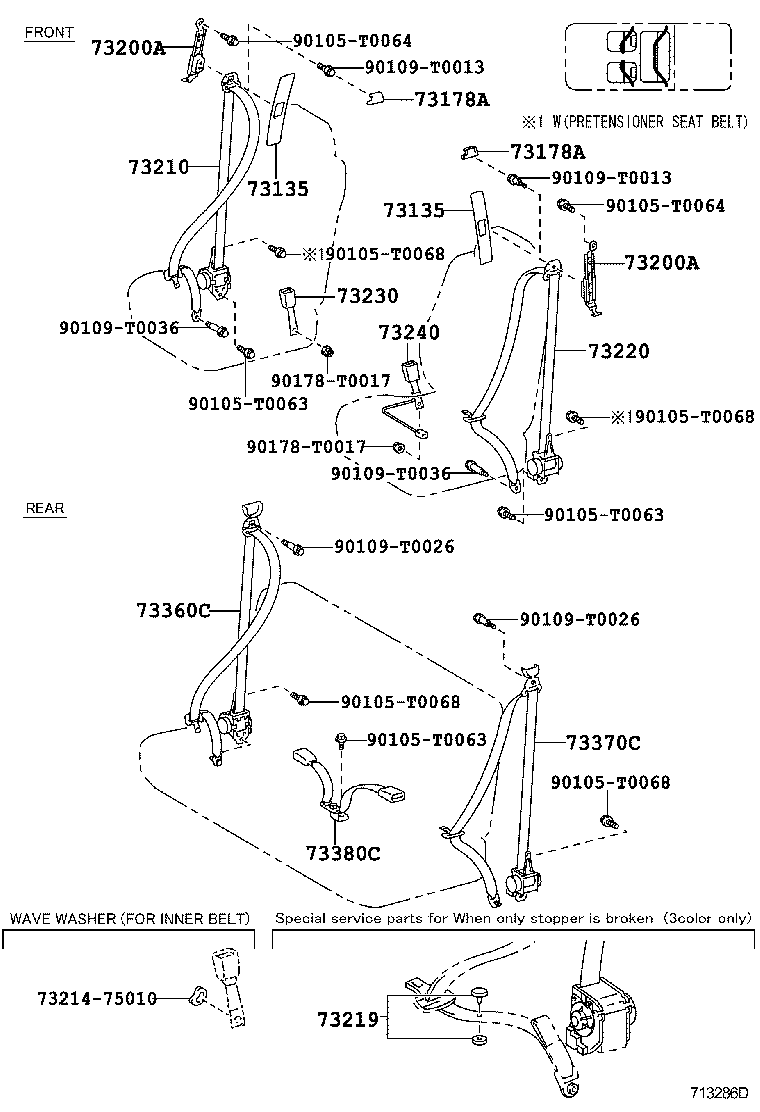

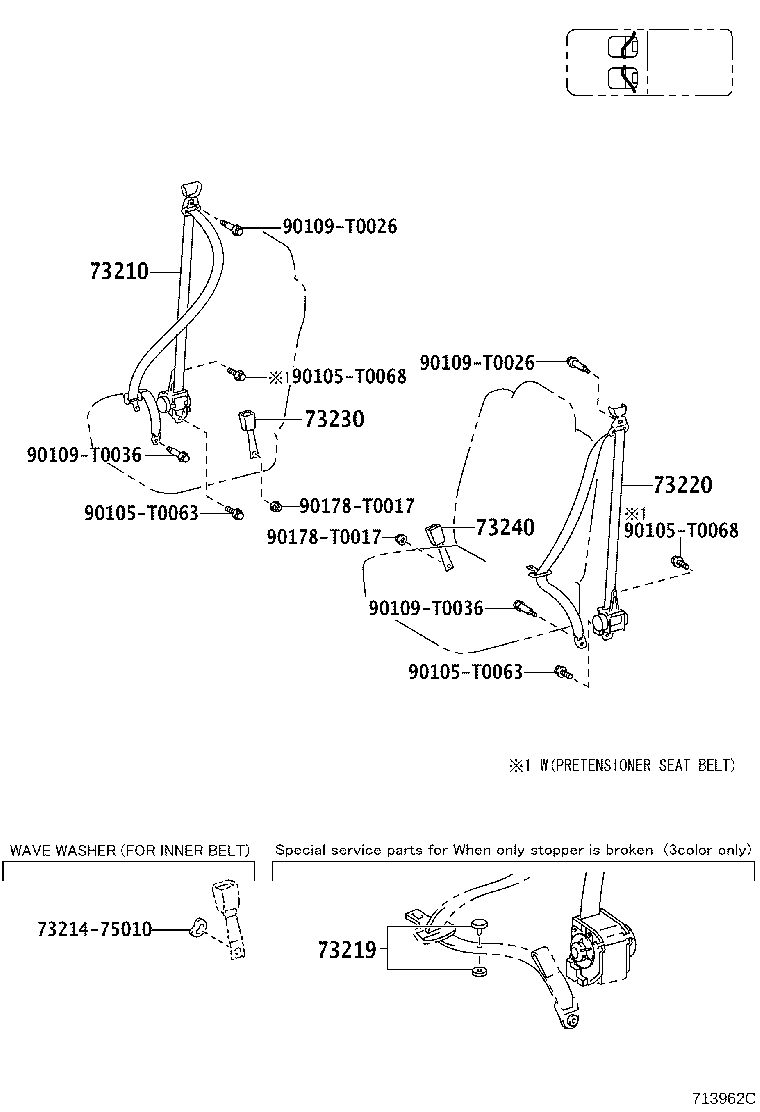

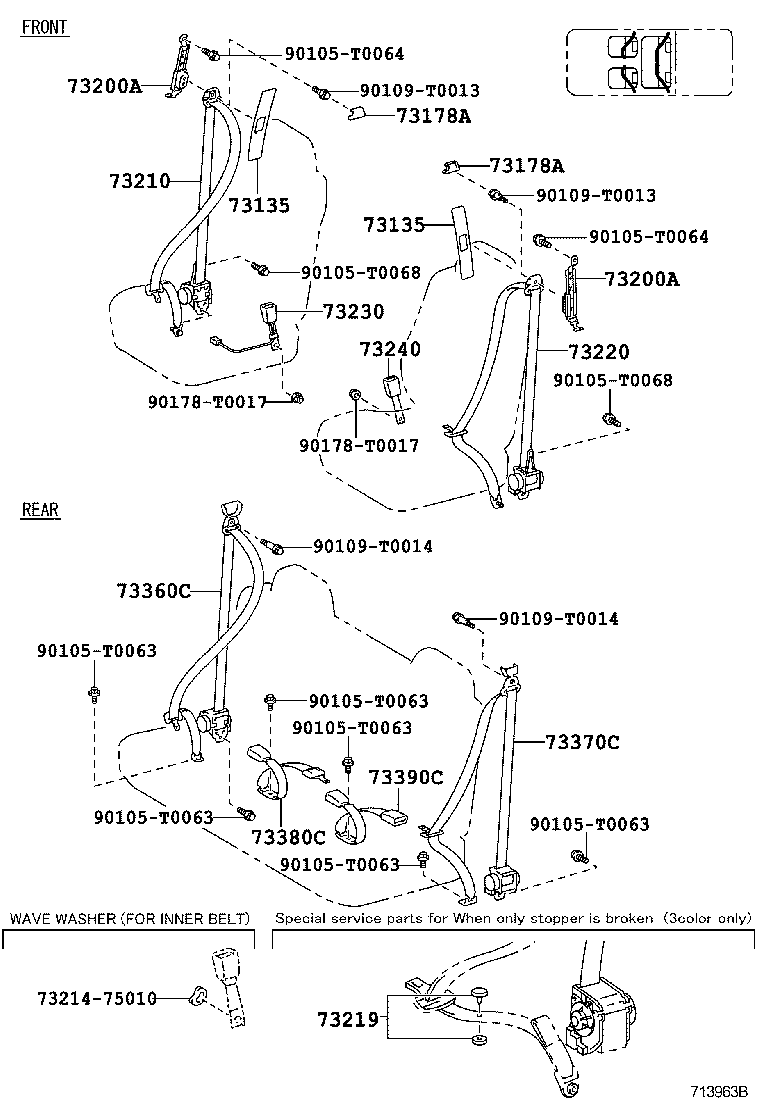

Figure 713960A 713960A 2005-07 → — Figure 713961A 713961A 2005-07 → — Figure 713962B 713962B 2005-07 → — Figure 713286D 713286D 2005-07 → — Figure 713963B 713963B 2005-07 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
