Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

9 part groups · 4 illustrations

Illustrations

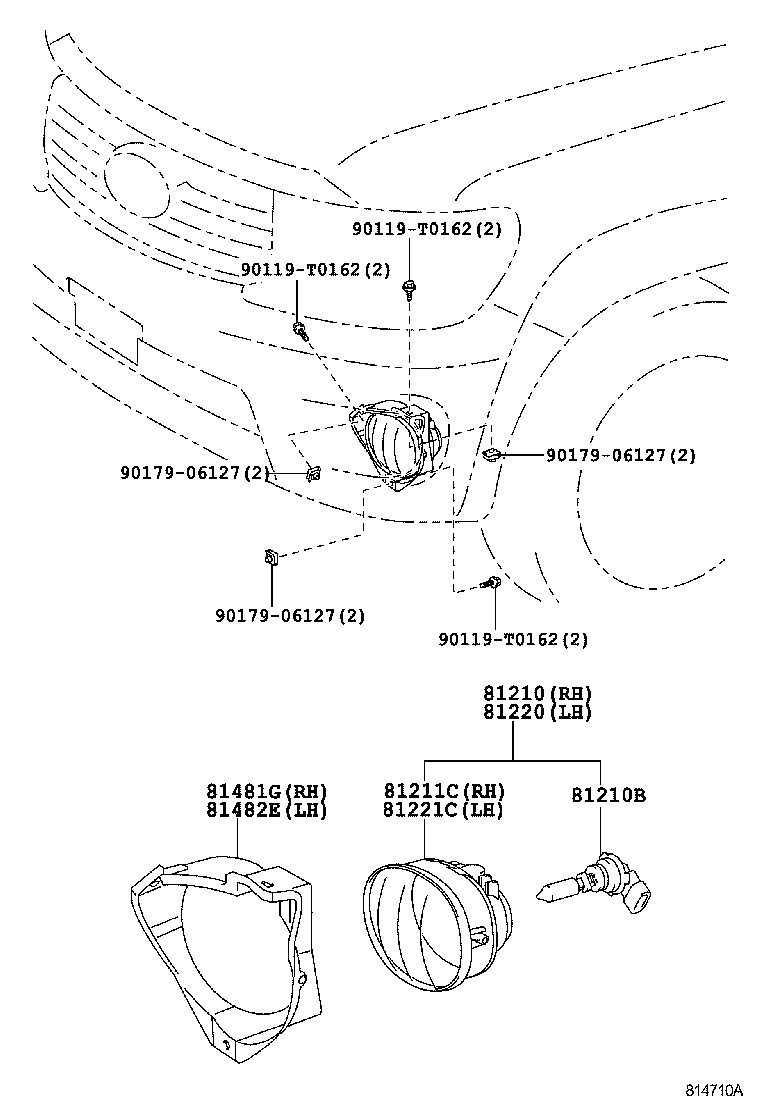

Figure 813687D 813687D 2006-08 → 2008-08 Figure 813687D 813687D 2006-08 → 2008-10 Figure 814710A 814710A 2008-08 → — Figure 814710A 814710A 2008-10 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
81481G Bracket, Fog Lamp, RH
81482E Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
