Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 11 illustrations

Illustrations

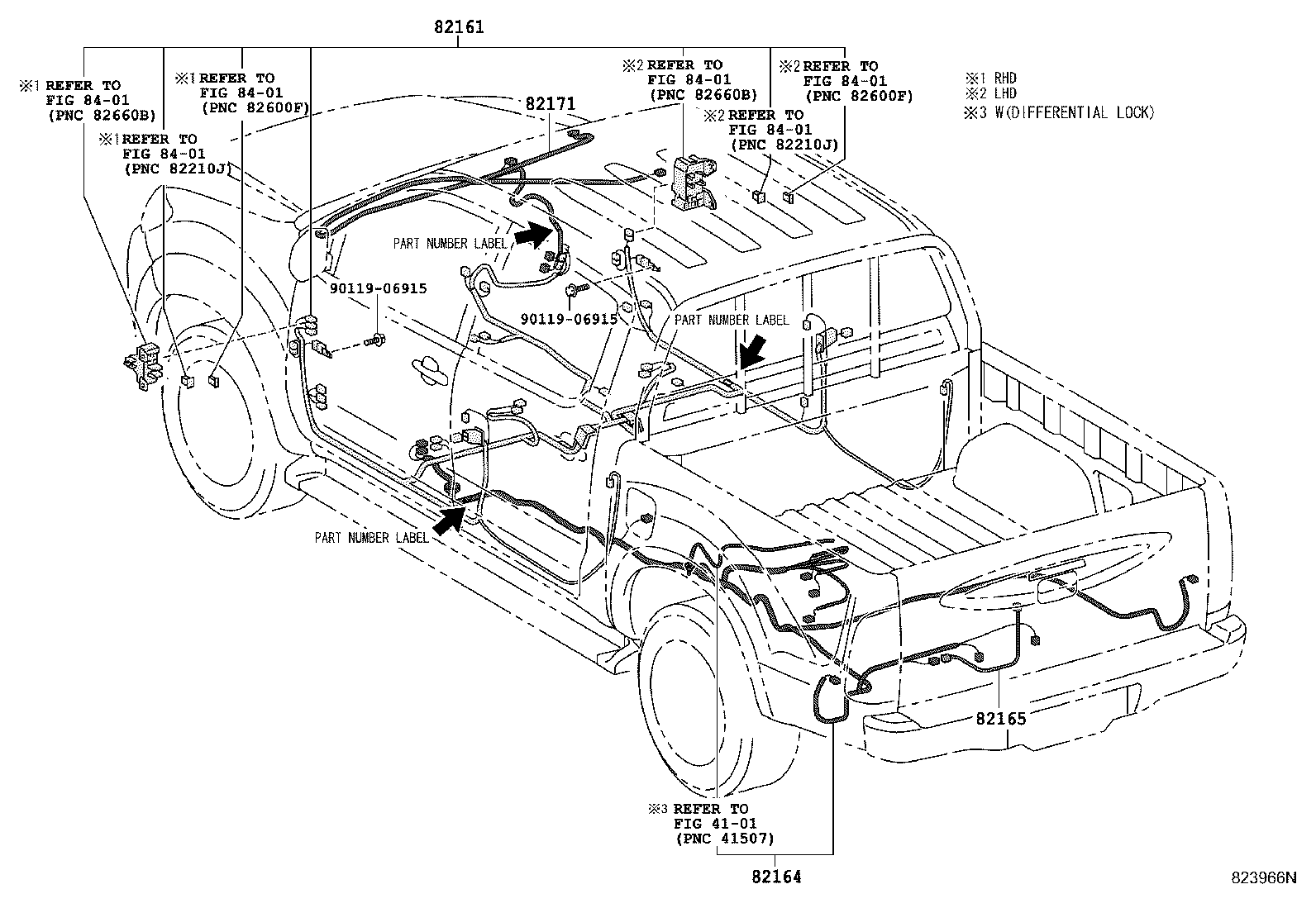

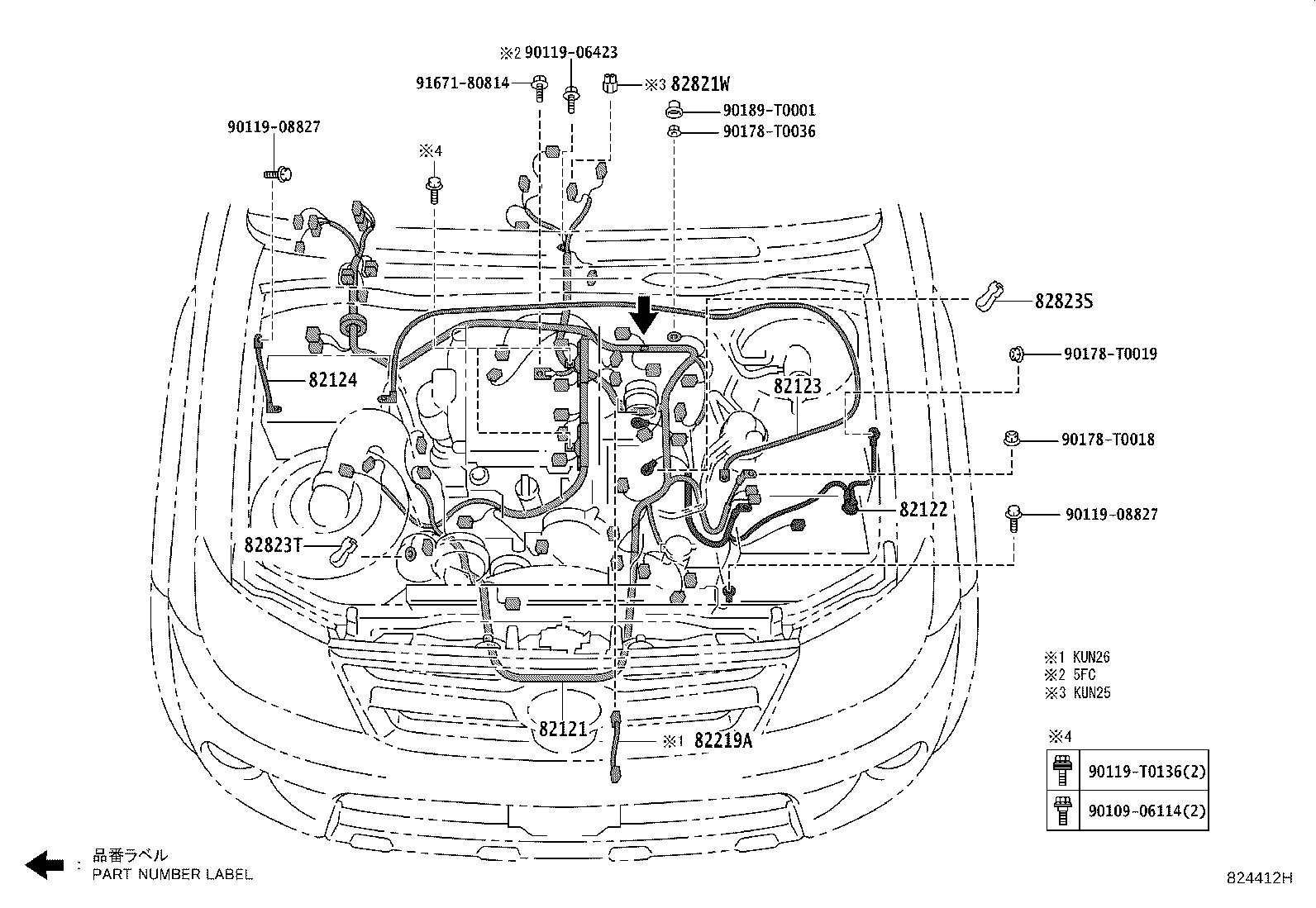

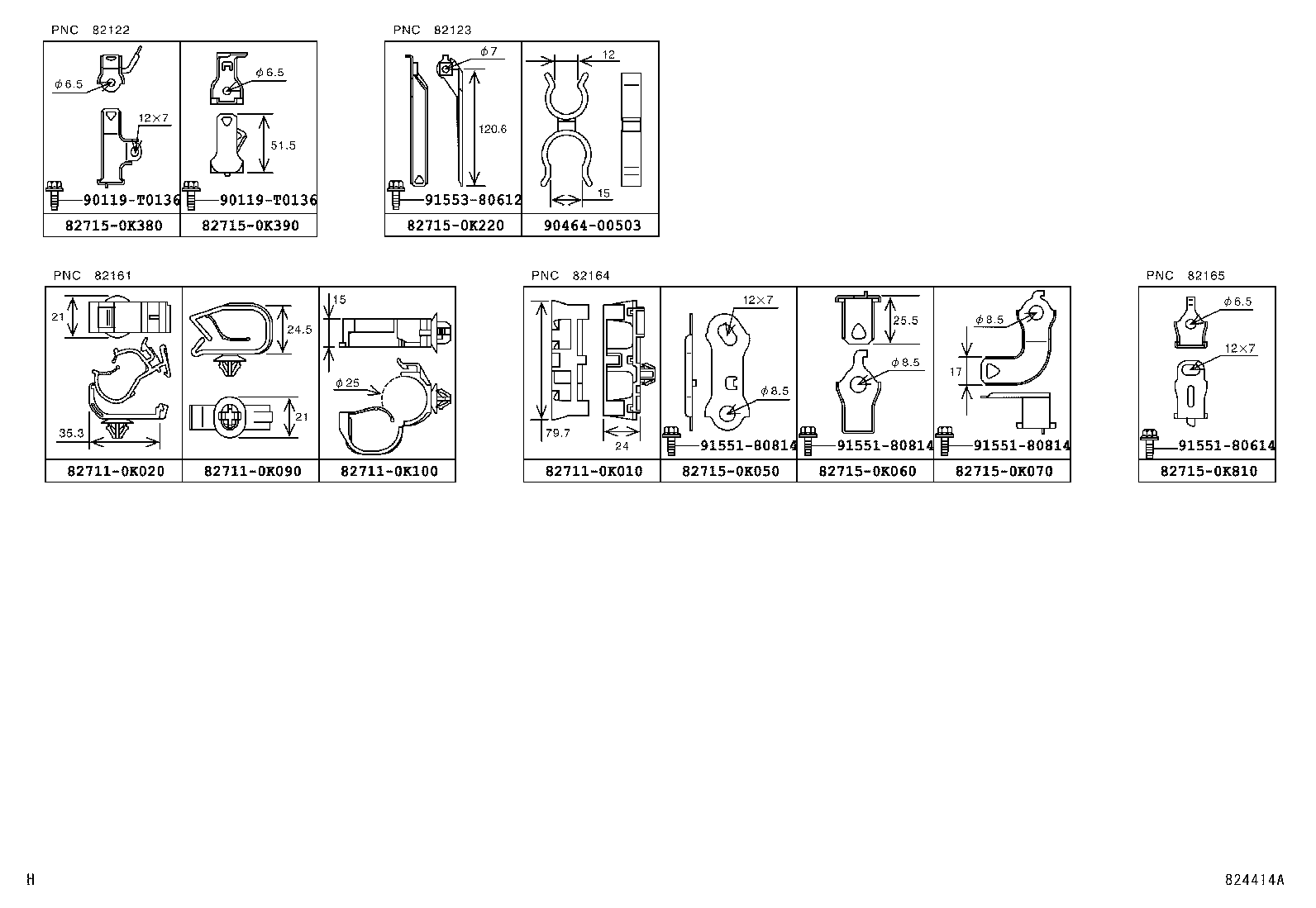

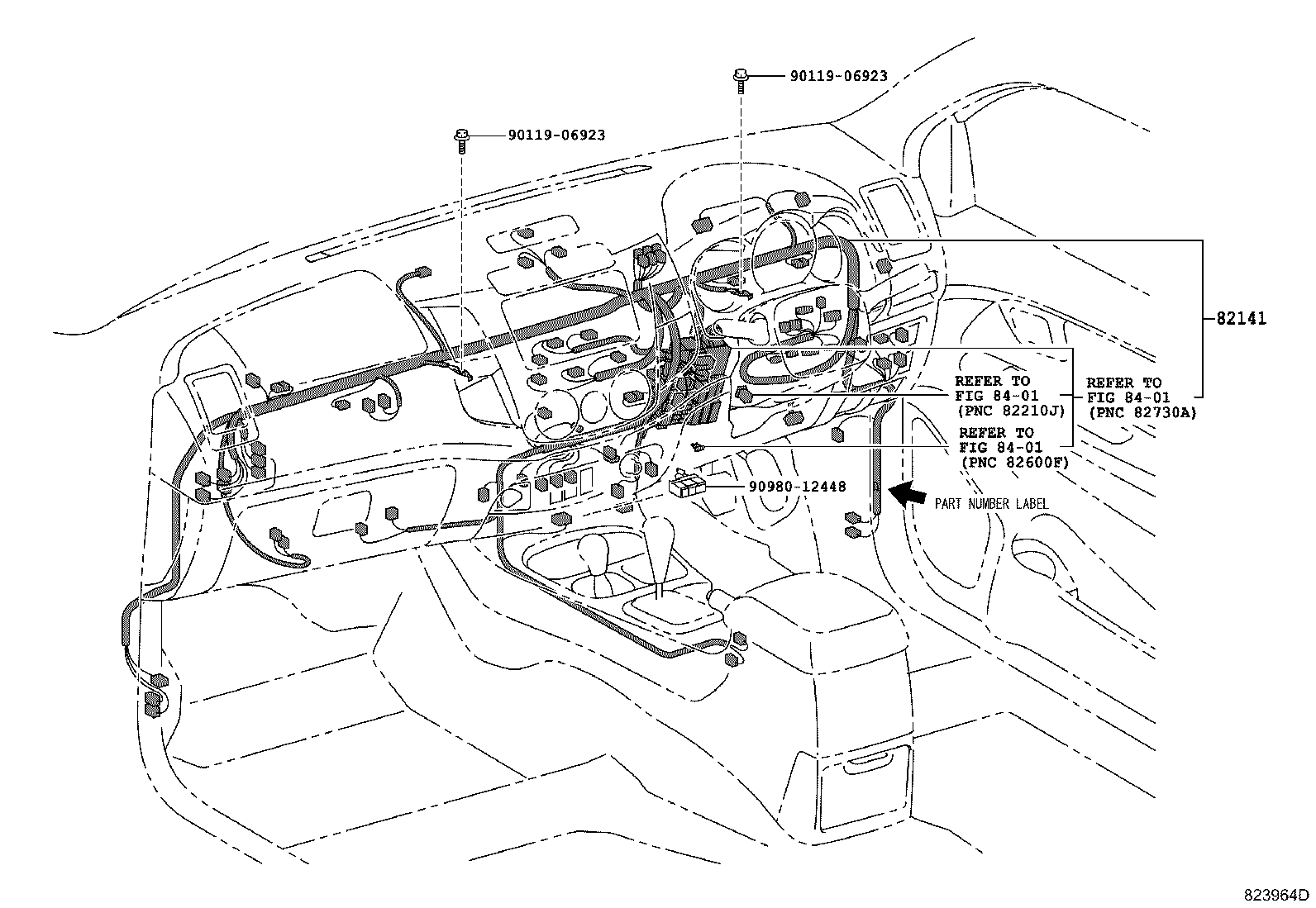

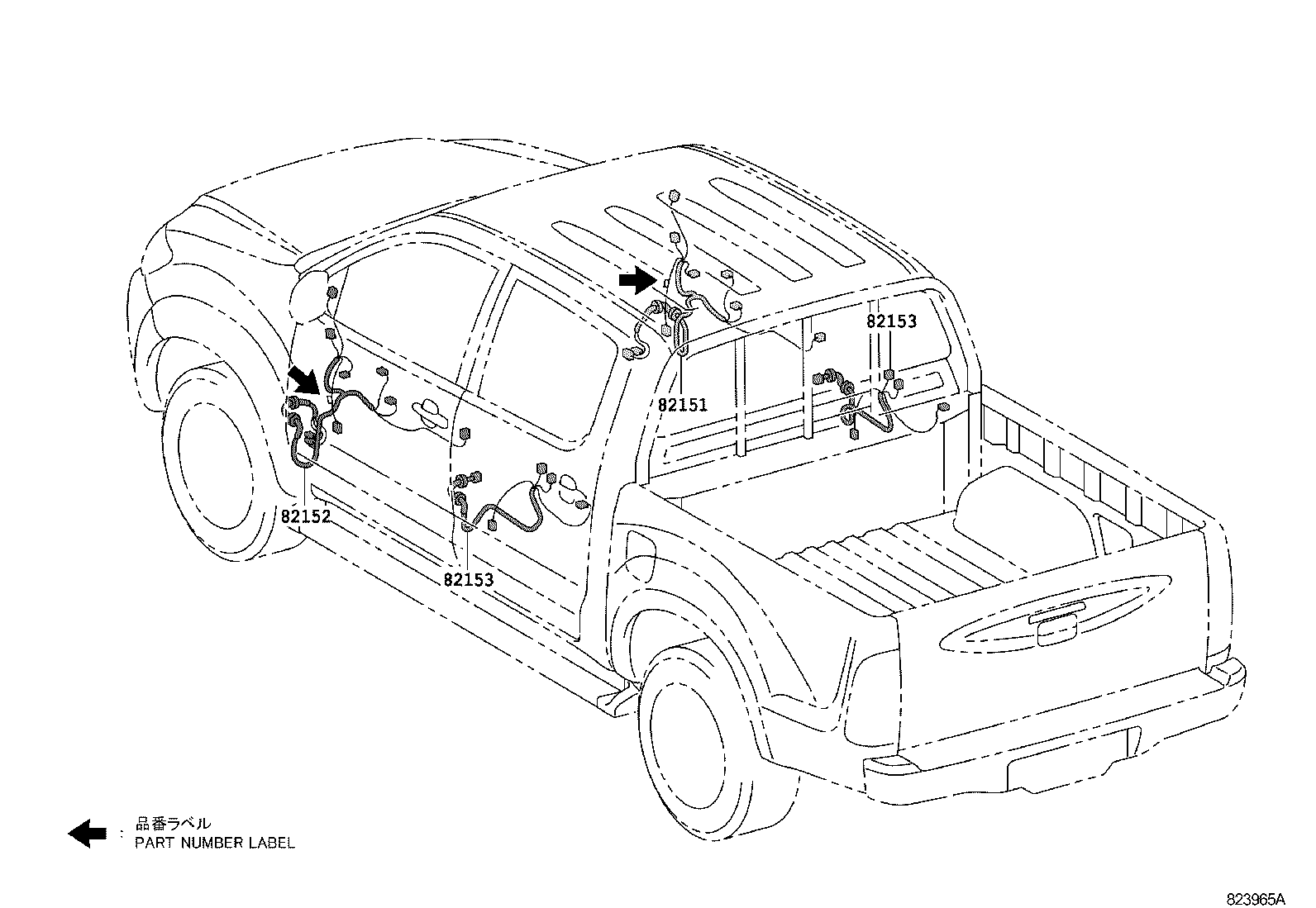

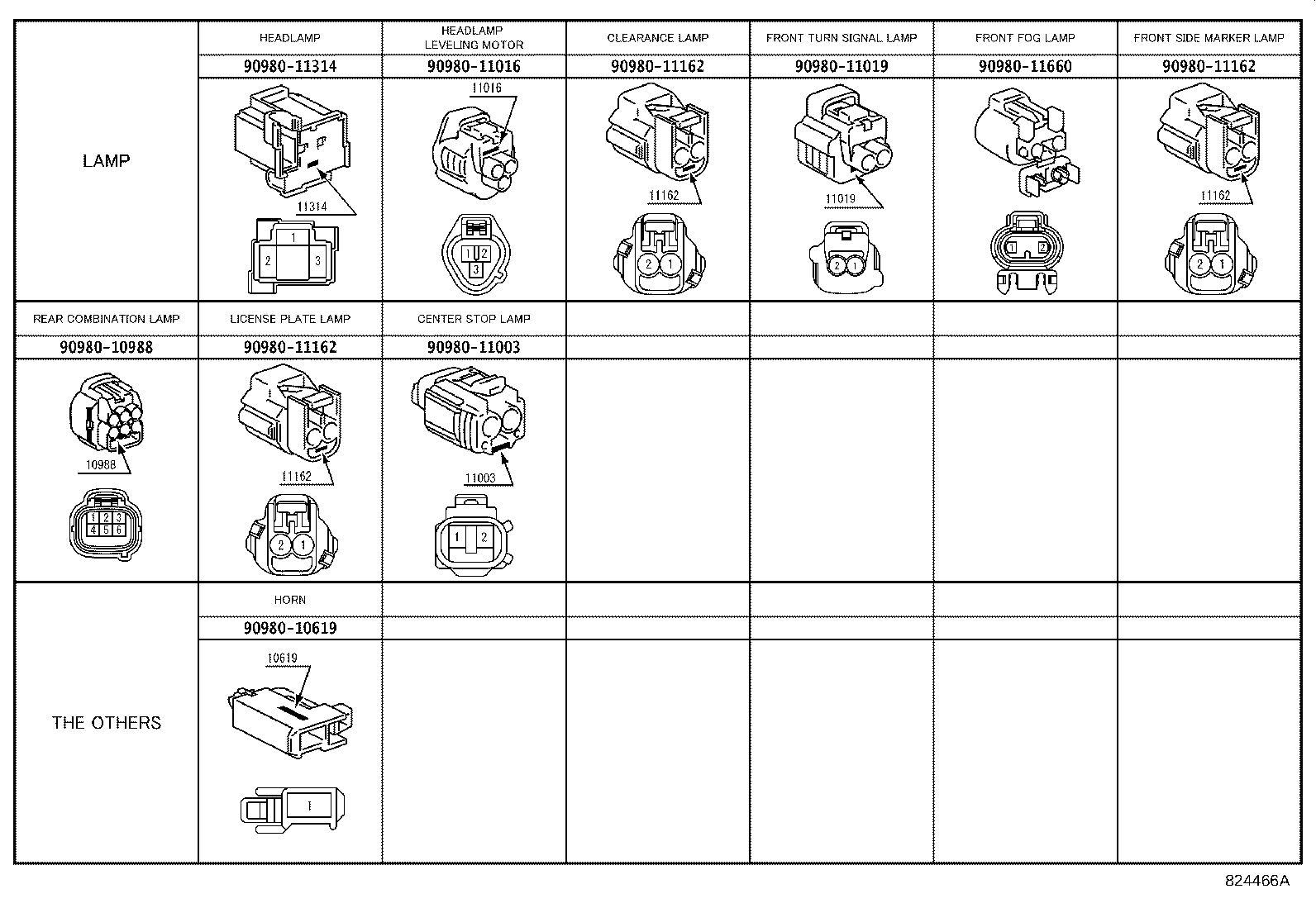

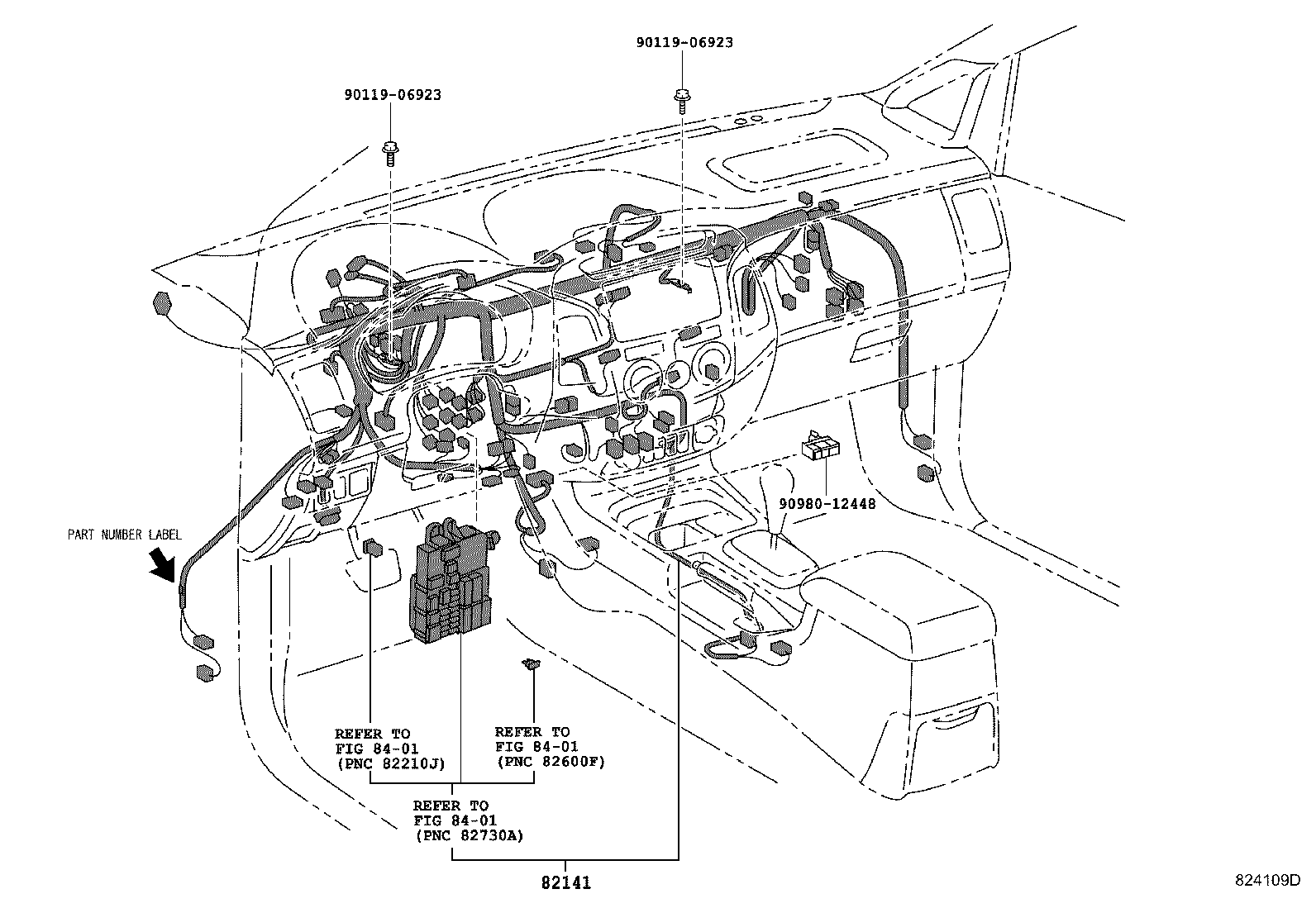

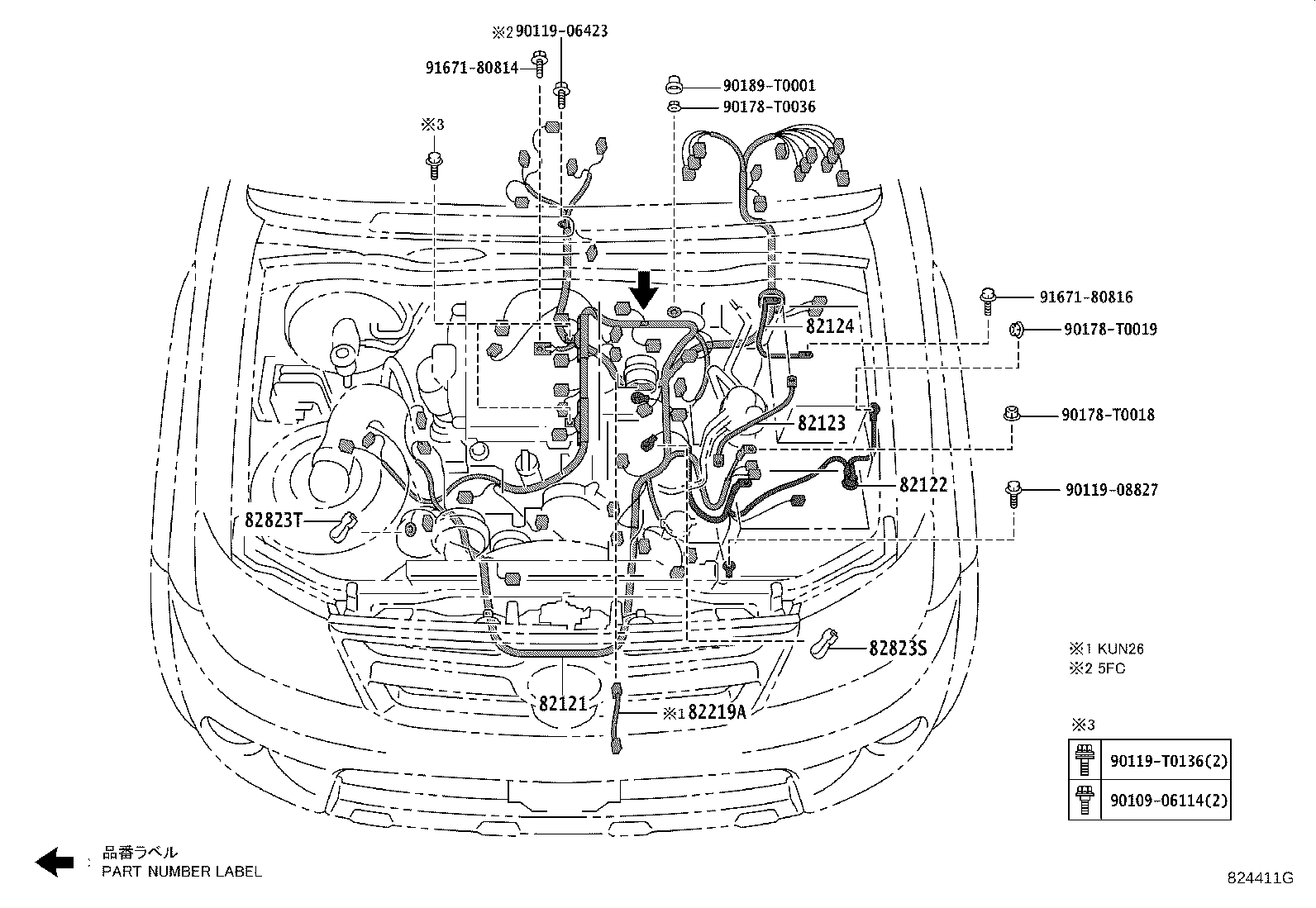

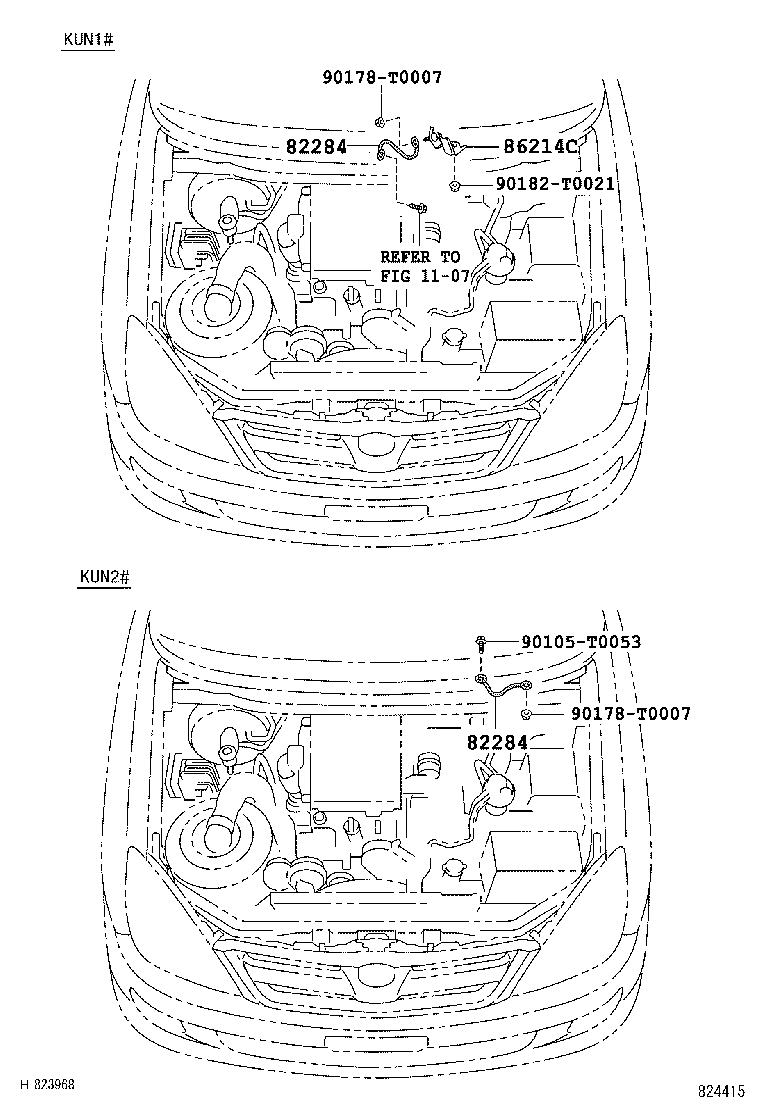

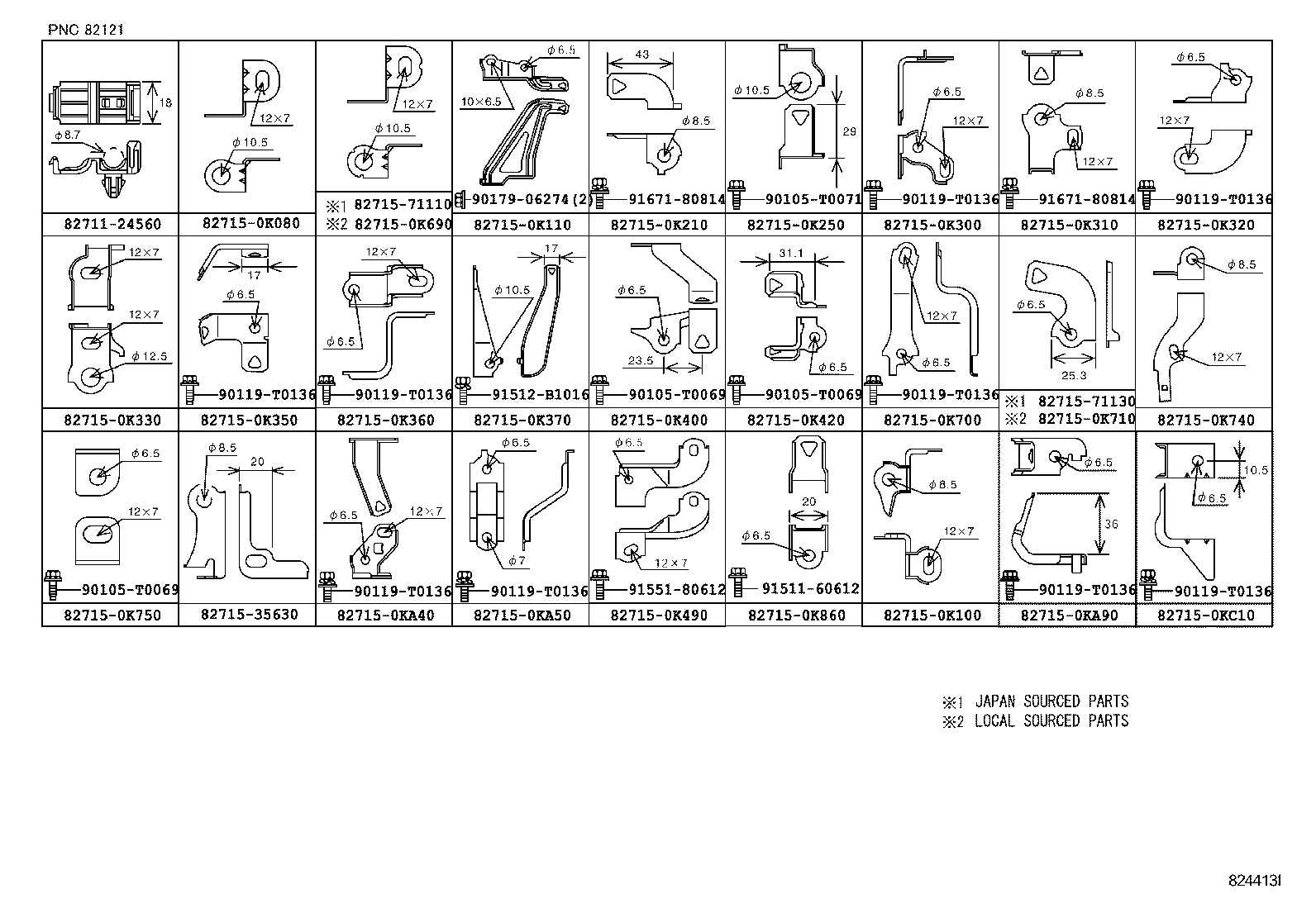

Figure 824900E 824900E 2005-07 → — Figure 824411G 824411G 2005-07 → — Figure 824412H 824412H 2005-07 → — Figure 823964D 823964D 2005-07 → — Figure 824109D 824109D 2005-07 → — Figure 823965A 823965A 2005-07 → — Figure 823966N 823966N 2005-07 → — Figure 824413I 824413I 2005-07 → — Figure 824414A 824414A 2005-07 → — Figure 824415 824415 2005-07 → — Figure 824466A 824466A 2005-07 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82219A Wire, Sensor
82284 Wire, Earth
82821W Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
86214C Bracket, Radio Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
