Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

12 part groups · 8 illustrations

Illustrations

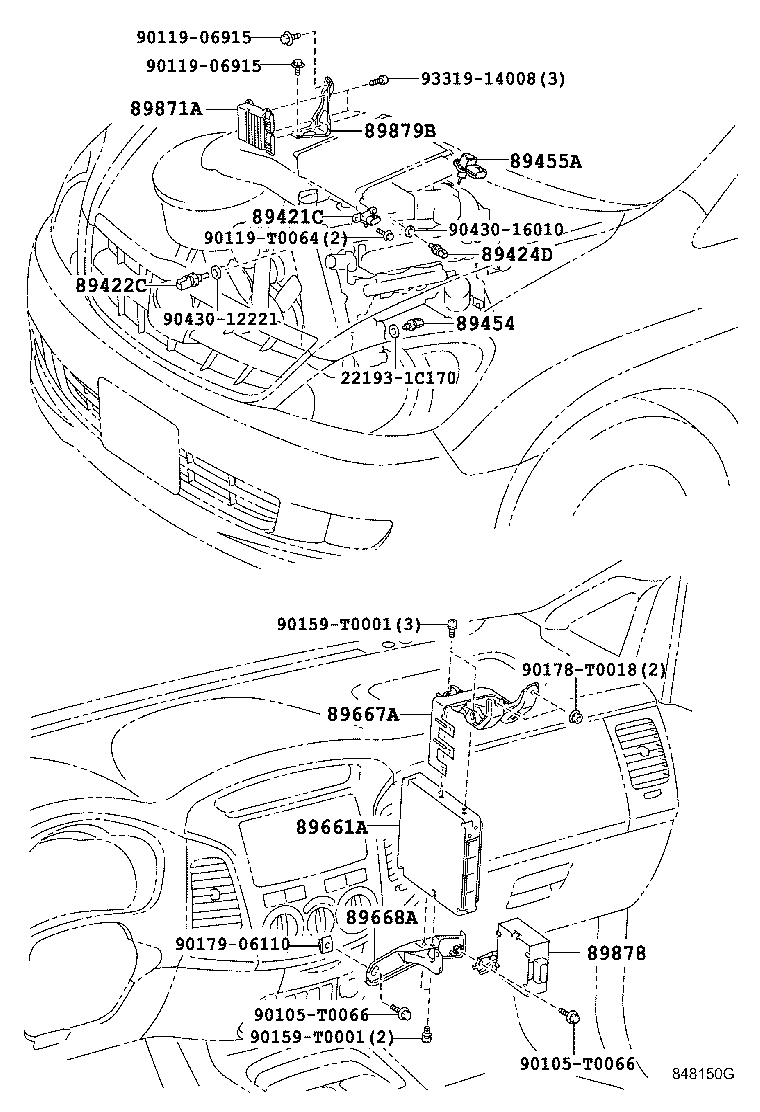

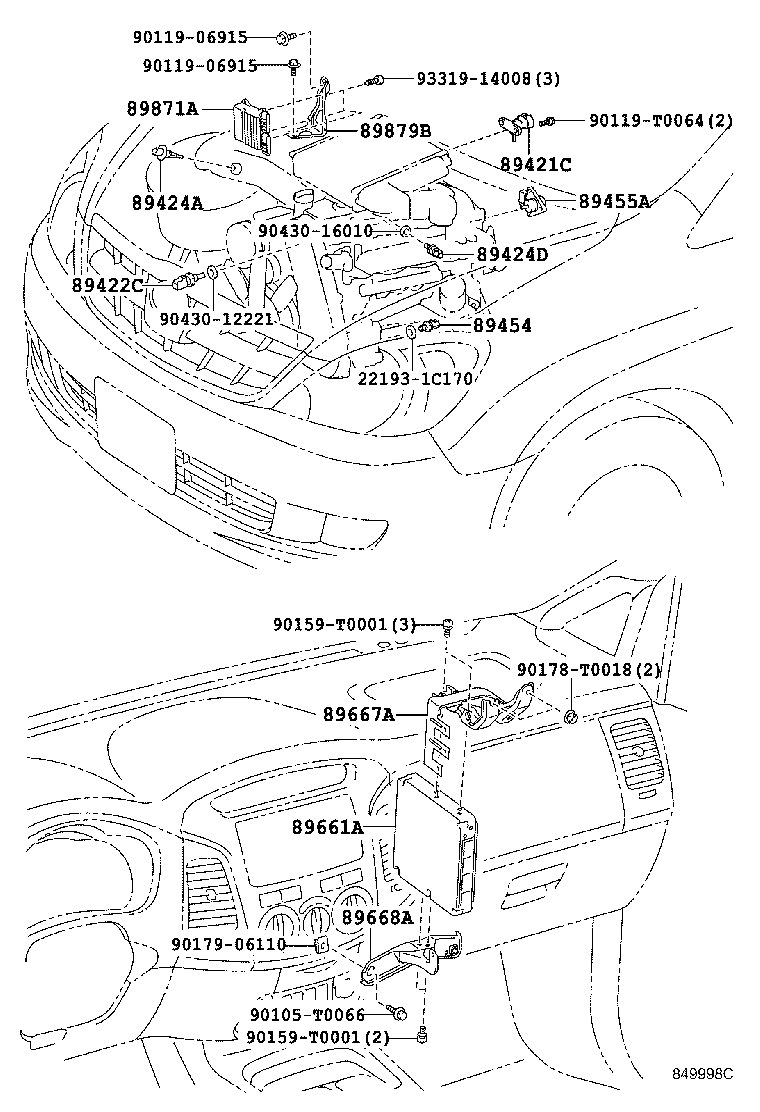

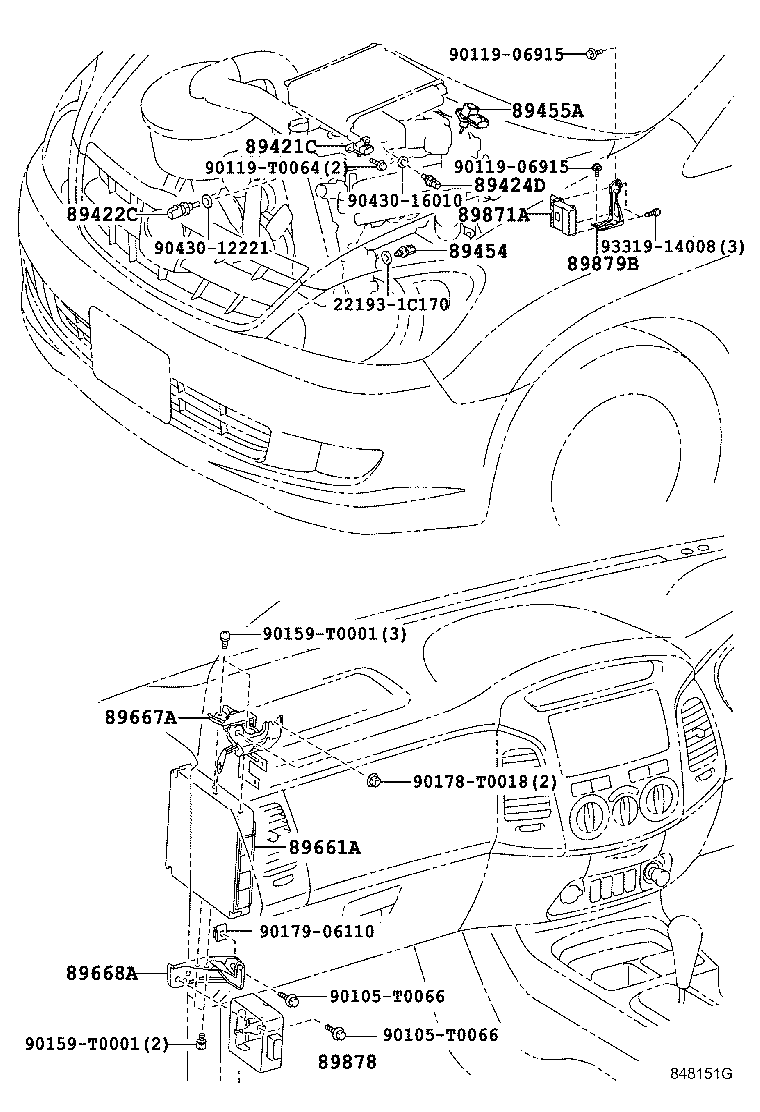

Figure 849999C 849999C 2005-07 → 2006-08 Figure 849999C 849999C 2005-07 → 2006-10 Figure 849998C 849998C 2005-07 → 2006-08 Figure 849998C 849998C 2005-07 → 2006-10 Figure 848151G 848151G 2006-08 → — Figure 848151G 848151G 2006-10 → — Figure 848150G 848150G 2006-08 → — Figure 848150G 848150G 2006-10 → —

Part groups

PNCDescription
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89424D Sensor, Inlet Air Temperature
89454 Sensor, Fuel Temperature
89455A Sensor, Egr Valve Position
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89871A Driver, Injector
89878 Driver, Turbo Motor
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
