Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 2 illustrations

Illustrations

Figure 846369H

846369H 2005-07 → —

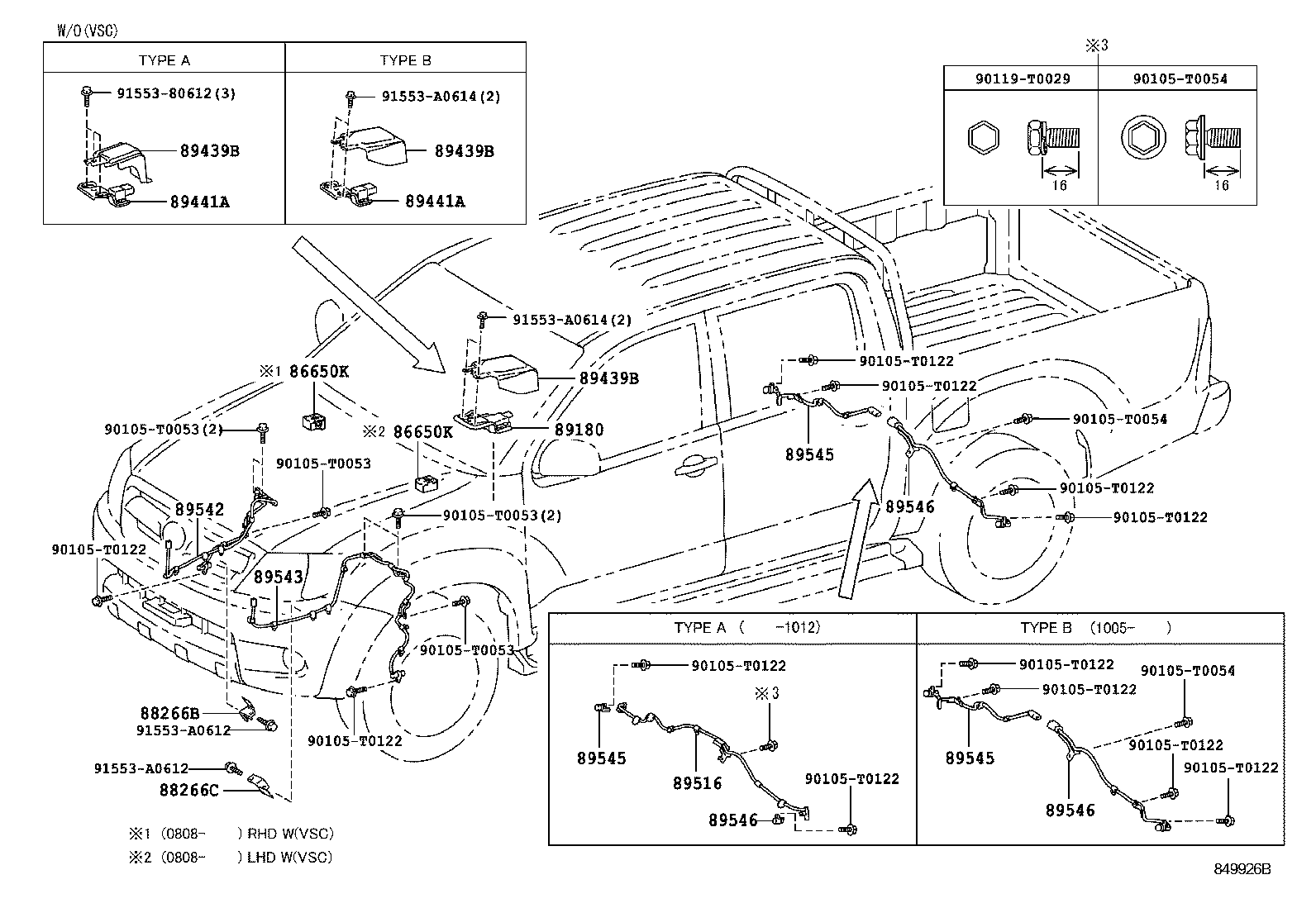

Figure 849926B

849926B 2005-07 → —

Part groups

PNC	Description
86650K	Buzzer Assy, Skid Control
88266B	Clamp, Skid Control Sensor, NO.1
88266C	Clamp, Skid Control Sensor, NO.2
89180	Sensor Assy, Yawrate
89439B	Bracket, Sensor
89441A	Sensor, Deceleration
89516	Wire, Skid Control Sensor
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
