Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

20 part groups · 8 illustrations

Illustrations

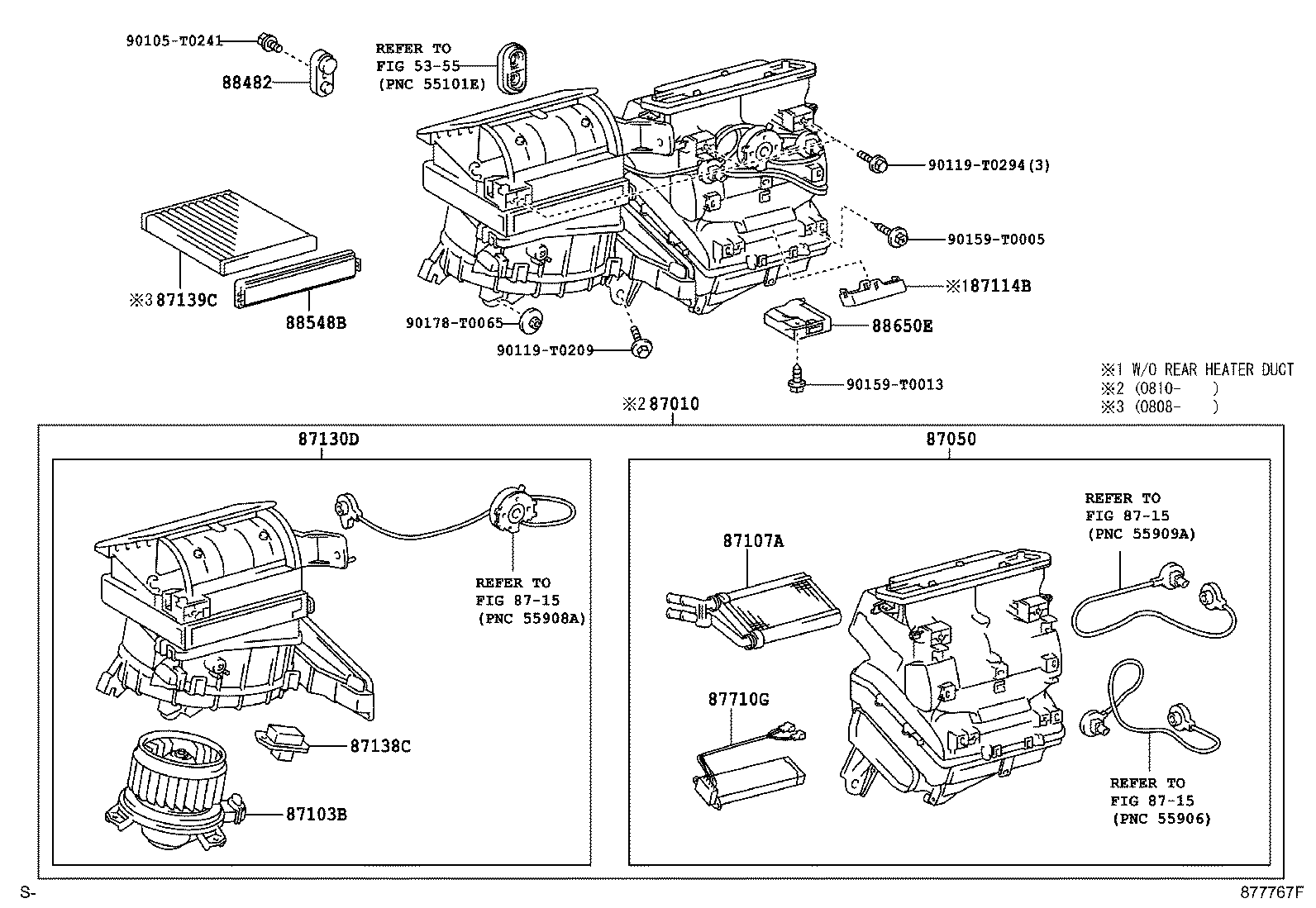

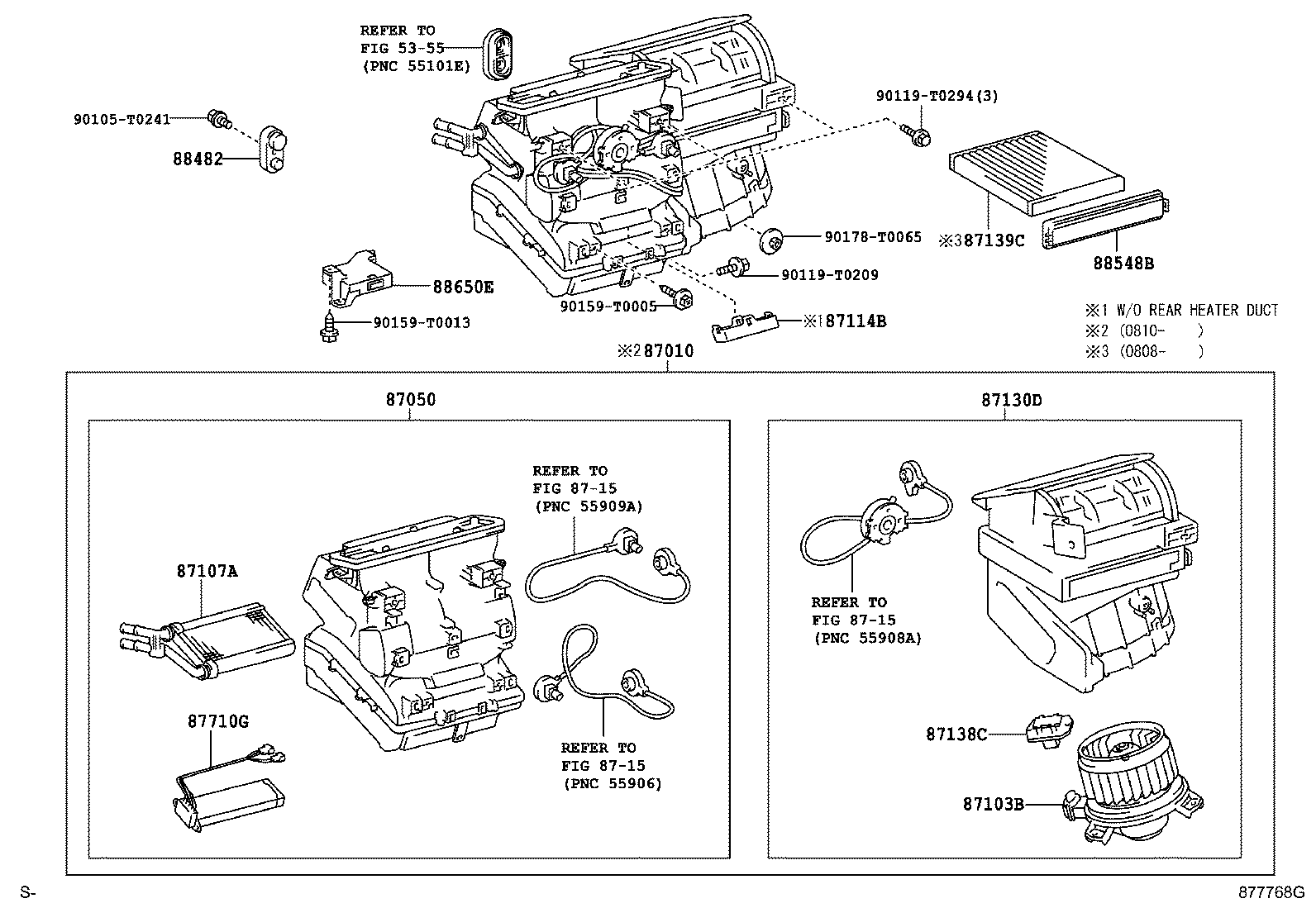

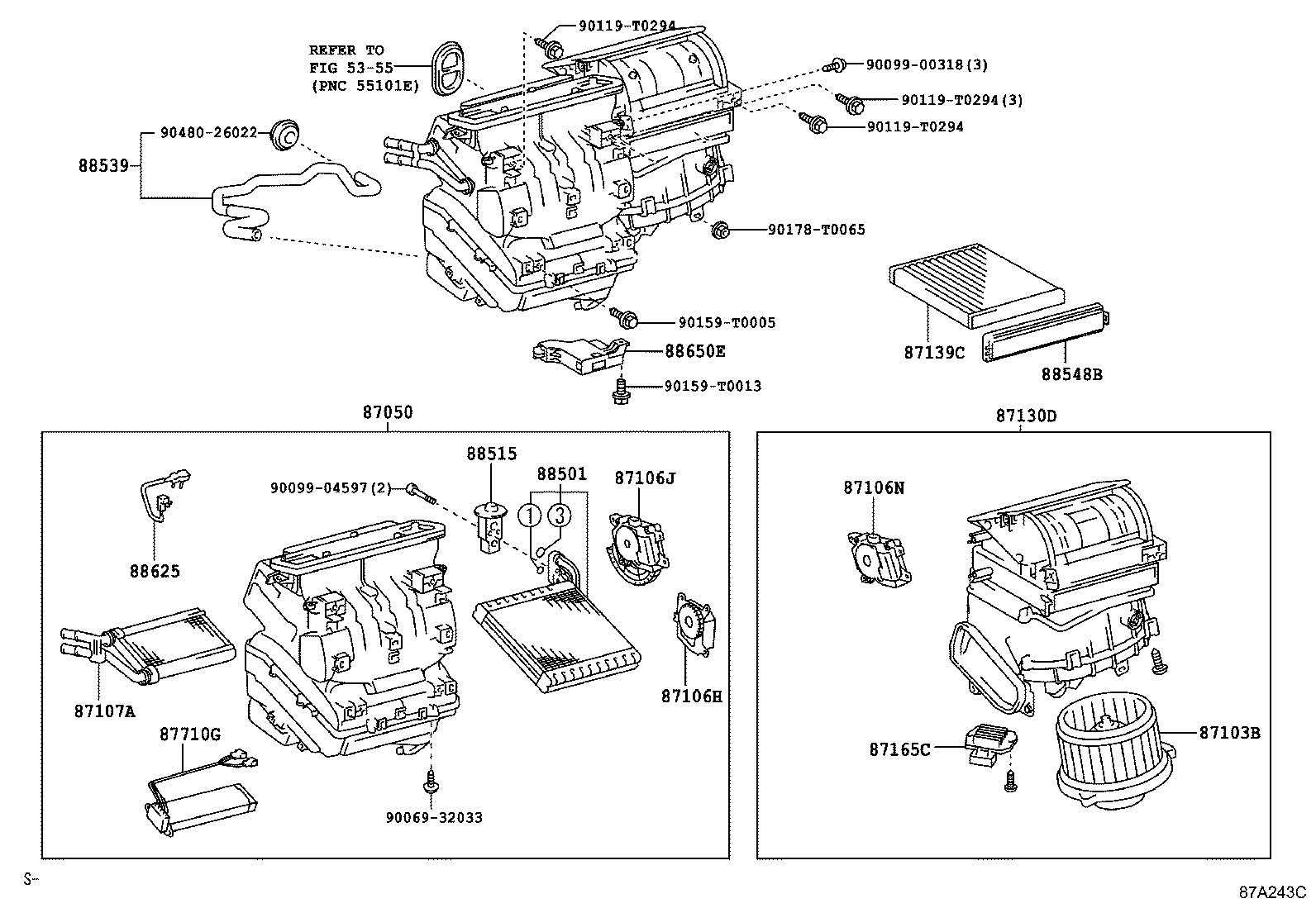

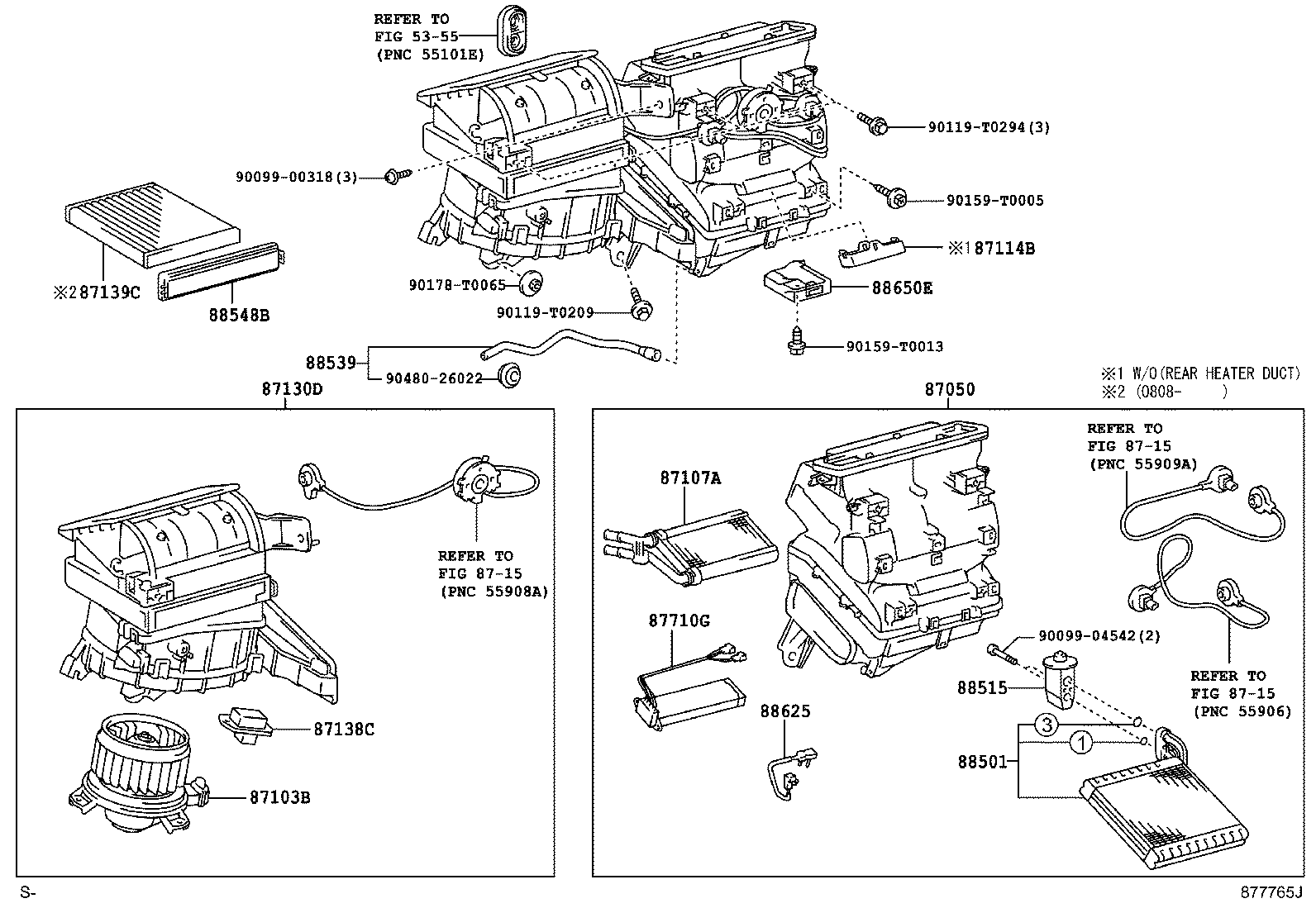

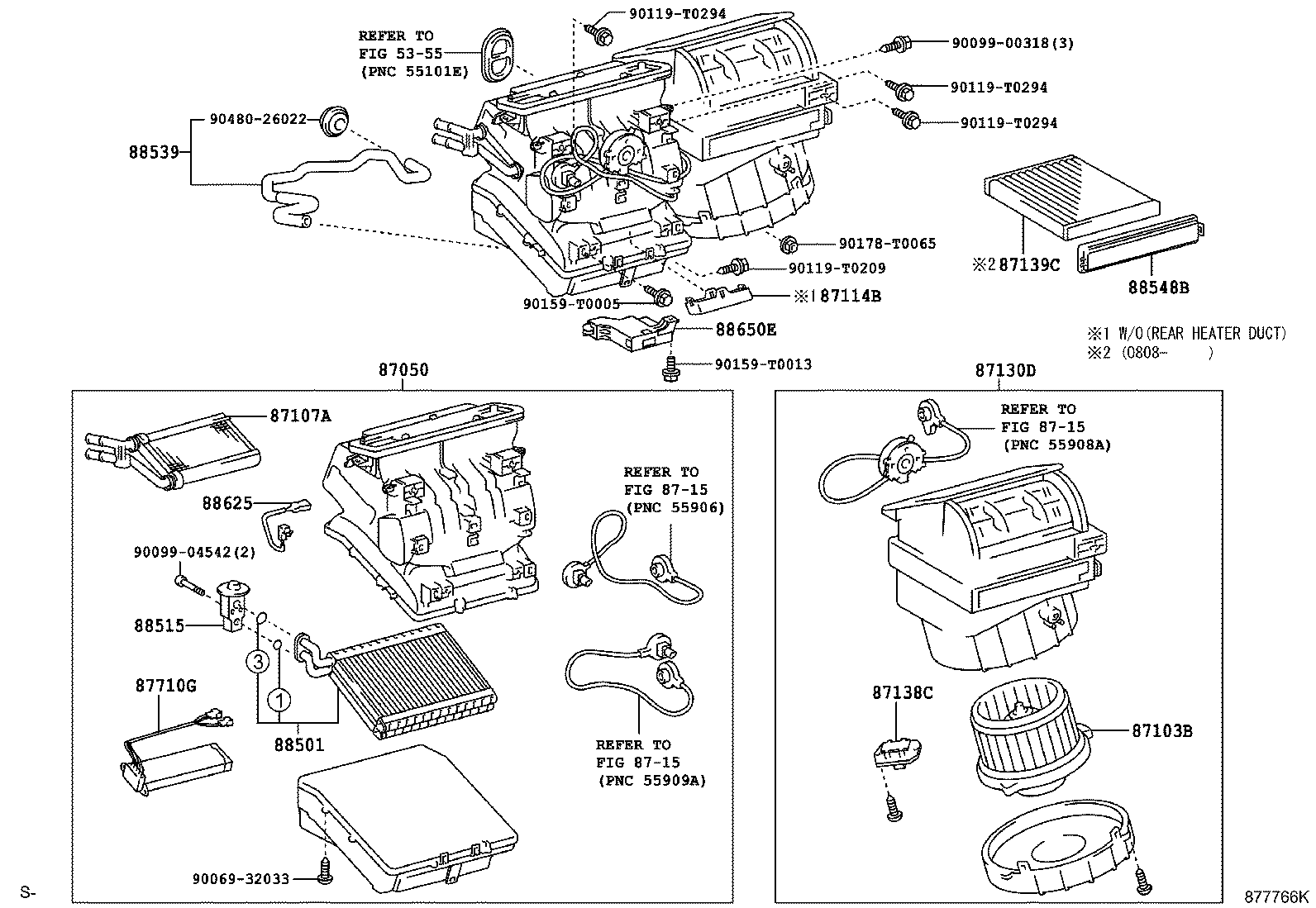

Figure 87A242C 87A242C 2008-08 → — Figure 877765J 877765J 2005-07 → — Figure 877767F 877767F 2005-07 → — Figure 87A243C 87A243C 2008-08 → — Figure 877766K 877766K 2005-07 → — Figure 877768G 877768G 2005-07 → — Figure 877769 877769 2005-07 → — Figure 879494A 879494A 2005-07 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87130D Blower Assy
87138C Resistor, Blower
87139C Filter, Clean Air
87165C Control, Blower Motor
87710G Quick Heater Assy
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88548B Case, Air Filter
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
