Toyota Hilux

2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe

Supported model Data version 2012-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

7 part groups · 2 illustrations

Illustrations

Figure 877380M

877380M 2005-07 → —

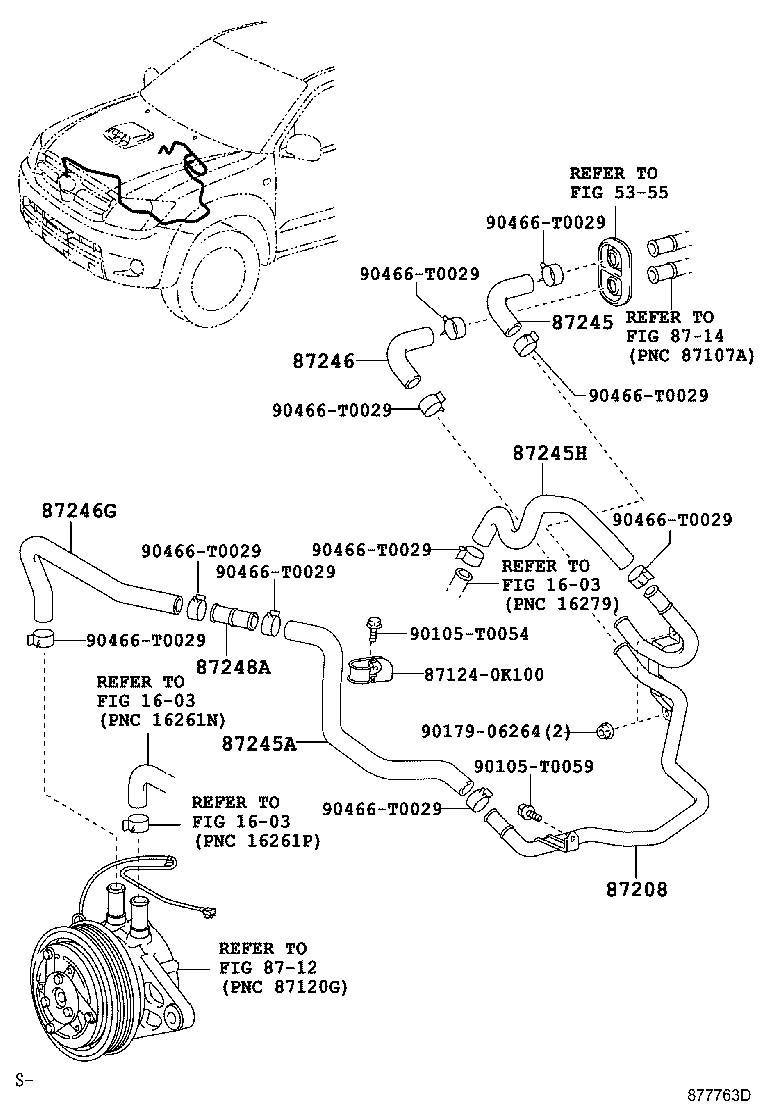

Figure 877763D

877763D 2005-07 → —

Part groups

PNC	Description
87208	Pipe Sub-assy, Heater Water
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245H	Hose, Heater Water, Inlet H
87246	Hose, Heater Water, Outlet
87246G	Hose, Heater Water, Outlet G
87248A	Pipe, Heater Water Inlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
