Toyota Hilux
2005-07 → 2012-04 · chassis KUN15,2# · catalogue 672570 · Europe
Supported model
Data version 2012-04

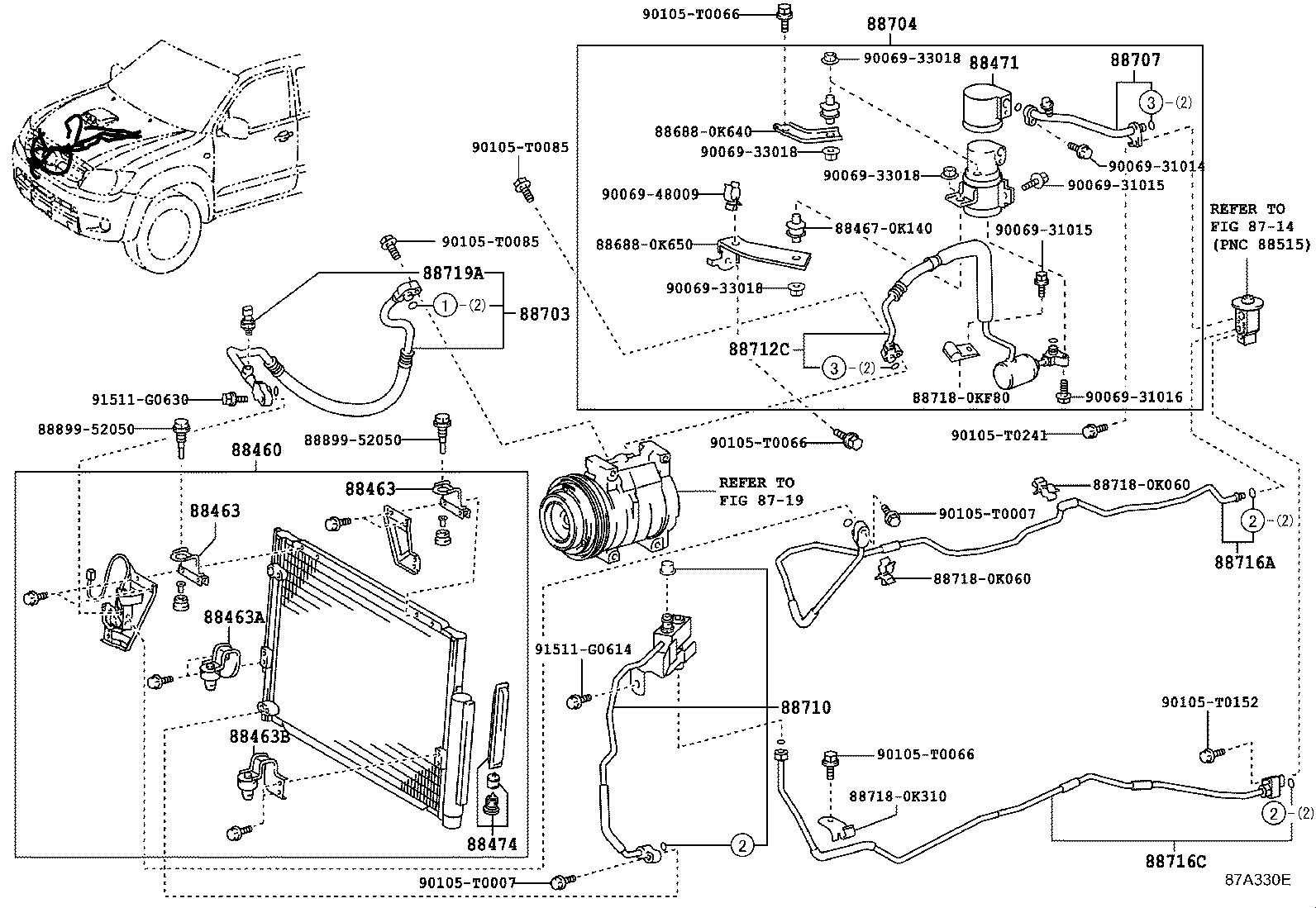

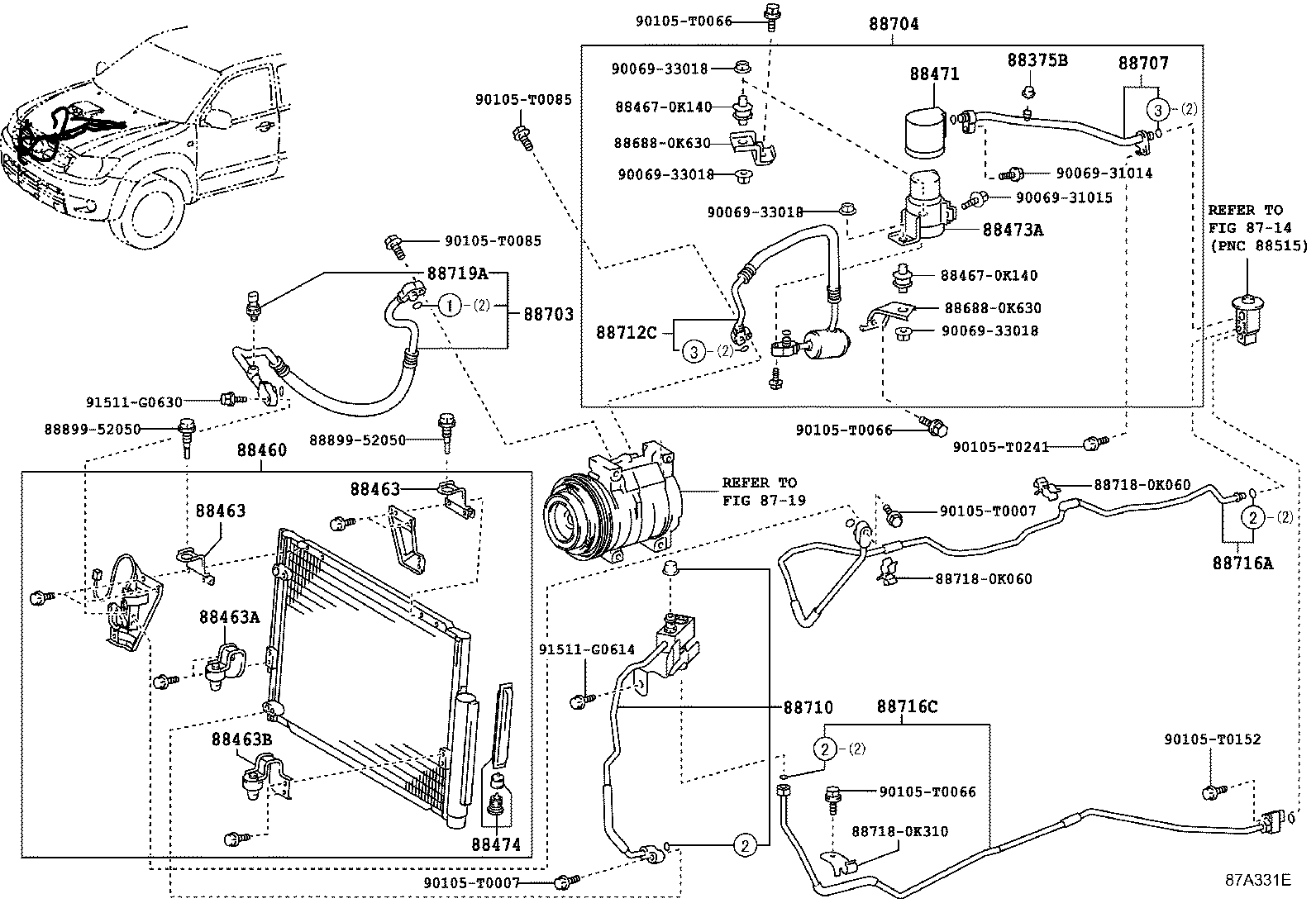

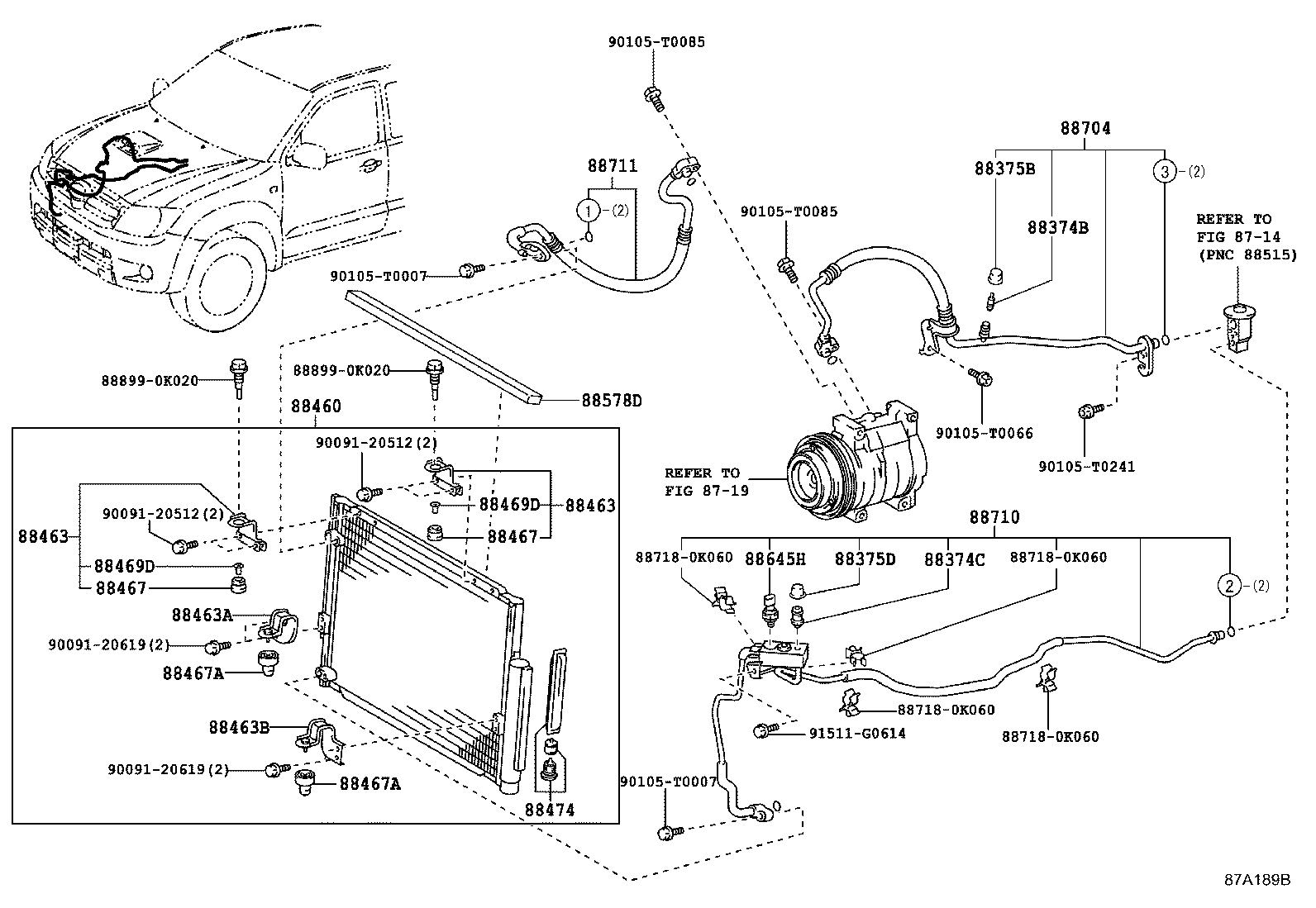

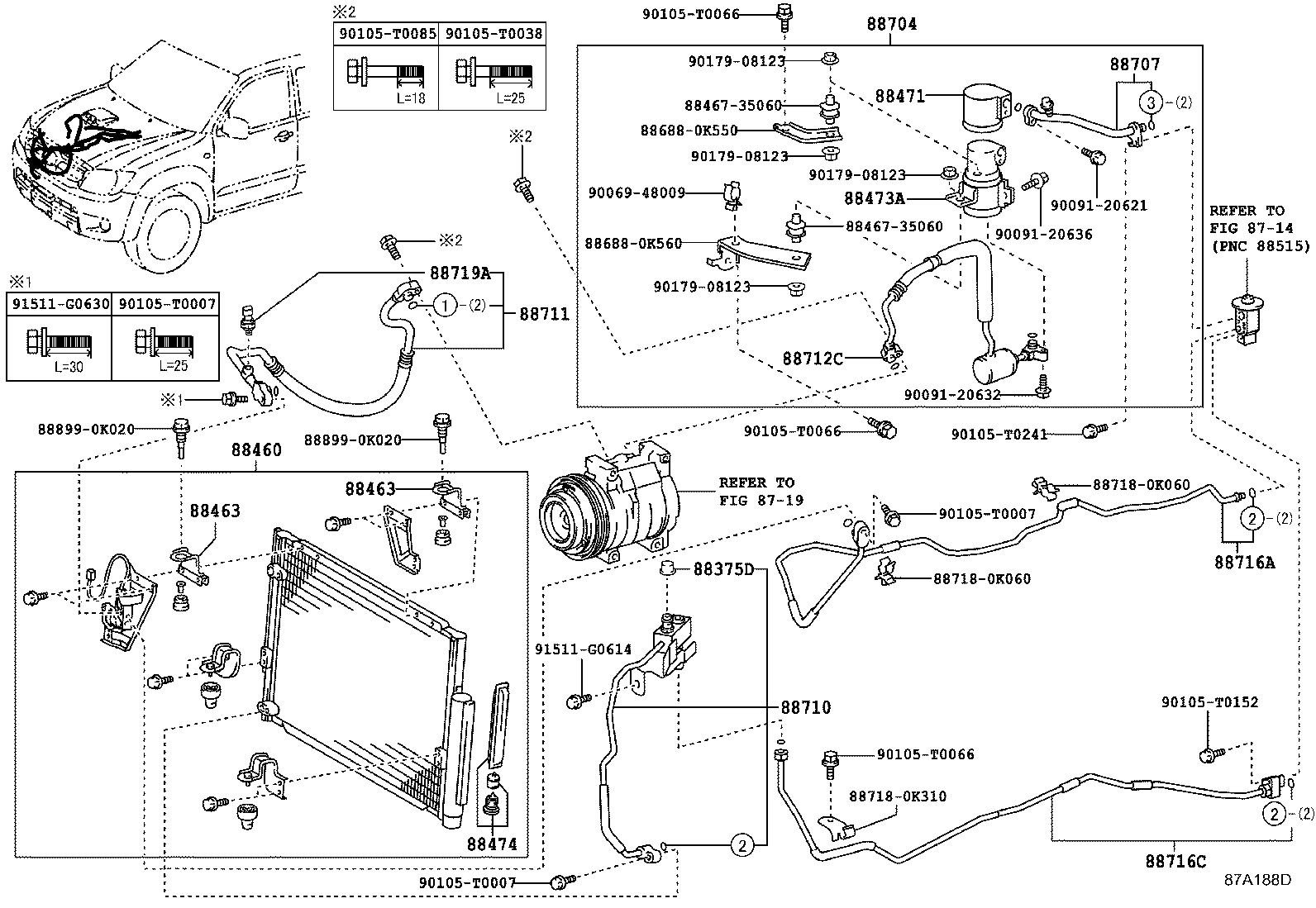

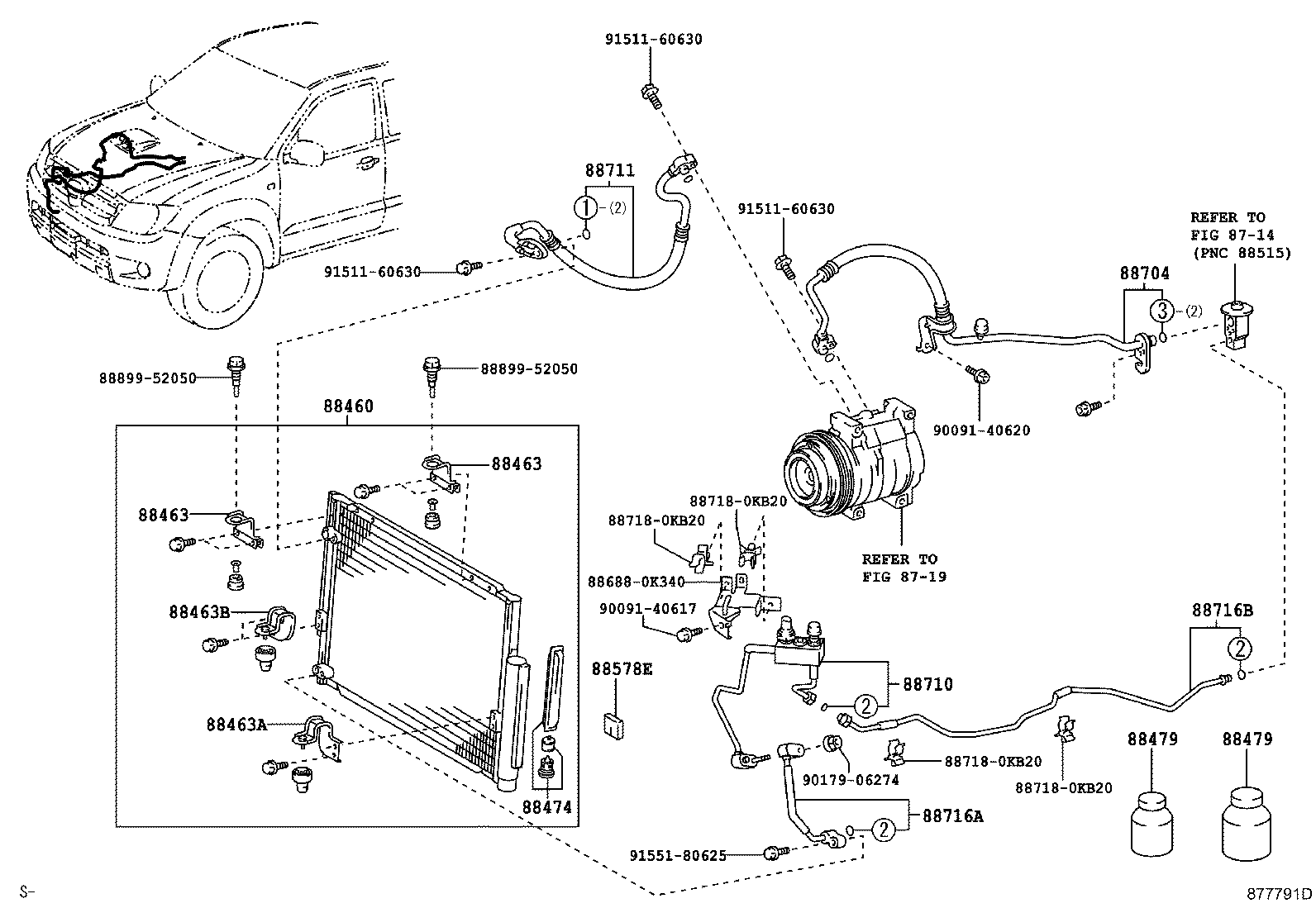

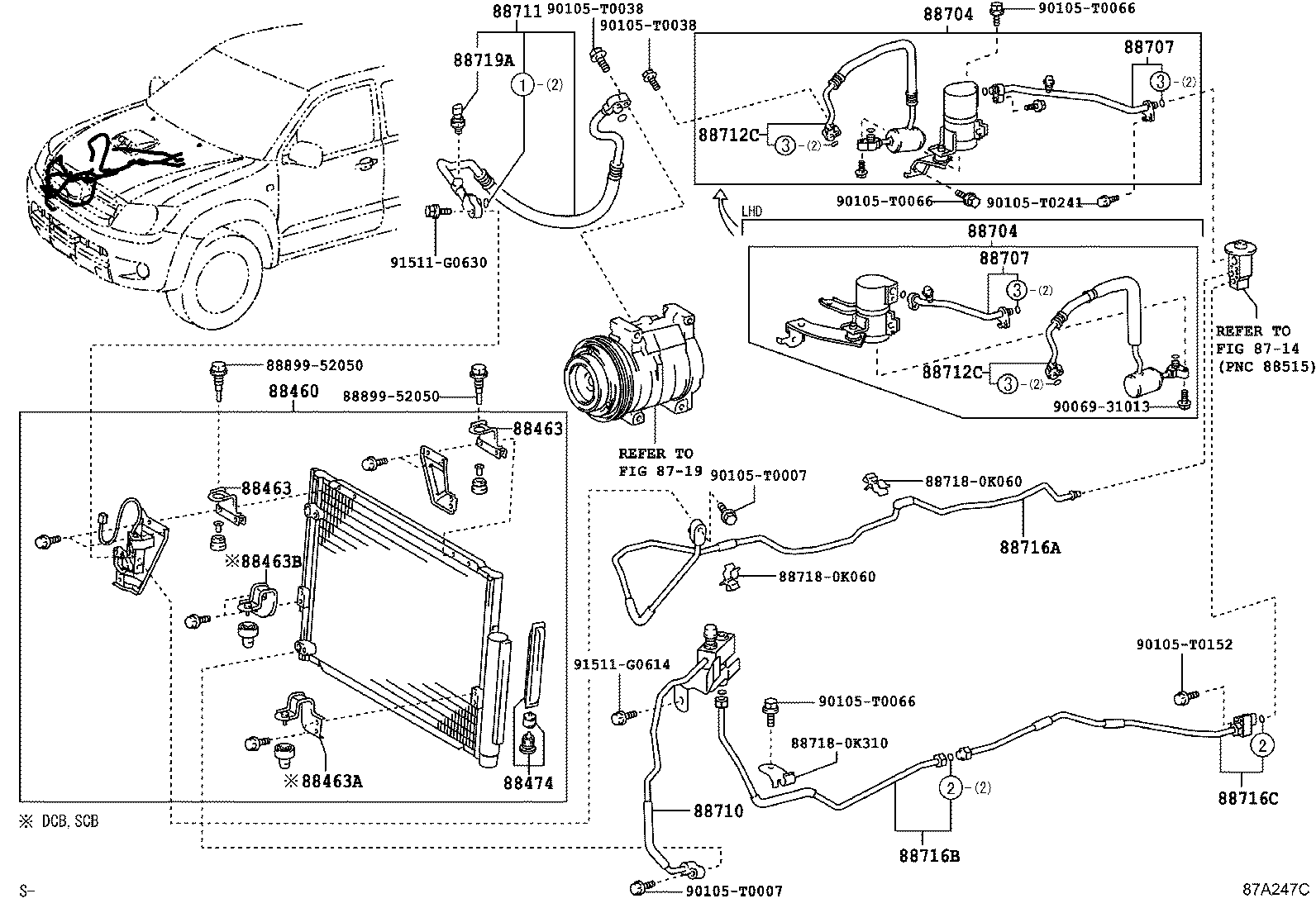

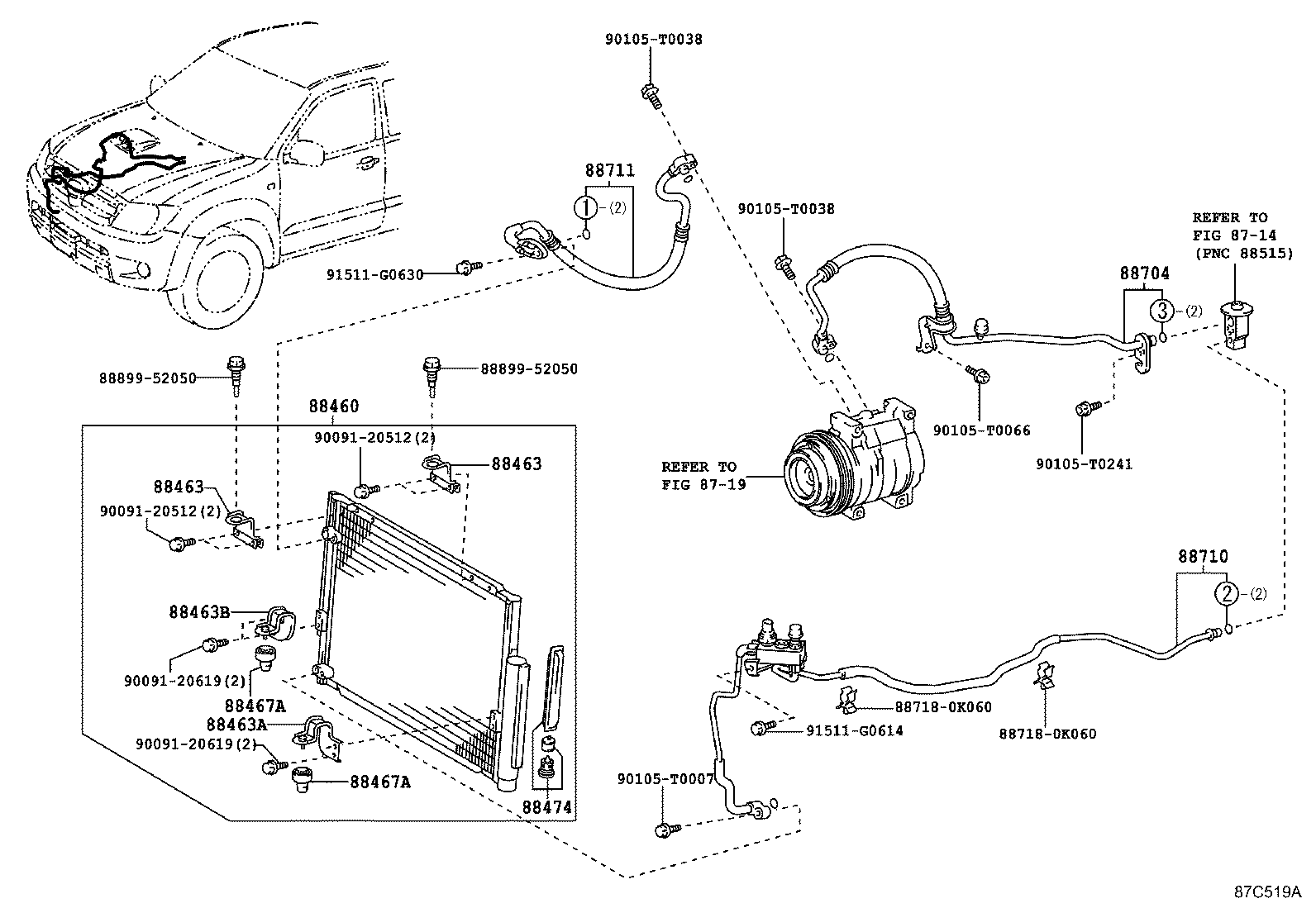

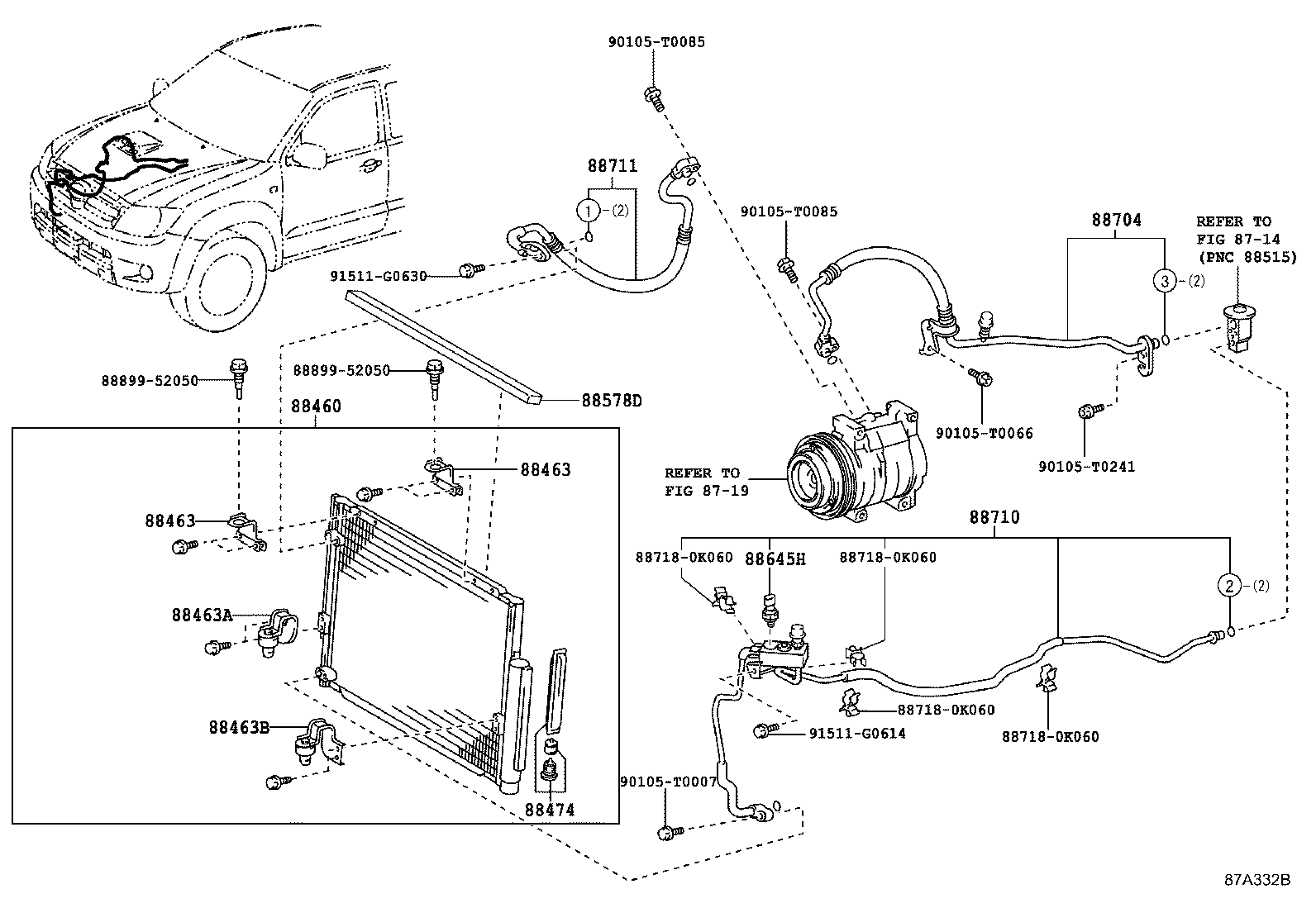

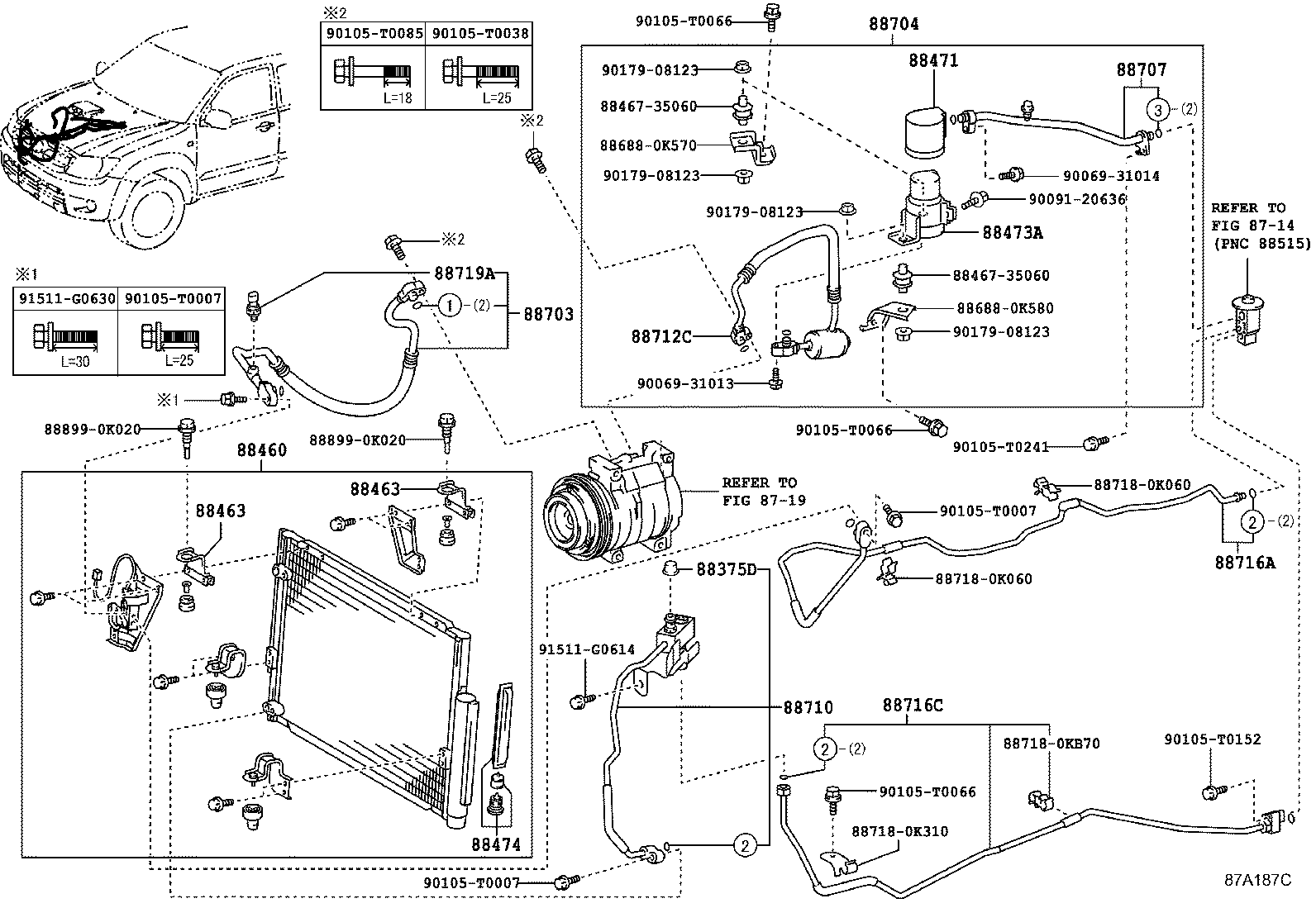

Heating & Air Conditioning - Cooler Piping
28 part groups · 16 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88463 | Bracket, Cooler Condenser, NO.1 |
| 88463A | Bracket, Cooler Condenser, NO.2 |
| 88463B | Bracket, Cooler Condenser, NO.3 |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88467A | Cushion, Cooler Condenser, NO.2 |
| 88469D | Collar, Condenser Bracket, NO.1 |
| 88471 | Tank, Receiver Air Conditioner |
| 88473A | Holder, Receiver |
| 88474 | Dryer, Cooler |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88578D | Packing, Cooler Pipe, NO.1 |
| 88578E | Packing, Cooler Pipe, NO.2 |
| 88645H | Switch, Pressure NO.1 |
| 88703 | Hose Sub-assy, Discharge |
| 88704 | Hose Sub-assy, Suction |
| 88707 | Pipe Sub-assy, Suction |
| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712C | Hose, Suction |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
