Heating & Air Conditioning - Compressor

9 part groups · 4 illustrations

Illustrations

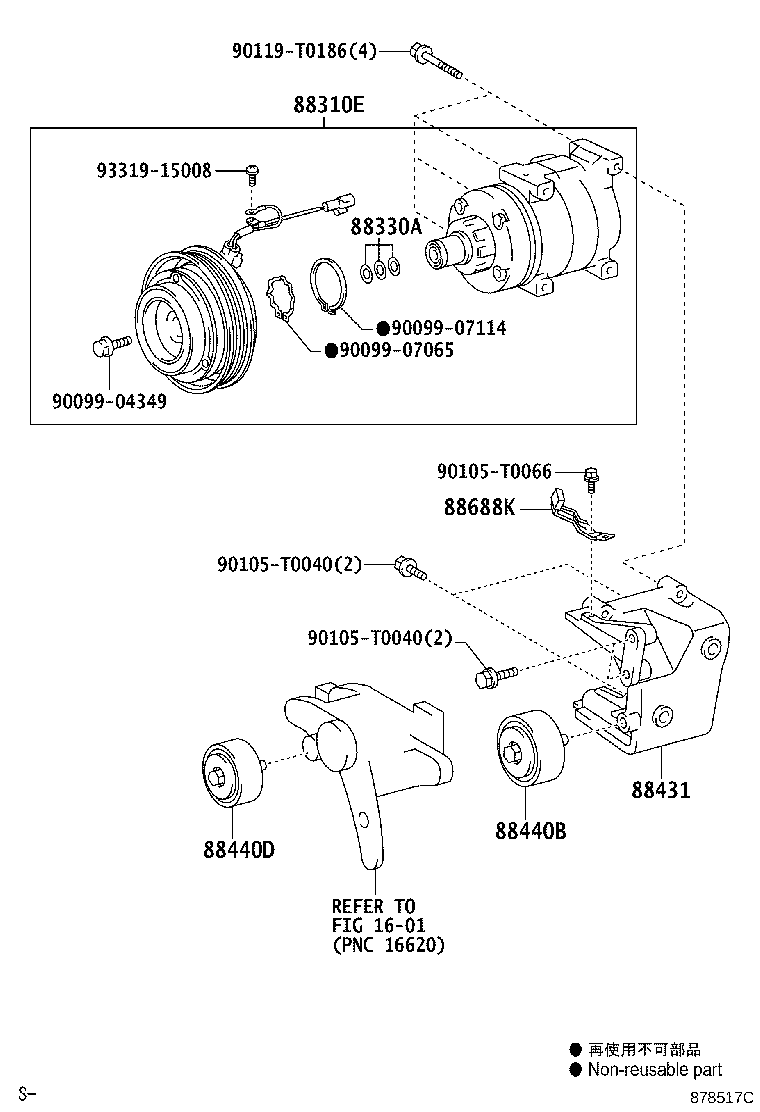

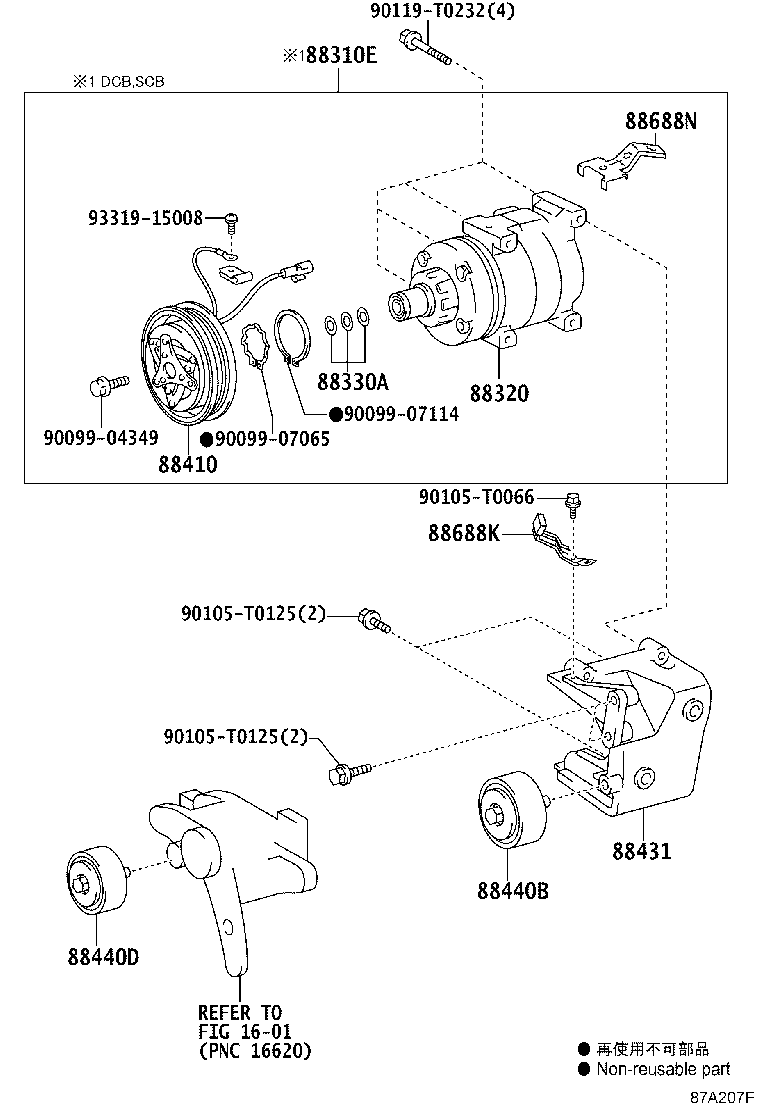

Figure 877737D 877737D 2005-07 → 2008-08 Figure 878517C 878517C 2005-07 → 2008-10 Figure 87A207F 87A207F 2008-08 → — Figure 87A207F 87A207F 2008-10 → —

Part groups

PNCDescription
88310E Compressor, W/Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88440D Pulley Assy, Idle NO.2
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
