Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

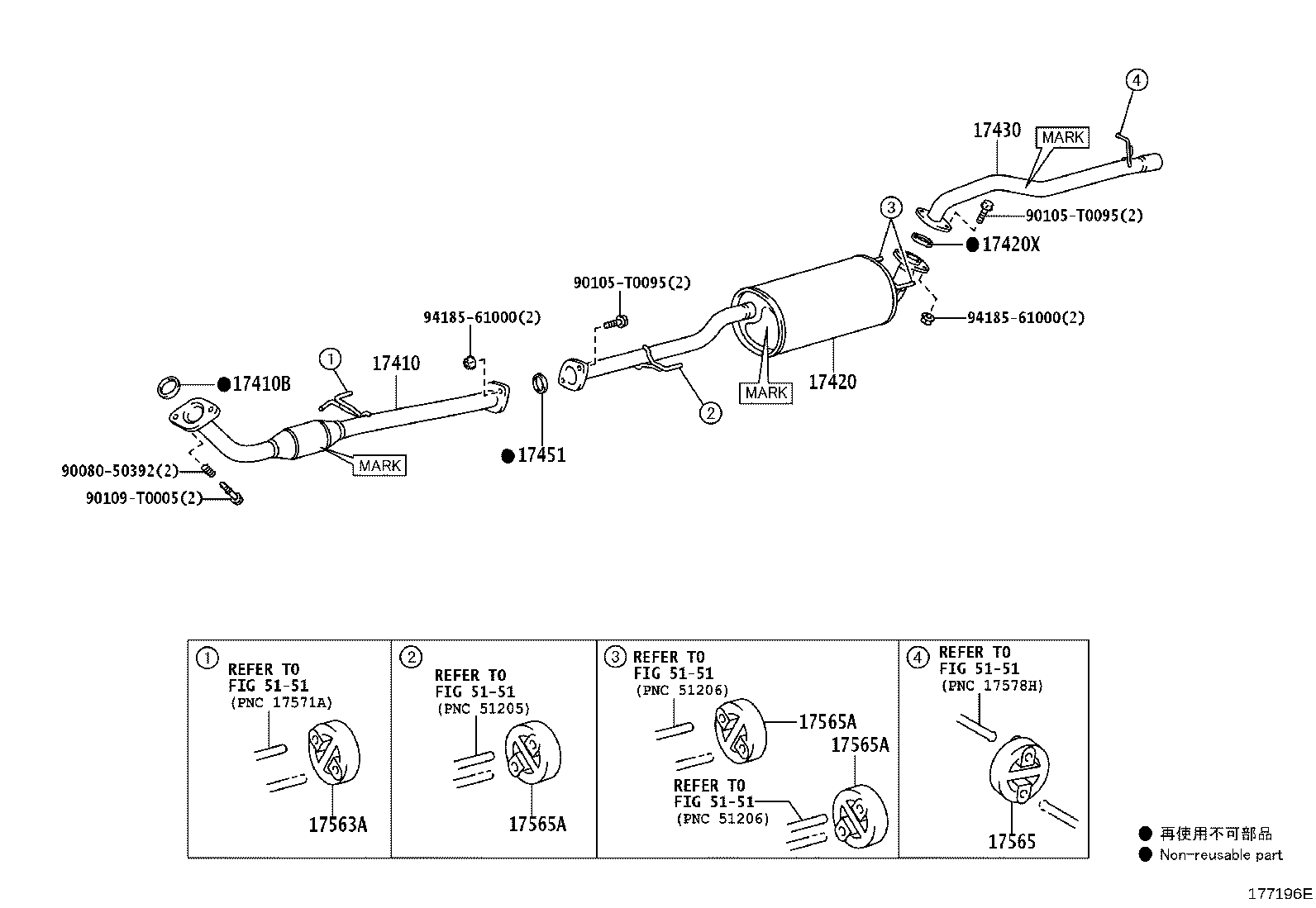

Exploded illustration 177196E 17420 — PIPE ASSY, EXHAUST, CENTER (14 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (1 parts) 9418561000 — not listed in this catalogue 17430 — PIPE ASSY, EXHAUST, TAIL (14 parts) 90105T0095 — not listed in this catalogue 90105T0095 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (11 parts) 17410B — GASKET, EXHAUST PIPE (4 parts) 17451 — GASKET, EXHAUST PIPE (5 parts) 9008050392 — not listed in this catalogue 90109T0005 — not listed in this catalogue 9418561000 — not listed in this catalogue 5151 — not listed in this catalogue 17563A — SUPPORT, EXHAUST PIPE, NO.3 (5 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (1 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (1 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (1 parts) 5151 — not listed in this catalogue 5151 — not listed in this catalogue 5151 — not listed in this catalogue 17565A — SUPPORT, EXHAUST PIPE, NO.4 (1 parts) 5151 — not listed in this catalogue
177196E · 11 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17401-0L110 note Pipe Assy, Exhaust, Front
2012-08 → 2013-05 ended
2KDFTV KUN25 THDCB DLX +1 —
17401-0L110 note Pipe Assy, Exhaust, Front
2012-08 → 2013-08 ended
2KDFTV KUN35 THSCB —
17401-0L110 note Pipe Assy, Exhaust, Front
2012-08 → 2013-10 ended
2KDFTV KUN35 SCB DLX +1 —
17401-0L110 note Pipe Assy, Exhaust, Front
2011-07 → 2014-06 ended
1KDFTV KUN26 LHD DCB +5 —
17401-0L110 note Pipe Assy, Exhaust, Front
2012-08 → 2015-12 ended
2KDFTV KUN25 LHD DCB +2 —
17401-0L110 note Pipe Assy, Exhaust, Front
2014-06 → 2015-12 ended
2KDFTV KUN25 THDCB DLX +1 —
17401-0L110 note Pipe Assy, Exhaust, Front
2011-07 → 2013-05 ended
2KDFTV KUN25 THDCB CBU —
17401-0L111 note Pipe Assy, Exhaust, Front
2013-05 → 2014-06 ended
2KDFTV KUN25 THDCB DLX +1 —
17401-0L111 note Pipe Assy, Exhaust, Front
2013-05 → 2015-12 ended
2KDFTV KUN25 THDCB CBU —
17401-0L111 note Pipe Assy, Exhaust, Front
2014-06 → 2015-12 ended
1KDFTV KUN26 LHD DCB +5 —
17410-0L040 note Pipe Assy, Exhaust, Front
2011-07 → 2015-12 ended
1KDFTV,2KDFTV KUN2#,35 —
17410B — Gasket, Exhaust Pipe
17451-0L010 note Gasket, Exhaust Pipe
2012-08 → 2015-12 ended
2KDFTV KUN25 LHD (DCB,THDCB) +2 —
17451-0L010 note Gasket, Exhaust Pipe
2011-07 → 2015-12 ended
1KDFTV KUN26 LHD DCB +5 —
17451-0L010 note Gasket, Exhaust Pipe
2012-08 → 2013-10 ended
2KDFTV KUN35 SCB DLX +1 —
17451-0L010 note Gasket, Exhaust Pipe
2012-08 → 2013-08 ended
2KDFTV KUN35 THSCB —
17420 — Pipe Assy, Exhaust, Center
17403-0L061 note Pipe Assy, Exhaust, Center
2011-07 → 2013-05 ended
2KDFTV KUN25 THDCB CBU —
17403-0L061 note Pipe Assy, Exhaust, Center
2012-08 → 2013-05 ended
2KDFTV KUN25 THDCB DLX +1 —
17403-0L061 note Pipe Assy, Exhaust, Center
2012-08 → 2013-08 ended
2KDFTV KUN35 THSCB —
17403-0L061 note Pipe Assy, Exhaust, Center
2012-08 → 2013-10 ended
2KDFTV KUN35 SCB DLX +1 —
17403-0L061 note Pipe Assy, Exhaust, Center
2011-07 → 2014-06 ended
1KDFTV KUN26 LHD DCB +5 —
17403-0L061 note Pipe Assy, Exhaust, Center
2012-08 → 2015-12 ended
2KDFTV KUN25 LHD DCB +2 —
17403-0L061 note Pipe Assy, Exhaust, Center
2014-06 → 2015-12 ended
2KDFTV KUN25 THDCB DLX +1 —
17403-0L063 note Pipe Assy, Exhaust, Center
2013-05 → 2014-06 ended
2KDFTV KUN25 THDCB DLX +1 —
17403-0L063 note Pipe Assy, Exhaust, Center
2013-05 → 2015-12 ended
2KDFTV KUN25 THDCB CBU —
17403-0L063 note Pipe Assy, Exhaust, Center
2014-06 → 2015-12 ended
1KDFTV KUN26 LHD DCB +5 —
17403-0L101 Pipe Assy, Exhaust, Center
2011-07 → 2013-04 ended
1KDFTV,2KDFTV KUN2#,35 THDCB,THSCB,XTR —
17403-0L101 Pipe Assy, Exhaust, Center
2011-07 → 2014-05 ended
1KDFTV,2KDFTV KUN2#,35 DCB,SCB —
17403-0L102 Pipe Assy, Exhaust, Center
2014-06 → 2015-12 ended
1KDFTV,2KDFTV KUN2#,35 DCB,SCB —
17403-0L102 Pipe Assy, Exhaust, Center
2013-05 → 2015-12 ended
1KDFTV,2KDFTV KUN2#,35 THDCB,THSCB,XTR —
17420X — Gasket, Exhaust Pipe, Center
90917-T6002 Gasket, Exhaust Pipe, Center
2011-07 → 2015-12 ended
1KDFTV,2KDFTV KUN2#,35 —
17430 — Pipe Assy, Exhaust, Tail
17405-0L111 note Pipe Assy, Exhaust, Tail
2011-07 → 2013-05 ended
2KDFTV KUN25 THDCB CBU —
17405-0L111 note Pipe Assy, Exhaust, Tail
2012-08 → 2013-05 ended
2KDFTV KUN25 THDCB DLX +1 —
17405-0L111 note Pipe Assy, Exhaust, Tail
2012-08 → 2013-08 ended
2KDFTV KUN35 THSCB —
17405-0L111 note Pipe Assy, Exhaust, Tail
2012-08 → 2013-10 ended
2KDFTV KUN35 SCB DLX +1 —
17405-0L111 note Pipe Assy, Exhaust, Tail
2014-06 → 2015-12 ended
2KDFTV KUN25 THDCB DLX +1 —
17405-0L111 note Pipe Assy, Exhaust, Tail
2011-07 → 2014-06 ended
1KDFTV KUN26 LHD DCB +5 —
17405-0L111 note Pipe Assy, Exhaust, Tail
2012-08 → 2015-12 ended
2KDFTV KUN25 LHD DCB +2 —
17405-0L112 note Pipe Assy, Exhaust, Tail
2014-06 → 2015-12 ended
1KDFTV KUN26 LHD DCB +5 —
17405-0L112 note Pipe Assy, Exhaust, Tail
2013-05 → 2015-12 ended
2KDFTV KUN25 THDCB CBU —
17405-0L112 note Pipe Assy, Exhaust, Tail
2013-05 → 2014-06 ended
2KDFTV KUN25 THDCB DLX +1 —
17405-0L141 Pipe Assy, Exhaust, Tail
2011-07 → 2014-05 ended
1KDFTV,2KDFTV KUN2#,35 DCB,SCB —
17405-0L141 Pipe Assy, Exhaust, Tail
2011-07 → 2013-04 ended
1KDFTV,2KDFTV KUN2#,35 THDCB,THSCB,XTR —
17405-0L143 Pipe Assy, Exhaust, Tail
2013-05 → 2015-12 ended
1KDFTV,2KDFTV KUN2#,35 THDCB,THSCB,XTR —
17405-0L143 Pipe Assy, Exhaust, Tail
2014-06 → 2015-12 ended
1KDFTV,2KDFTV KUN2#,35 DCB,SCB —
17451 — Gasket, Exhaust Pipe
17451-0C010 Gasket, Exhaust Pipe
2011-07 → 2015-12 ended
1KDFTV,2KDFTV KUN2#,35 —
90917-T6002 note Gasket, Exhaust Pipe
2011-07 → 2015-12 ended
1KDFTV KUN26 LHD DCB +5 —
90917-T6002 note Gasket, Exhaust Pipe
2012-08 → 2015-12 ended
2KDFTV KUN25 LHD (DCB,THDCB) +2 —
90917-T6002 note Gasket, Exhaust Pipe
2012-08 → 2013-10 ended
2KDFTV KUN35 SCB DLX +1 —
90917-T6002 note Gasket, Exhaust Pipe
2012-08 → 2013-08 ended
2KDFTV KUN35 THSCB —
17563A — Support, Exhaust Pipe, NO.3
17565-0M010 note Support, Exhaust Pipe, NO.3
2012-08 → 2013-08 ended
2KDFTV KUN35 THSCB —
17565-0M010 note Support, Exhaust Pipe, NO.3
2012-08 → 2013-10 ended
2KDFTV KUN35 SCB DLX +1 —
17565-0M010 note Support, Exhaust Pipe, NO.3
2011-07 → 2015-12 ended
1KDFTV KUN26 LHD DCB +5 —
17565-0M010 Support, Exhaust Pipe, NO.3
2011-07 → 2015-12 ended
1KDFTV,2KDFTV KUN2#,35 —
17565-0M010 note Support, Exhaust Pipe, NO.3
2012-08 → 2015-12 ended
2KDFTV KUN25 LHD (DCB,THDCB) +2 —
17565 — Support, Exhaust Pipe, NO.5
17565-0M010 Support, Exhaust Pipe, NO.5
2011-07 → 2015-12 ended
1KDFTV,2KDFTV KUN2#,35 —
17565A — Support, Exhaust Pipe, NO.4
17565-0M010 Support, Exhaust Pipe, NO.4
2011-07 → 2015-12 ended
1KDFTV,2KDFTV KUN2#,35 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
