Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

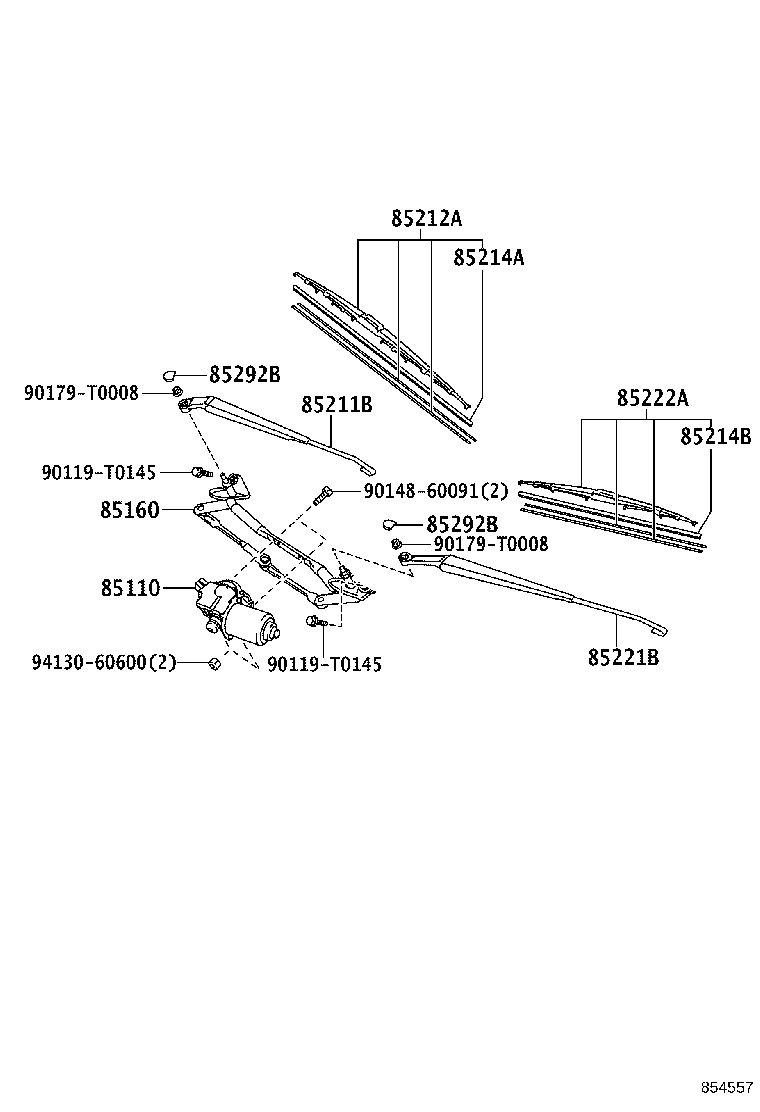

Exploded illustration 854557 9413060600 — not listed in this catalogue 9014860091 — not listed in this catalogue 85160 — LINK ASSY, WINDSHIELD WIPER (2 parts) 85110 — MOTOR ASSY, WINDSHIELD WIPER (2 parts) 85211B — ARM, FRONT WIPER, RH (2 parts) 85212A — BLADE, FR WIPER, RH (2 parts) 85214A — RUBBER, WIPER, RH (2 parts) 85214B — RUBBER, WIPER, LH (2 parts) 85221B — ARM, FRONT WIPER, LH (2 parts) 85222A — BLADE, FR WIPER, LH (2 parts) 85292B — CAP, FRONT WIPER ARM HEAD (1 parts) 85292B — CAP, FRONT WIPER ARM HEAD (1 parts) 90119T0145 — not listed in this catalogue 90119T0145 — not listed in this catalogue 90179T0008 — not listed in this catalogue 90179T0008 — not listed in this catalogue
854557 · 10 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
85110 — Motor Assy, Windshield Wiper
85110-0K051 Motor Assy, Windshield Wiper
2011-07 → 2015-12 ended
KUN2# RHD —
85110-0K061 Motor Assy, Windshield Wiper
2011-07 → 2015-12 ended
KUN2#,35 LHD —
85160 — Link Assy, Windshield Wiper
85150-0K051 Link Assy, Windshield Wiper
2011-07 → 2015-12 ended
KUN2# RHD —
85150-0K061 Link Assy, Windshield Wiper
2011-07 → 2015-12 ended
KUN2#,35 LHD —
85211B — Arm, Front Wiper, RH
85211-0K020 Arm, Front Wiper, RH
2011-07 → 2015-12 ended
KUN2#,35 LHD —
85211-0K030 Arm, Front Wiper, RH
2011-07 → 2015-12 ended
KUN2# RHD —
85212A — Blade, FR Wiper, RH
85212-0K020 Blade, FR Wiper, RH
2011-07 → 2015-12 ended
KUN2#,35 LHD —
85212-0K031 Blade, FR Wiper, RH
2011-07 → 2015-12 ended
KUN2# RHD —
85214A — Rubber, Wiper, RH
85214-0K040 Rubber, Wiper, RH
2011-07 → 2015-12 ended
KUN2#,35 LHD —
85214-0K051 Rubber, Wiper, RH
2011-07 → 2015-12 ended
KUN2# RHD —
85214B — Rubber, Wiper, LH
85214-0K040 Rubber, Wiper, LH
2011-07 → 2015-12 ended
KUN2# RHD —
85214-0K051 Rubber, Wiper, LH
2011-07 → 2015-12 ended
KUN2#,35 LHD —
85221B — Arm, Front Wiper, LH
85221-0K010 Arm, Front Wiper, LH
2011-07 → 2015-12 ended
KUN2# RHD —
85221-0K030 Arm, Front Wiper, LH
2011-07 → 2015-12 ended
KUN2#,35 LHD —
85222A — Blade, FR Wiper, LH
85222-0K010 Blade, FR Wiper, LH
2011-07 → 2015-12 ended
KUN2# RHD —
85222-0K031 Blade, FR Wiper, LH
2011-07 → 2015-12 ended
KUN2#,35 LHD —
85292B — Cap, Front Wiper Arm Head
85292-0K030 Cap, Front Wiper Arm Head
2011-07 → 2015-12 ended
KUN2#,35 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
